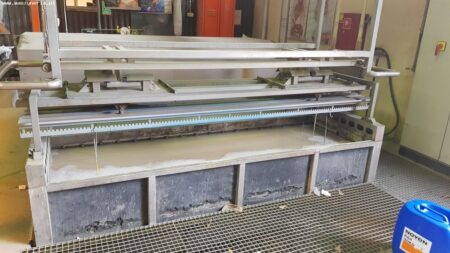

GT85 GT 2000-3P ultrasonic cleaner

The GT85 GT 2000-3P ultrasonic cleaner was manufactured in 2008. The machine consists of three bathtubs – the first bath is used for washing and phosphating, the second bath is used for rinsing and the third bath dries the product. The washing bath of the machine is made of 316L acid-resistant steel, and the other two baths are made of 304 stainless steel. The washing machine allows for washing products with a maximum volume of 250 dm3 and 500 kg. The total weight of the machine is 2500 kg.

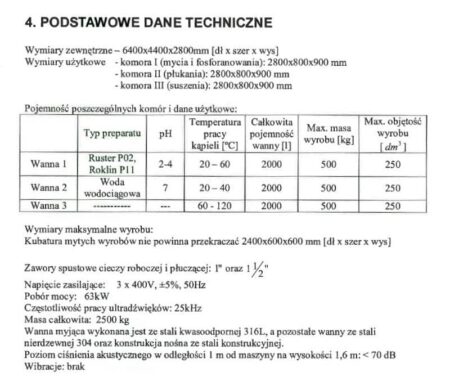

Specification of ultrasonic cleaner GT85 GT 2000-3P

• external dimensions (L x W x H): 6400 x 4400 x 2800 mm
• power consumption: 63 kW
• total weight of ultrasonic cleaner GT85 GT 2000-3P: 2500 kg

Bath 1

• usable dimensions of chamber I (washing and phosphating): 2800 x 800 x 900 mm
• type of preparation: Ruster P02, Roklin P11
• pH: 2-4
• bath operating temperature: 20-60 degrees C
• total volume of the bath: 2000 l
• maximum weight of product: 500 kg
• maximum volume of product: 250 dm3

Bath 2

• useable dimensions of chamber II (rinsing): 2800 x 800 x 900 mm
• type of preparation: tap water
• pH: 7
• bath operating temperature: 20-40 degrees C
• total volume of the bath: 2000 l
• maximum weight of product: 500 kg
• maximum volume of product: 250 dm3

Bath 3

• usable dimensions of chamber III (drying): 2800 x 800 x 900 mm
• bath operating temperature: 60-120 degrees C
• total volume of the bath: 2000 l
• maximum weight of product: 500 kg
• maximum volume of product: 250 dm3
