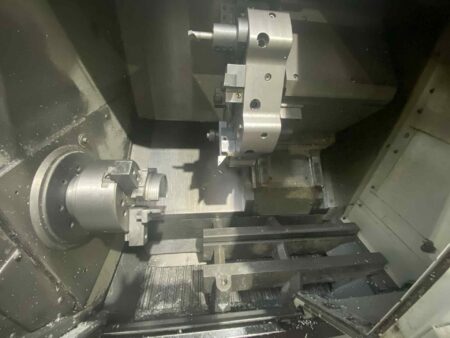

HAAS ST-10 CNC turning center

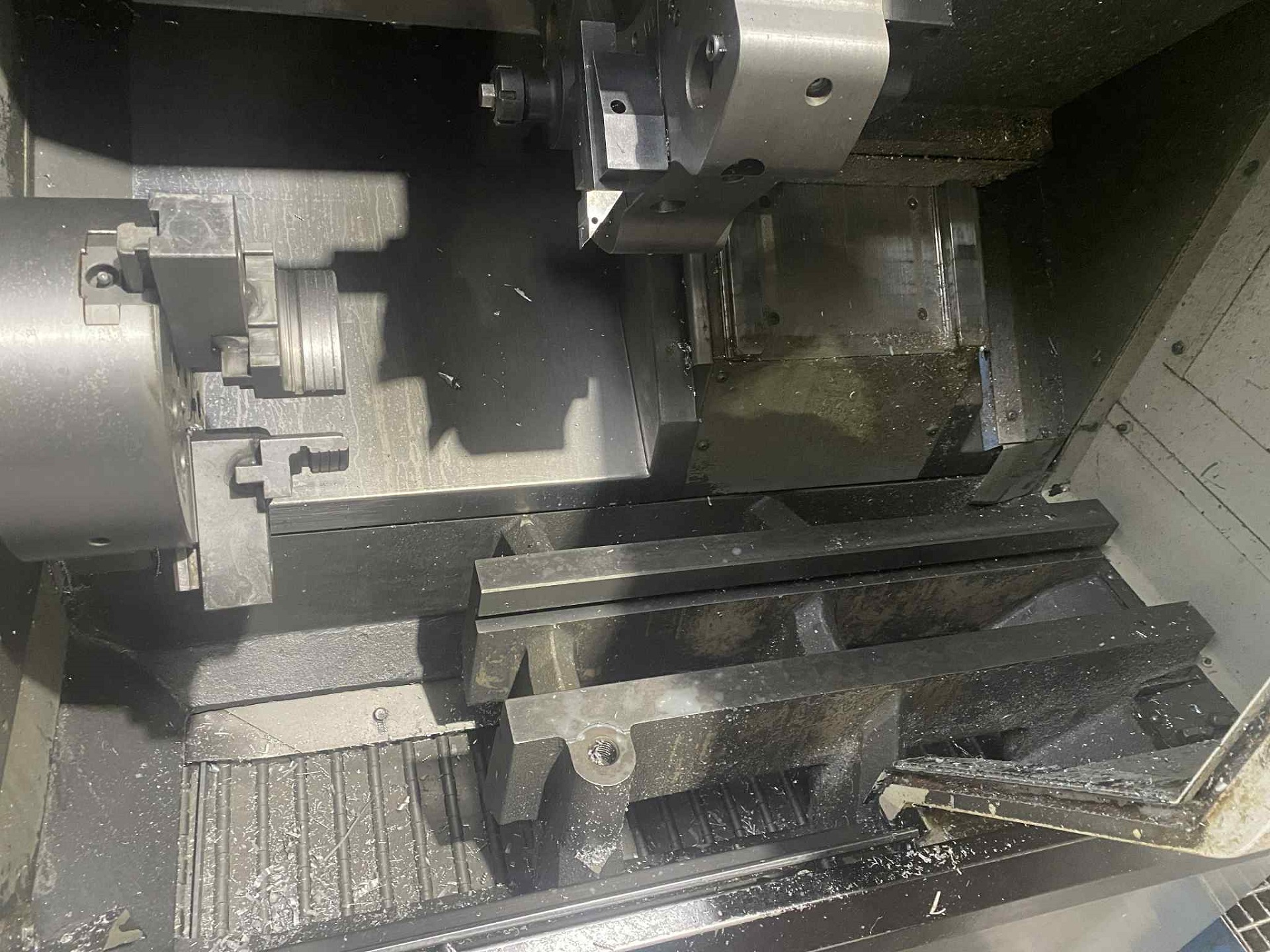

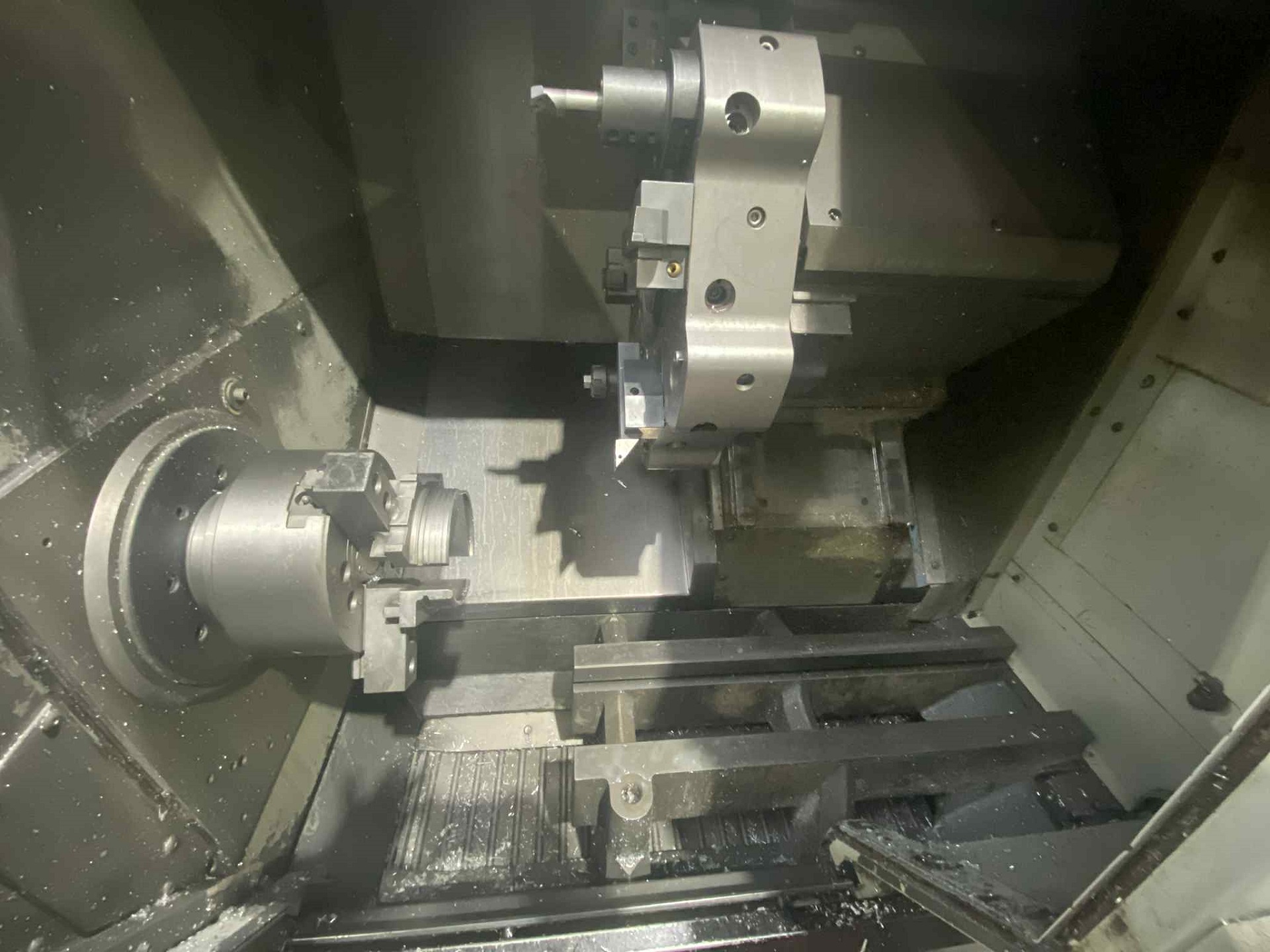

HAAS ST-10 CNC turning center was built in 2015 in the United States by HAAS AUTOMATION, INC. The machine, distinguished by its compact design and increased production cycle efficiency, is an excellent choice for both unit and series production. Workpieces with a maximum diameter of 356 mm are machined inside a large work space by means of a high-speed spindle and precision cutting tools taken from a 12-position turret. All this is complemented by intuitive CNC control with many useful functions. The HAAS ST10 CNC lathe weighs approximately 3600 kg.

Technical specifications of the HAAS ST-10 metal lathe

• CNC controller: HAAS
• maximum turning diameter: 356 mm
• maximum turning length: 356 mm
• bar diameter: 44 mm
• swing over tailstock: 597 mm
• swing over cross slide: 413 mm
• feed in the X/Z axis: 200/356 mm
• rapid traverse in the X,Z axes: 30.5 m/min
• maximum spindle rotational speed: 6000 rpm
• spindle bore diameter: 58.7 mm
• spindle nose: A2-5
• spindle drive power: 11.2 kW
• maximum spindle torque (at 1300 rpm): 102 Nm

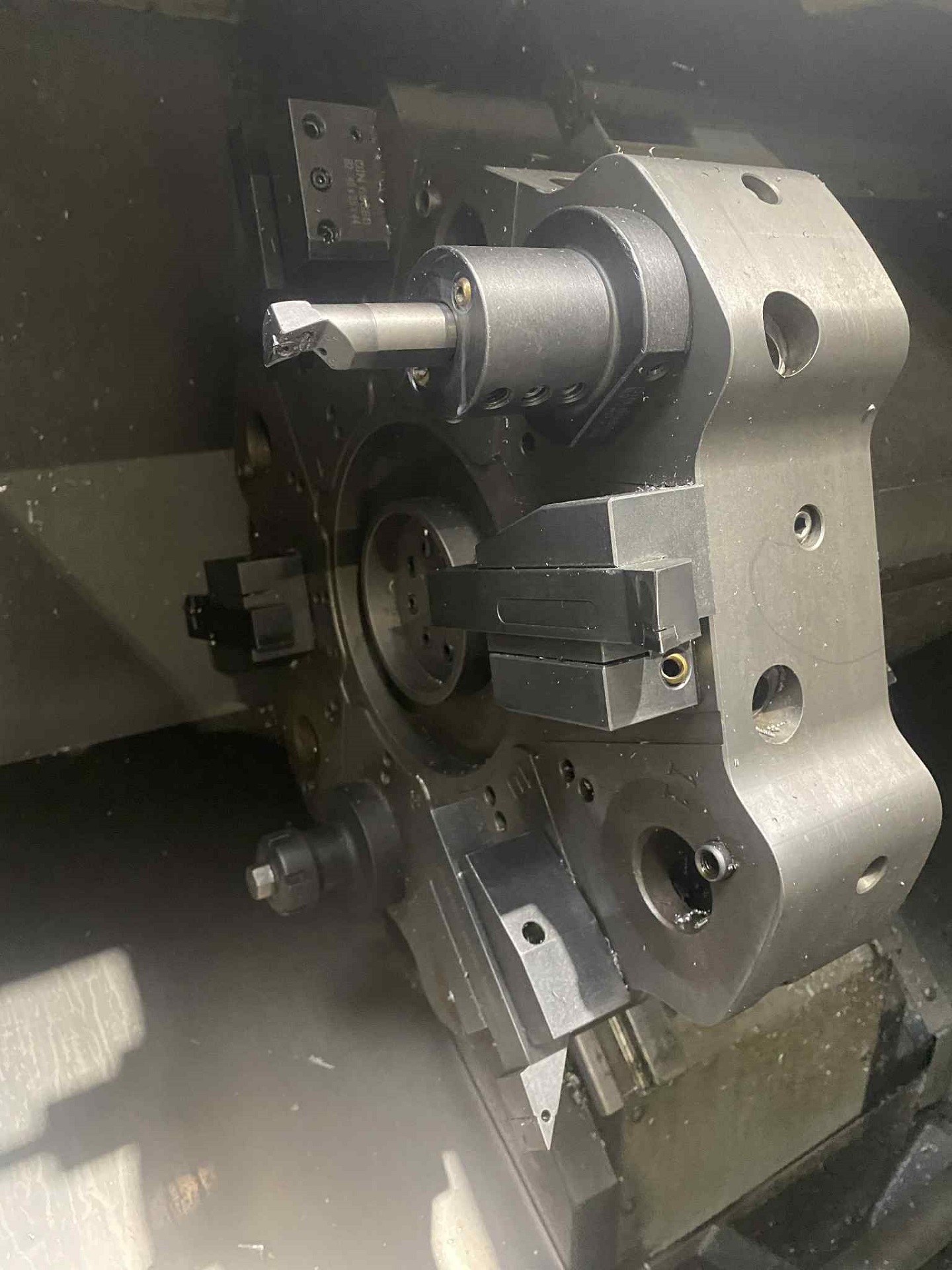

• 12-position turret

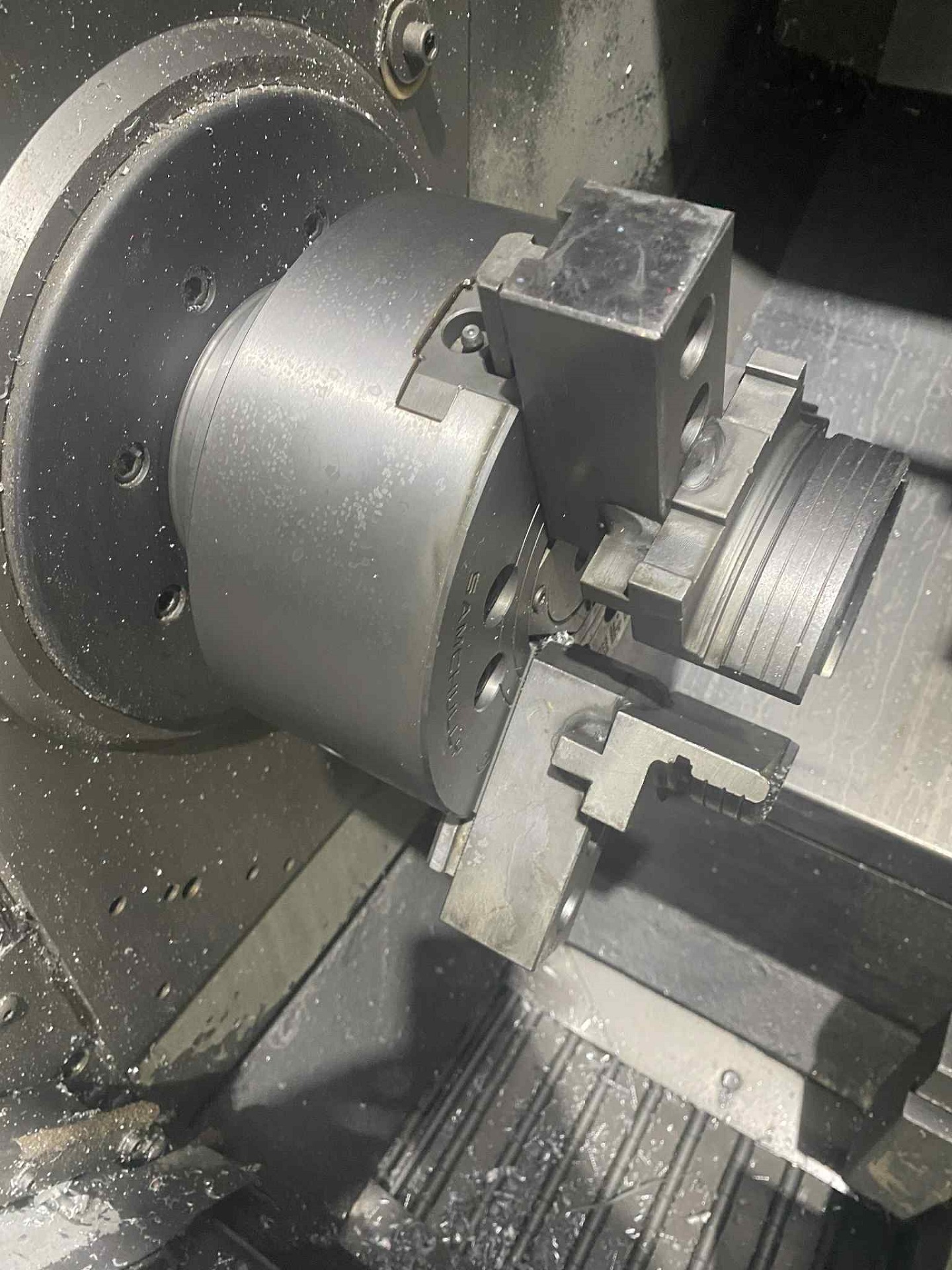

• lathe chuck diameter: 165 mm
• power supply: 3x 354-488 V; 50/60 Hz
• dimensions (L x W x H): 3200 x 2108 x 1803 mm
• weight of the HAAS ST-10 machine: approx. 3600 kg

(The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
