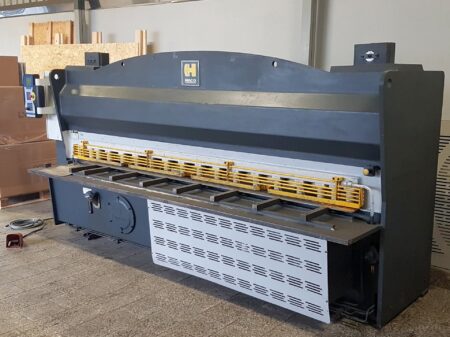

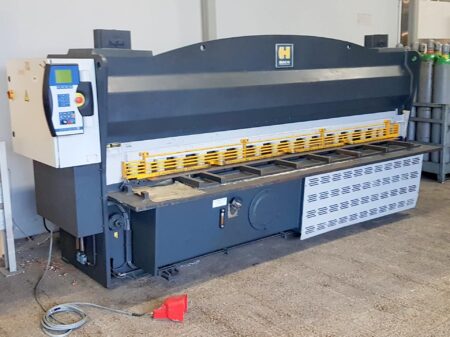

HACO HSLX 3008 CNC hydraulic guillotine shears

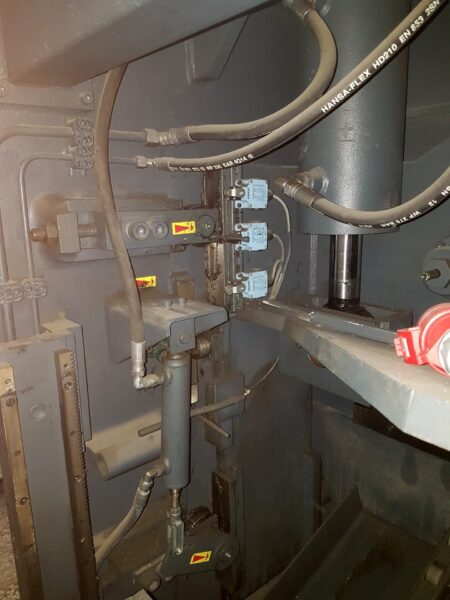

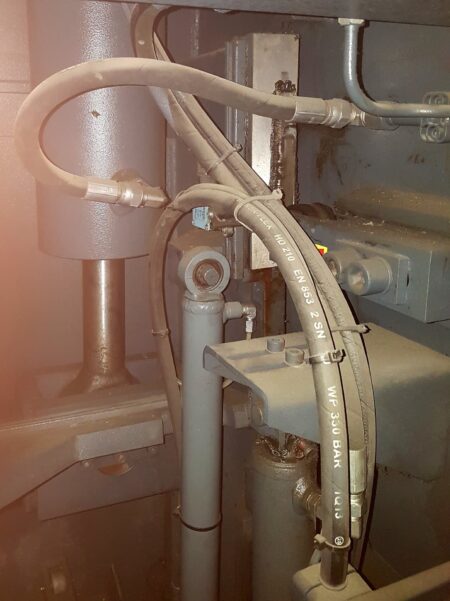

HACO HSLX 3008 CNC hydraulic guillotine shears were manufactured in 2015 in Belgium. The machine uses high-quality cutting knives with angle adjustment from 0.5 to 3° for precise cutting of workpieces with a maximum thickness of 8 mm and a length of 3000 mm. The gap between the blades is set automatically by two hydraulic cylinders.

The HACO HSLX-3008 guillotine shears are offered with an advanced HACO SC90 CNC controller located on the body of the machine, a foot control pedal and 18 hold-downs to hold the sheet metal during processing. The total weight of the guillotine is 6500 kg.

Technical specifications of the HACO HSLX 3008 guillotine shears

• maximum sheet length: 3000 mm
• maximum sheet thickness: 8 mm
• cutting angle adjustment: 0.5-3°
• number of strokes at maximum cutting angle: 10/min
• number of strokes at minimum cutting angle: 23/min

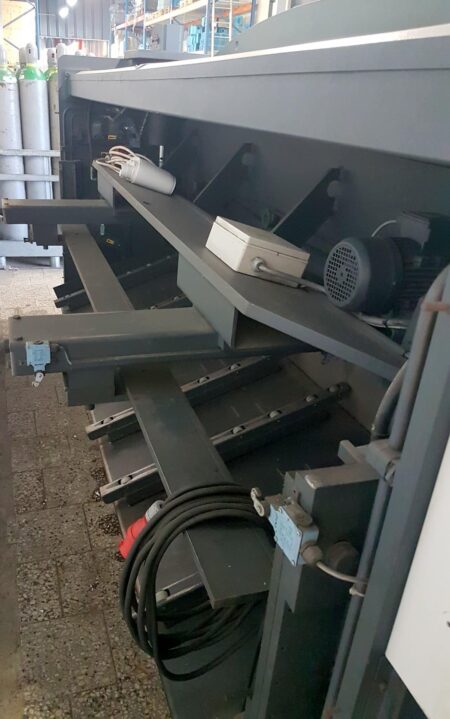

• back gauge stroke: 750 mm
• working height: 700 mm
• main motor power: 11 kW
• maximum operating pressure: 260 bar
• noise level: 65 dB (A)
• dimensions (L x W x H): 3850 x 1900 x 1900 mm
• HSLX 3008 machine weight: 6500 kg

Equipment of the guillotine

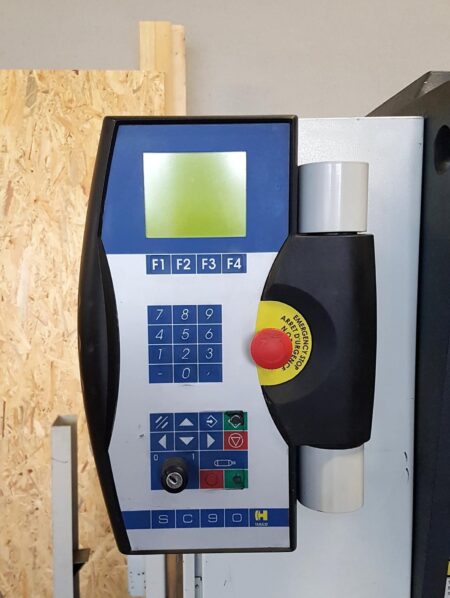

• CNC controller: HACO SC90
• electrohydraulic adjustment of the cutting angle and the gap between the knives
• foot control pedal
• sheet hold-downs (18 pcs)
