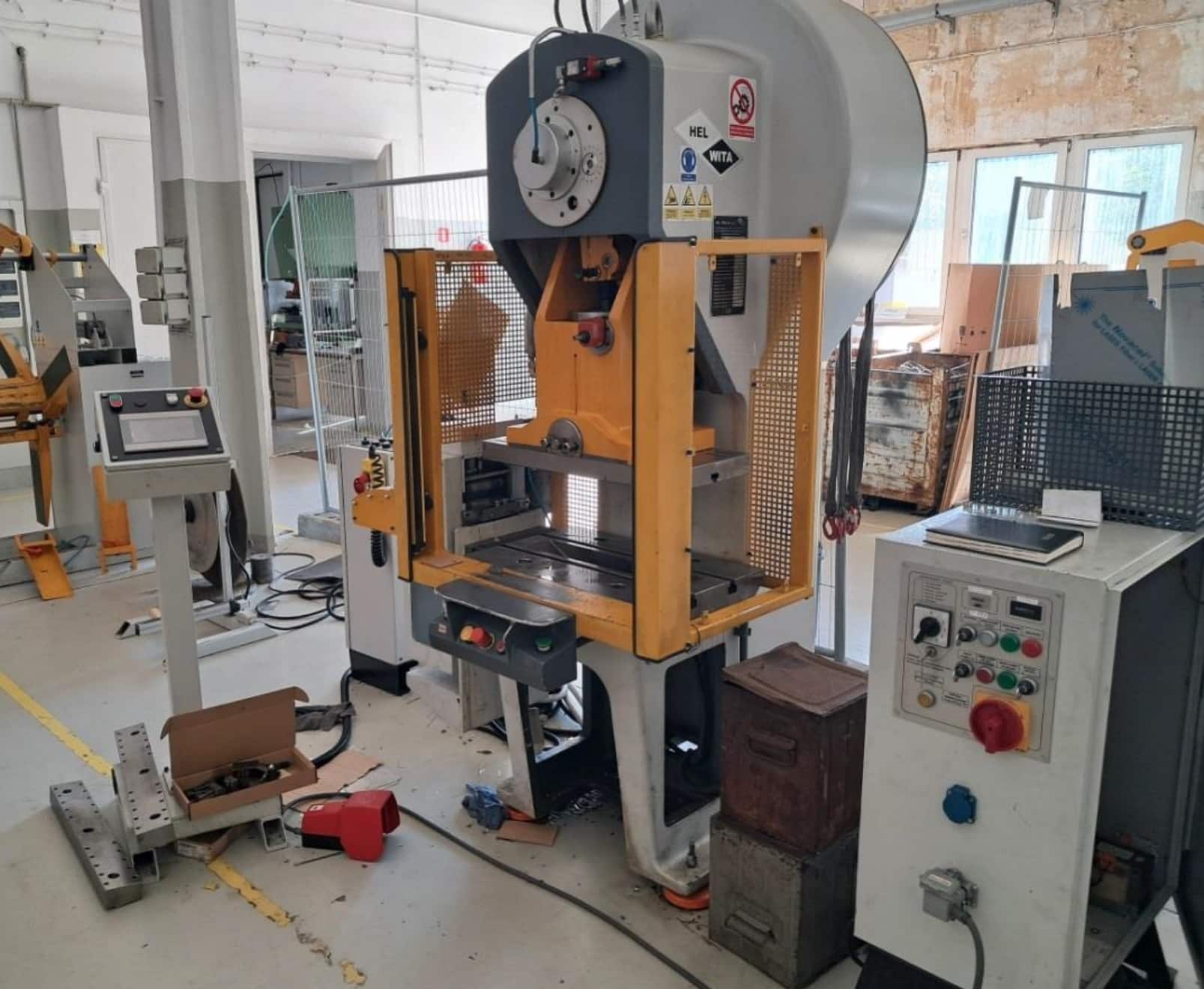

HEL-WITA EN 40 eccentric press

HEL-WITA EN 40 eccentric press was built in 2014 in Poland by HEL-WITA Sp. z o.o. The machine, which is distinguished by a high press force of 40 tonnes, is used for precision stamping and punching of workpieces. The included equipment, in the form of a roller feeder and a sheet metal decoiler, enables all machining processes to be fully automated. All of this makes the HEL-WITA automatic press the perfect choice for series production of highly repeatable and precise parts. The machine has worked very little throughout its operation. The total weight of the machine is 2800 kg.

Technical specifications of the HEL-WITA EN 40 press

• maximum press force: 40 t (400 kN)

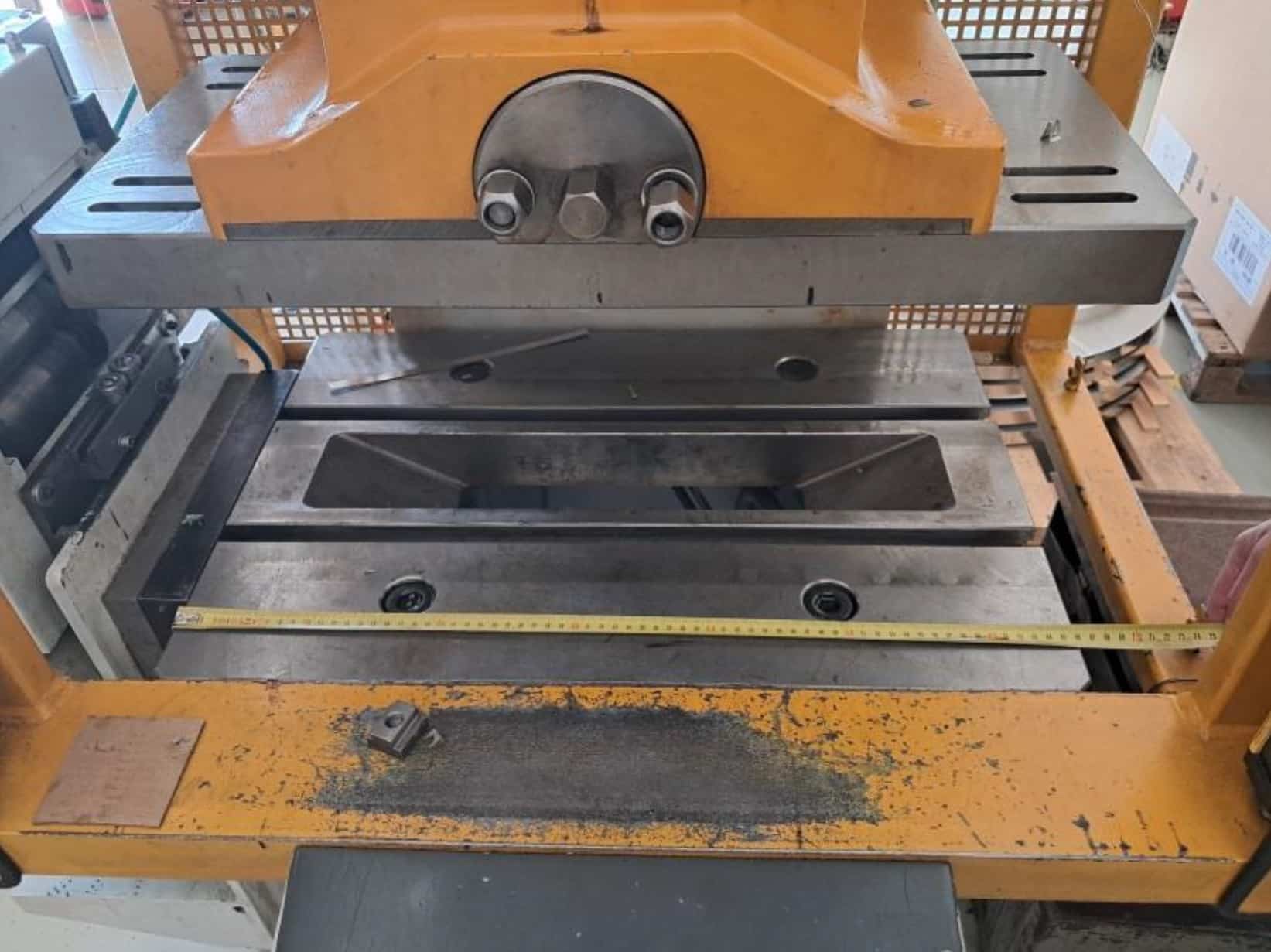

• work table dimensions (L x W): 660 x 450 mm
• slider stroke number (automatic mode): 120/min
• slider adjustment: 75 mm
• maximum slider stroke length: 90 mm
• minimum slider stroke length: 8 mm
• slider dimensions (L x W): 660 x 300 mm
• maximum tool weight: 80 kg
• roller feeder
• sheet metal decoiler
• maximum flywheel speed: 120 rpm
• direction of flywheel rotation: according to the arrow on the motor
• maximum number of clutch engagements: 40/min
• closing height: 275 mm
• pneumatic system pressure: 0,6 MPa
• power supply: 400 V; 50 Hz
• weight of the HEL-WITA EN40 machine: 2800 kg
