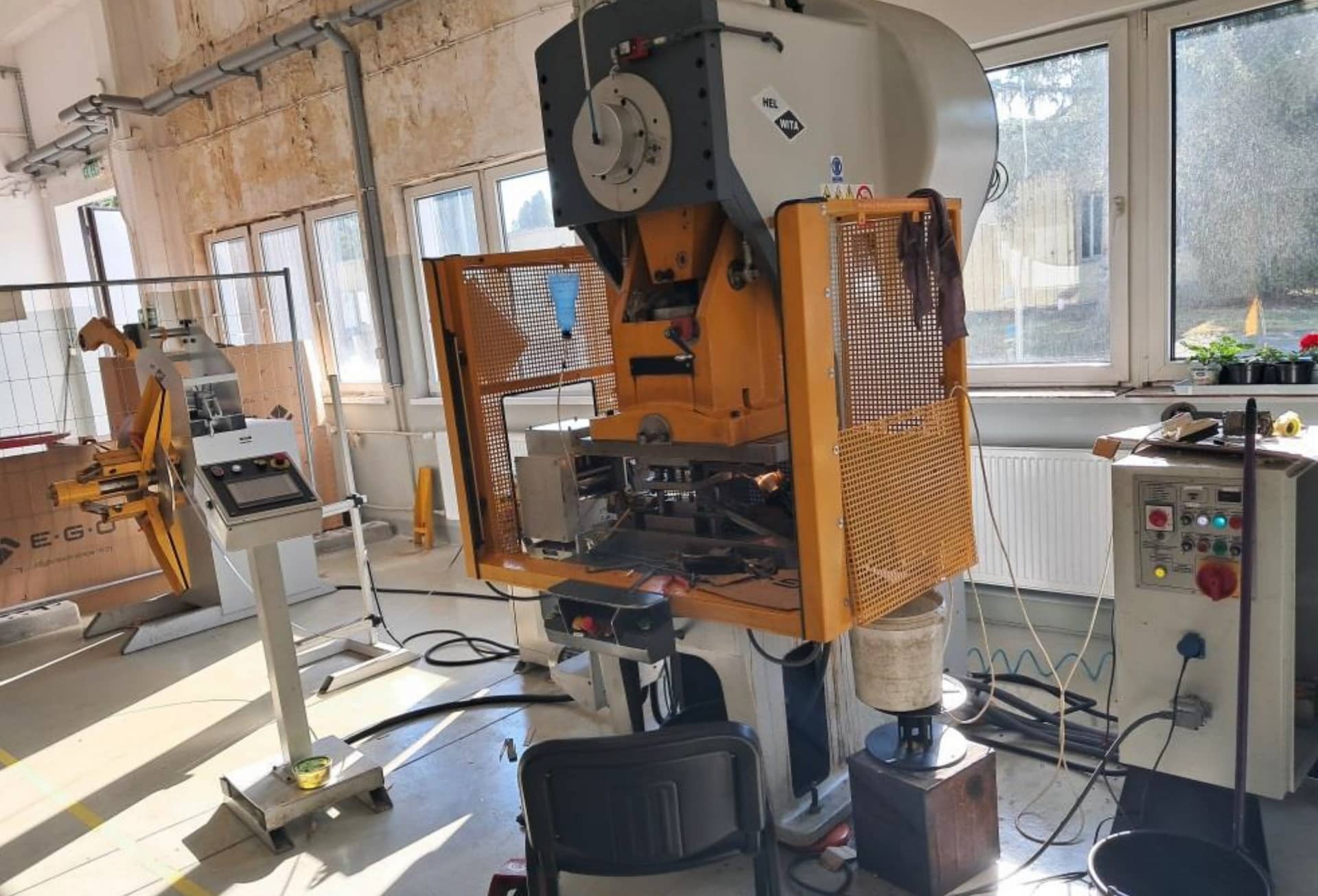

HEL-WITA EN 63 eccentric press

HEL-WITA EN 63 eccentric press was built in 2014 in Poland by HEL-WITA Sp. z o.o. The machine designed for precision stamping and punching of workpieces is an excellent choice for series production. All this is due to the combination of a high press force of 63 tonnes with a rigid structure, which guarantees the achievement of high repeatability of the manufactured parts. The offer also includes equipment consisting of a roller feeder and a sheet metal decoiler. Throughout its entire operation, the HEL-WITA automatic press has been working very little. The total weight of the machine is 5000 kg.

Technical specifications of the HEL-WITA EN 63 press

• maximum press force: 63 t (630 kN)
• work table dimensions (L x W): 750 x 660 mm
• additional work table dimensions (L x W): 1100 x 590 mm
• slider stroke number (automatic mode): 110/min
• slider adjustment: 75 mm
• maximum slider stroke length: 70 mm
• minimum slider stroke length: 8 mm
• slider dimensions (L x W): 750 x 300 mm
• total tool weight: 180 kg
• roller feeder
• sheet metal decoiler
• maximum flywheel speed: 110 rpm
• direction of flywheel rotation: according to the arrow on the motor
• maximum number of clutch engagements: 40/min
• closing height: 345 mm
• safety distance: 175 mm
• pneumatic system pressure: 0,6 MPa
• power supply: 400 V; 50 Hz
• weight of the HEL-WITA EN63 machine: 5000 kg
