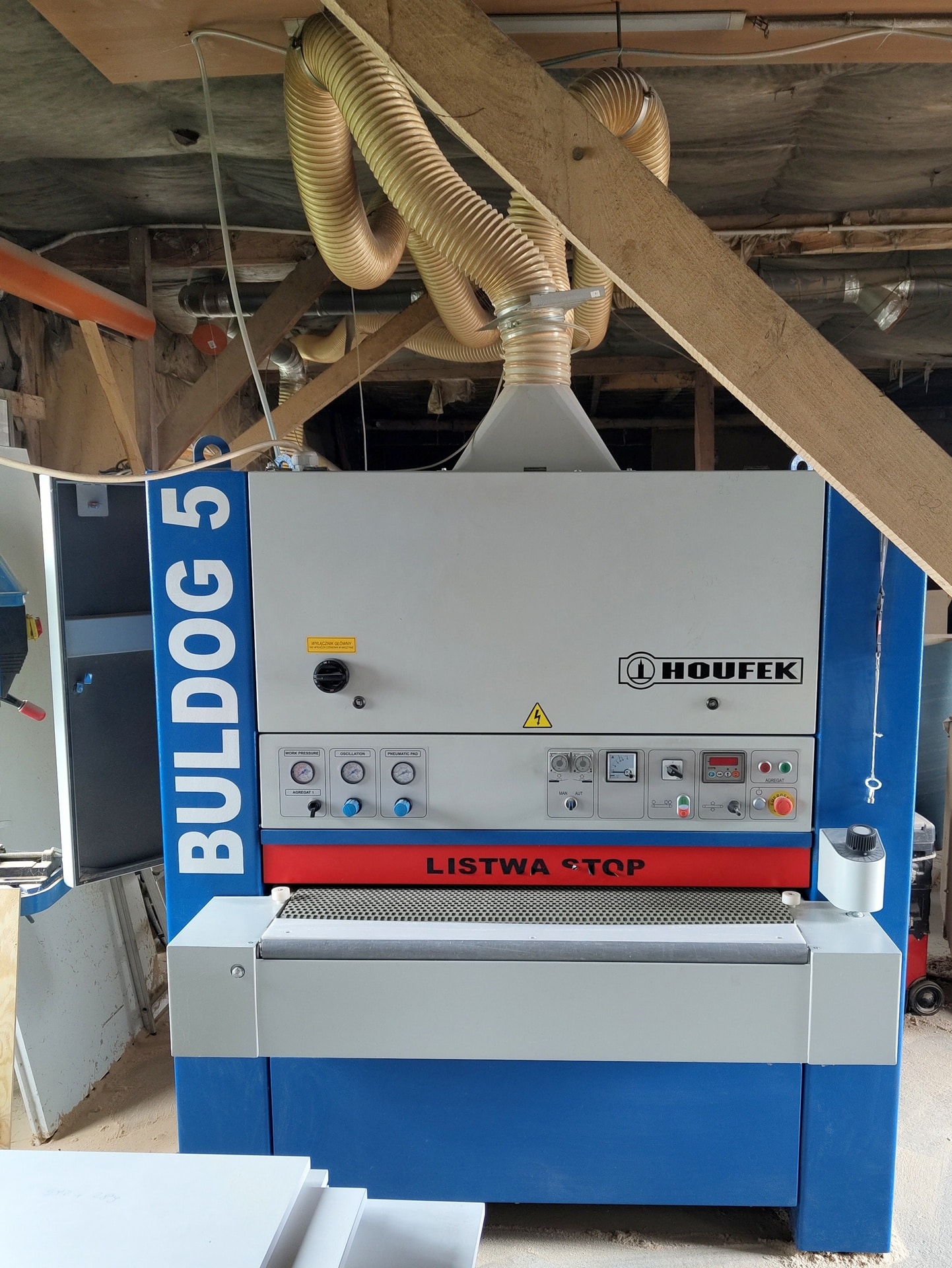

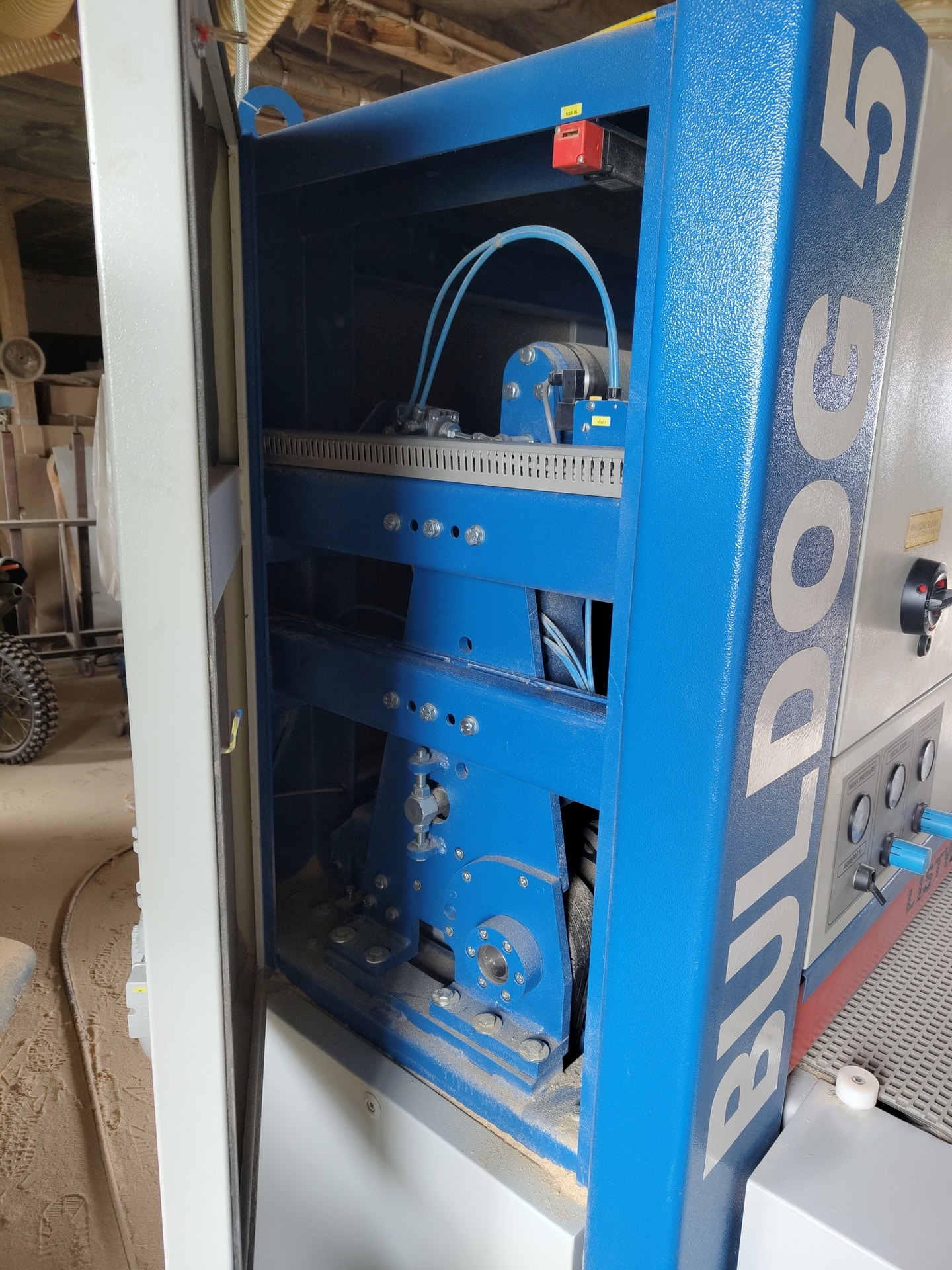

HOUFEK SPB 1100 BULDOG 5 wide belt sander

HOUFEK SPB 1100 BULDOG 5 wide belt sander built in 2019 in the Czech Republic is used in small or medium-sized factories to sand among others solid wood, veneered surfaces and MDF panels. The reliable machine with its modular design and compact size machines workpieces placed in the workspace with a maximum width of 1100 mm using a fast and reliable sanding belt, guaranteeing excellent results. The HOUFEK BULDOG 5 SPB 1100 wide belt sanding machine for wood weighs 1390 kg.

Technical data of the wide belt sander HOUFEK SPB 1100 BULDOG 5

• machined materials: wood, wood-based composites, MDF panels, veneered surfaces, lacquered surfaces
• working width: 1100 mm

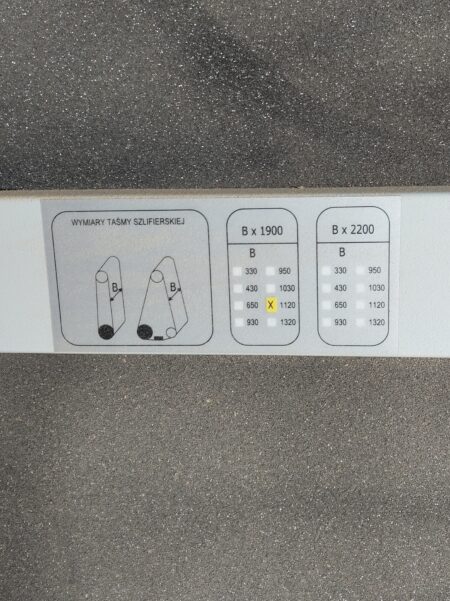

• sanding belt size (L x W): 1900 x 1120 mm
• infeed belt size (L x W): 2400 x 1120 mm
• sanding belt speed: 18 m/s
• maximum infeed belt working speed: 9 m/min
• minimum infeed belt working speed: 4.5 m/min
• infeed belt centring
• grinding shaft type: 90 Sh
• working cylinder diameter: 160 mm
• belt granulation: 80
• extraction diameter: 2x 150 mm
• extraction power: 2500 m3/h
• compressed air requirement: 15 l/min
• working pressure: 5.5 bar
• main motor power: 12 kW
• main motor speed: 2820 rpm
• sanding belt motor power: 11 kW
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 1500 x 1700 x 1950 mm
• weight of machine HOUFEK BULDOG 5: 1390 kg
