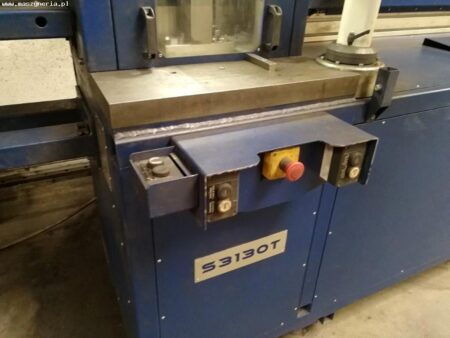

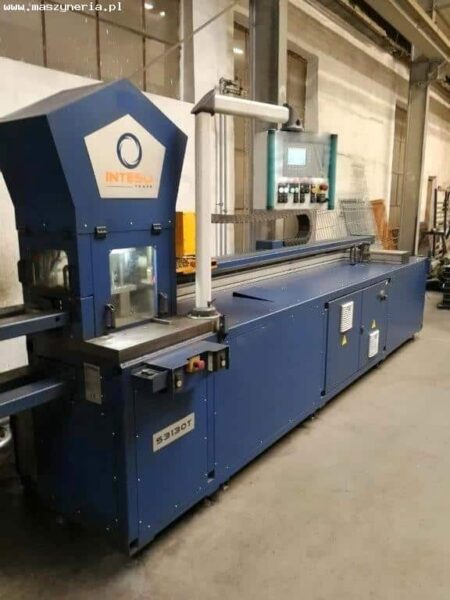

INTESO S3130T profile perforating machine

The INTESO S3130T profile perforating machine was built in 2011 in the Czech Republic. The machine allows perforation of profiles of various shapes with a maximum length of 3000 mm. The hydraulic press located in the line has a pressure of 15 tons. The machine is equipped among others with a SIEMENS control panel, stamps and matrices.

Technical data of the INTESO S3130T profiling machine

• maximum profile length: 3000 mm
• maximum cross-section of perforated profiles: 120 x 80 mm ; fi 80 mm

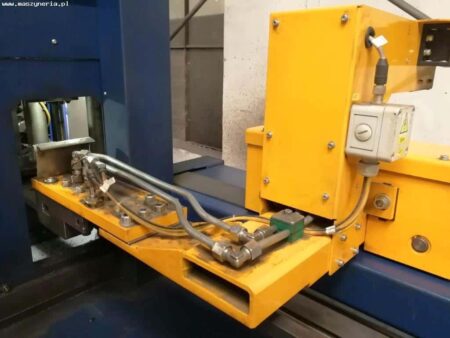

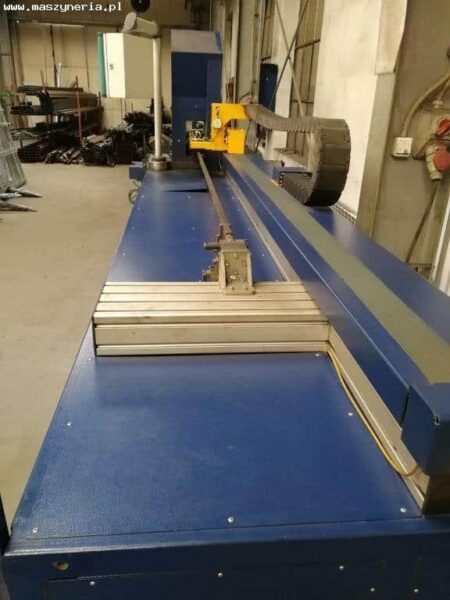

• automatic feed with linear drive
• optical sensor for automatic control of the correct workpiece length
• linear positioning of the stroke of the hydraulic cylinder
• deformation-free perforation technology
• possibility to perforate profiles of different shapes
• memory of perforation programs
• double-sided (in one operation) and one-sided perforation
• automatic lubrication
• maximum force of the hydraulic press in the INTESO S3130T line: 147 kN (15 tons)

Equipment of the S3130T profile perforation line

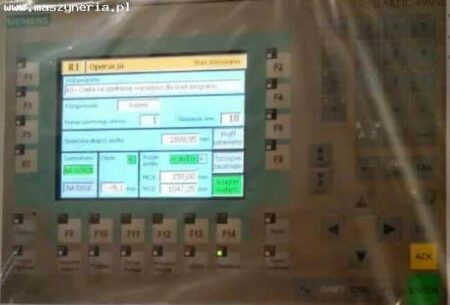

• screen control panel: SIEMENS

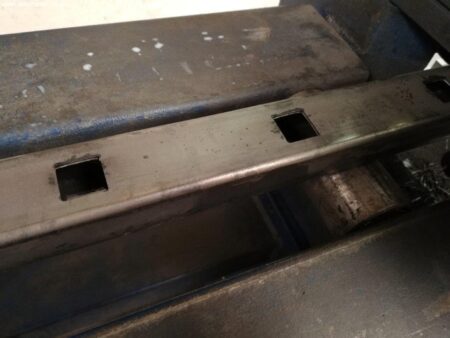

• perforated profiles: 40 x 27 x 2 ; 30 x 30 x 2,0

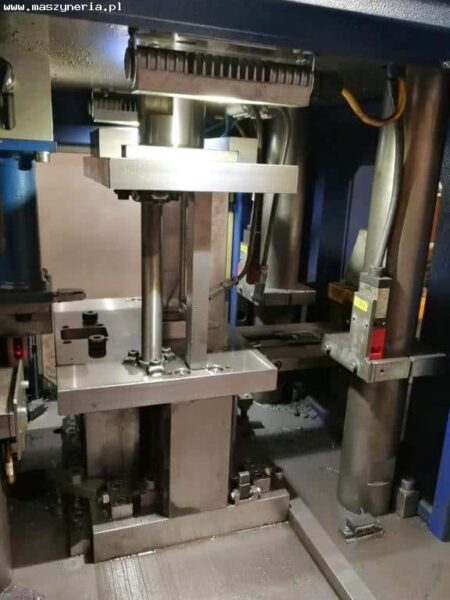

• stamps and matrices: fi 18 mm ; 18 x 18 upper matrix, lower matrix
