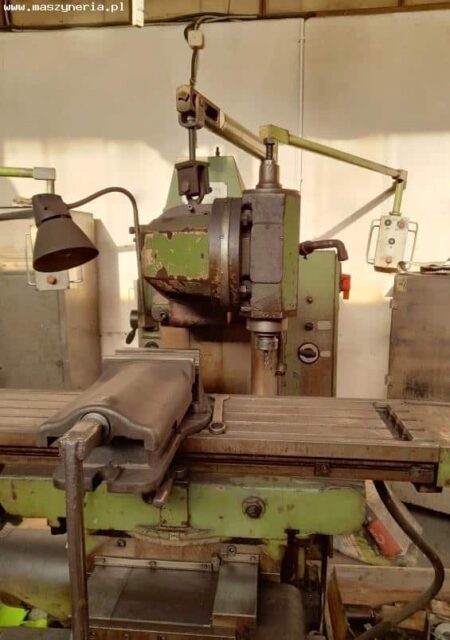

JAFO FWF 32 universal milling machine

JAFO FWF 32 universal milling machine was built in 1989 in Poland by Jarocińska Fabryka Obrabiarek JAFO S.A.. The machine designed for precision machining of workpieces is distinguished by its high functionality, versatility and reliability. Its sturdy cast iron body is equipped with, among others, an extendable beam and a large work table. The vertical torsion spindle, on the other hand, allows the use of a whole range of modern tools, making the machine the ideal choice for both unit and series production. The JAFO vertical milling machine weighs 2280 kg.

Technical specifications of the JAFO FWF 32 milling machine

• work table dimensions (L x W): 1300 x 320 mm
• distance between spindle end and work table: 430 mm

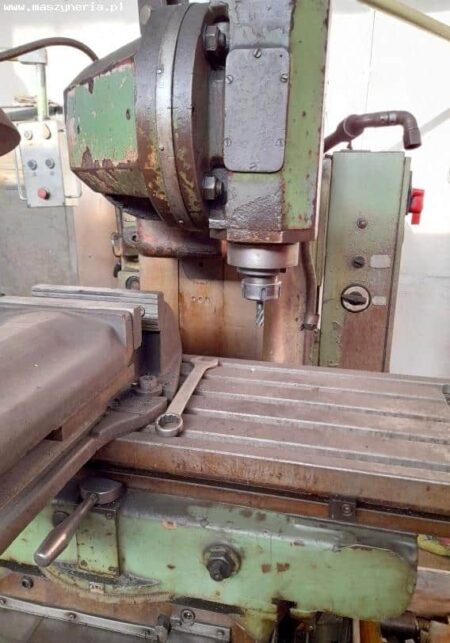

• vertical torsion spindle
• horizontal spindle
• spindle taper: ISO 40
• extendable bar
• arm for removing vertical spindle
• installed power: 7.1 kW
• power supply: 3x 380 V; 50 Hz
• weight of the JAFO FWF32 machine: 2280 kg
