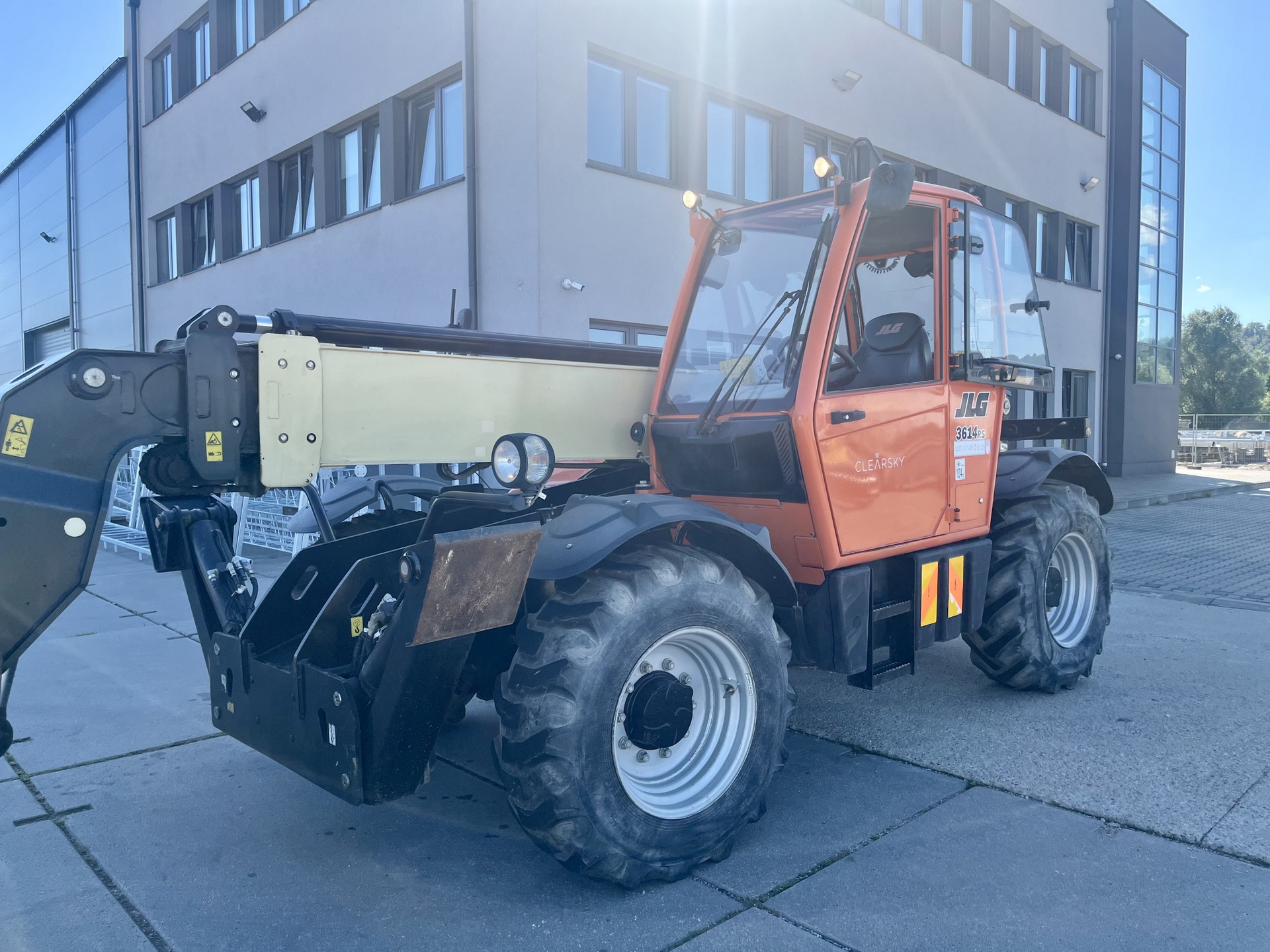

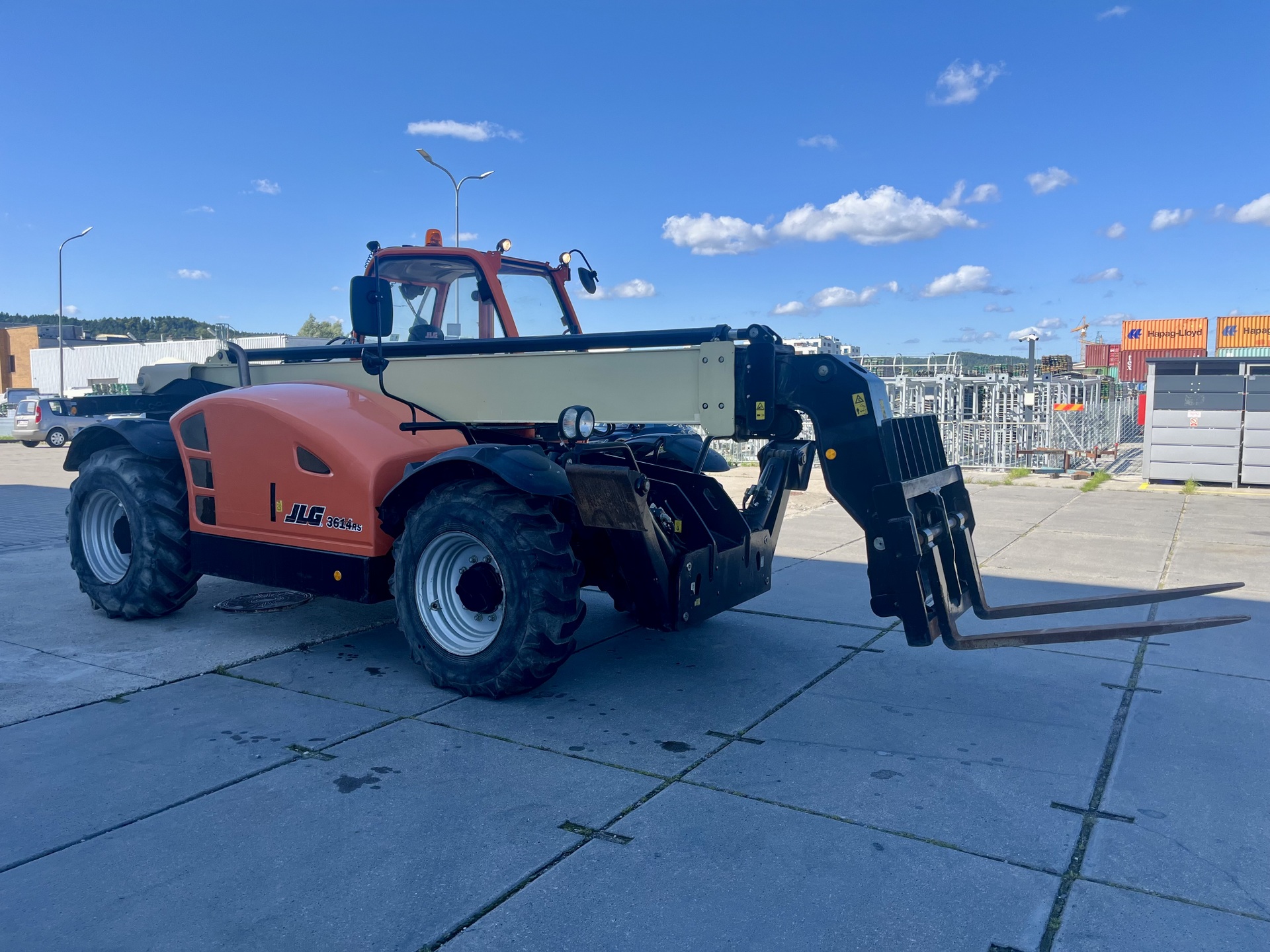

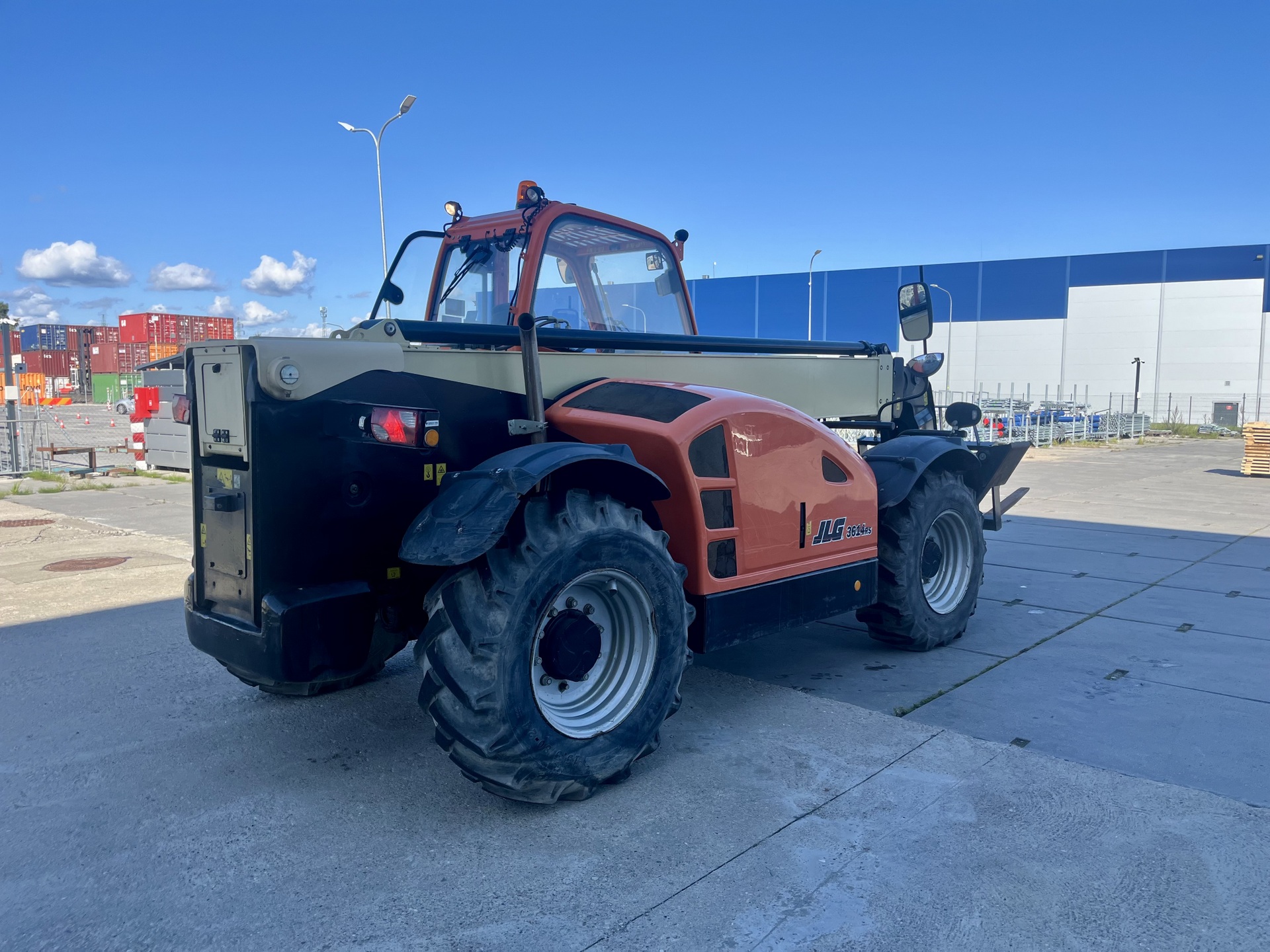

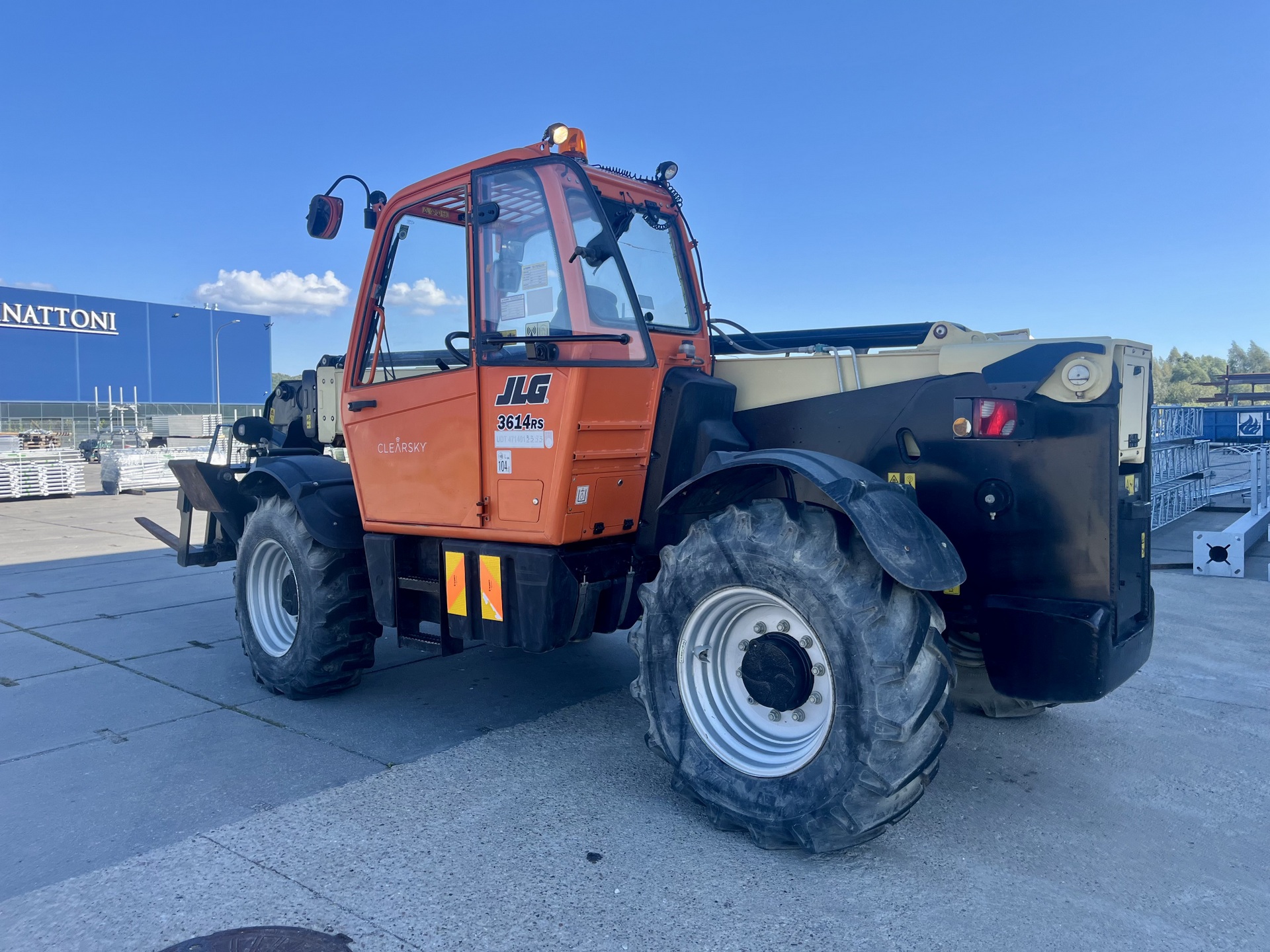

JLG 3614 RS telehandler

JLG 3614 RS telehandler was manufactured in 2020 by the European division of the American brand JLG Industries, Inc. The 14-metre lifting height and high lifting capacity make it an indispensable vehicle on e.g. construction sites or farms. Its advanced manoeuvrability and adaptability to a variety of tasks significantly speeds up the performed work in all conditions, even on the most unfavourable terrain. To date, the machine has been used for just 4147 hours and has a current UDT inspection. The JLG 3614RS telescopic handler weighs 9880 kg.

Technical specifications of the JLG 3614 RS telehandler

• maximum lift capacity: 3600 kg

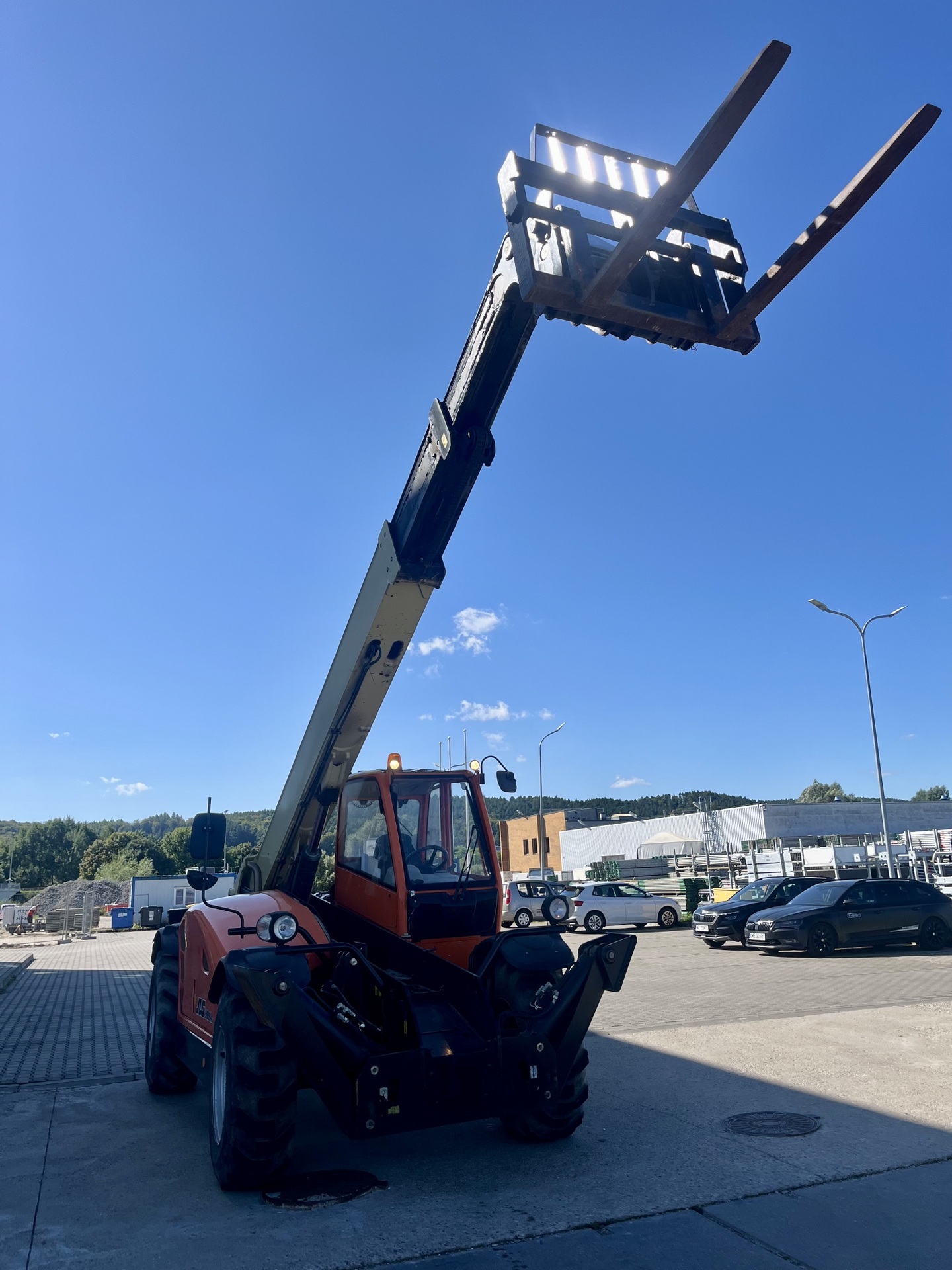

• maximum lift height: 14 m

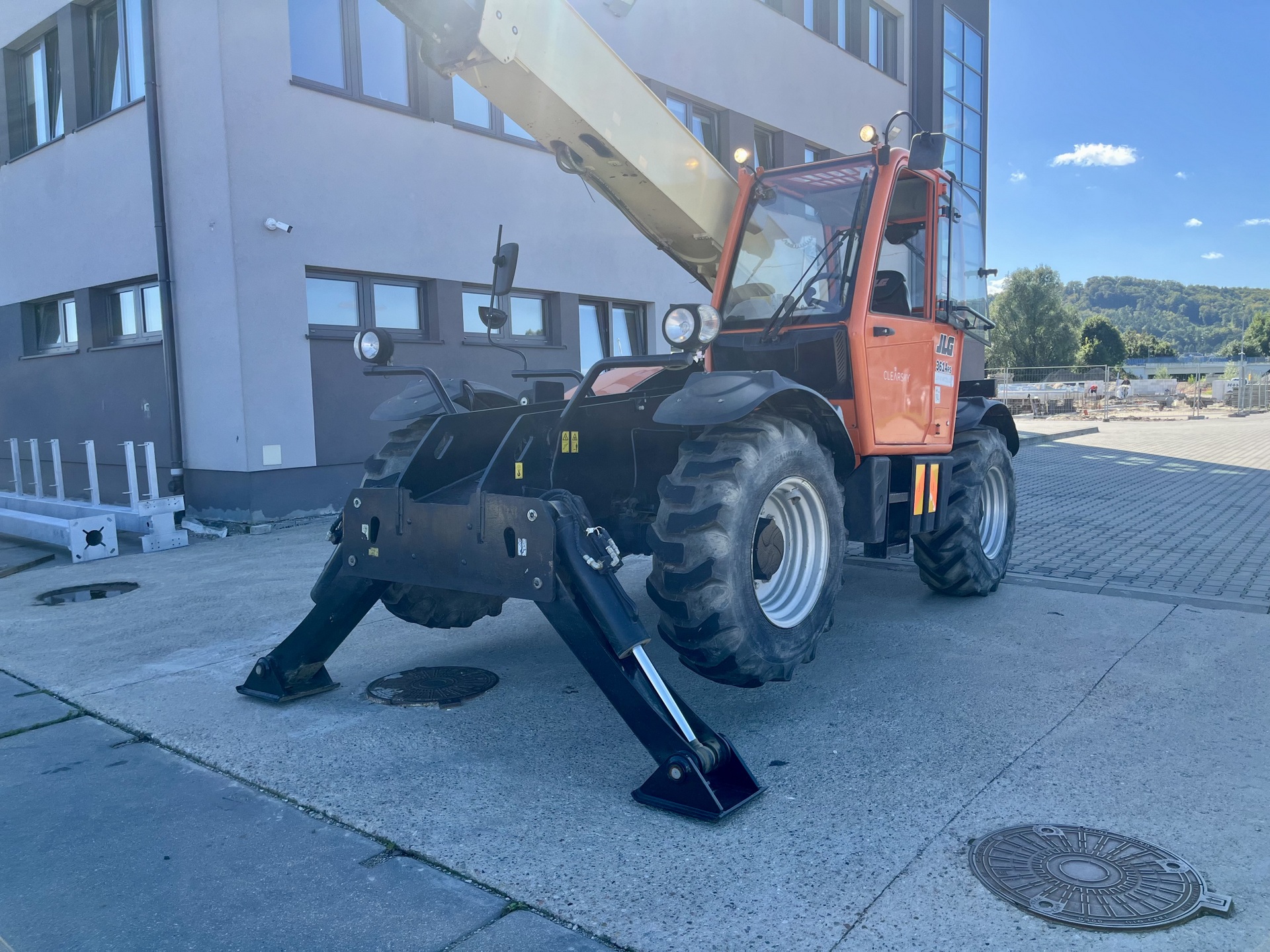

• capacity at maximum height (outriggers engaged): 3000 kg
• capacity at maximum height (outriggers not engaged): 1500 kg
• maximum forward reach: 9,5 m
• capacity at maximum forward reach (outriggers engaged): 900 kg
• capacity at maximum forward reach (outriggers not engaged): 150 kg
• reach at maximum height: 0,8 m
• maximum travel speed: 25 km/h
• wheelbase: 3150 mm

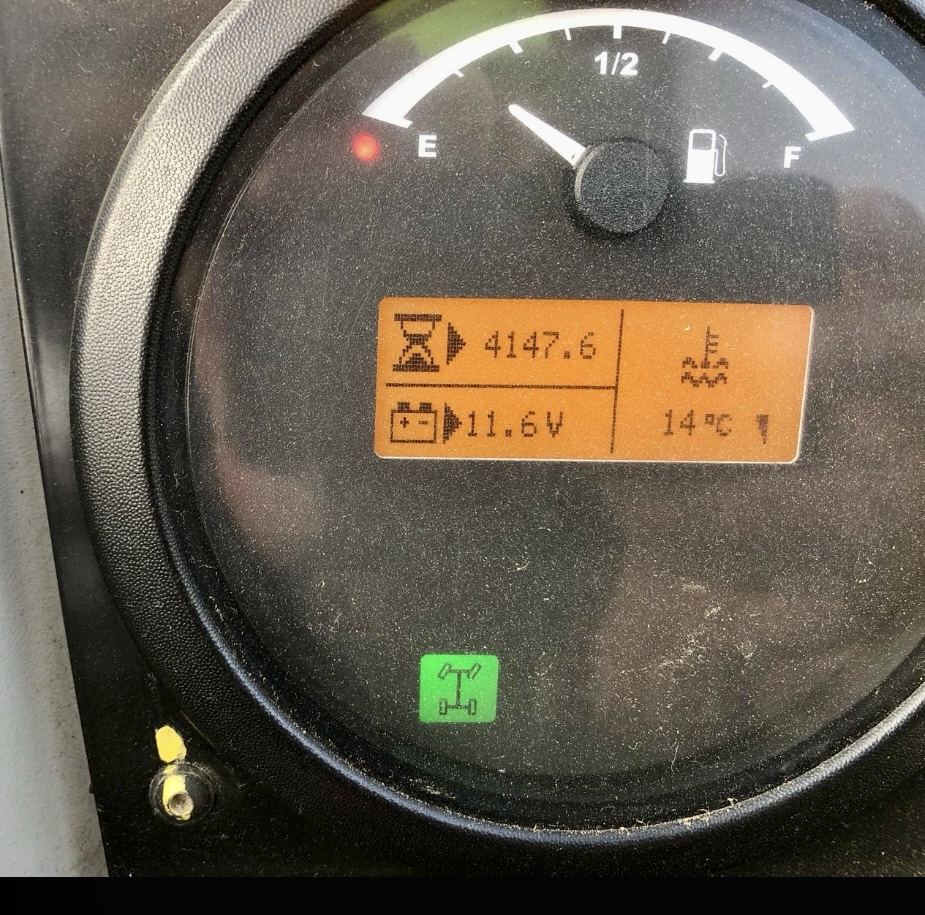

• motor-hours: 4147 h
• fuel tank capacity: 150 l
• hydraulic system tank capacity: 180 l
• cooling system tank capacity: 19 l
• ambient temperature: -20°C/+48°C
• vehicle dimensions without forks (L x W x H): 6433 x 2354 x 2944 mm
• JLG 3614 RS vehicle weight: 9880 kg
