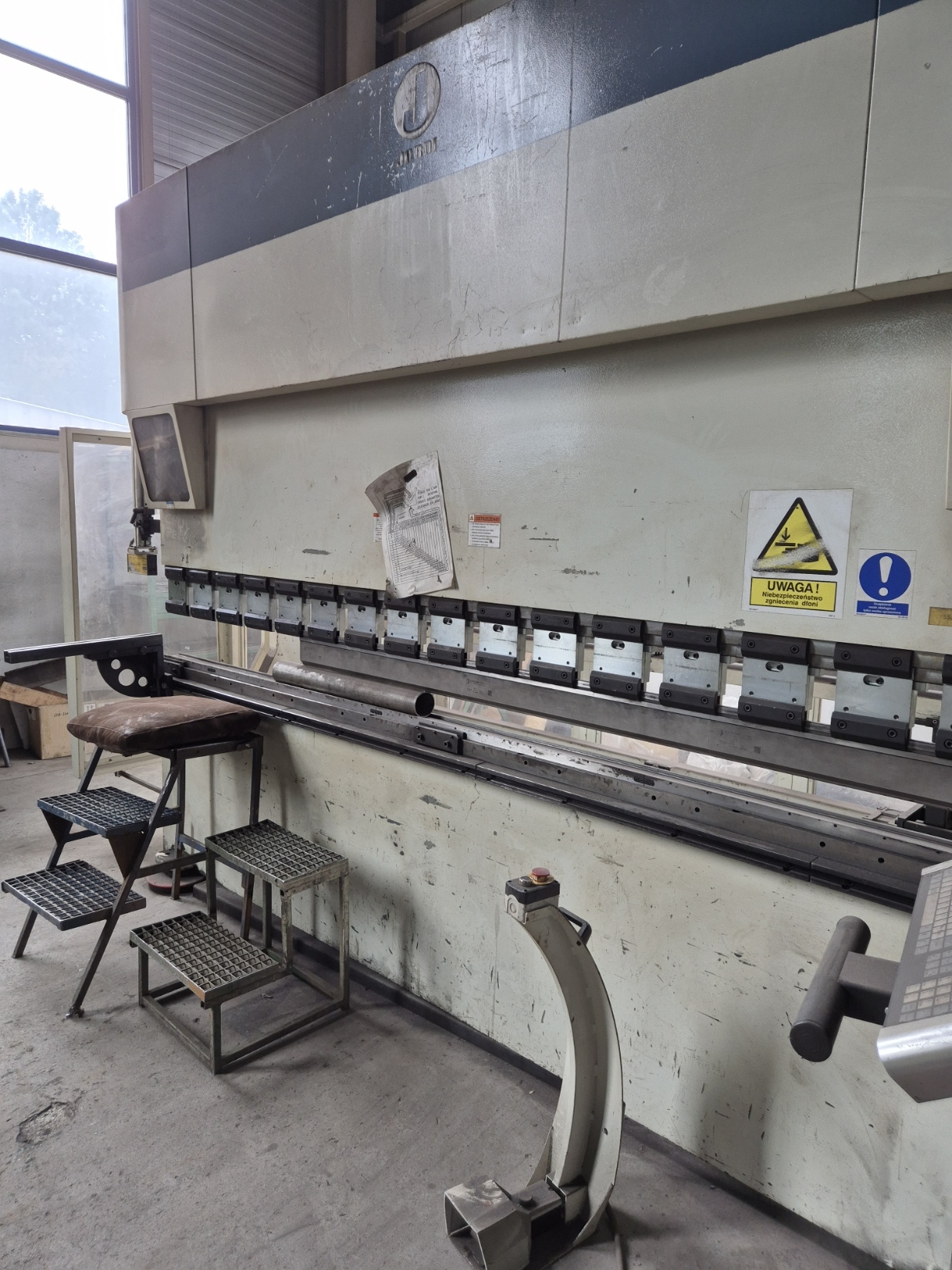

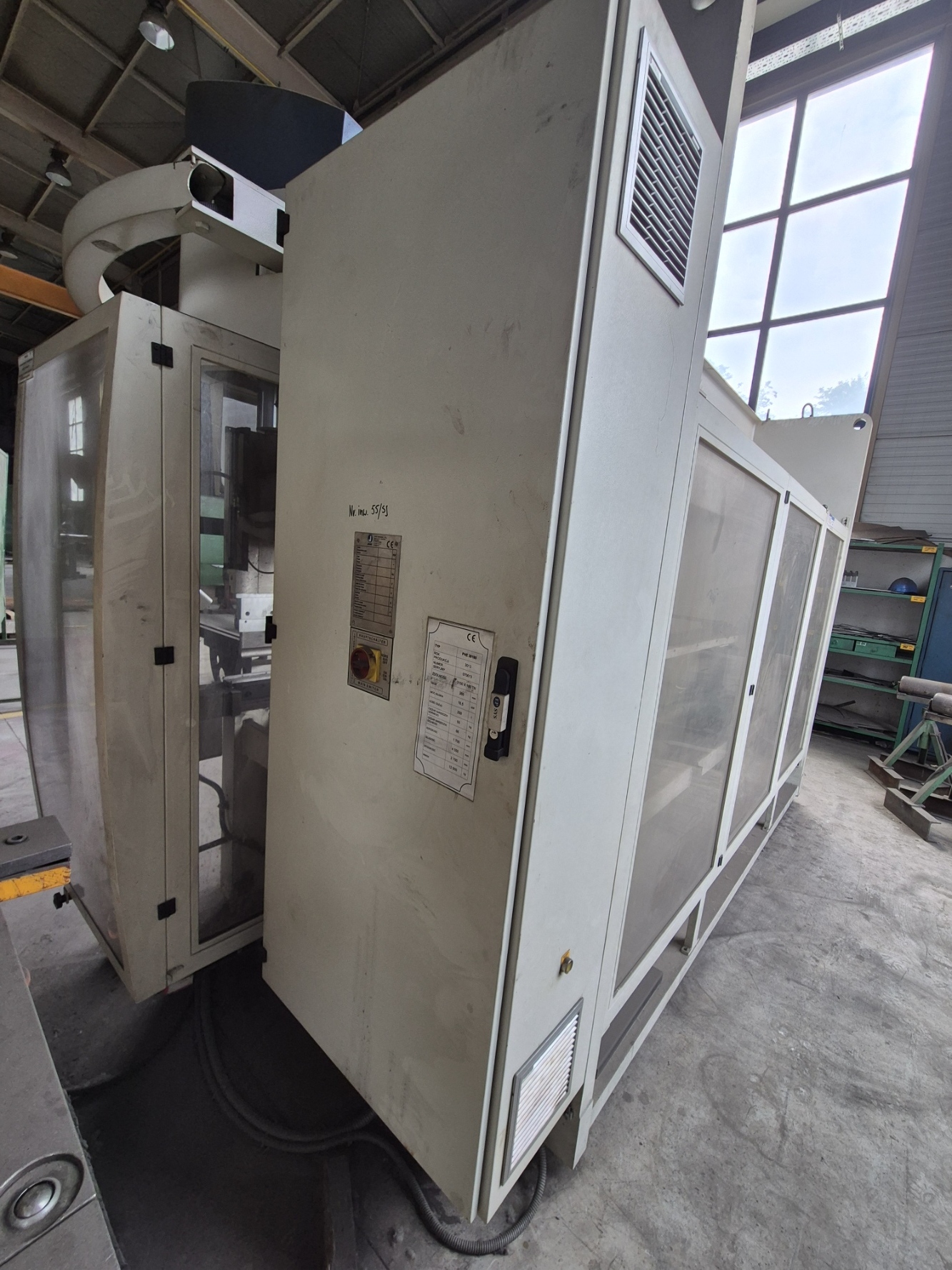

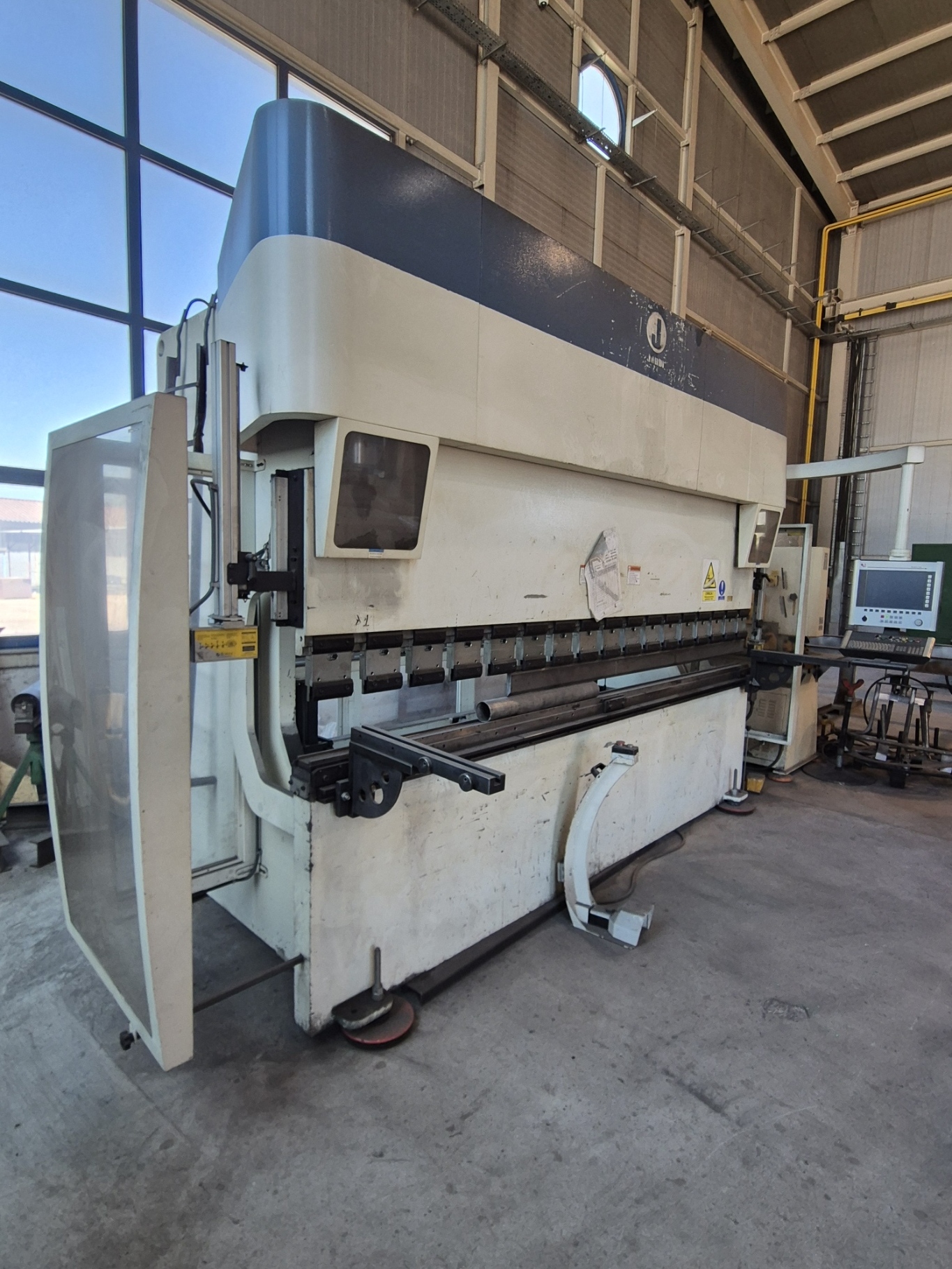

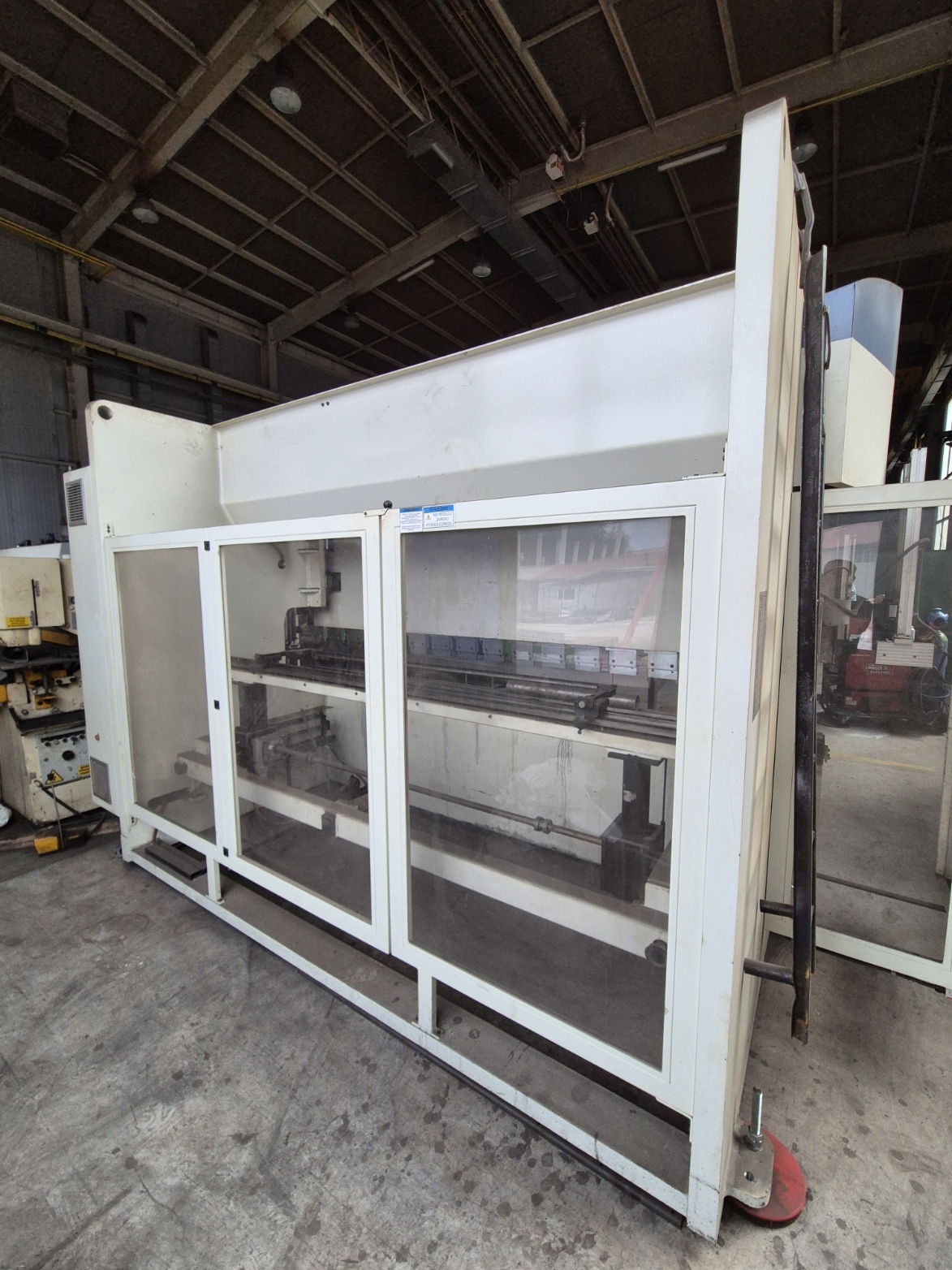

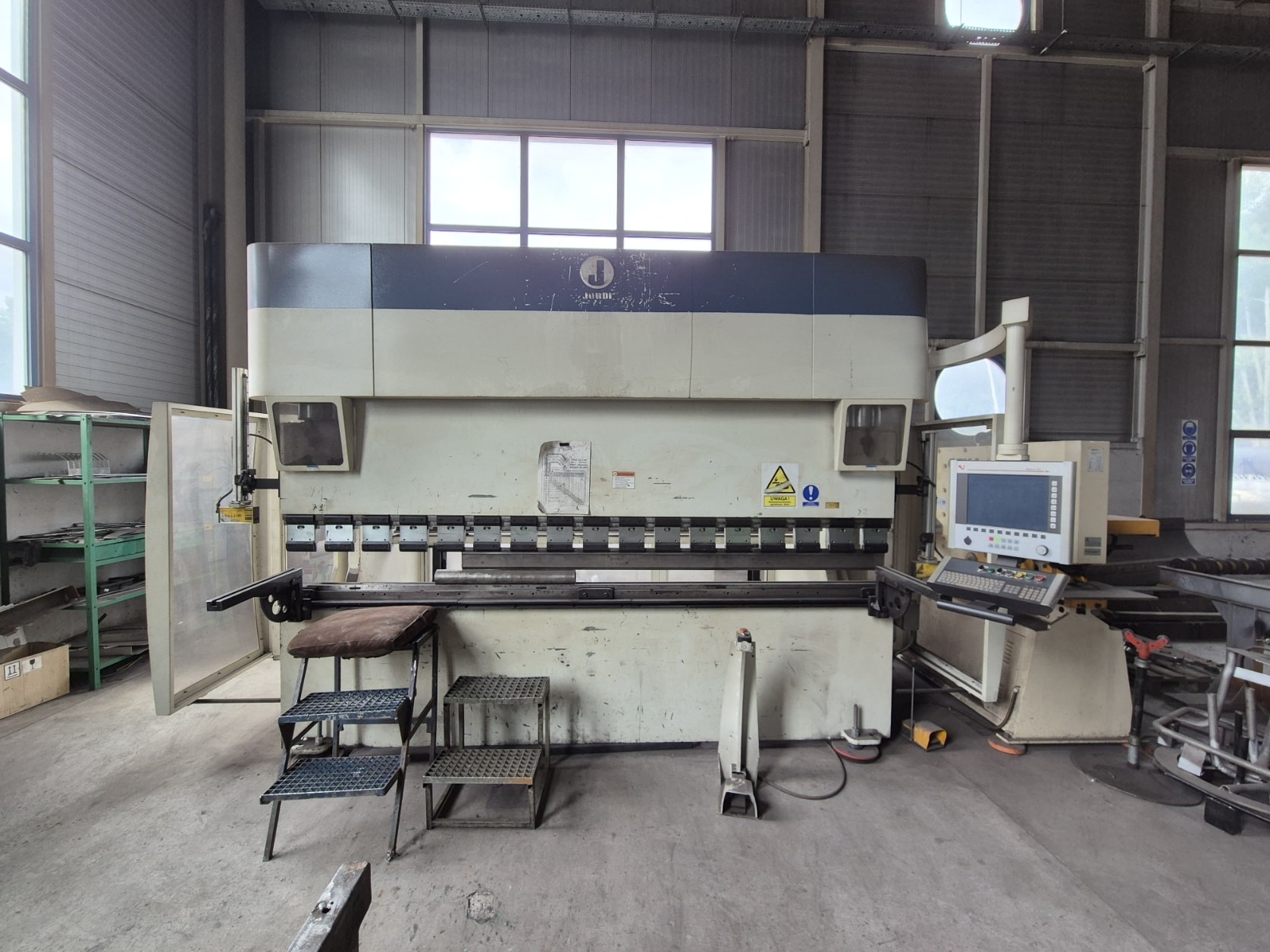

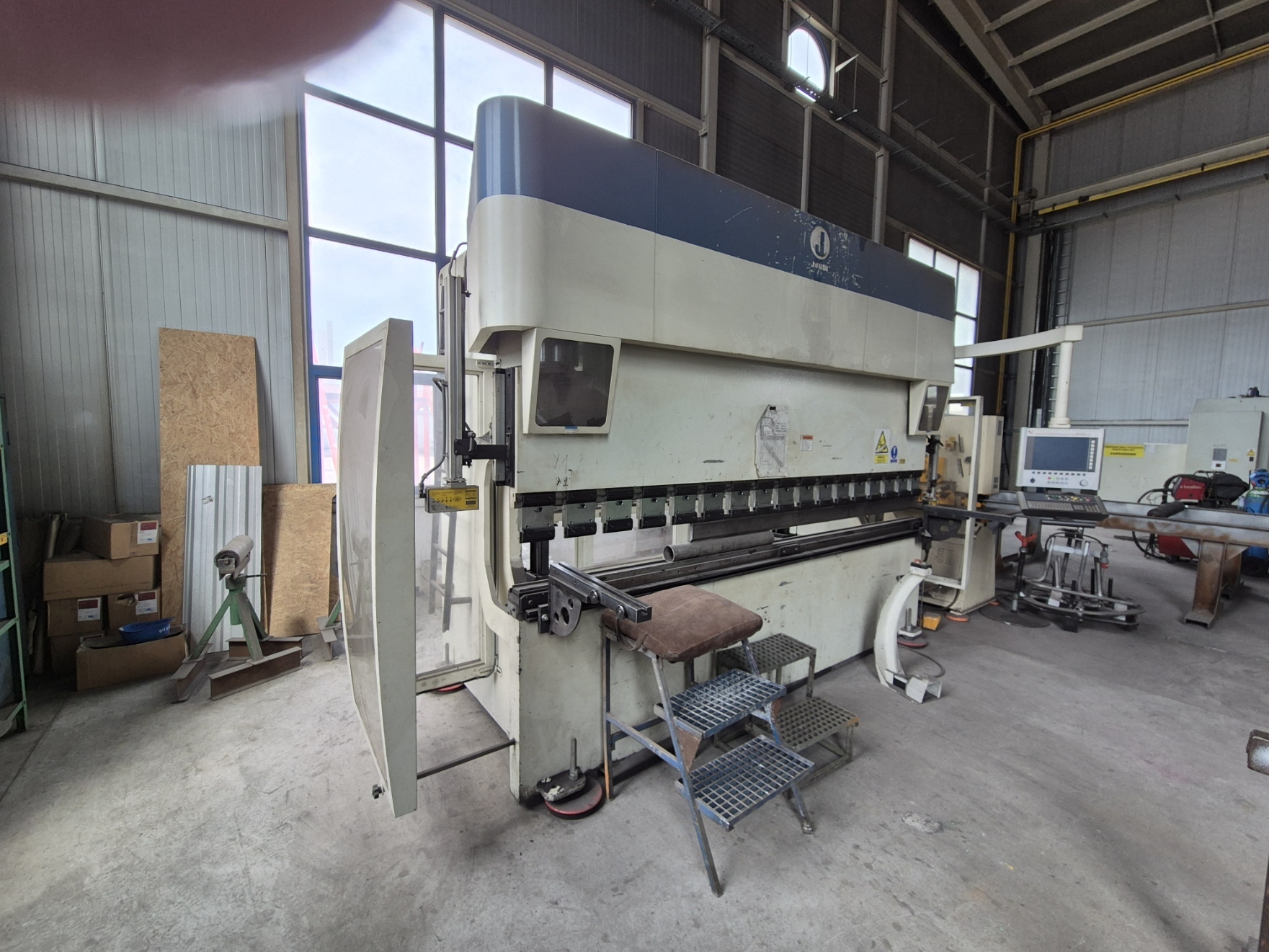

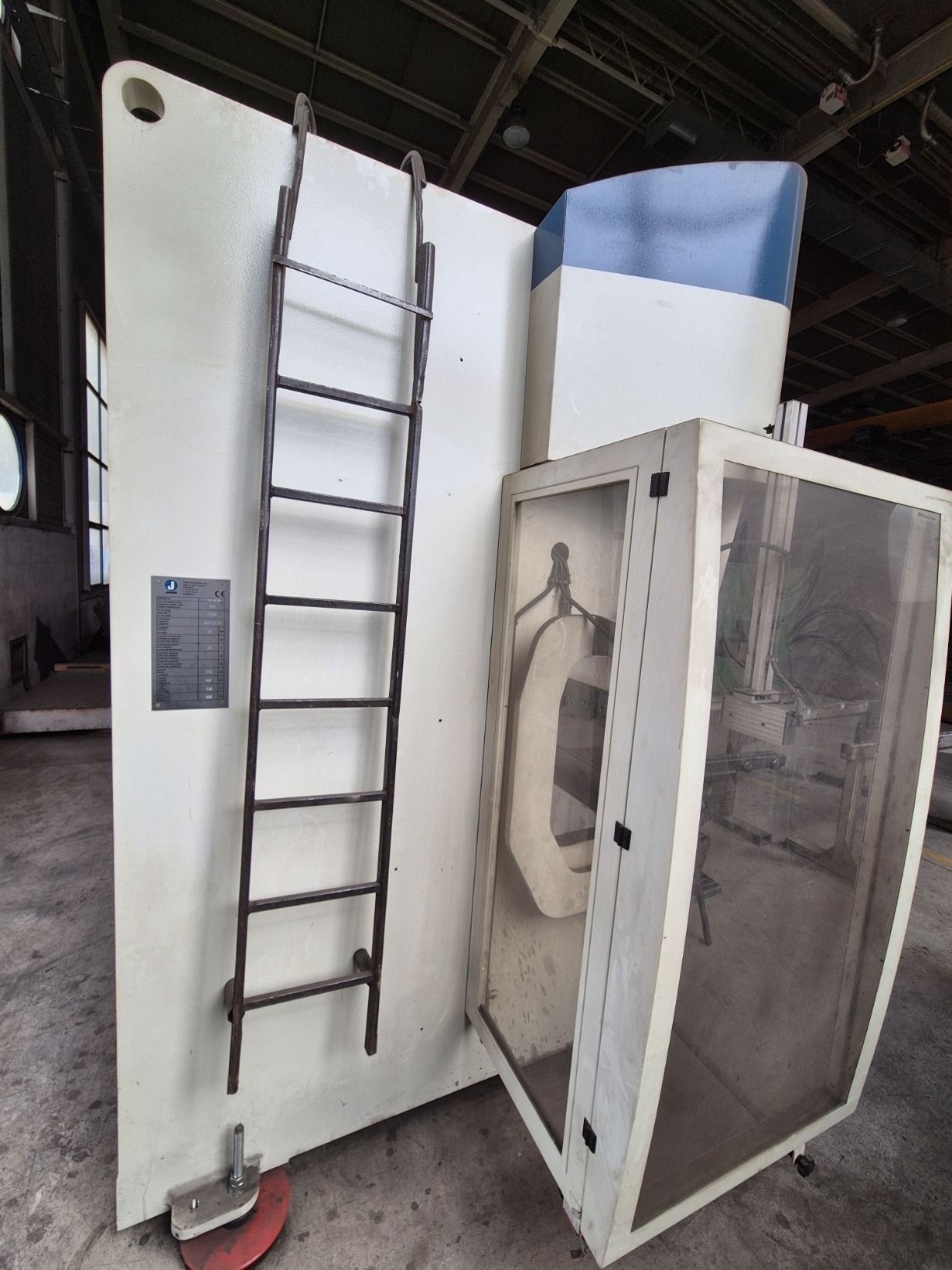

JORDI PHE-30180 CNC hydraulic press brake

JORDI PHE-30180 CNC hydraulic press brake was built in 2013 in Spain by JORDI UNIVERSAL V.S.L. The machine, designed for precision machining of sheet metal with a maximum length of 3550 mm, is an excellent choice for any industrial plant. The combination of a high press force of 175 tonnes and an extremely stable design guarantees the best bending results, even during the most intensive challenges. All this is complemented by an intelligent CNC control with all the necessary functions. The PHE-30180 CNC press brake weighs 11000 kg.

Technical specifications of the JORDI PHE-30180 press brake

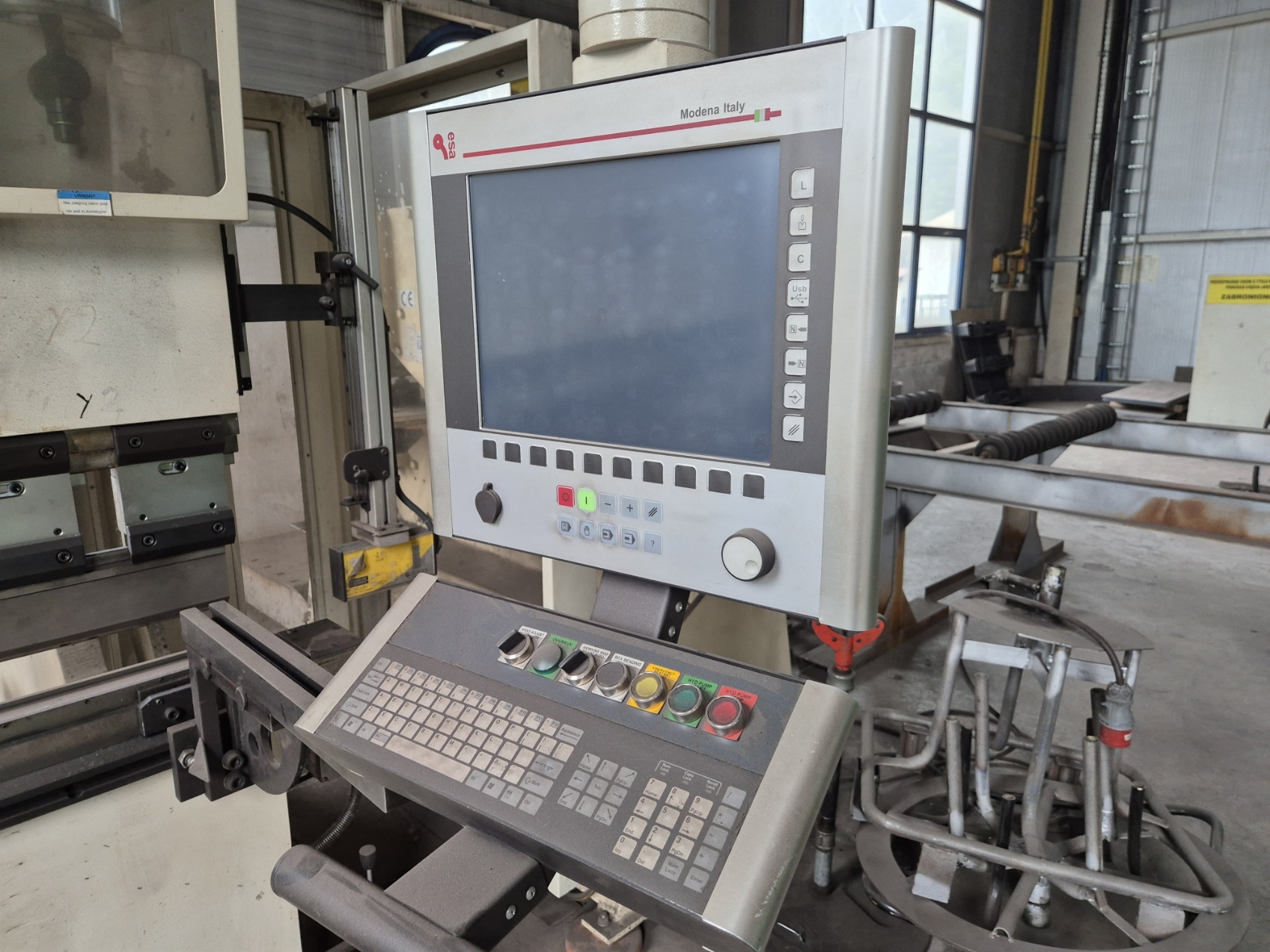

• CNC controller: ESA 530
• maximum press force: 175 t
• maximum sheet metal length: 3550 mm
• maximum slider stroke length: 265 mm
• distance between columns: 2600 mm
• top tool weight: 55 kg
• bottom tool weight: 66 kg
• light curtains
• foot switch control
• oil tank capacity: 250 l
• motor power: 18.5 kW
• dimensions (L x W x H): 4595 x 2723 x 2795 mm
• weight of the JORDI PHE-30180 machine: 11000 kg
