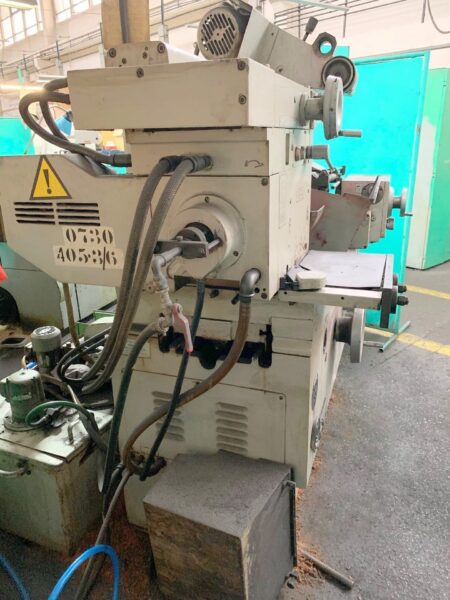

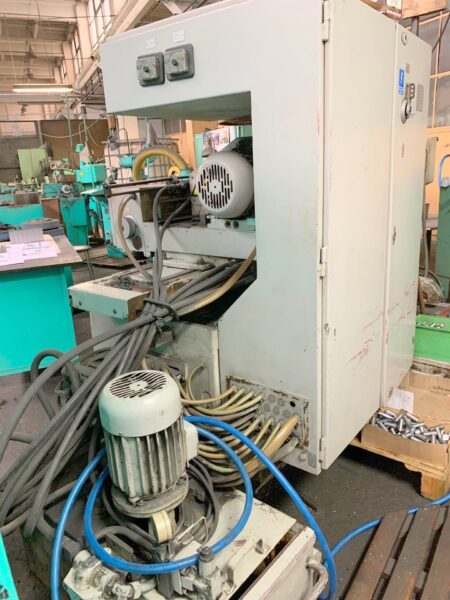

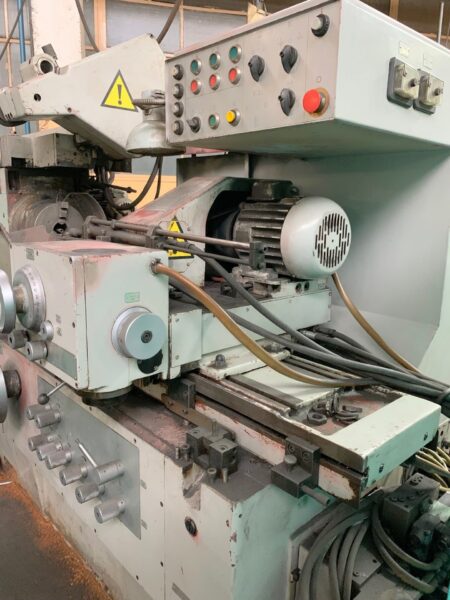

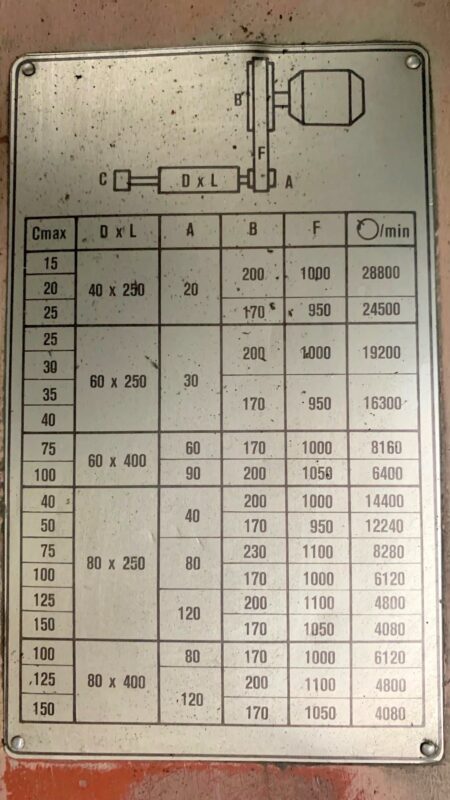

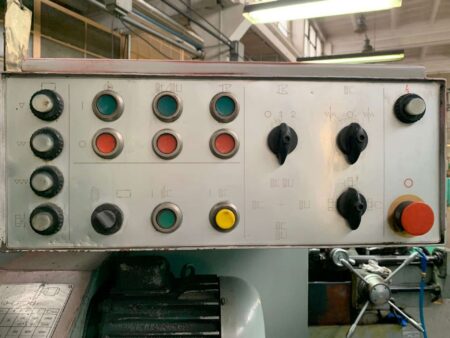

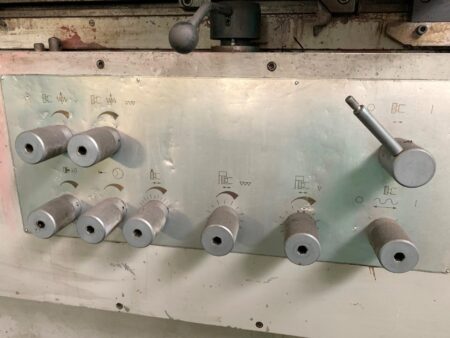

JOTES SOH-10 internal grinding machine

JOTES SOH-10 internal grinding machine was built in Poland. The SOH10 grinding machine is used in the finishing process to give the right shape and surface roughness to holes with a diameter from 10 to 100 mm and conical holes with a maximum apex angle of 30°. The high-performance spindle machines workpieces with a maximum diameter of 300 mm (with guard) or 450 mm (without guard). The total weight of the machine is 2900 kg.

Technical parameters of the JOTES SOH-10 internal grinding machine

• minimum hole diameter: 10 mm
• maximum hole diameter: 100 mm
• maximum hole length: 160 mm
• maximum diameter of grinded workpiece (with guard): 300 mm
• maximum diameter of grinded workpiece (without guard): 450 mm
• spindle rotation speed: 70-700 rpm
• manual spindle feed (1 wheel revolution): 2,5 mm
• largest spindle turning angle: 15°
• lateral manual feed of spindle (forward): 50 mm
• lateral manual feed of spindle (backwards): 180 mm
• distance between spindle axis and table surface: 290 mm
• rated power: 11 kVA
• control voltage: 220 V
• operating voltage: 380 V
• frequency: 50 Hz
• DTR – technical and propulsion documentation
• overall dimensions (L x W x H): 2500 x 1750 x 1850 mm
• weight of the SOH 10 machine: 2900 kg
