JOTES SPD 40 surface grinding machine

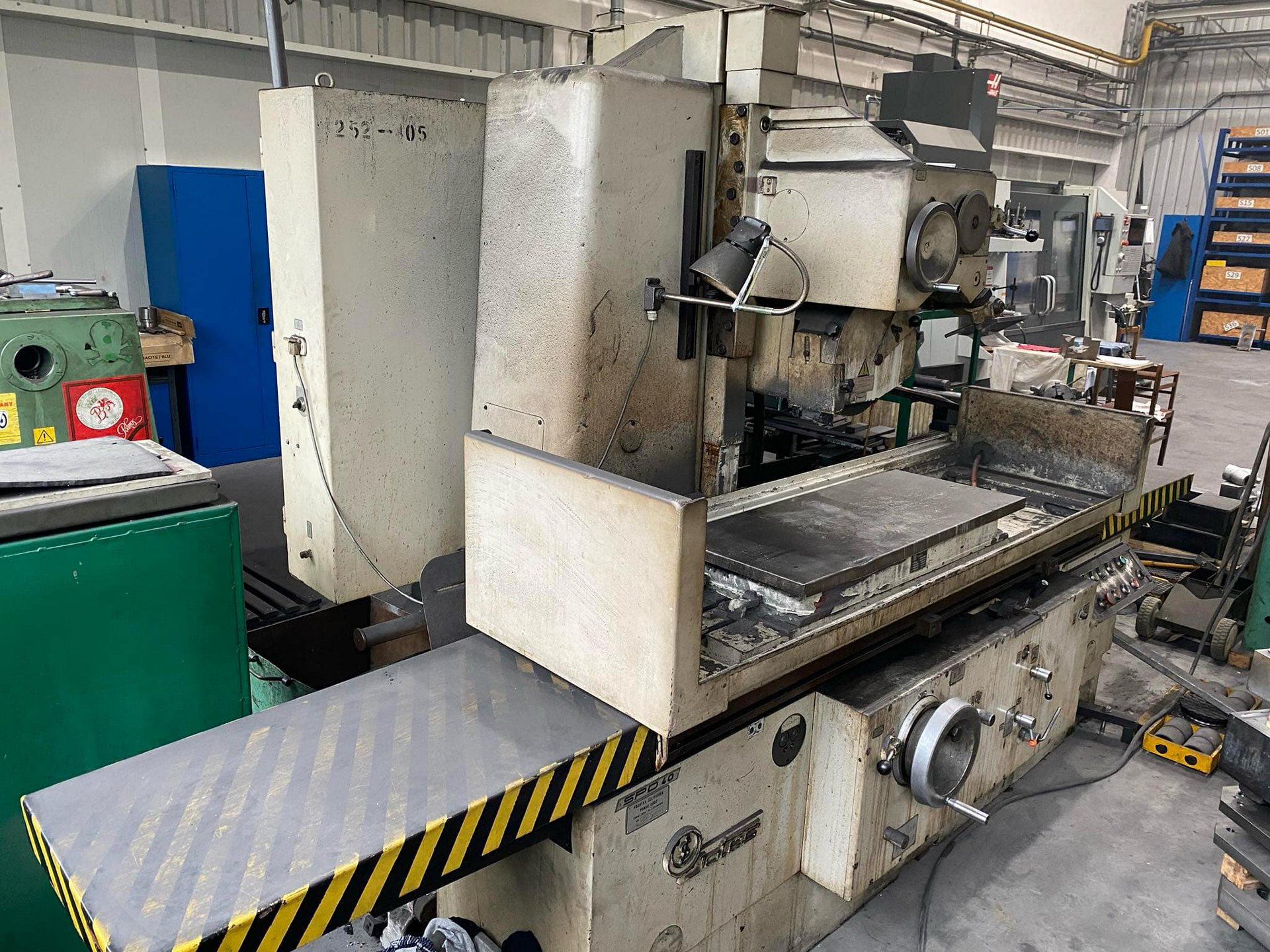

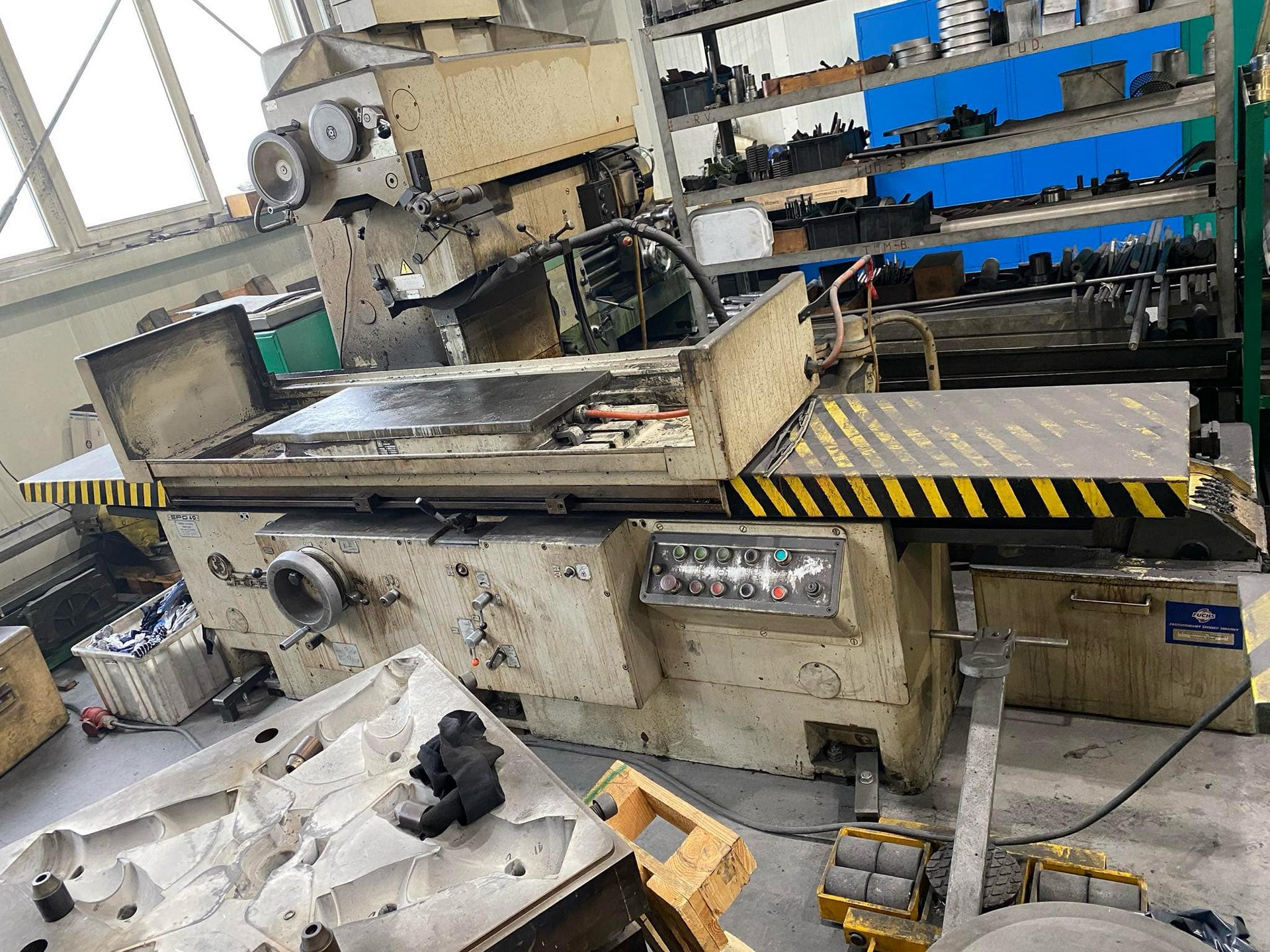

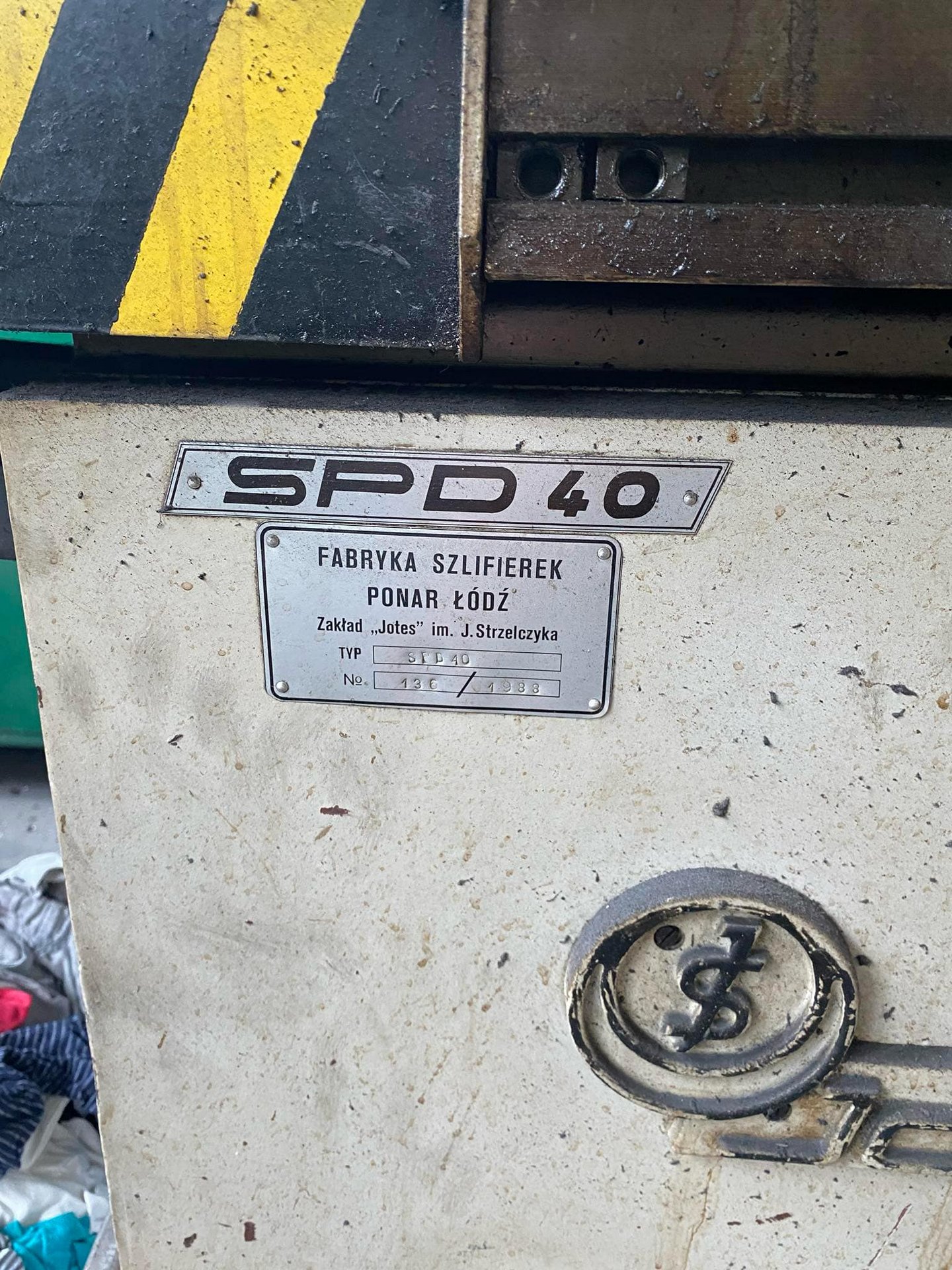

JOTES SPD 40 surface grinding machine was built in 1988 in Poland by PONAR-JOTES Łódź. The machine, designed for precision grinding of workpieces, is an excellent choice for professional production applications. Workpieces placed on a large magnetic plate are ground by means of a spindle with a grinding wheel, which moves transversally and vertically. This solution, combined with the ability to automatically/manually adjust the height of the grinding wheel, significantly increases the accuracy and precision of the machining process. The SPD 40 magnetic surface grinding machine weighs 4800 kg.

Technical specifications of the JOTES SPD 40 grinding machine

• work table dimensions (L x W): 1000 x 400 mm
• work table feed rate: 2-30 m/min
• minimum work table stroke: 200 mm
• grinding wheel dimensions (diameter x width x bore): 350 x 63 x 127 mm
• grinding wheel stroke adjustment range: 3-30 mm
• grinding wheel manual feed per 1 wheel rotation: 8 mm
• maximum vertical feed of the grinding wheel (Y-axis): 450 mm
• maximum transverse feed of the grinding wheel (Z-axis): 470 mm
• grinding wheel feed rate: 0.5-4.5 m/min
• grinding wheel rotational speed: 26 m/s
• diameter of discs for mounting the grinding wheel: 197 mm
• maximum distance from the spindle axis to the work table surface: 575 mm
• minimum distance from the spindle axis to the work table surface: 125 mm
• transverse feed accuracy (Z axis): 0.002 mm
• maximum grinding depth (automatic feed): 0.02 mm
• maximum grinding allowance (automatic feed): 0.36 mm
• oil tank capacity: 300 l
• power requirement: 10 kVA
• dimensions (L x W x H): 3740 x 2080 x 2260 mm
• weight of the JOTES SPD 40 machine: 4800 kg

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
