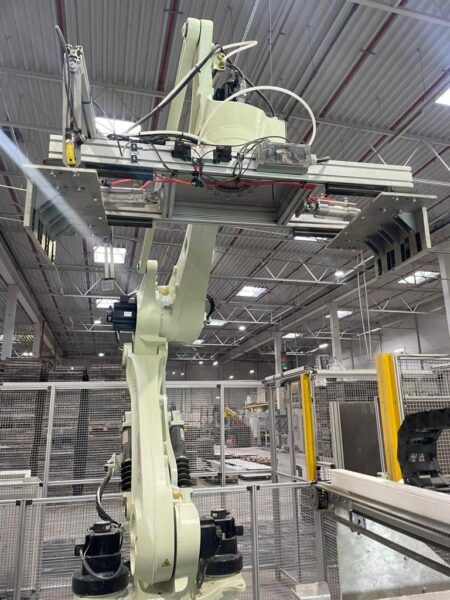

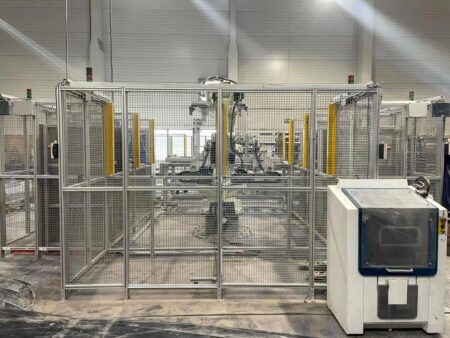

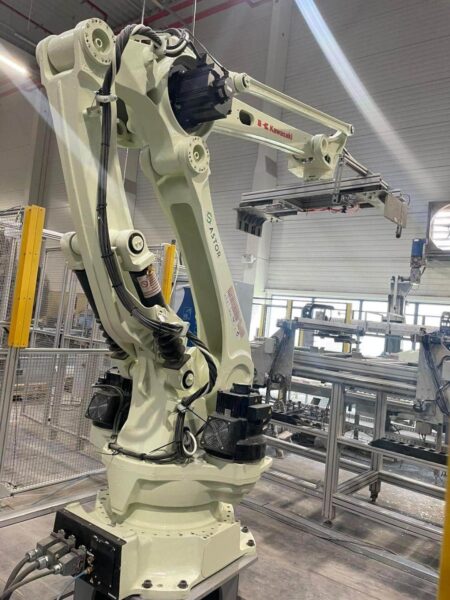

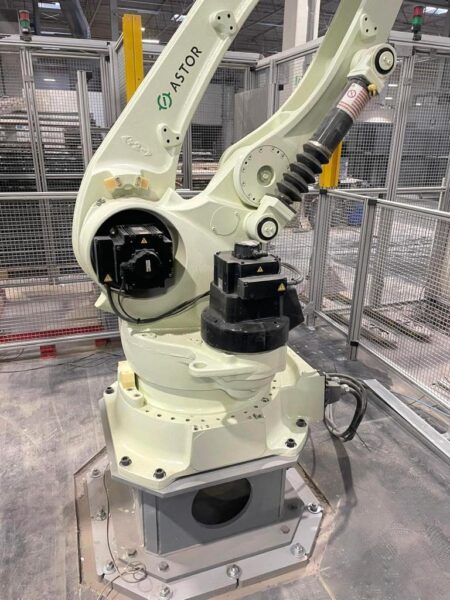

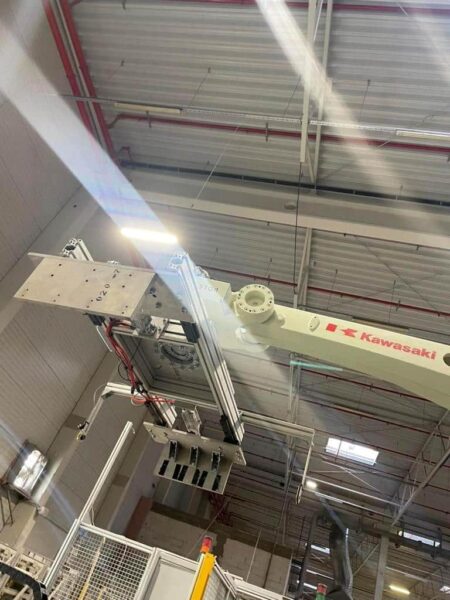

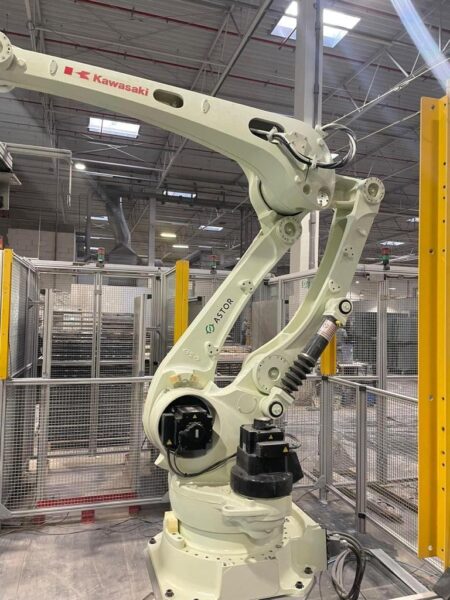

KAWASAKI 3CP180L-AC03 palletizing robot

KAWASAKI 3CP180L-AC03 palletizing robot manufactured in 2018, increases the productivity of production lines in many industries by automating the process of palletising products. This extremely reliable KAWASAKI CP180L packaging robot is distinguished by its short cycle times, wide movement range and 4 dynamic axes with high axial speeds necessary to quickly move goods with a total weight of 180 kg. Outside the working area of the machine there is a convenient and easy-to-use controller, whose high funcionality allows the robot to be used comprehensively in the production process. The KAWASAKI industrial robot weighs 1600 kg.

Technical specifications of the KAWASAKI 3CP180L-AC03 robot

• number of axes: 4
• arm reach: 3255 mm
• maximum payload: 180 kg
• palletising capacity: approx. 1800 cycles/hour
• axis movement range

JT1 axis: ± 160°
JT2 axis: +95° / -46°
JT3 axis: +15° / -110°
JT4 axis: ± 360°

• axis motion speed

JT1 axis: 130°/s
JT2 axis: 120°/s
JT3 axis: 125°/s
JT4 axis: 330°/s

• repeatability: ± 0.5 mm
• mounting: floor
• power requirement: 12 kVA
• weight of machine: 1600 kg
