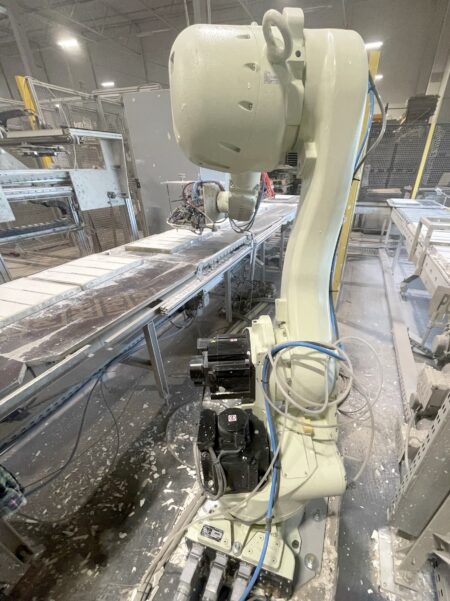

KAWASAKI 3RS050N-BC02 palletizing robot

KAWASAKI 3RS050N-BC02 palletizing robot built in 2018, is designed to increase the productivity of production lines in many industries by automating the process of palletising products. This 6-axis packaging robot features a compact design with a sturdy arm and a long reach, guaranteeing fast handling of goods weighing a maximum of 50 kg. The total weight of the machine is 555 kg.

Technical specifications of the KAWASAKI 3RS050N-BC02 industrial robot

• number of axes: 6
• arm reach: 2100 mm
• maximum payload: 50 kg
• axis movement range

JT1 axis: ± 180°
JT2 axis: + 140° / -105°
JT3 axis: + 135° / -155°
JT4 axis: ± 360°
JT5 axis: ± 145°
JT6 axis: ± 360°

• axis motion speed

JT1 axis: 180°/s
JT2 axis: 180°/s
JT3 axis: 185°/s
JT4 axis: 260°/s
JT5 axis: 260°/s
JT6 axis: 360°/s

• repeatability: ± 0.06 mm
• mounting: floor, ceiling
• power requirement: 7.5 kVA
• weight of KAWASAKI robot: 555 kg
