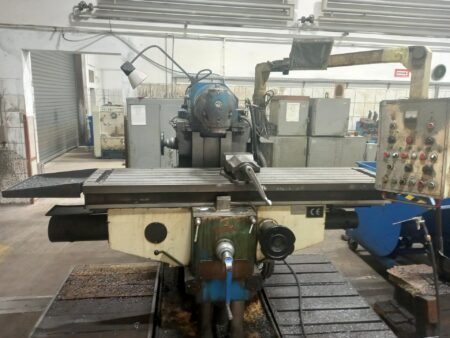

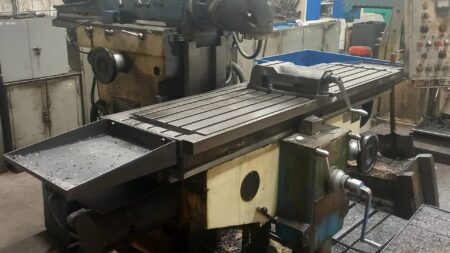

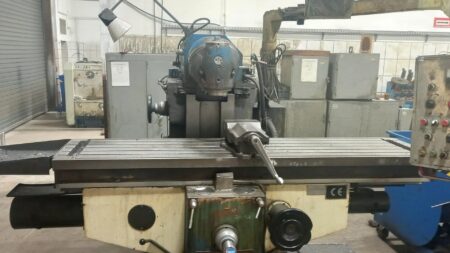

KNUTH UWF 15 B universal milling machine

The KNUTH UWF 15 B universal milling machine was built by the German company KNUTH Werkzeugmaschinen GmbH in 2007. The machine equipped with a table of dimensions (length x width) 2000 x 500 mm processes a workpiece with a maximum weight of 1800 kg. The working table has 5 t-slots with a width of 18 mm and a spacing of 80 mm.

The milling machine works in three axes (X,Y,Z) and its feeds range is 10 – 1000 mm/min (for X and Y axis) and 5 – 500 mm/min (Z axis). The spindle of the KNUTH UWF 15 B machine with a mounted ISO 50 cone rotates at a speed within the range from 30 to 2050 rpm. The total weight of the machine is 5500 kg. The milling machine is after refurbishment of the gearbox.

Machine specification KNUTH UWF 15 B

• working table surface (L x W): 2000 x 500 mm
• maximum table load: 1800 kg
• rotating head: 360 degrees
• table movement in the X/Y/Z axis: 1500/650/500 mm
• feed range in X axis: 10 – 1000 mm/min
• feed rate in the Y axis: 10 – 1000 mm/min
• feed rate in the Z axis: 5 – 500 mm/min
• rapid feed rate in the X axis 2200 mm/min
• rapid feed rate in the Y axis: 2200 mm/min
• rapid feed rate in the Z axis: 1100 mm/min
• spindle speed range: 30 – 2050 rpm
• spindle cone: ISO 50
• distance between table and spindle cone: 80 – 530 mm
• number of t-slots: 5
• width of t-slots: 18 mm
• distance between t-slots: 80 mm
• drive to each axle: DC Servo
• machine power: 17 kW
• machine dimensions (L x W x H): 2140 x 2986 x 1940 mm
• total weight: 5500 kg
