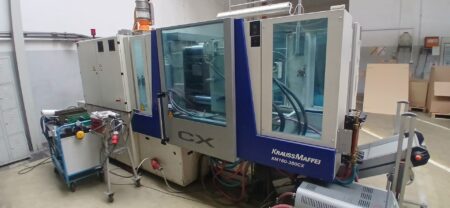

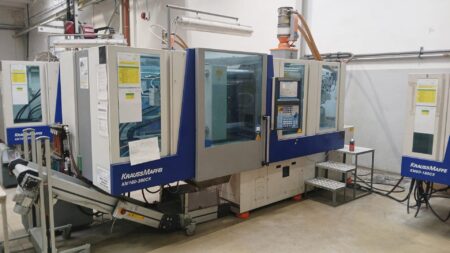

KRAUSS MAFFEI KM 160-380 CX injection moulding machine

KRAUSS MAFFEI KM 160-380 CX injection moulding machine was built in 2005 in Germany by KraussMaffei Group GmbH. This highly efficient and reliable machine is used for the economical, mass production of plastic parts of different colours, shapes and sizes using the injection moulding method. In the machining process, the plasticised plastic is fed into a mould, which is then clamped with high press force. A high-precision mould-closing system operating at a force of up to 160 tonnes, combined with a reliable 40 mm diameter screw, guarantee parts of the highest repeatability and quality. The KRAUSS MAFFEI injection moulding machine weighs approximately 6000 kg.

Technical specifications of the KRAUSS MAFFEI KM 160-380 CX injection moulding machine

• mould clamping force: 160 t (1600 kN)
• mould opening force: 8.64 t (86.4 kN)
• screw diameter: 40 mm
• screw length/diameter ratio: 20 L/D
• screw rotational speed: 390-490 rpm
• injection pressure: 1860 bar
• injection capacity: 176 cm3/s
• injection volume: 201 cm3
• injection grammage: 183 g
• mounting platen dimensions (L x W): 820 x 845 mm
• minimum mould mounting height: 300 mm
• maximum mould weight: 1862 kg
• mould opening stroke: 650 mm
• bore width: 950 mm
• ejector stroke: 150 mm
• forward stroke of ejector: 2,26 t (22,6 kN)
• rearward stroke of ejector: 0,99 t (9,9 kN)
• moving plate travel force at opening: 4.48 t (44.8 kN)
• moving plate travel force at closing: 3.78 t (37.8 kN)
• injection nozzle clamping force: 5 t (50 kN)
• pump motor power: 22 kW
• number of heating zones: 5
• heating power: 10.97 kW
• oil tank capacity: 498 l
• power supply: 400 V; 50 Hz
• dimensions (L x W x H): 4600 x 1600 x 2200 mm
• net weight of KRAUSS MAFFEI KM 160-380 CX machine including control cabinet: approx. 6000 kg
