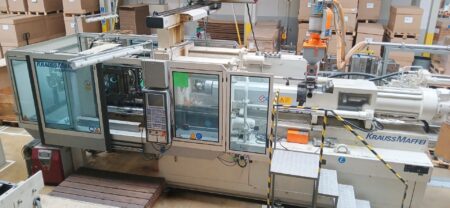

KRAUSS MAFFEI KM 300-1900 C1 injection moulding machine

KRAUSS MAFFEI KM 300-1900 C1 injection moulding machine was built in 2007 in Germany by KraussMaffei Group GmbH. The machine, which is distinguished by its reliability and high performance, is used for the mass production of plastic parts of various colours, shapes and sizes. The parts are produced using the injection moulding method, in which the plasticised material is clamped with high press force. The process involves, among others, a high-precision mould clamping system operating at a force of up to 300 tonnes and a WITTMANN robot. The parts produced in this way are characterised by high repeatability, durability and precision. The KM 300-1900 C1 injection moulding machine weighs approximately 15 tonnes.

Technical specifications of the KRAUSS MAFFEI KM 300-1900 C1 injection moulding machine

• maximum clamping force: 300 t
• screw diameter: 60 mm
• maximum injection pressure: 2420 bar
• injection volume: 769 cm3
• injection weight: 700 g
• maximum platen size (L x W): 995 x 1050 mm
• minimum mould height: 330 mm
• mould opening stroke: 1150 mm

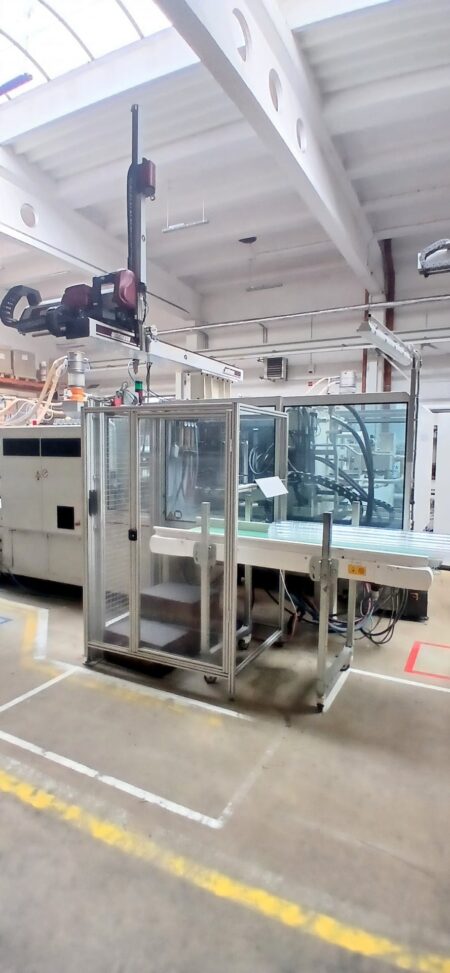

• robot: WITTMANN W731
• operating hours: 34646 h
• machine switch-on time: 43633 h
• power supply: 400 V; 50 Hz
• dimensions (L x W x H): 6210 x 2040 x 2380 mm
• weight of machine: approx. 15000 kg
