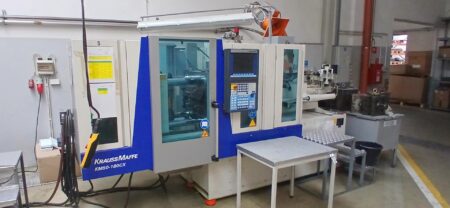

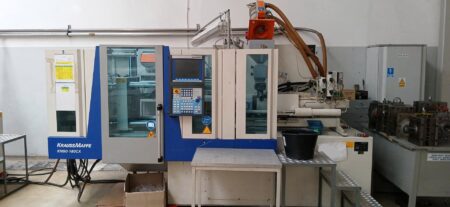

KRAUSS MAFFEI KM 50-180 CX injection moulding machine

KRAUSS MAFFEI KM 50-180 CX injection moulding machine was built in 2007 in Germany by KraussMaffei Group GmbH. The machine, designed for the mass production of precision plastic parts, is distinguished by its use of world-class components. The parts are produced using the injection moulding method, which involves feeding a plastic material of sufficient plasticity into a mould and then clamping it with high press force. This process is performed on moulds with a maximum weight of 628 kg by a precision clamping system that operates with a force of 50 tonnes. This results in products of different colours, shapes and sizes, distinguished by high repeatability and quality. The KRAUSS MAFFEI injection moulding machine weighs approximately 2500 kg.

Technical specifications of the KRAUSS MAFFEI KM 50-180 CX injection moulding machine

• mould clamping force: 50 t (500 kN)
• mould opening force: 3.99 t (39.9 kN)
• screw diameter: 28 mm
• screw length/diameter ratio: 25 L/D
• screw rotational speed: 365-465 rpm
• mounting platen size (L x W): 600 x 600 mm
• minimum mould mounting height: 200 mm
• maximum mould weight: 628 kg
• mould opening stroke: 400 mm
• injection volume: 74 cm3
• injection grammage: 67 g
• injection pressure: 2325 bar
• injection capacity: 74 cm3/s
• bore width: 600 mm
• ejector stroke: 100 mm
• forward stroke of ejector: 2,26 t (22,6 kN)
• rearward stroke of ejector: 0,99 t (9,9 kN)
• moving plate travel force at opening: 2.16 t (21.6 kN)
• moving plate travel force at closing: 1.67 t (16.7 kN)
• injection nozzle clamping force: 5 t (50 kN)
• pump motor power: 11 kW
• number of heating zones: 5
• heating power: 8.12 kW
• oil tank capacity: 215 l
• power supply: 400 V; 50 Hz
• dimensions (L x W x H): 3500 x 1400 x 1910 mm
• net weight of the KRAUSS MAFFEI KM 50-180 CX machine with control cabinet: approx. 2500 kg
