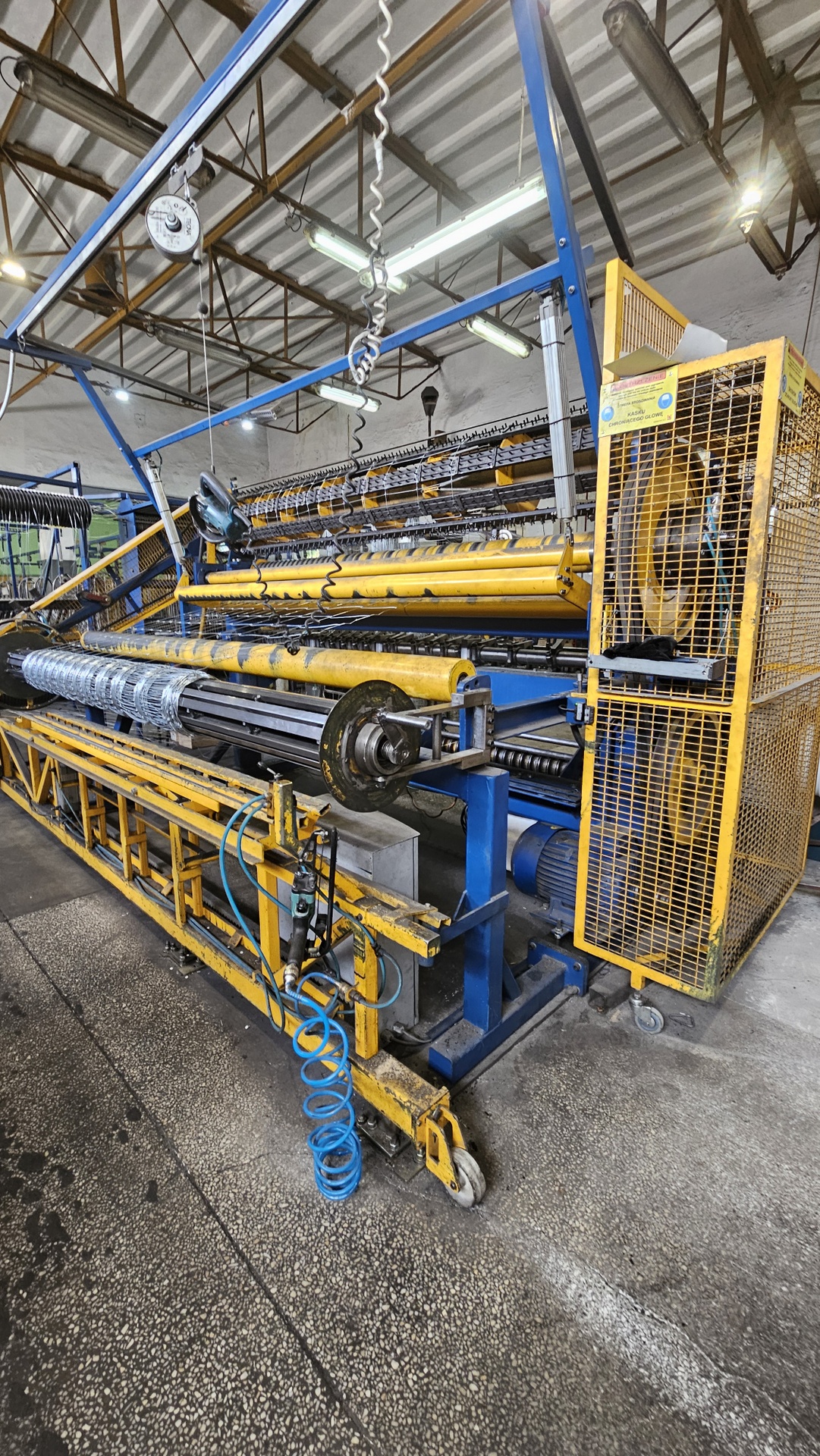

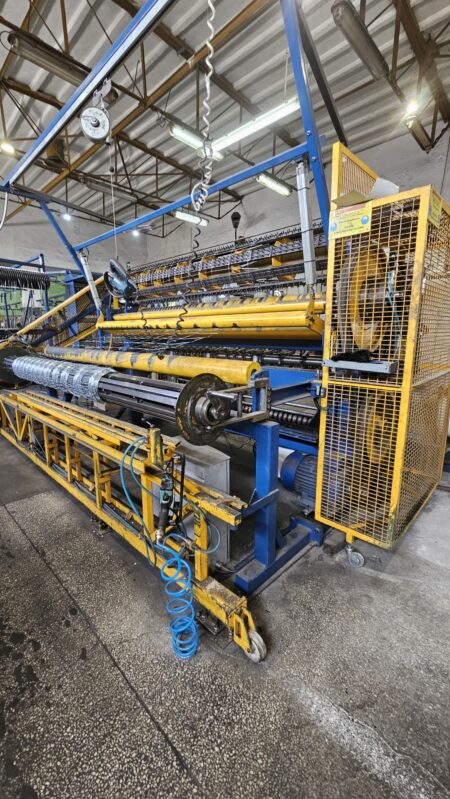

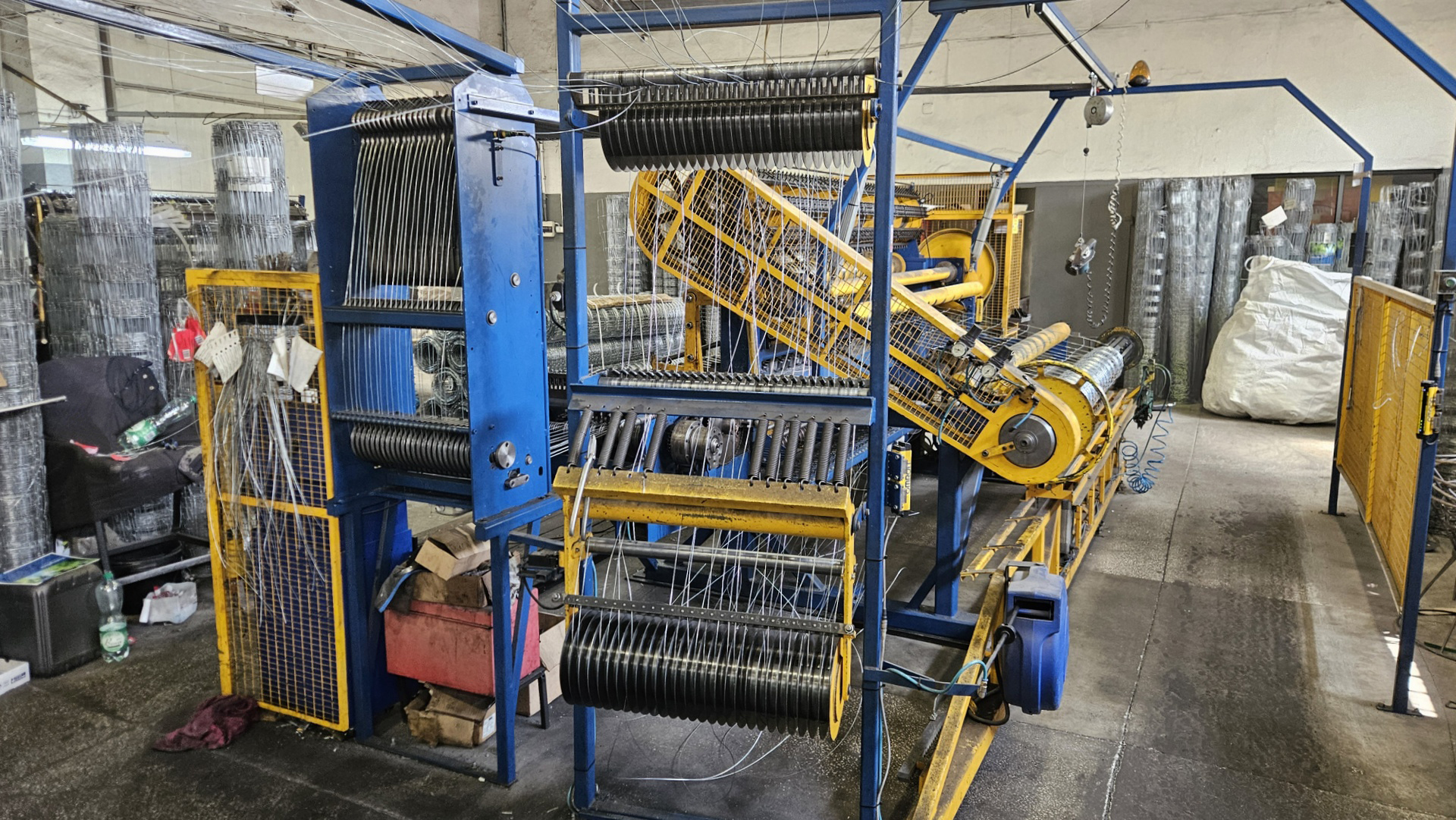

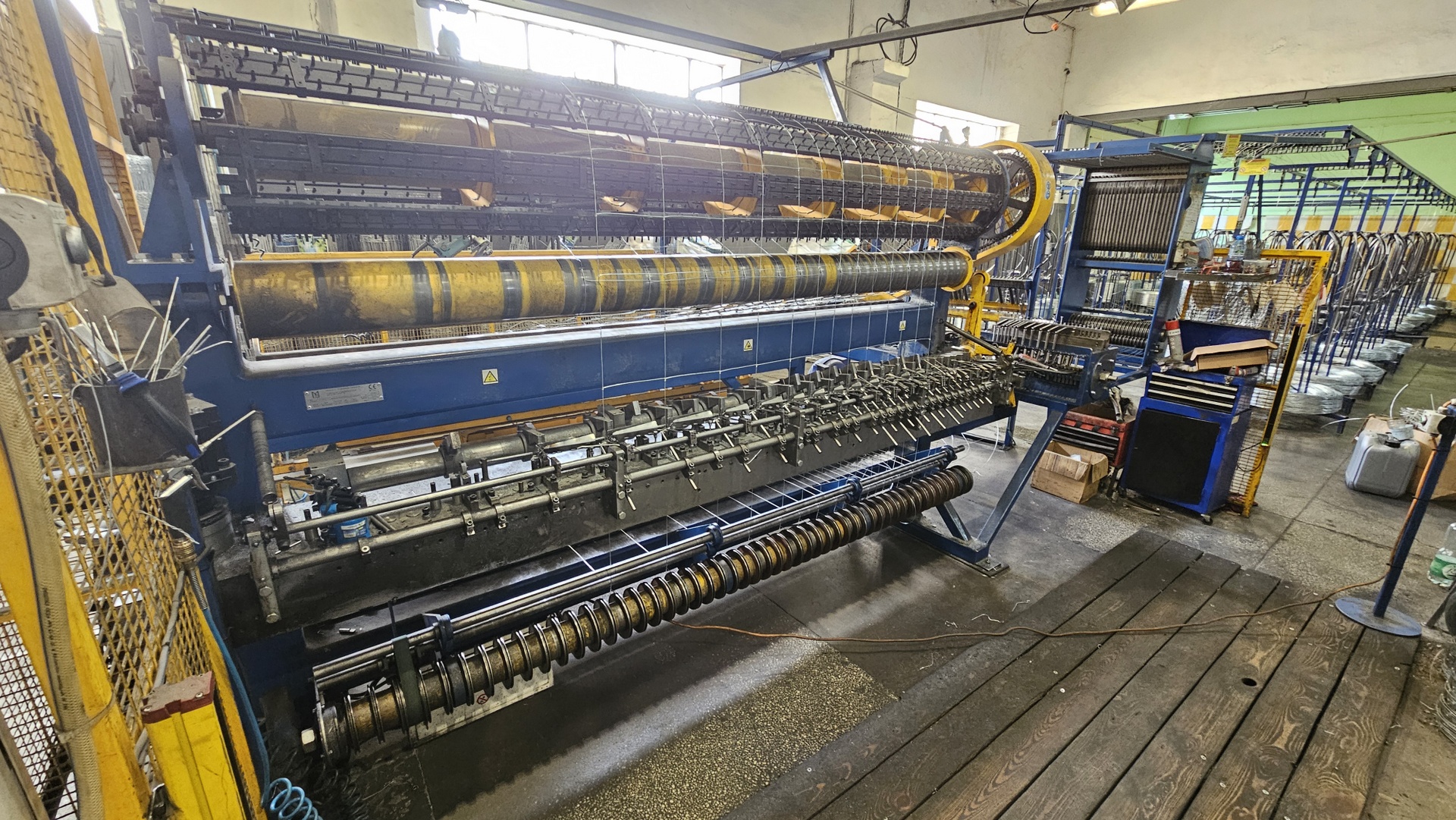

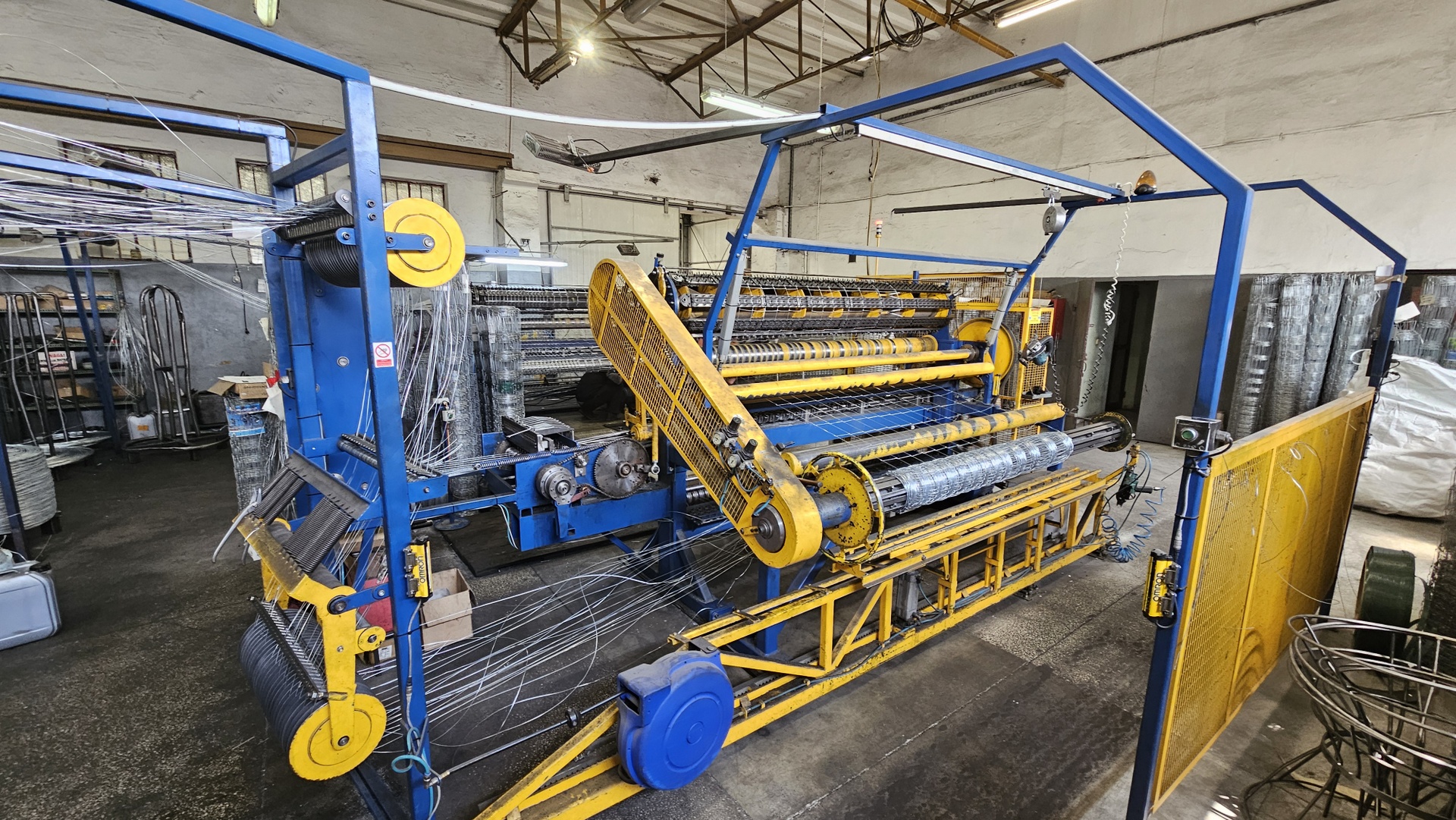

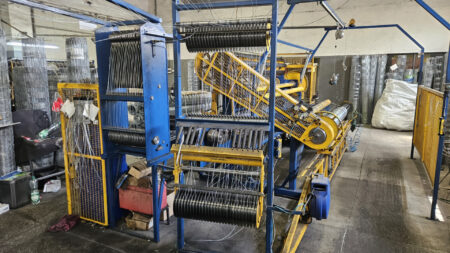

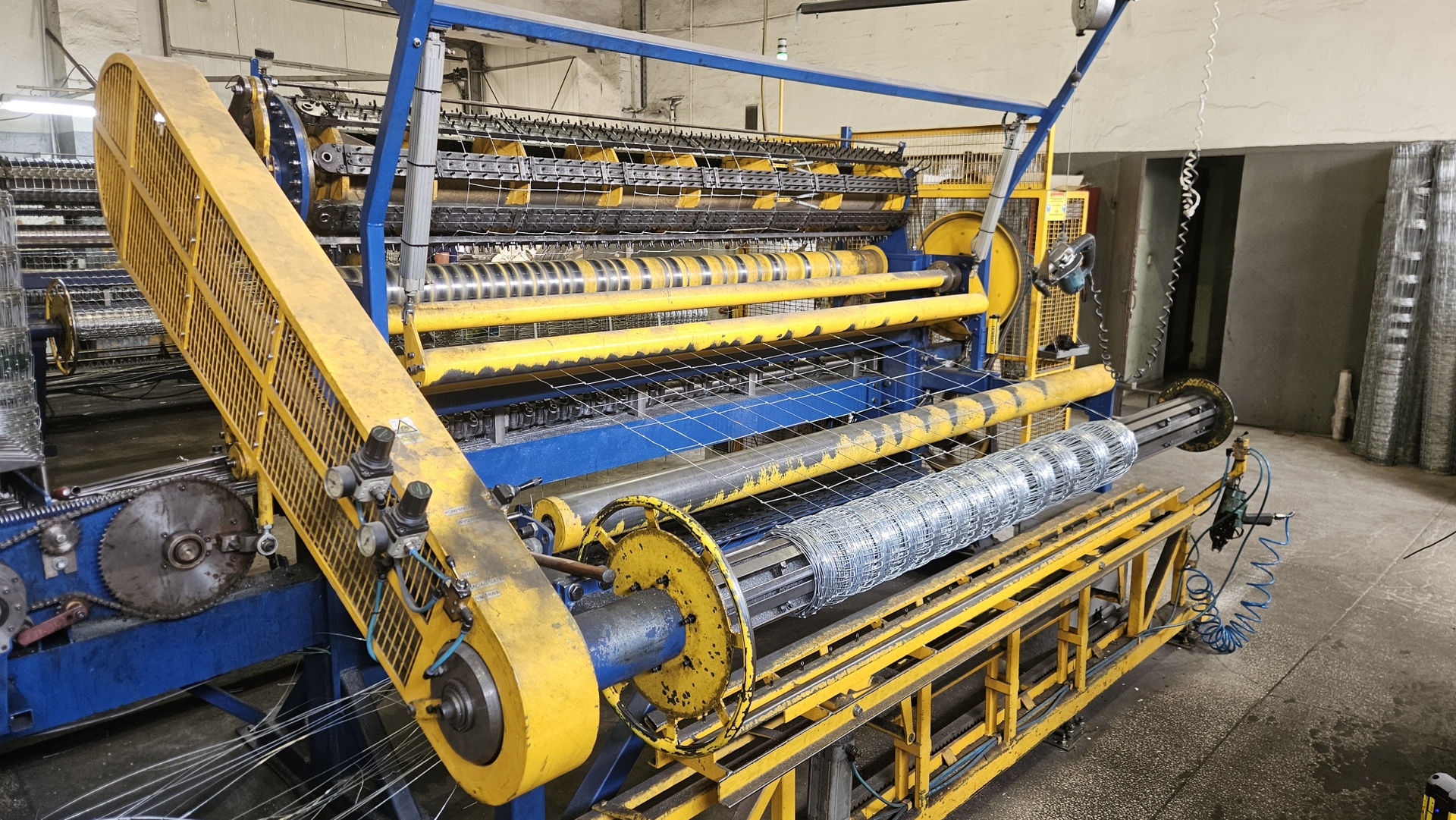

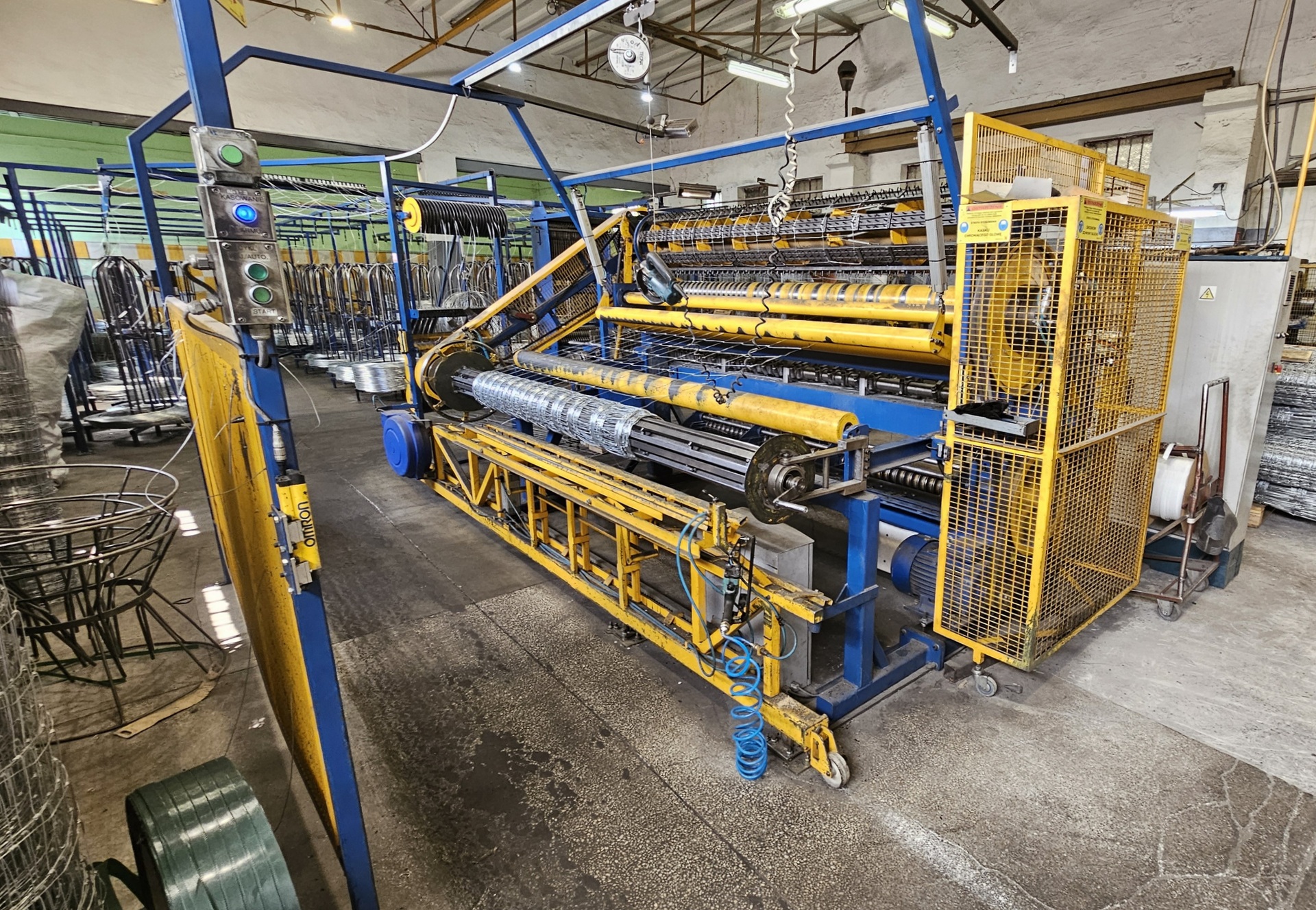

LS8 2500 knotted mesh production machine

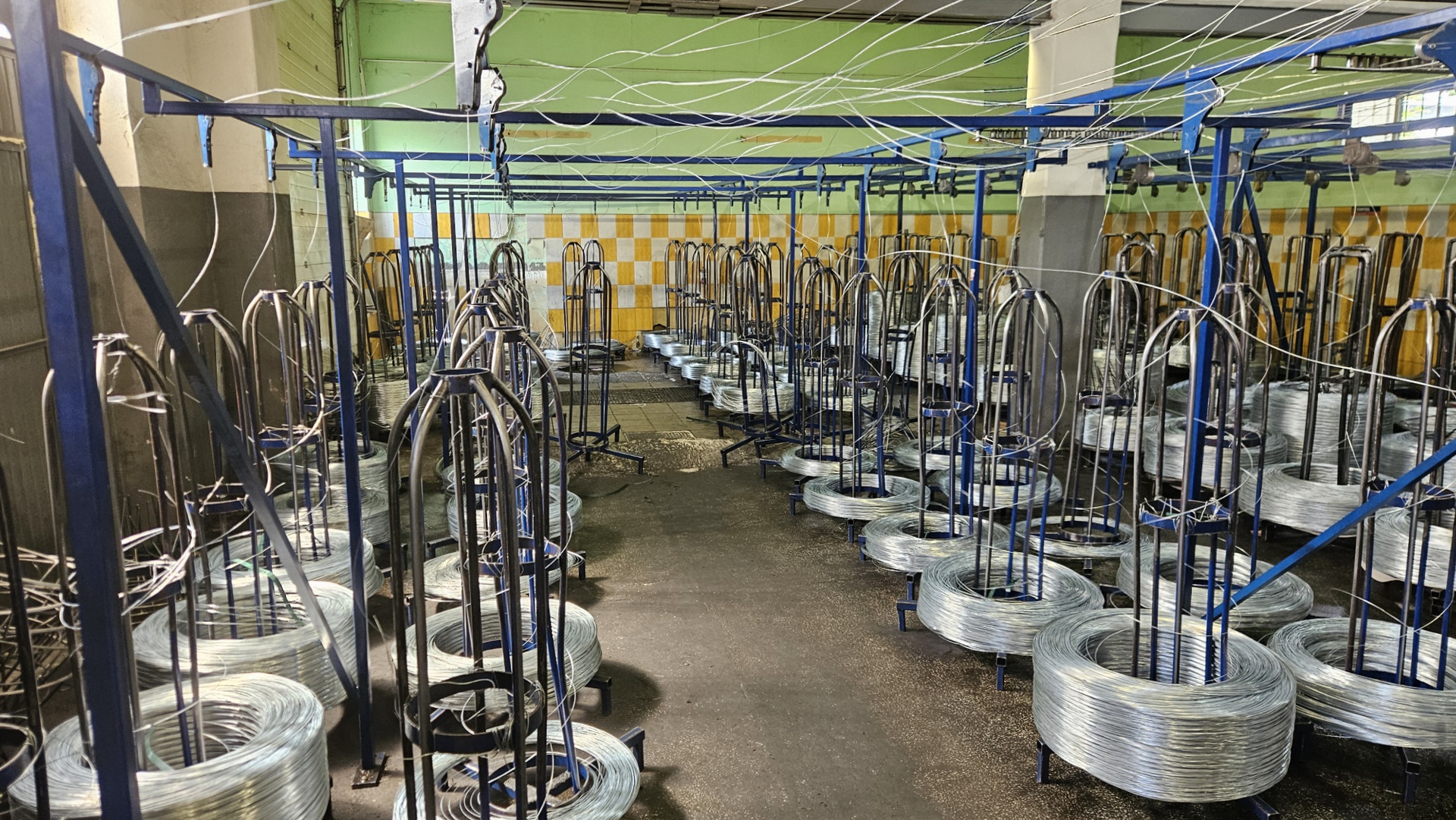

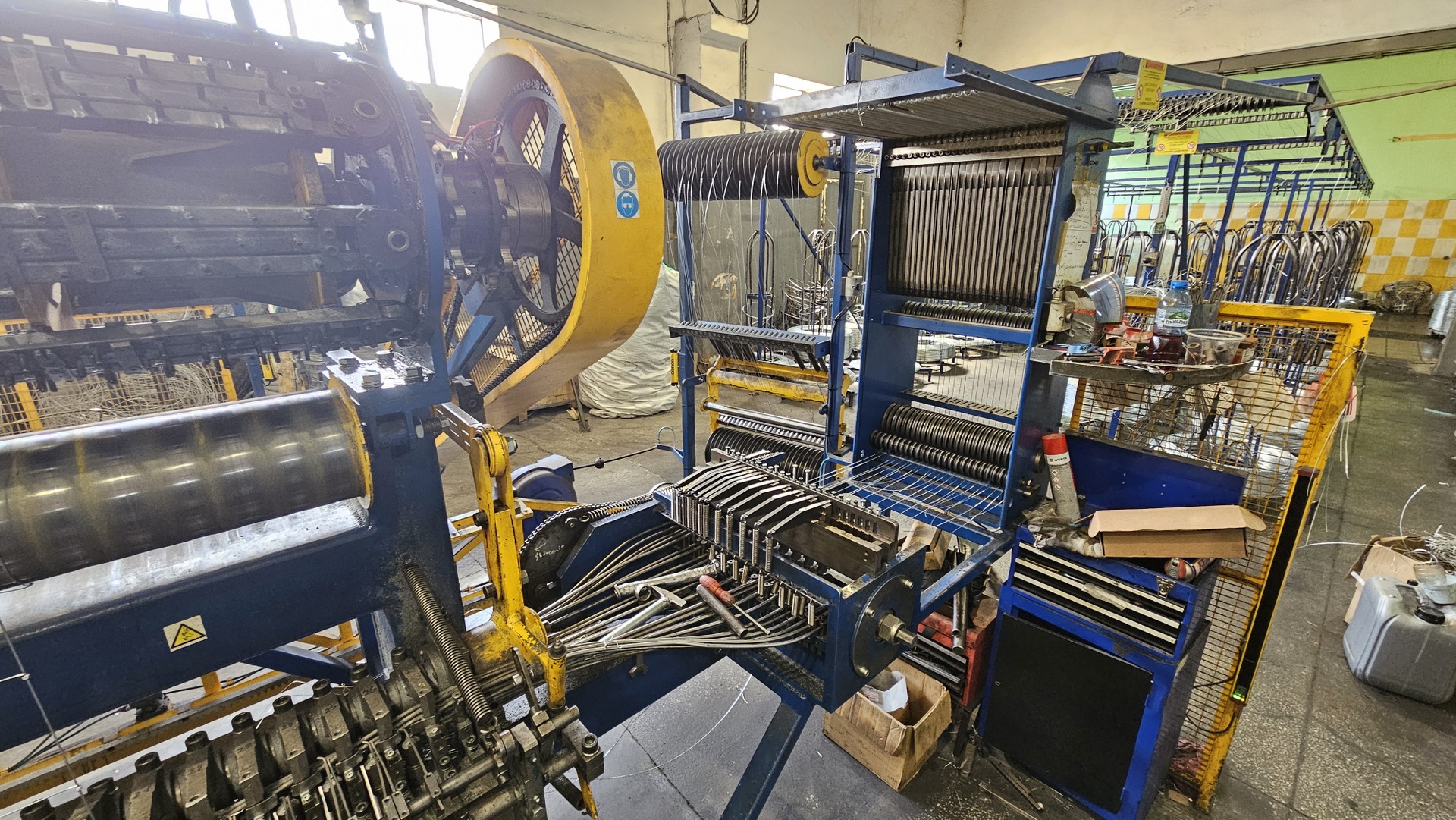

LS8 2500 knotted mesh production machine was built in 2016 in Poland by Maszyny S.C. The machine is used in the efficient production of durable and damage-resistant L-, M-, S- and SL-type mesh. The entire production process, from wire feeding to net braiding, is performed fully automatically. The fixed knot fence production line weighs 2600 kg.

Technical specifications of the LS8 2500 knotted mesh production machine

• type of produced net : L, M, S, SL
• maximum height of the produced net: 225 cm
• horizontal wires spacing: 15 or 30 cm
• number of horizontal wires: 26 pcs.
• edge wires diameter range: 1.8-3 mm
• inner wires diameter range: 1.5-2.5 mm
• edge wires maximum stress: Rm=1200 MPa
• horizontal wires maximum stress: Rm=450 or 1150-1200 MPa
• vertical wires maximum stress: Rm=450-500 MPa
• power: 11 kW
• pneumatic pressure: 0.6 MPa
• power supply: 3x 400 V; 50 Hz
• weight of the LS8 2500 machine: 2600 kg
