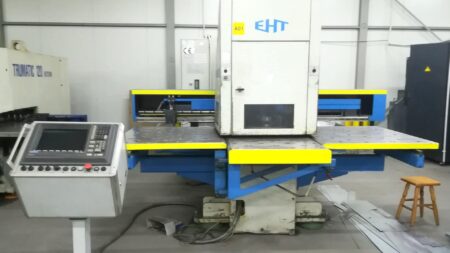

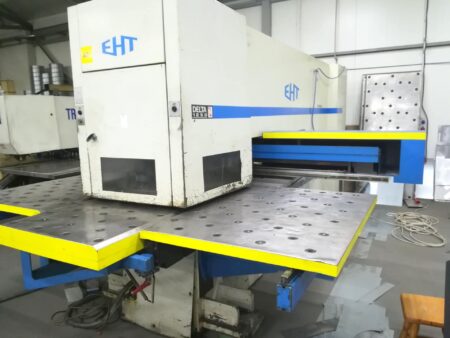

LVD EHT DELTA 1250 RS TK turret punching machine

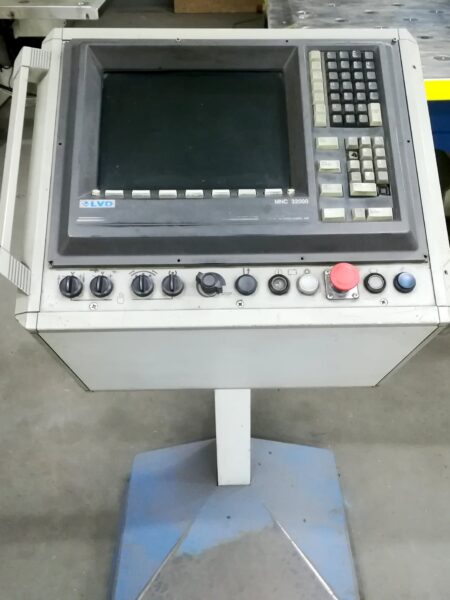

The LVD EHT DELTA 1250 RS TK turret punching machine was built in 1999. It is equipped with a MNC 32000 CNC control. The punching machine has a maximum pressure of 20 tons and allows the processing of a sheet with dimensions of 1250×1250 mm and a thickness of 4.5 / 6 mm. The machine performs a maximum of 650 beats per minute. The press is equipped with a hydraulic system, a turret with four stations (A, B, C, D) and a clearance adjustment sensor G8823142.

Technical parameters of the LVD EHT DELTA 1250 RS TK press

– CNC control: MNC 32000
– maximum pressing force: 20 tons
– sheet dimensions X x Y: 1250 x 1250 mm
– sheet thickness: 4.5 / 6 mm
– maximum number of strokes: 650 1 / min
– rated number of strokes: 300 1 / min
– oil tank: 200 L
– total power: 18.7 kW
– engine: 11 kW
– voltage: 400 V
– weight: 17 tons

Hydraulic System – Thick Turret:
– instrumentation: station A, B, C, D
– lash adjustment sensor: G8823142
– slack sensor position, dimension C: 210 mm
Control :
– punching: X = 25mm, Y = 0mm without a sheet
– nibbling: X = 1mm, Y = 0mm without the sheet
– beats per minute: 400 / min +/- 5%
– beats per minute: 200 / min +/- 5%
Normal sheet:
– sheet thickness: 3 mm
– Z axis feed: 13.5 mm
– speed code: M61
