LVD Siena strippit 1212 punching machine

LVD Siena strippit 1212 punching machine was built in 2005 in Belgium by LVD Group NV. Designed for machining steel and aluminium sheets, the machine is an excellent choice for both unit and batch production. Reliable components with excellent performance, combined with a compact design based on a one-piece frame, ensure that the SIENA 20 1212 punching machine delivers excellent precision and machining quality for many years of use.

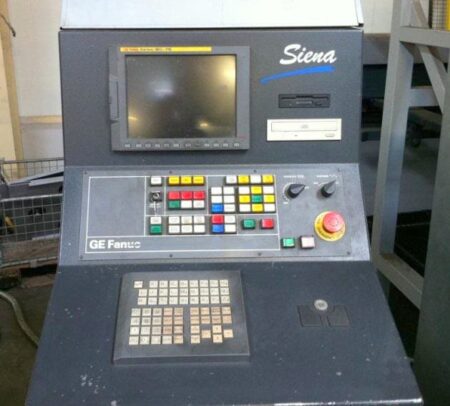

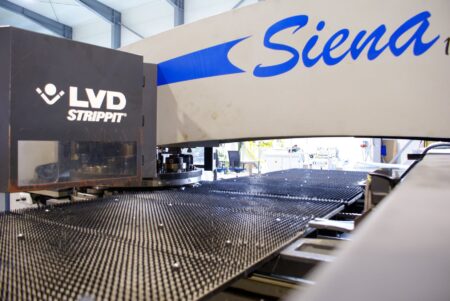

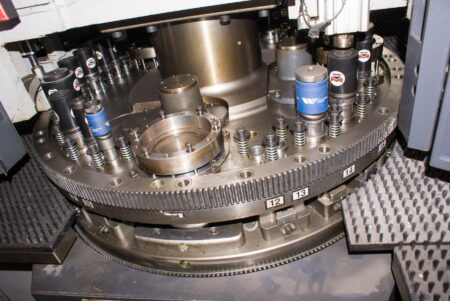

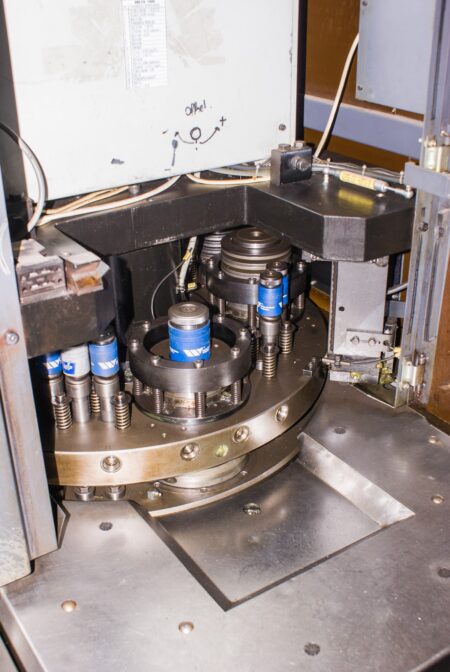

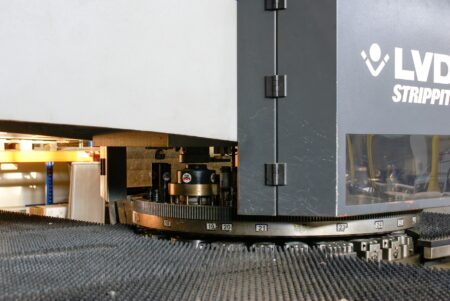

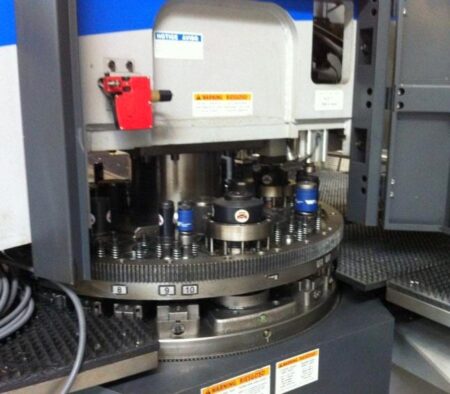

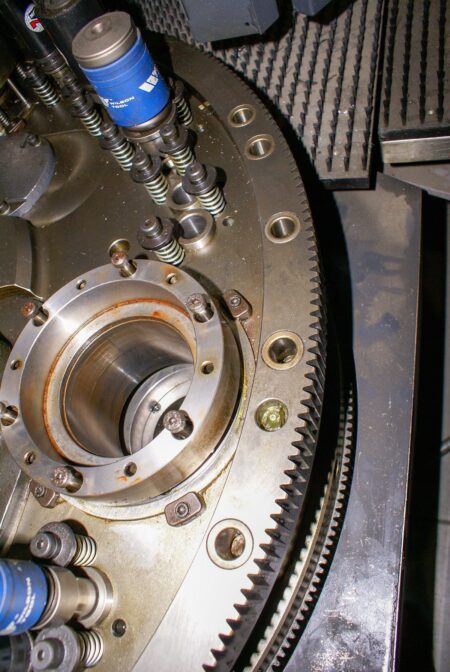

The capacious, 27-station turret with 3 auto-index stations and MultiTool support offers a wide variety of machining options and a high level of flexibility. Precision tools punch metal sheets with a force of 20 tonnes on a large brush table, which protects the surface of the workpiece from scratches and scrapes, while increasing the quality of machining. All of this is completed by the GE FANUC CNC control with its unique Smart Stroke function for automatic optimisation of punching cycles. The LVD STRIPPIT 1212 punching machine weighs 11400 kg.

Technical specifications of LVD Siena strippit 1212 punching machine

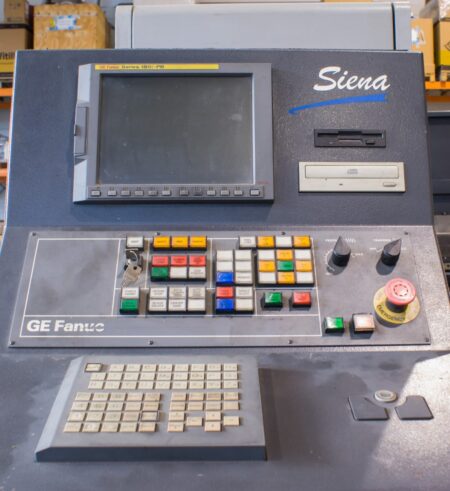

• CNC controller: GE FANUC Series 180i
• maximum press force: 20 t
• feed in the X/Y axis: 1326.2/1337.1 mm
• workspace dimensions (L x W): 2500 x 1250 mm
• maximum workpiece thickness: 6.4 mm
• maximum workpiece dimensions (L x W): 2500 x 1250 mm
• maximum workpiece weight: 50 kg
• hole diameter (mild steel 2 mm): 88.9 mm
• hole diameter (mild steel 6 mm): 30 mm
• 27-station STRIPPIT turret with 3 auto-index stations
• tool length: 205 mm
• punching accuracy: ± 0.01 mm
• dimensions (L x W x H): 8500 x 6300 x 2100 mm
• weight of the LVD Siena strippit 1212 machine: 11400 kg
