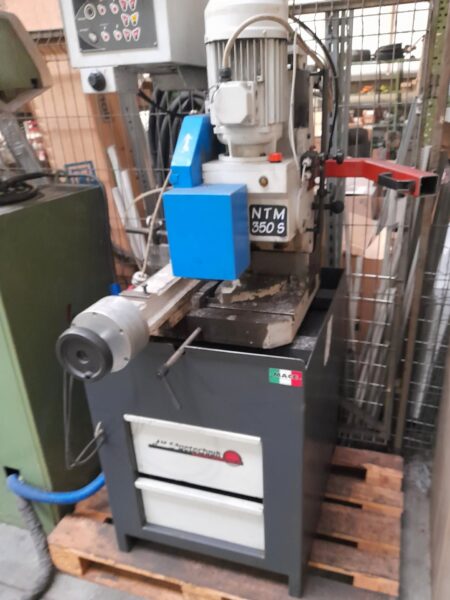

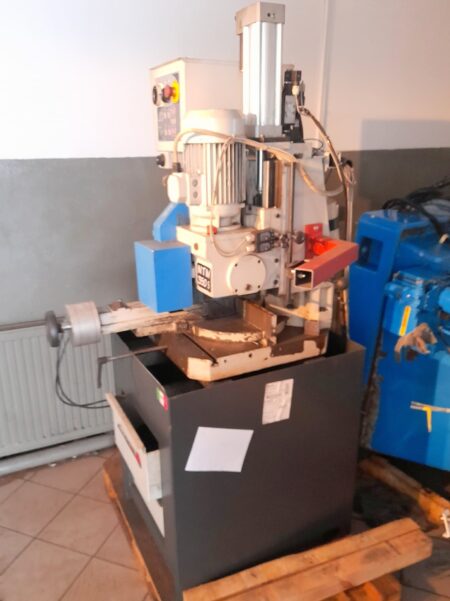

MACC NTM 350 S circular sawing machine

MACC NTM 350 S circular sawing machine manufactured by Italian company MACC Costruzioni Meccaniche S.r.l. in 2016 is characterised by excellent precision and accuracy in cutting tubes and profiles. Workpieces are cut at angles from 45° to +60° using high-end components, i.e. a cutting head with rotating disc and a vice with a special device to protect workpiece surfaces from burrs. The MACC circular sawing machine combines excellent cutting performance, reliable components and ease of use to produce an excellent quality product in a very short time. The MACC NTM 350S circular sawing machine weighs 480 kg.

Technical specifications of the MACC NTM 350 S circular sawing machine

• head movement (cutting angle): 45° to the right, 60° to the left
• head positions: 45° – 0° – 45° – 60°
• maximum cutting capacity (90° angle, circle): 100 mm
• maximum cutting capacity (90° angle, round): 120 mm
• maximum cutting capacity (90° angle, square): 100 mm
• maximum cutting capacity (90° angle, rectangle): 170×90 mm
• maximum cutting capacity (-45° angle, circle): 100 mm
• maximum cutting capacity (-45° angle, round): 120 mm
• maximum cutting capacity (-45° angle, square): 90 mm
• maximum cutting capacity (-45° angle, rectangle): 125×90 mm
• maximum cutting capacity (+45° angle, circle): 100 mm
• maximum cutting capacity (+45° angle, round): 120 mm
• maximum cutting capacity (+45° angle, square): 90 mm
• maximum cutting capacity (+45° angle, rectangle): 125×90 mm
• maximum cutting capacity (+60° angle, circle): 90 mm
• maximum cutting capacity (+60° angle, round): 90 mm
• maximum cutting capacity (+60° angle, square): 90 mm
• maximum cutting capacity (+60° angle, rectangle): 90×90 mm
• cutting disc diameter: 350 mm
• cutting disc thickness: 2.5 mm
• cutting disc speed: 36-72 rpm
• vice with anti-burr device
• maximum vice opening: 185 mm
• motor pump for blade lubrication
• blade cleaning system
• stepless feed adjustment
• motor speed (two speeds): 1400-2800 rpm and 700-1400 rpm
• motor power: 1.8/2.4 kW
• coolant tank capacity: 8 l
• dimensions (L x W x H): 2640 x 1700 x 1900 mm
• NTM 350 S circular sawing machine weight: 480 kg
