MAIER ML 32 D CNC lathe

26.875€ Netto

Tomasz Konieczko

Tomasz Konieczko

+48 889 742 382

tomasz.konieczko@maszyneria.pl

Sławomir Konieczko

Sławomir Konieczko

+48 603 510 566

info@maszyneria.pl

Category:

MAIER ML 32 D CNC lathe was built in 2004 in Germany by Maier Werkzeugmaschinen GmbH & Co. KG. The machine, designed for precision 9-axis machining of workpieces with a maximum diameter of 32 mm, is used in many industries, such as automotive or aerospace. The machining process is performed inside a large working area by two reliable spindles. The extensive machining capacity, combined with the IEMCA bar feeder, allows fully automatic machining of workpieces with even the most complex shapes. To this date, the MAIER ML-ProLine swiss-type lathe has machined for 10699 hours. The total weight of the machine is 3800 kg.

Technical specifications of the MAIER ML 32 D CNC lathe

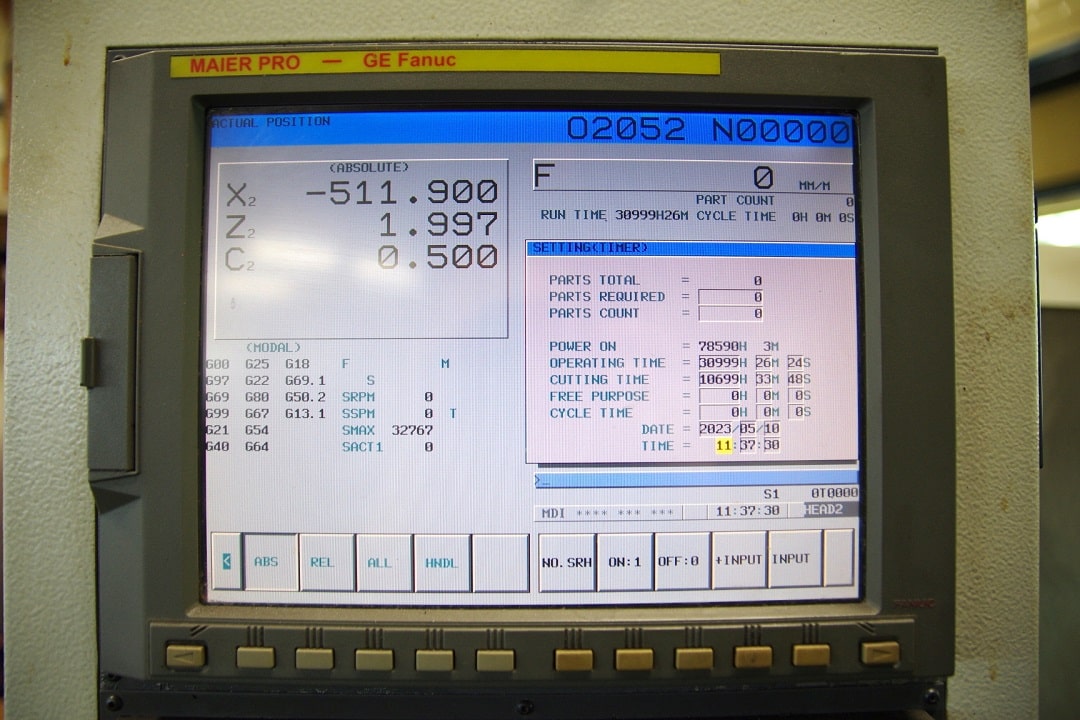

  • CNC controller: MAIER PRO GE FANUC 16iT

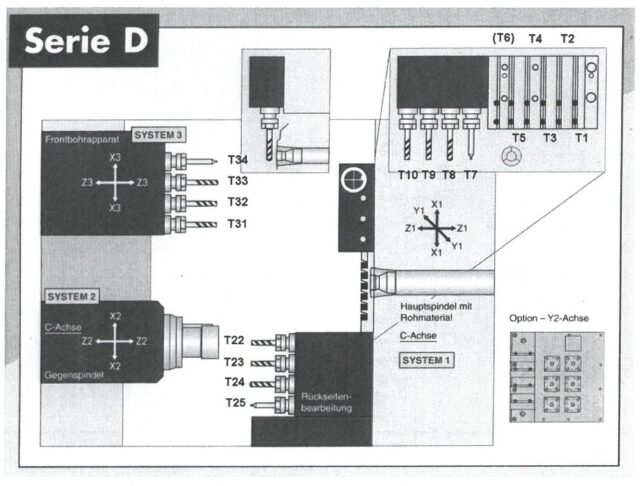

  • number of axes: 9 (X1, Z1, Y1, C1, X2, Z2, C2, X3, Z3)
  • maximum turning diameter: 32 mm
  • maximum turning length: 310 mm
  • number of spindles: 2
  • maximum spindle rotational speed: 6000 rpm
  • spindle drive power: 5.5 kW
  • bar feeder: IEMCA BOSSr-E
  • cutting time: 10699 h
  • operating hours: 30999 h
  • power supply: 220 V; 50 Hz
  • dimensions (L x W x H): 2640 x 1900 x 1600 mm
  • weight of the MAIER ML 32 D machine: 3800 kg
