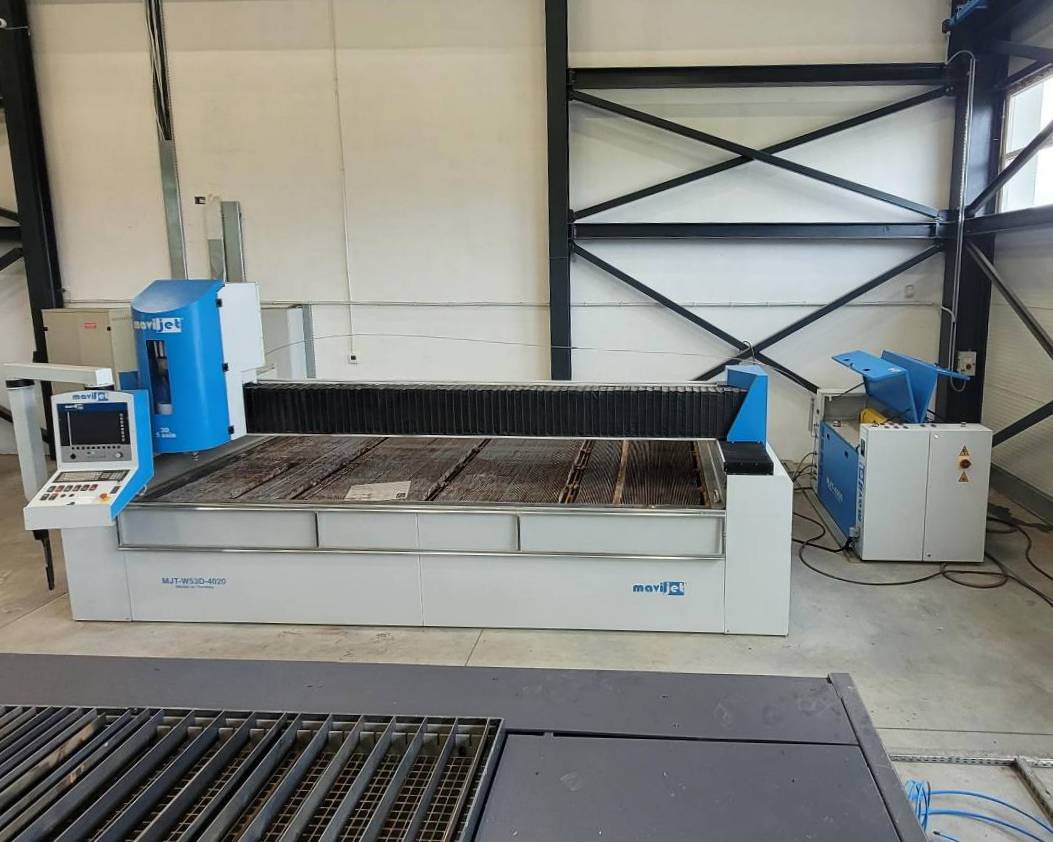

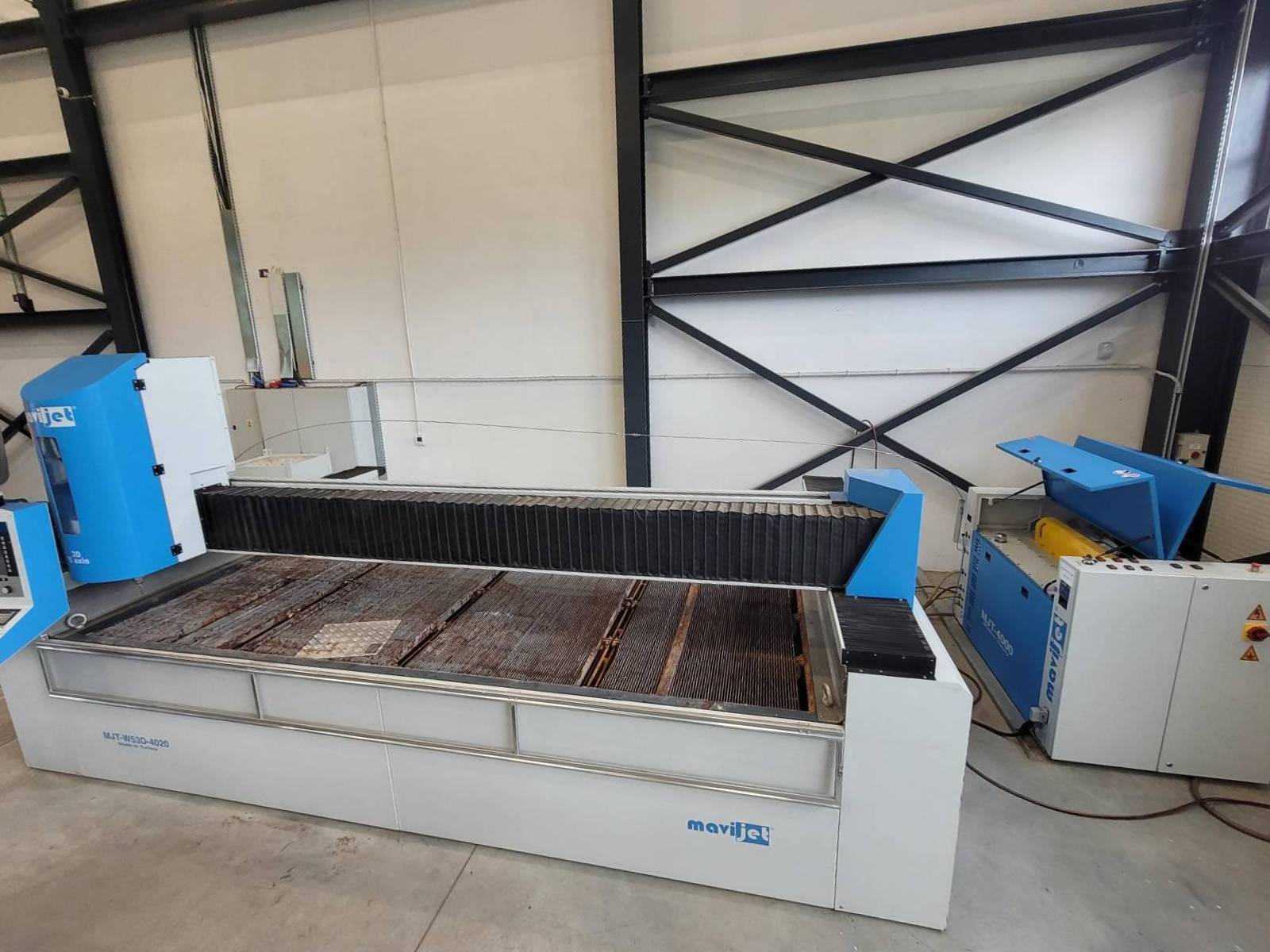

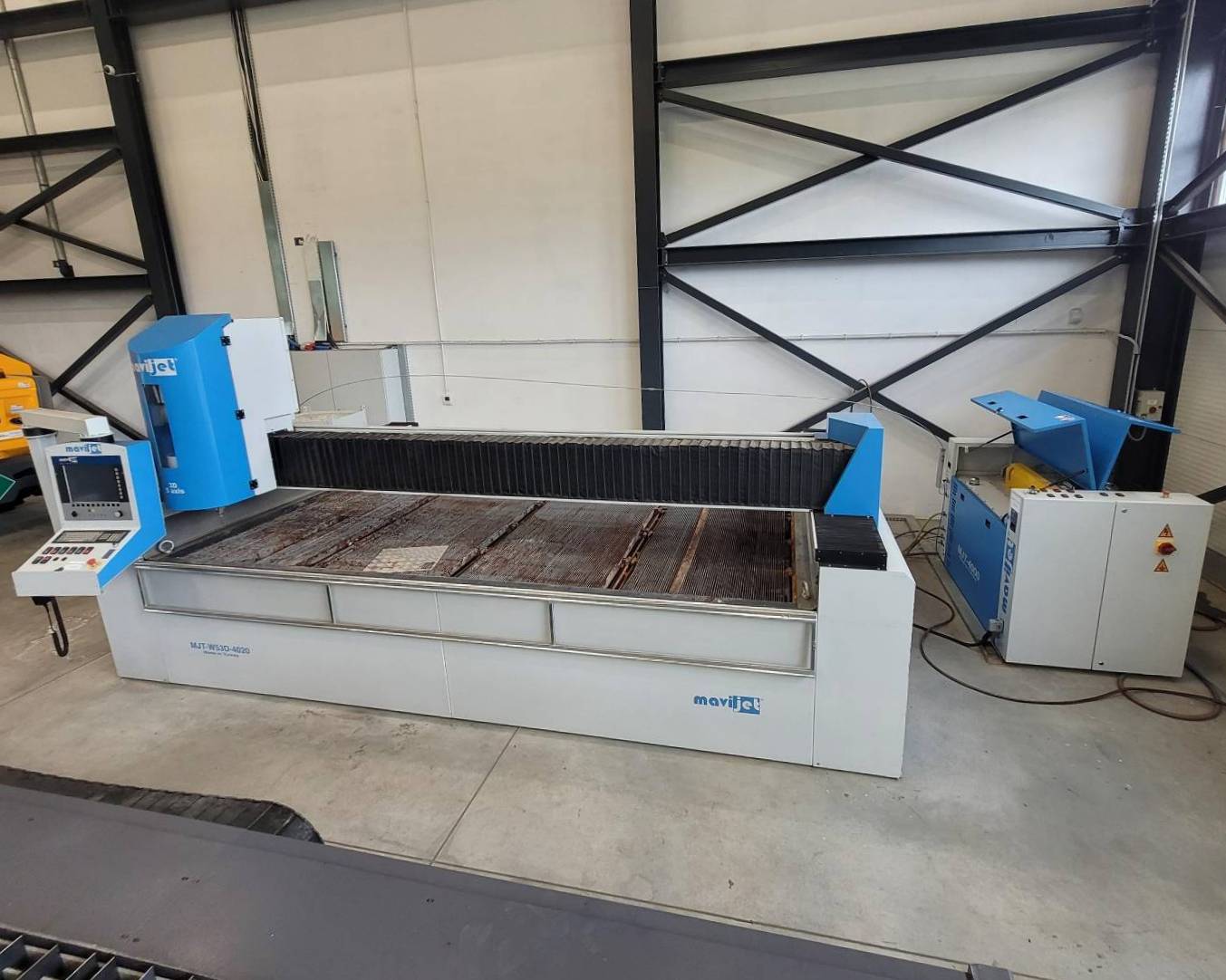

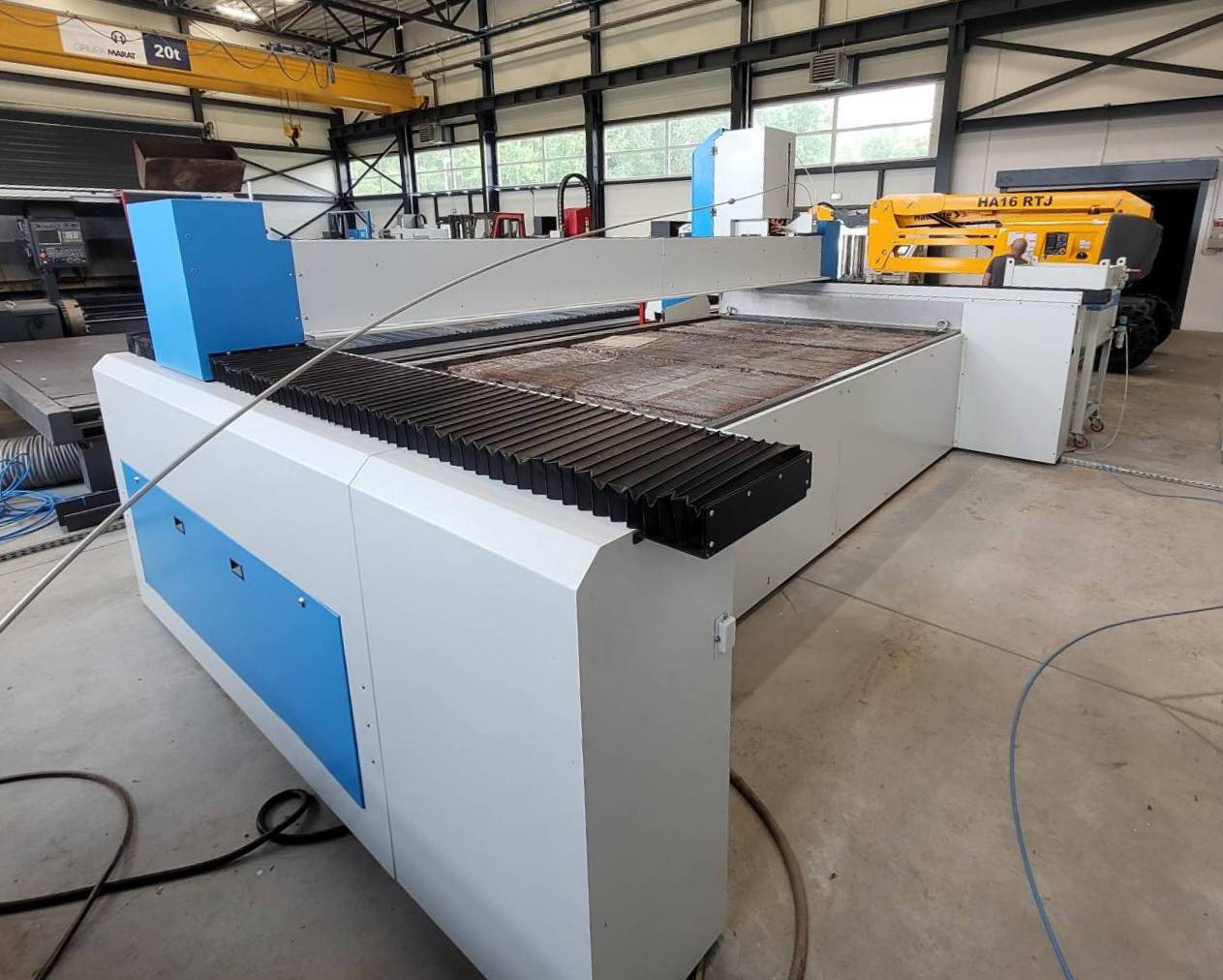

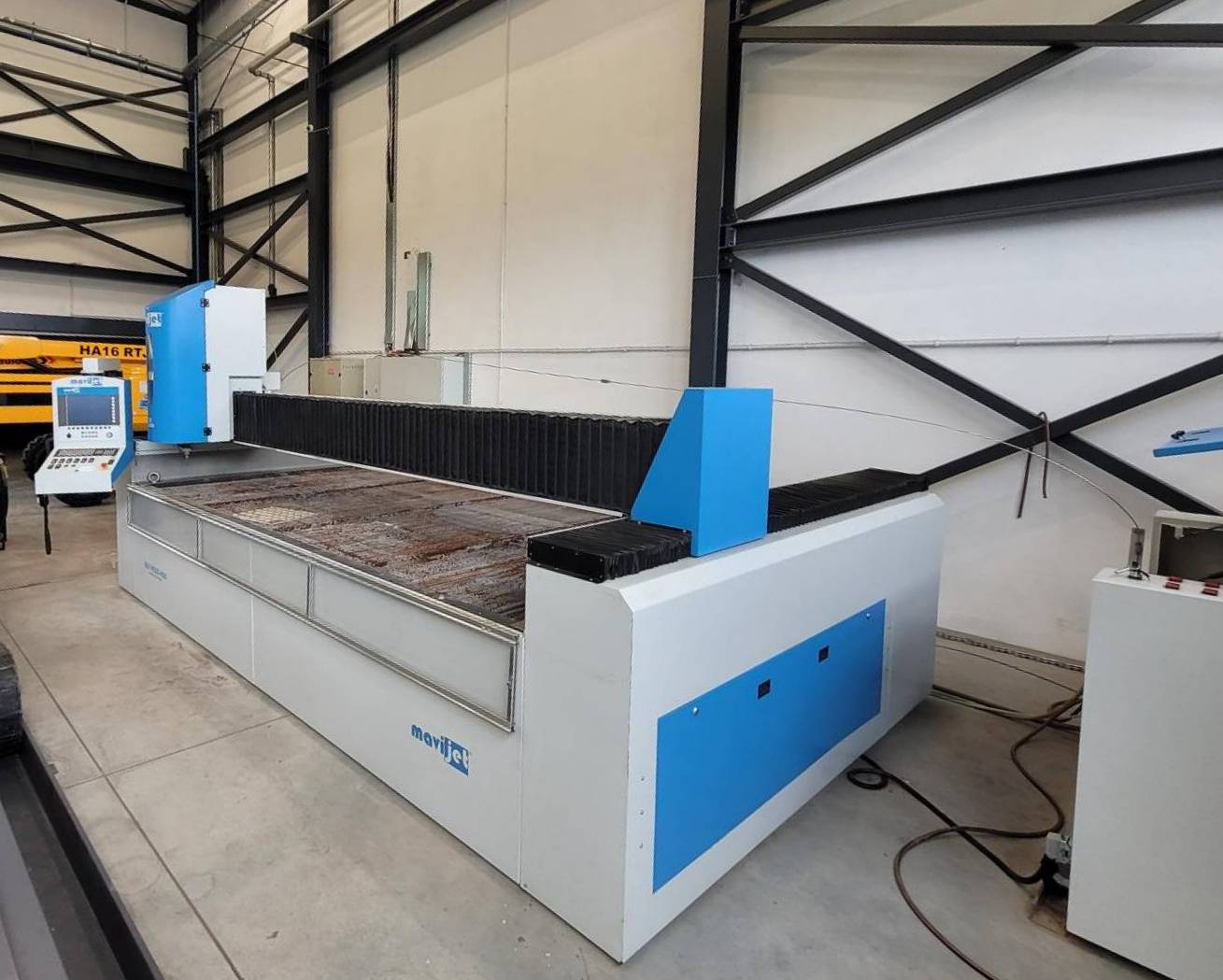

MAVIJET MJT-W53D 4020 CNC waterjet cutting machine

MAVIJET MJT-W53D 4020 CNC waterjet cutting machine was built in 2020 in Turkey by MAVİFORM METAL MAKİNA SAN.TİC.LTD.ŞTİ. The machine, equipped with a 5-axis cutting head, offers unlimited machining of a wide range of materials, i.e. metal, plastics and glass. Machining is performed with innovative water jet cutting technology, which guarantees perfectly smooth edges without the need for further finishing operations. During cutting, only natural abrasive and water are used, making the process free of harmful fumes and safe for the environment.

The offer also includes a comprehensive range of equipment, consisting of, among others, an advanced control system, a 40 kW high-pressure pump and an abrasive tank. MJT-W53D 4020 WaterJet with empty tank weighs 4560 kg.

Technical specifications of the MAVIJET MJT-W53D 4020 water cutting machine

• CNC controller: ESA
• number of axes: 5 (X,Y,Z,A,C)
• feed in the X/Y/Z axis: 4000/2000/250 mm
• rapid traverse speed: 30000 mm/min
• positioning accuracy: 0.01 mm
• cutting head with mixing chamber
• CAM software with semi-automatic Nesting
• servo motors on all axes
• GÜDEL hardened helical racks and pinions
• THK linear slides and rails
• handwheel
• USB port
• Ethernet interface
• power supply: 3x 380 V; 50 Hz
• weight of the machine with empty tank: 4560 kg
• weight of the MAVIJET MJT-W53D 4020 machine with full tank: 11560 kg

Technical specifications of the MAVIJET waterjet cutting machine equipment

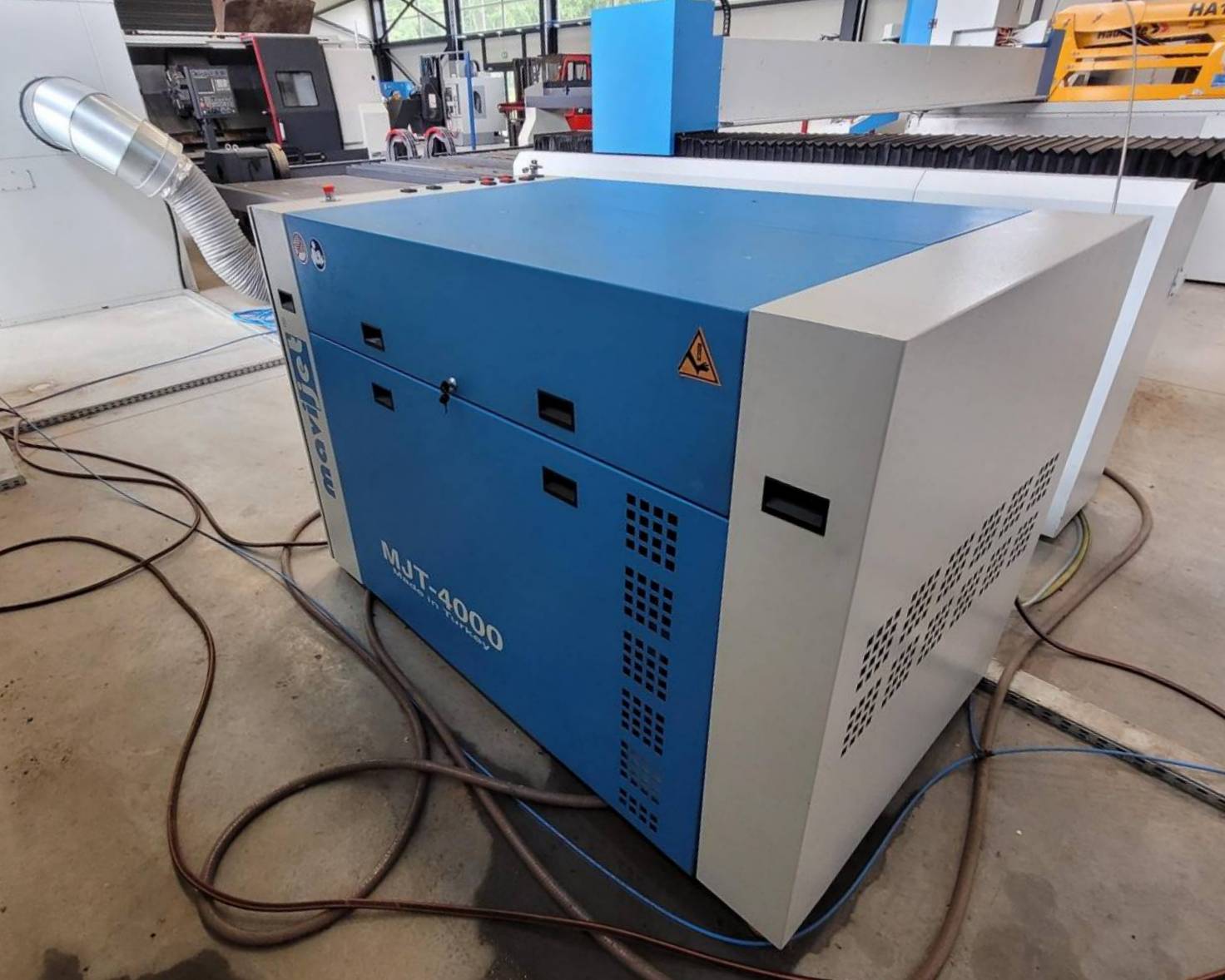

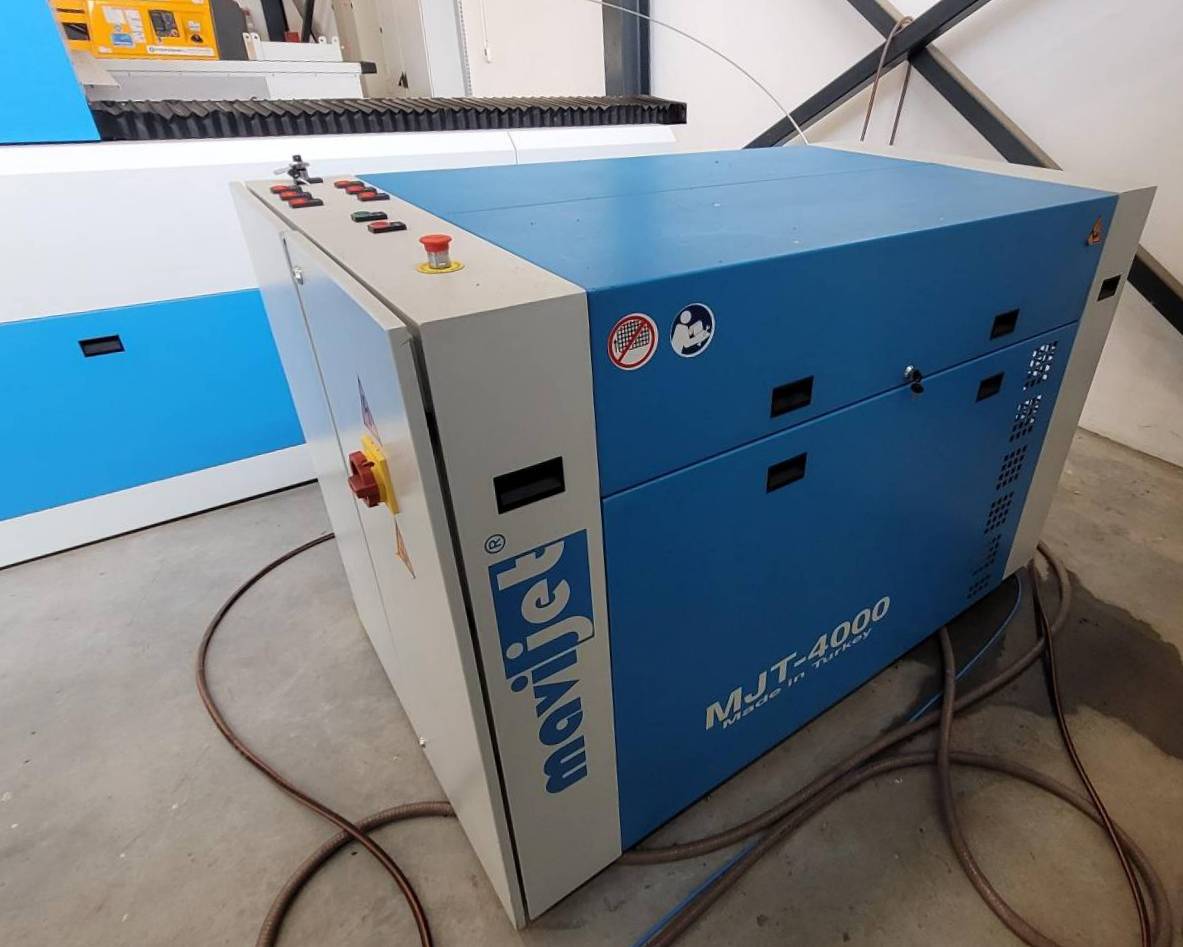

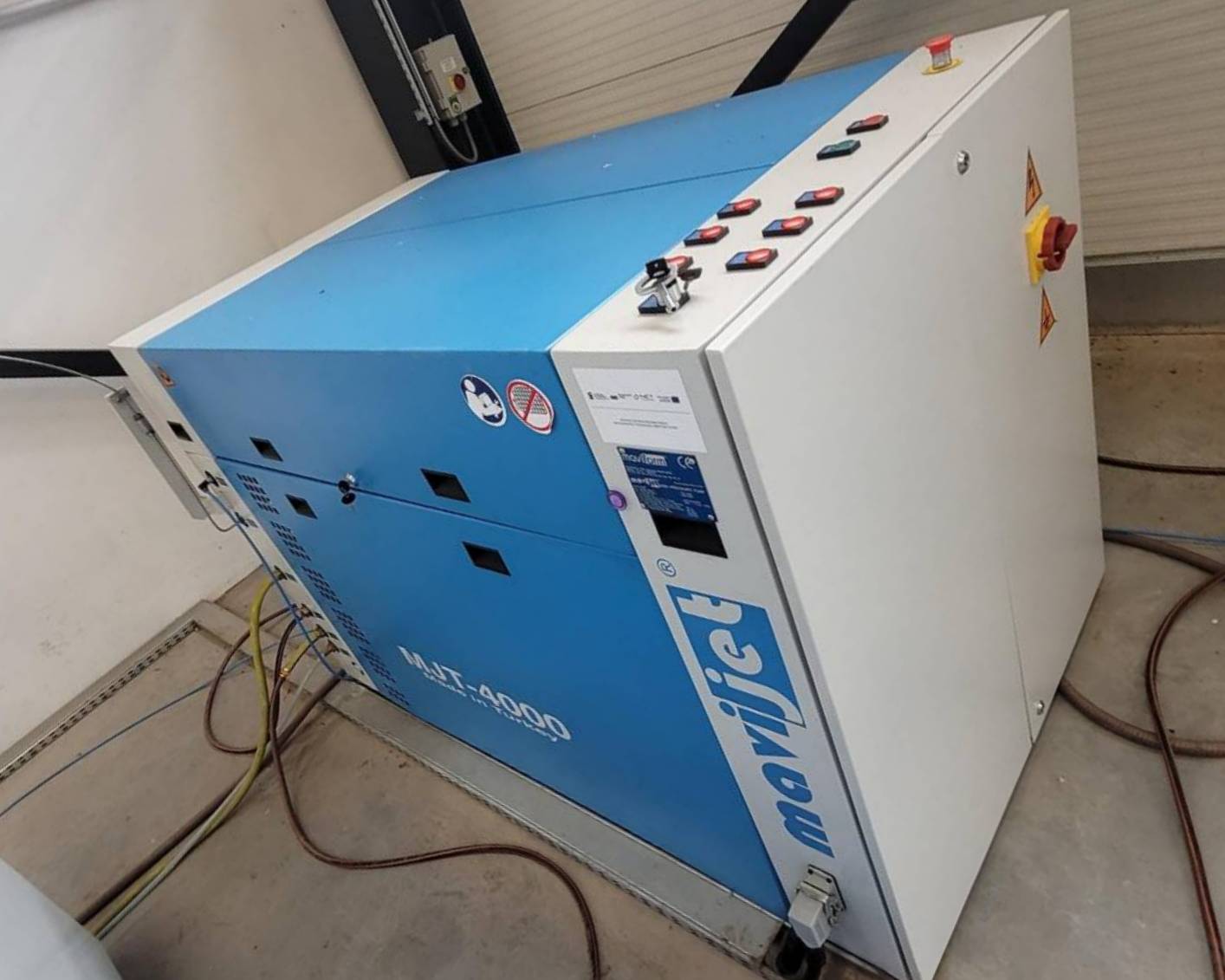

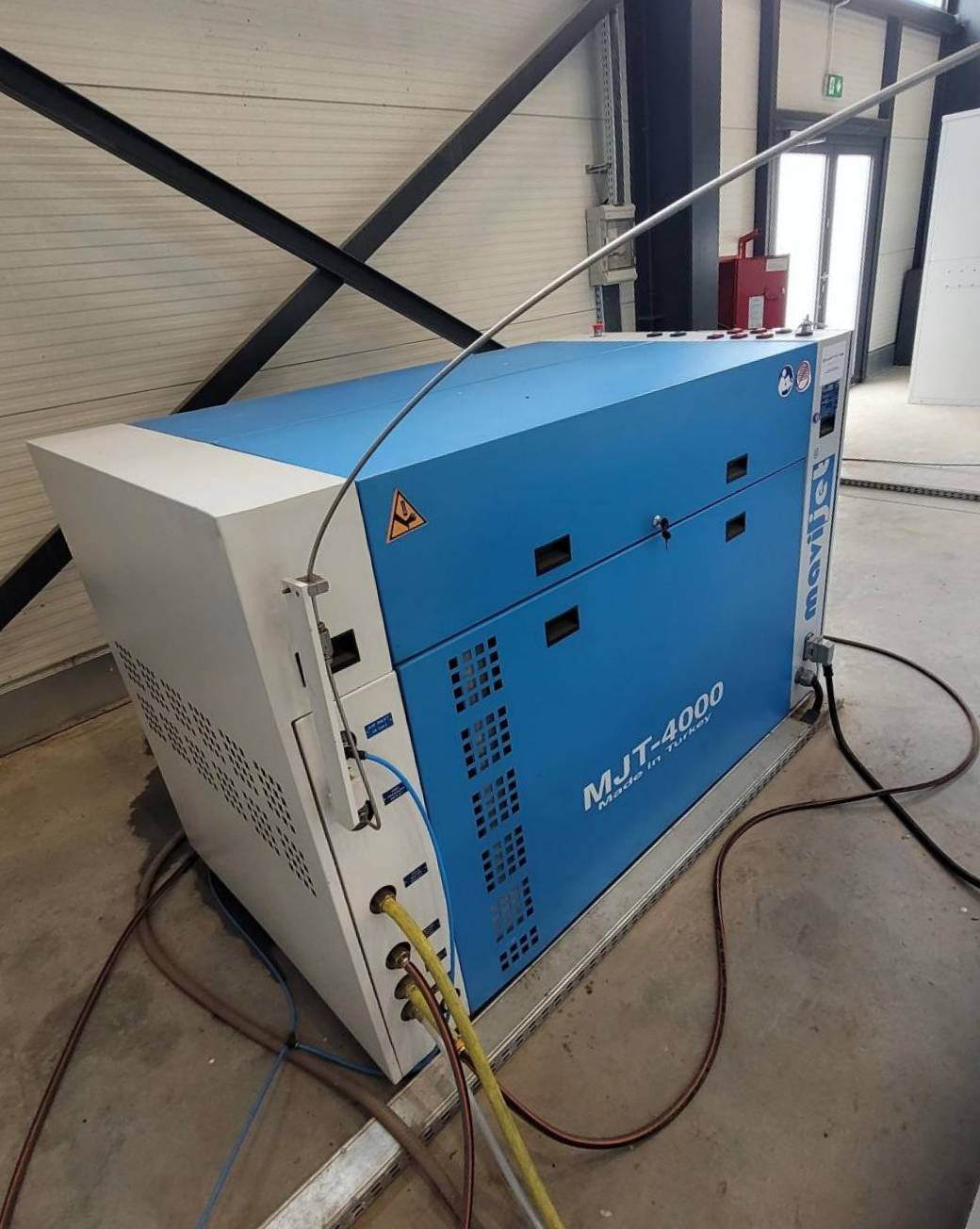

MJT-4000 high-pressure pump

• SIEMENS PLC controller with touchscreen display
• power: 40 kW
• working pressure: 4000 bar
• flow rate: 2.3-3 l/min
• digital adjustment of the working pressure
• hydraulic pump capacity: 103 l
• motor rotational speed: 1500 rpm
• power supply: 3x 380 V; 50 Hz
• dimensions (L x W x H): 1830 x 1040 x 1220 mm
• weight: 1453 kg

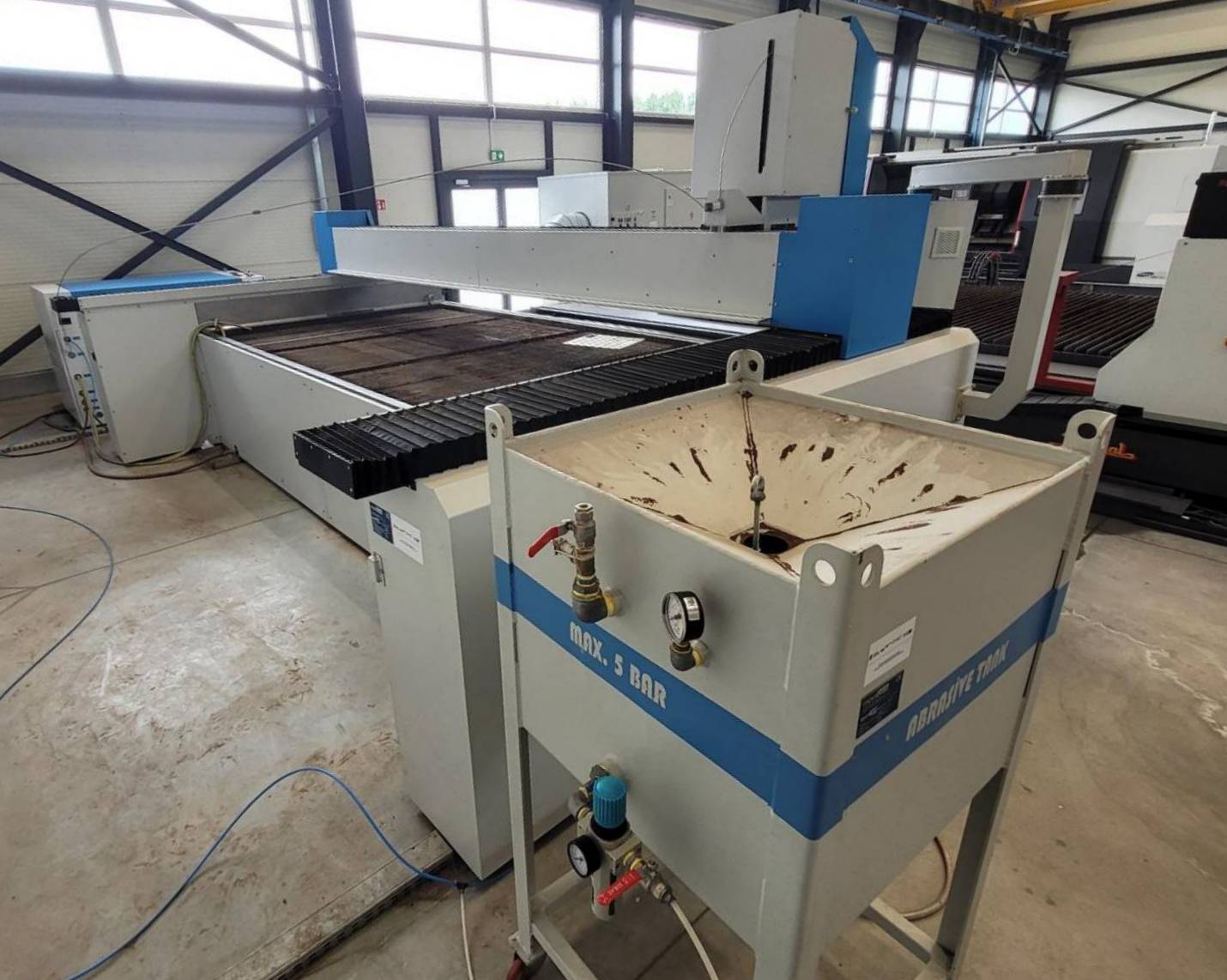

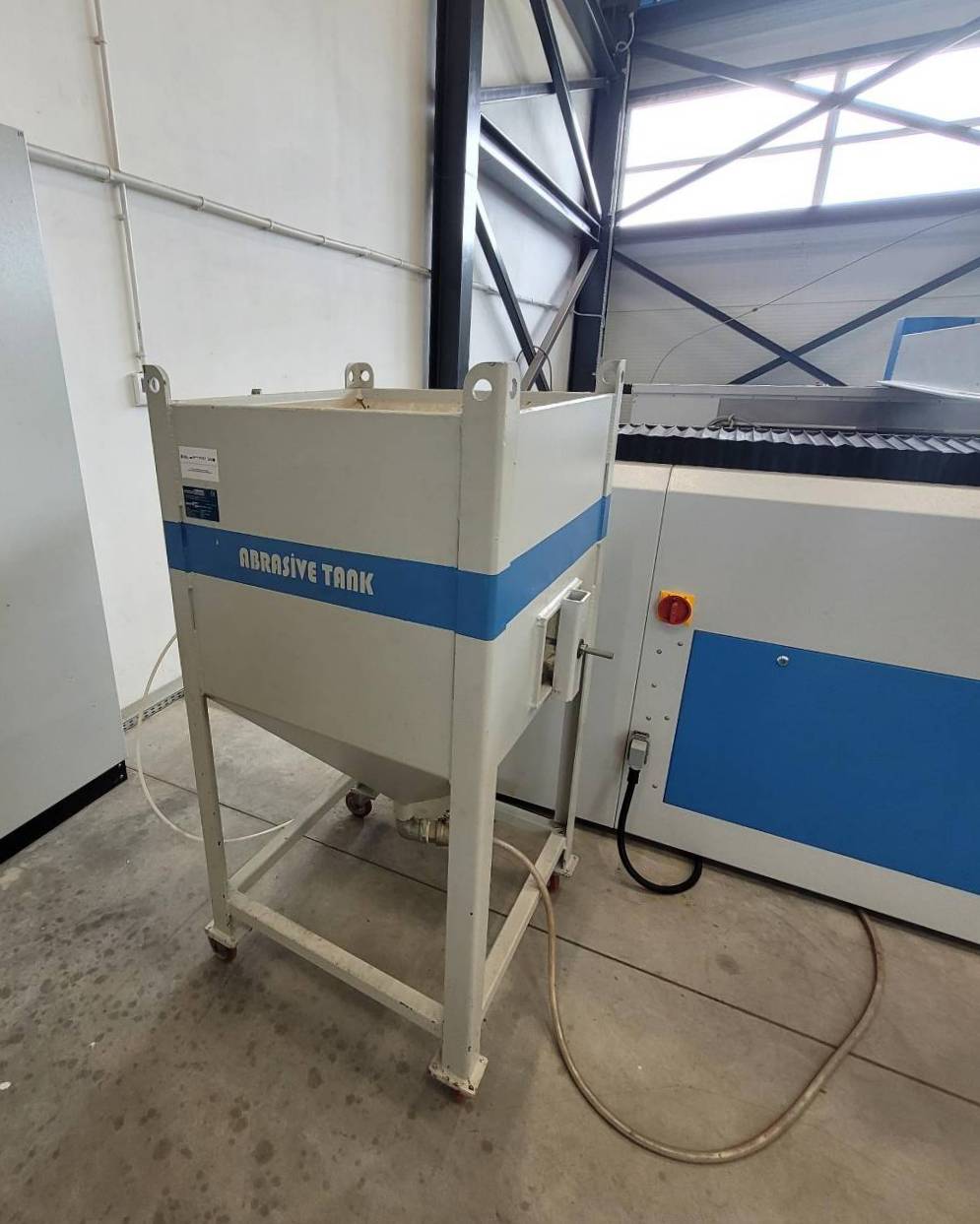

Abrasive tank

• capacity: 350 kg
• working pressure: 5 bar
• weight: 240 kg

Sand dosing system

• sand flow rate: 50-1000 gr/min
