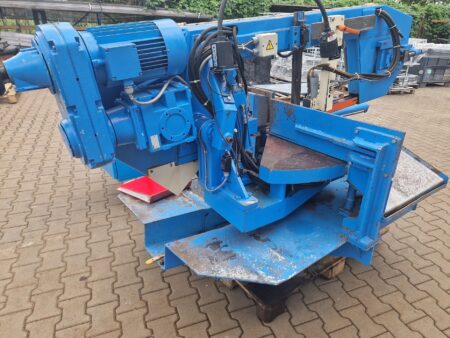

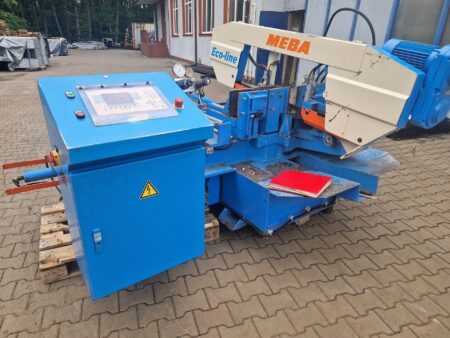

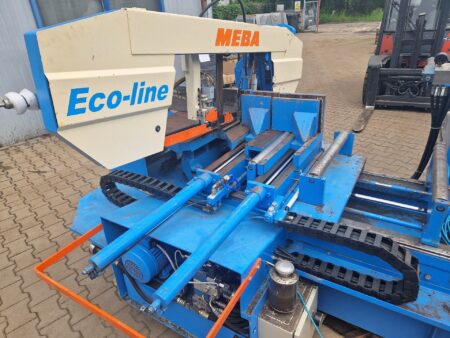

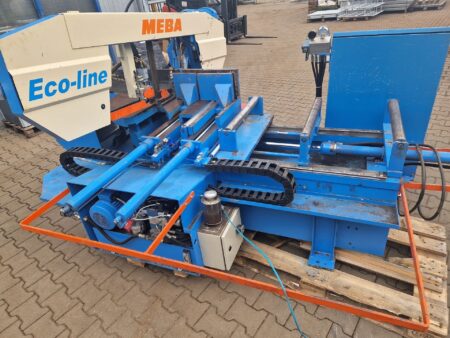

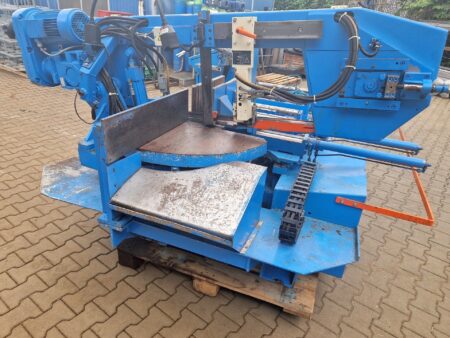

MEBA ECO 320 DGA metal band saw

MEBA ECO 320 DGA metal band saw built in 2001 provides excellent accuracy in straight and mitre cutting at angles of 45° or 30°. The machining process is performed by machine fully automatically using a reliable 4400 mm long saw blade. In addition, a special clamp allows more than one piece of material (bundle) to be positioned properly, preventing the workpiece from moving.

The MEBA metal band saw is also distinguished by its robust design, which eliminates any vibrations and guarantees exceptional stability, even during the most intensive machining. On the other hand, the installed SIEMENS operator panel allows easy and quick programming of the operating modes in just a few steps. The MEBA ECO-LINE 320 DGA band saw weighs approximately 1800 kg.

Technical specifications of the MEBA ECO 320 DGA band saw

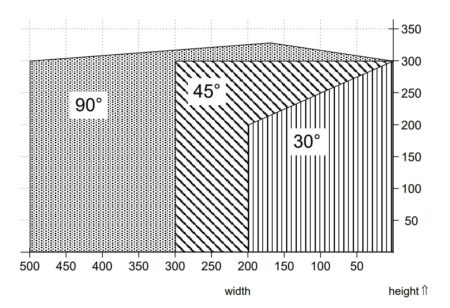

• maximum cutting capacity (90°, round): 325 mm
• maximum cutting capacity (90°, rectangle): 500 x 300 mm
• right mitre cut (45°, round): 300 mm
• right mitre cut (45°, rectangle): 300 x 300 mm
• right mitre cut (30°, round): 200 mm
• right mitre cut (30°, rectangle): 200 x 200 mm
• left mitre cut (45°, round): 300 mm
• left mitre cut (45°, rectangle): 300 x 300 mm

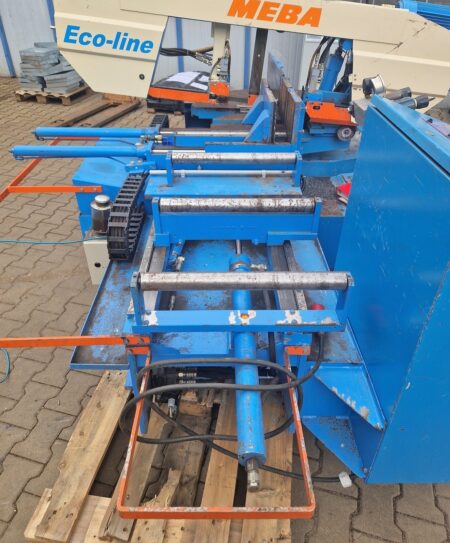

• single material feed length: 0-600 mm
• repeated material feed length: 0-9999 mm
• maximum workpiece weight: 250 kg/m
• workpiece width in bundle clamping: 0-300 mm
• workpiece height in bundle clamping: 5-300 mm
• length of remaining piece (manual mode): approx. 70 mm
• length of remaining piece (automatic mode): approx. 300 mm
• saw blade dimensions: 4400 x 34 x 1.1 mm
• saw blade tension: torque wrench

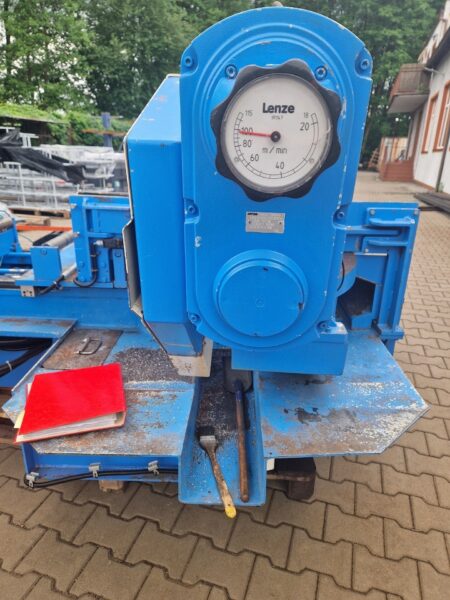

• cutting speed: stepless from 18 to 115 m/min
• cutting pressure: stepless hydraulically adjustable
• lowering speed: stepless, 0-300 m/min

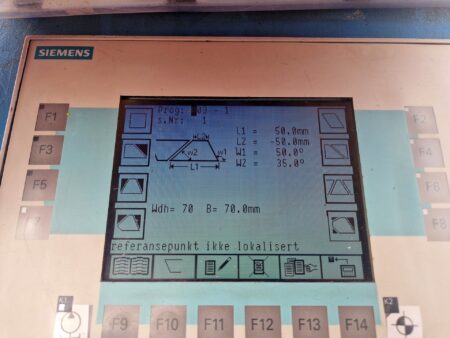

• control panel: SIEMENS SIMATIC OP27
• working height: 750 mm
• saw blade drive power: 2.2 kW
• coolant pump power: 0.11 kW

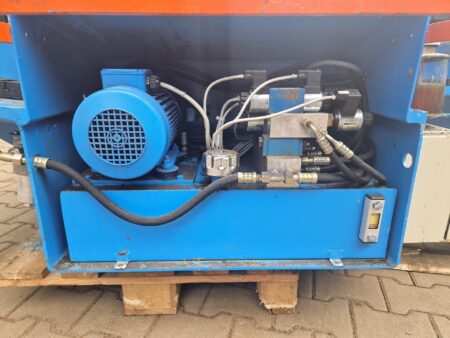

• hydraulic pump power: 2.2 kW
• coolant tank capacity: approx. 80 l
• noise level: 74 dB(A)
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): approx. 2680 x 2350 x 1350 mm
• weight of machine: approx. 1800 kg
