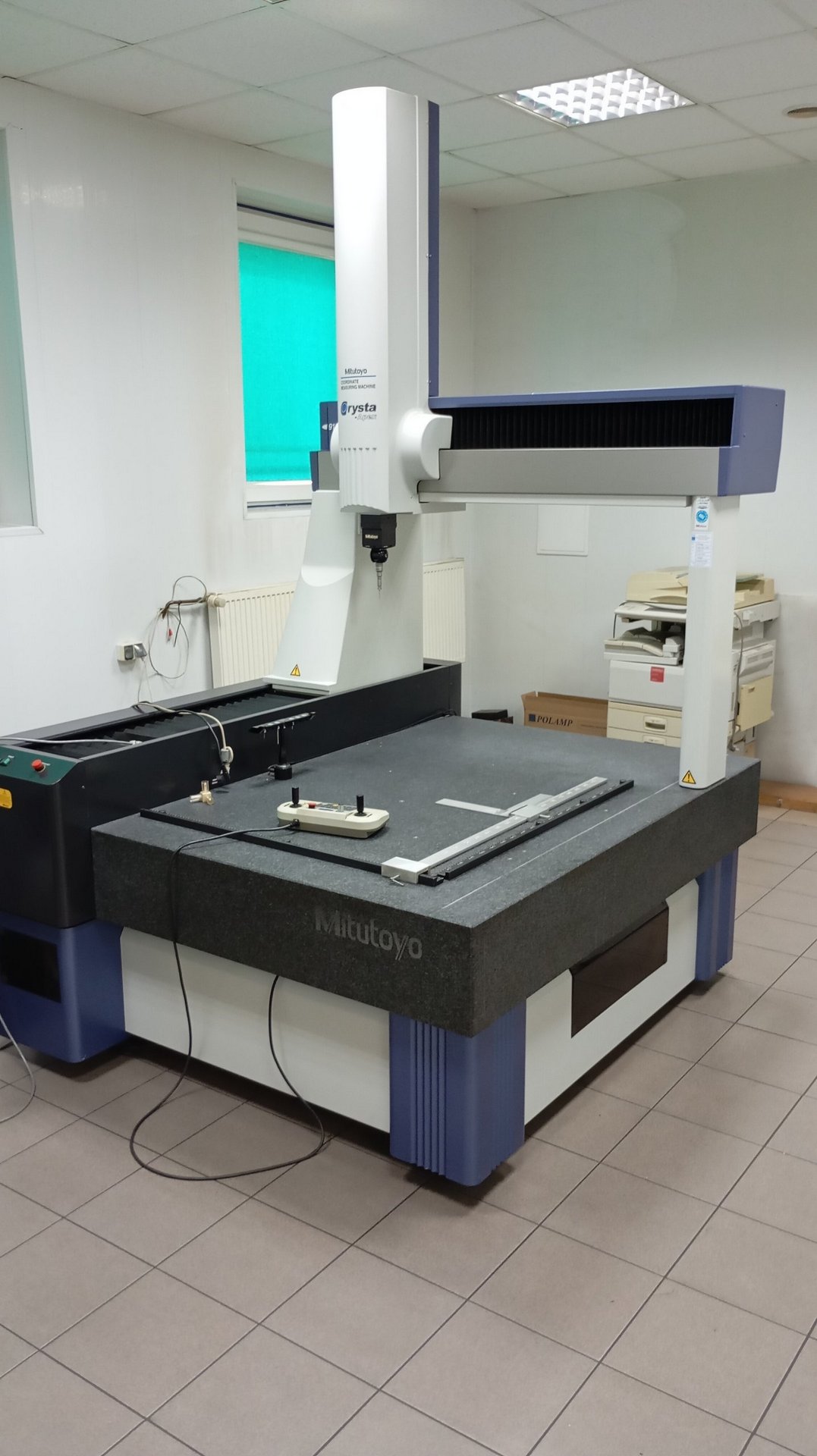

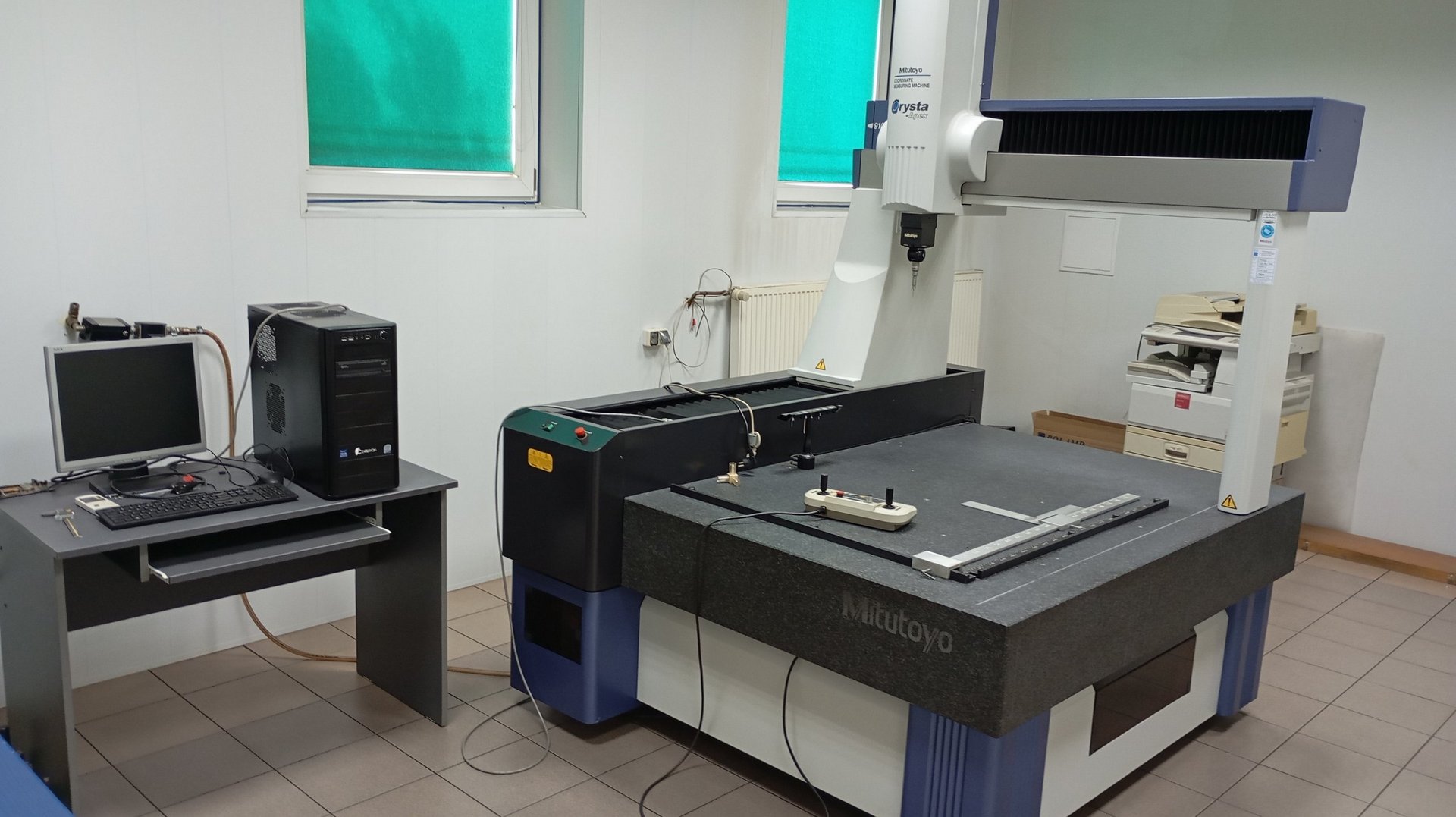

MITUTOYO Crysta Apex CRT-A910 coordinate measuring machine

MITUTOYO Crysta Apex CRT-A910 coordinate measuring machine was built in Japan by Mitutoyo Corporation. This extremely advanced machine, characterised by the highest accuracy and objectivity, is used for highly accurate workpiece measurements. Workpiece measurements are performed using the contact or non-contact method, which are then represented as a set of coordinate points. The use of this method makes it possible to measure parts with very complex shapes, which cannot be measured with ordinary measuring instruments. The MITUTOYO Crysta Apex CMM measuring machine is offered with a PC with software.

Technical specifications of the MITUTOYO Crysta Apex CRT-A910 measuring machine

• measuring range in the X/Y/Z axis: 900/1000/800 mm
• measuring resolution: 0.1 µm
• measuring speed: 300 mm/s
• PC with software
• compressed air pressure: 0.4 MPa
• compressed air consumption: 50 l/min
• ambient temperature: 18-22°C

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
