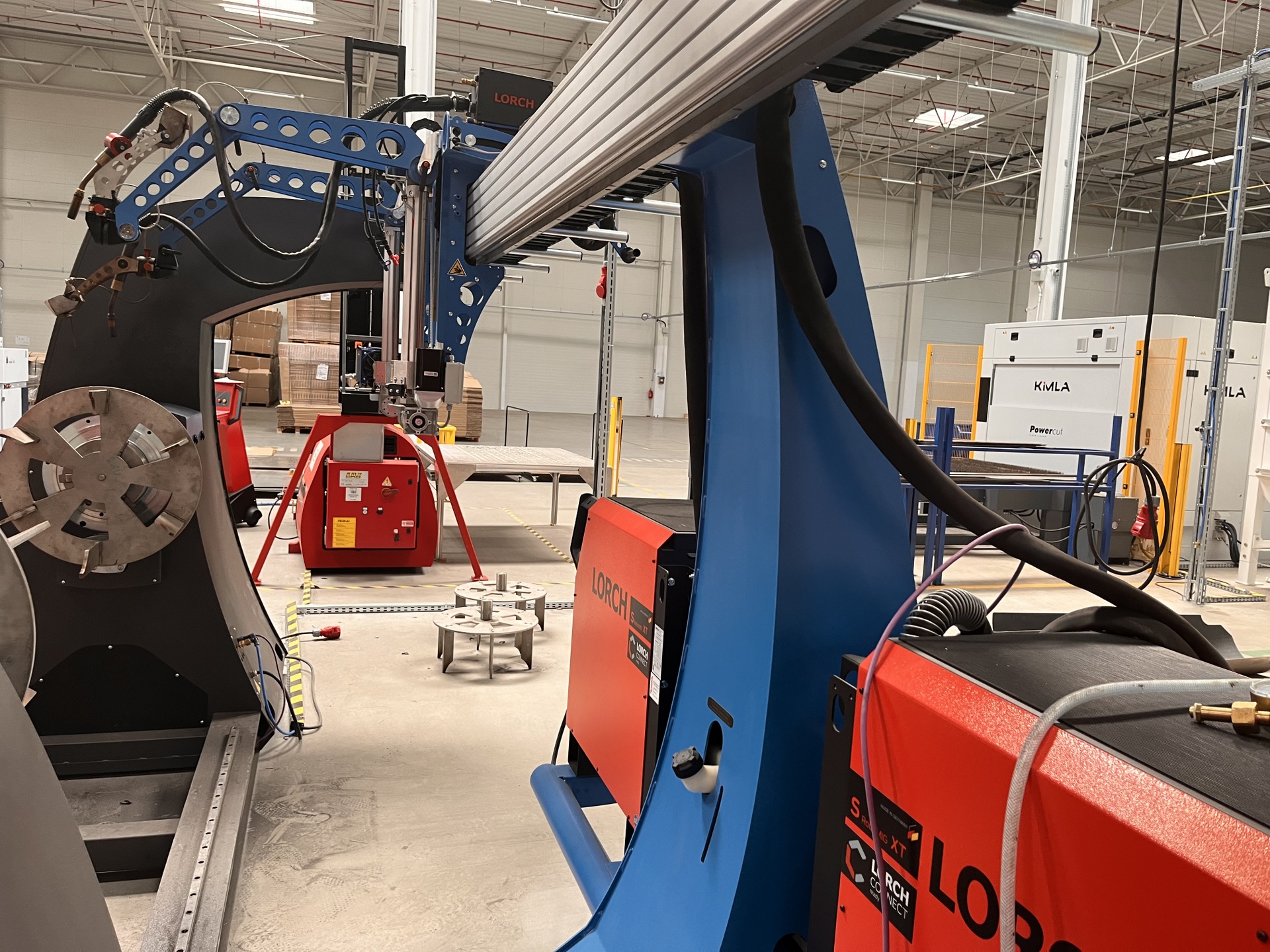

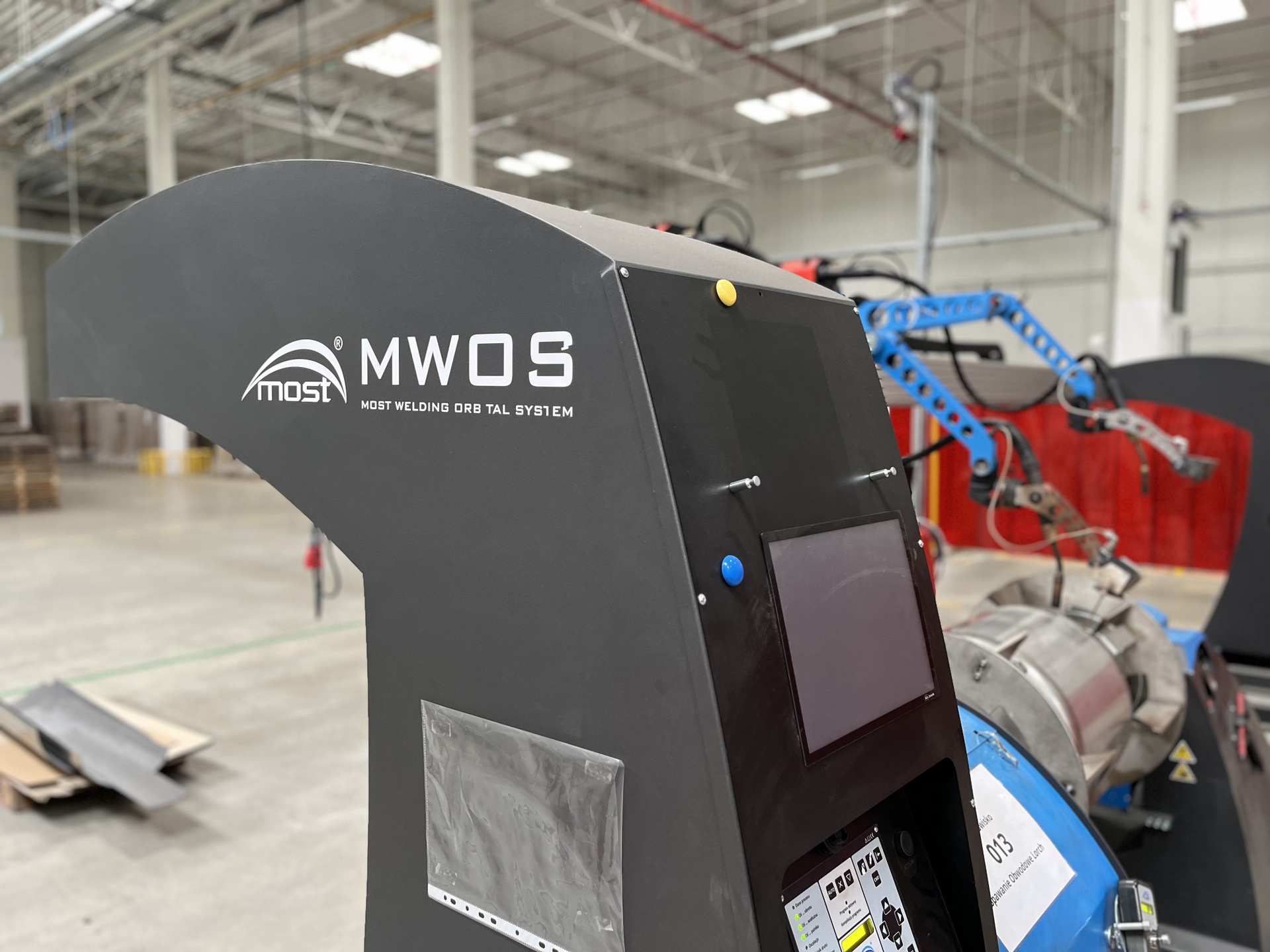

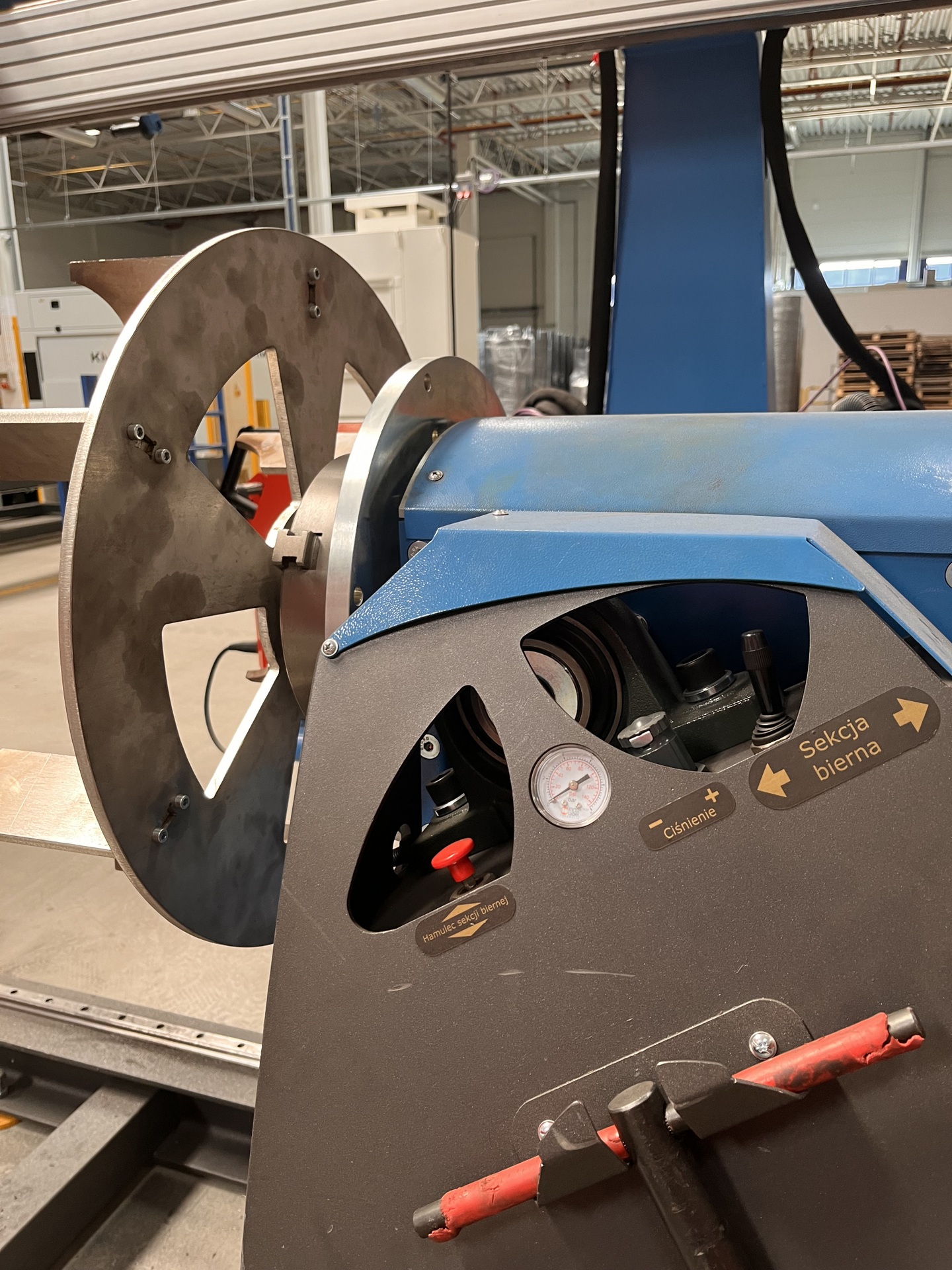

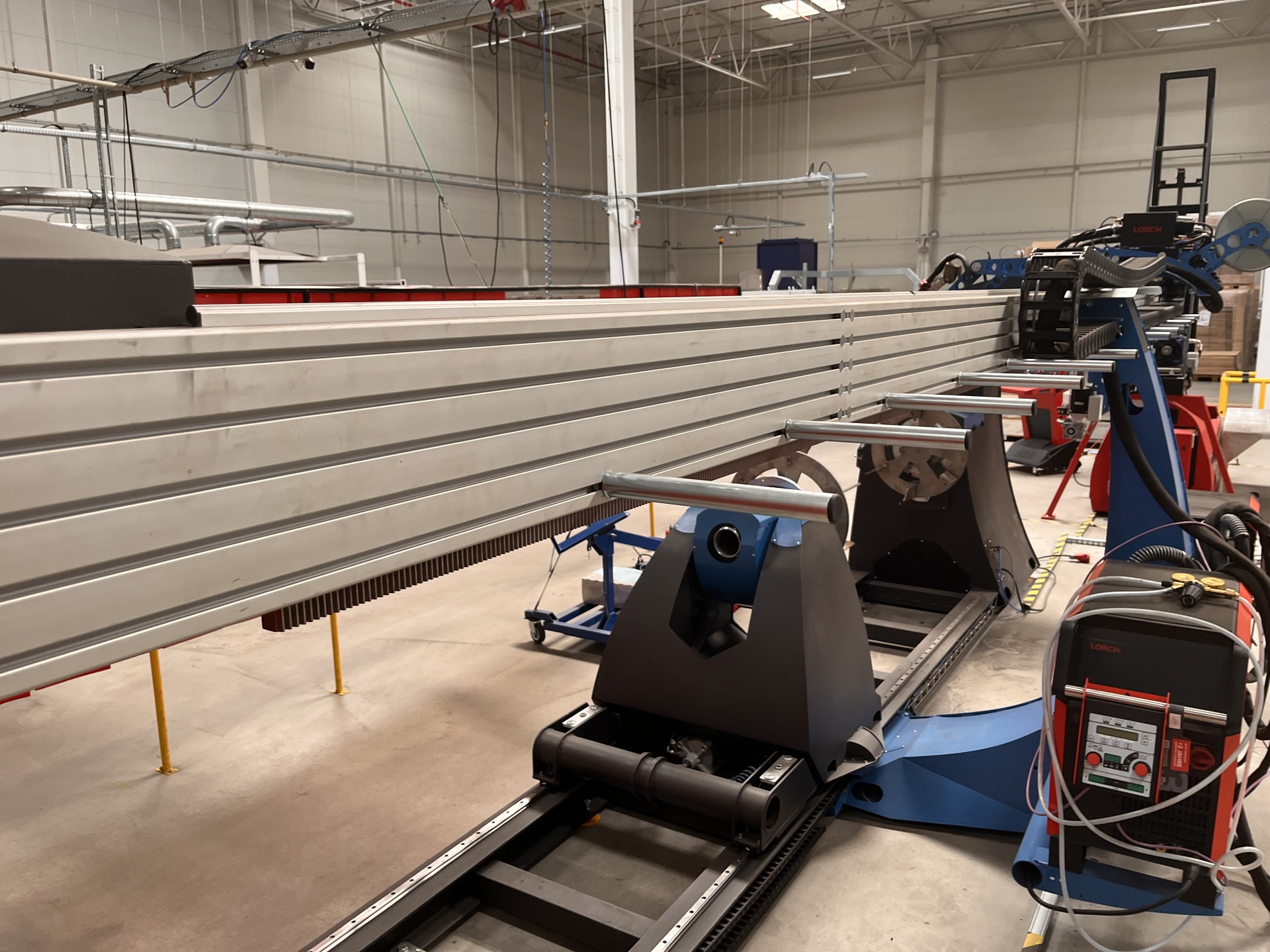

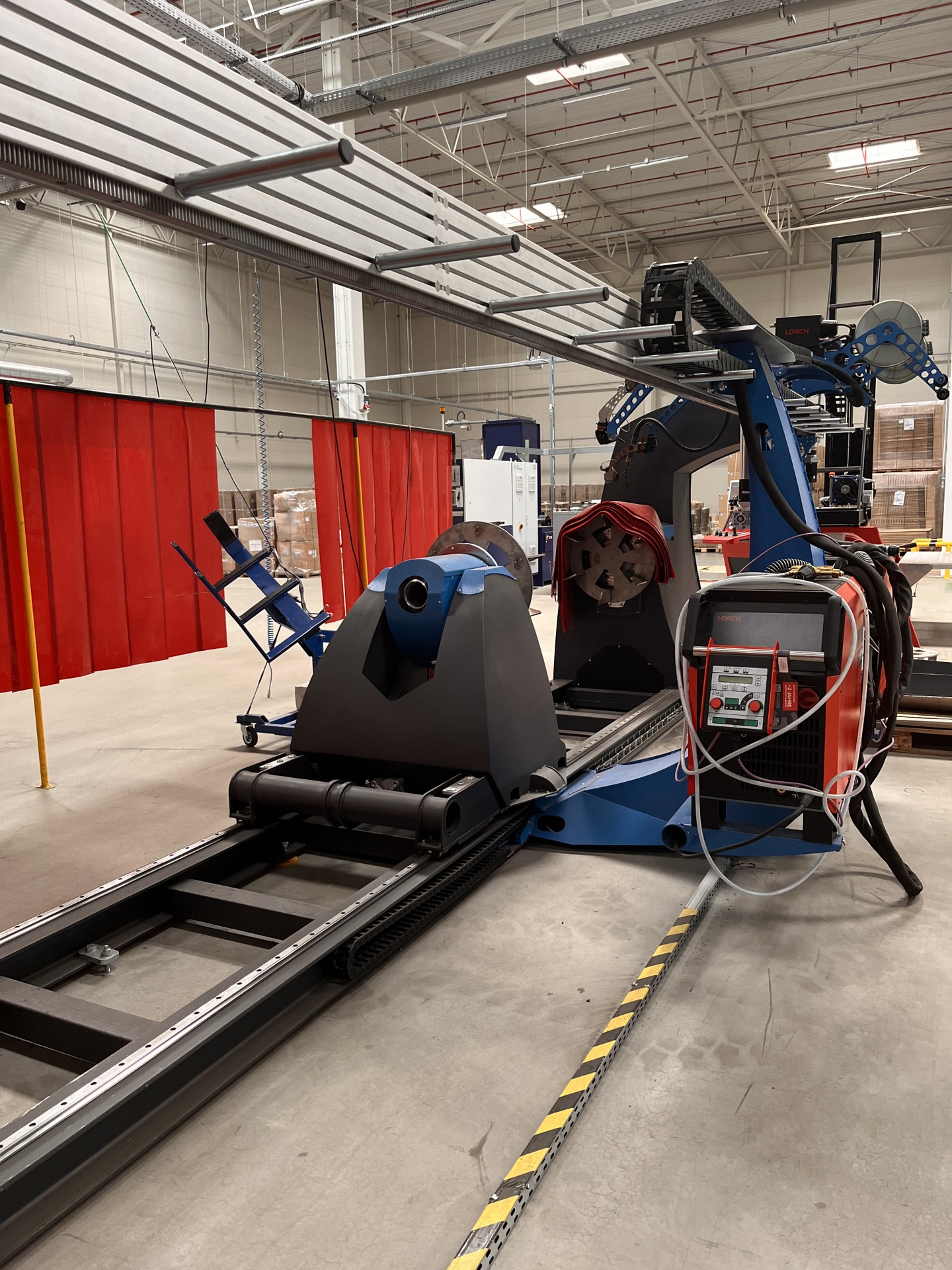

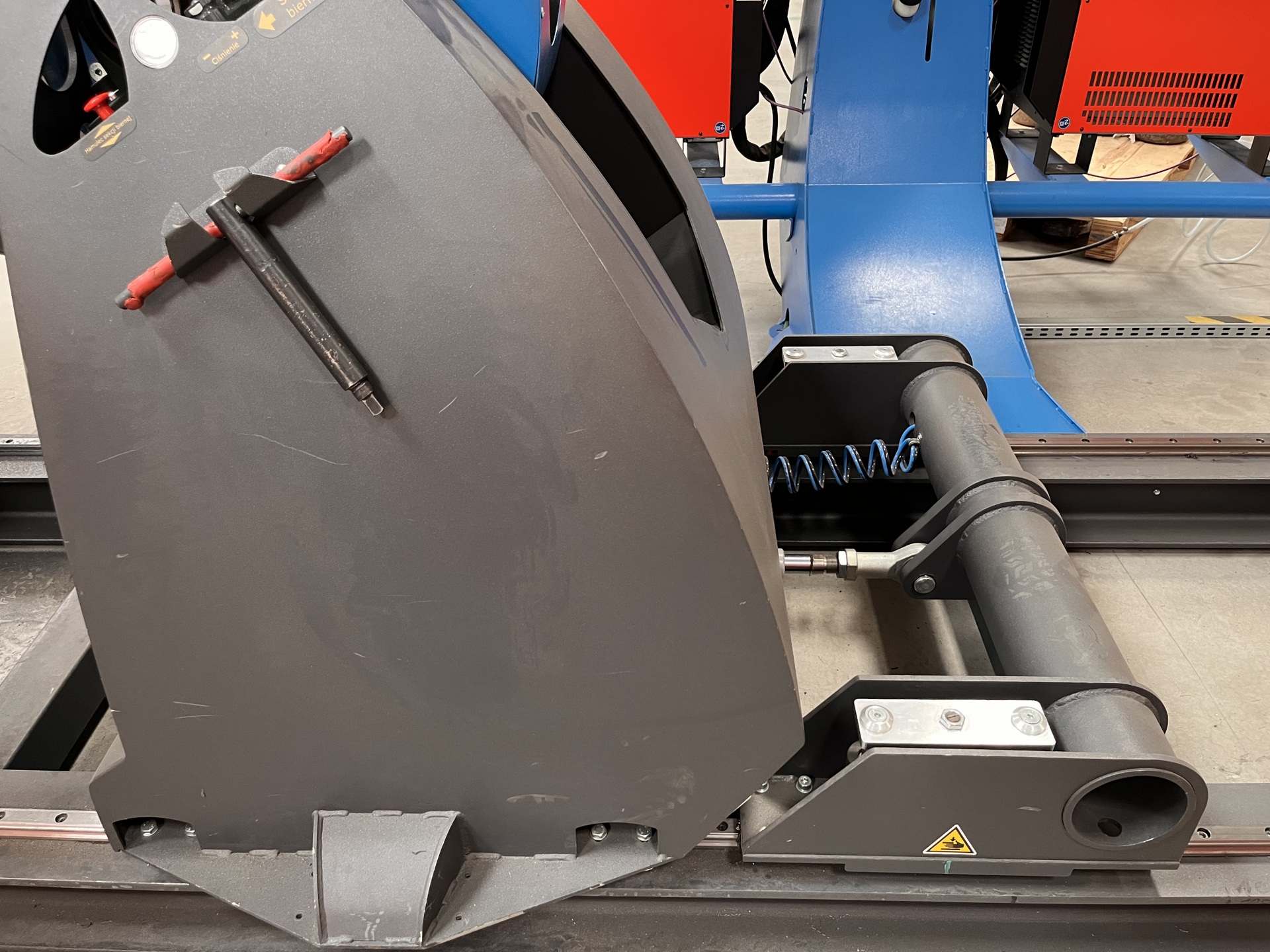

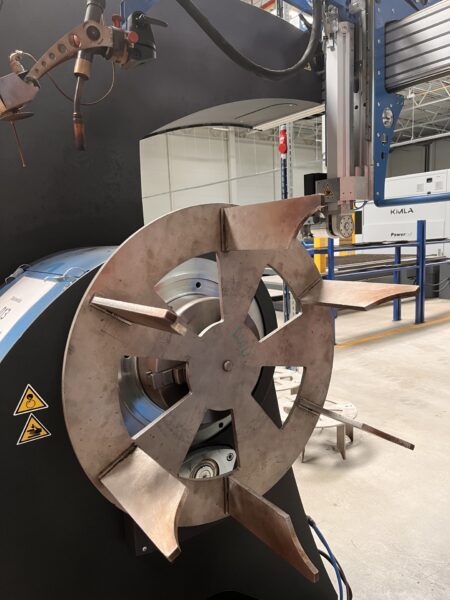

MOST MWOS-A5 tank welding machine

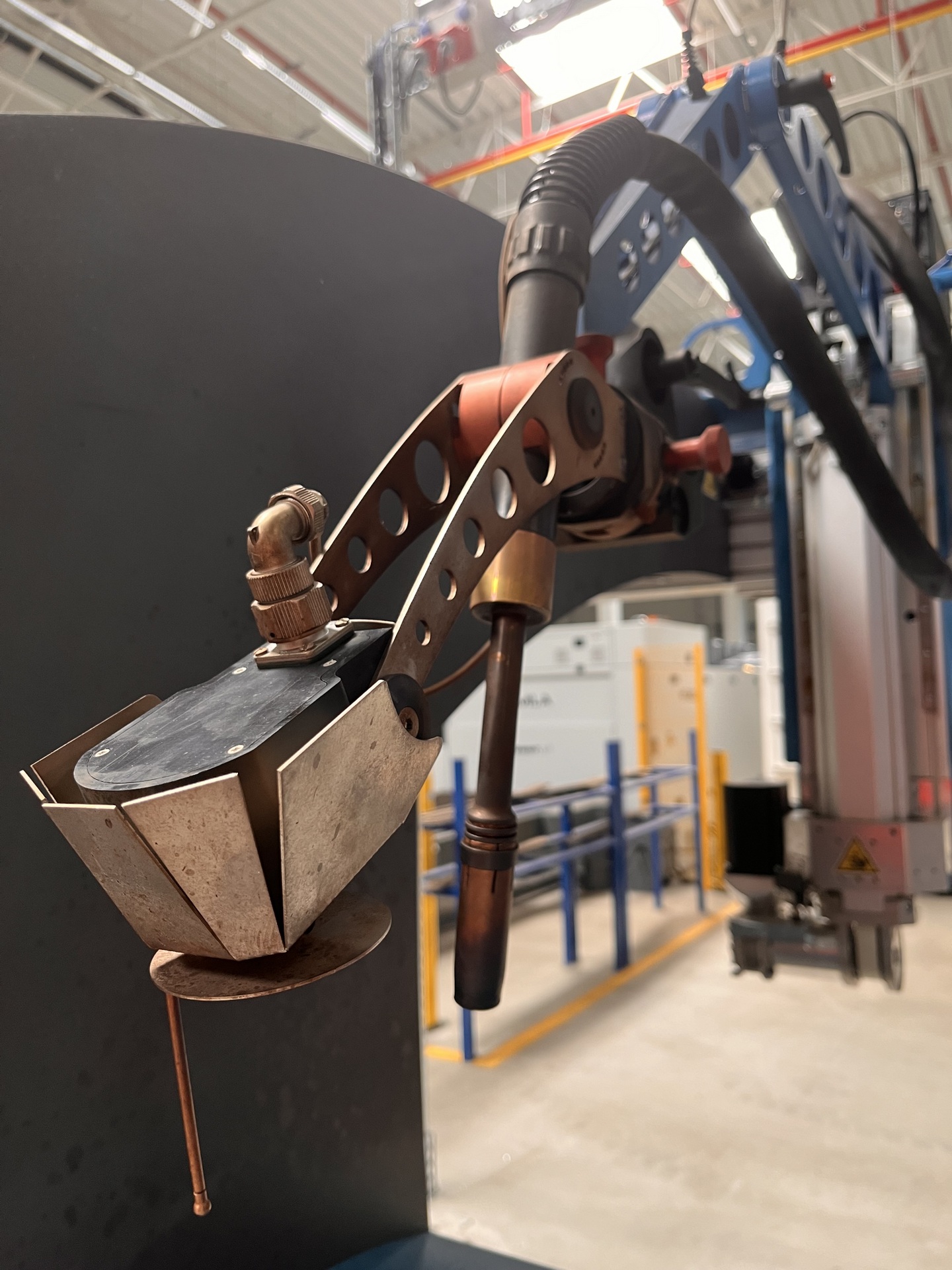

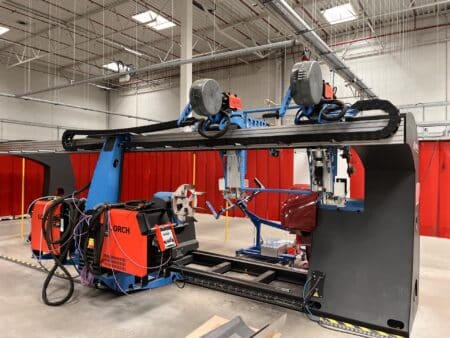

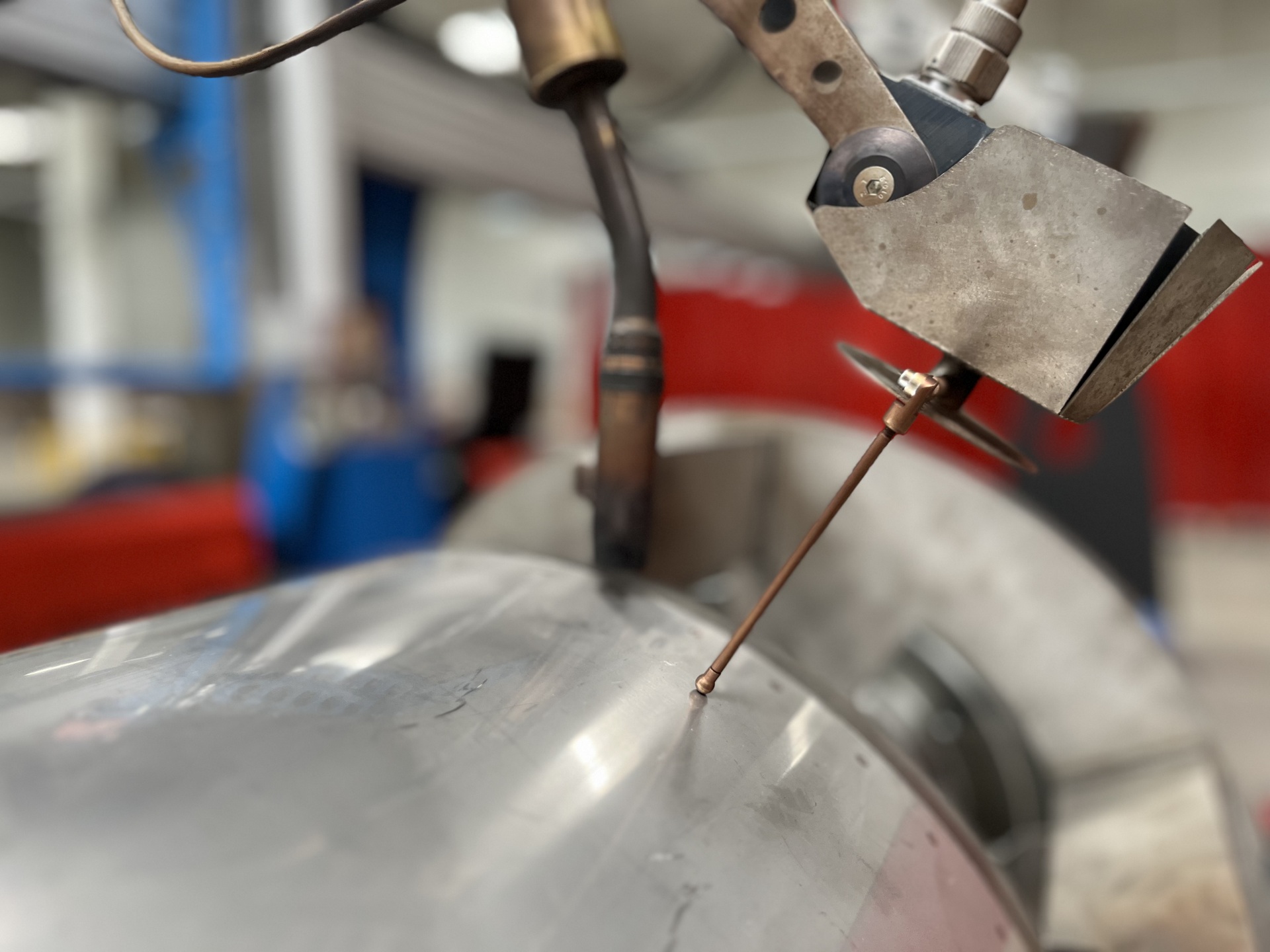

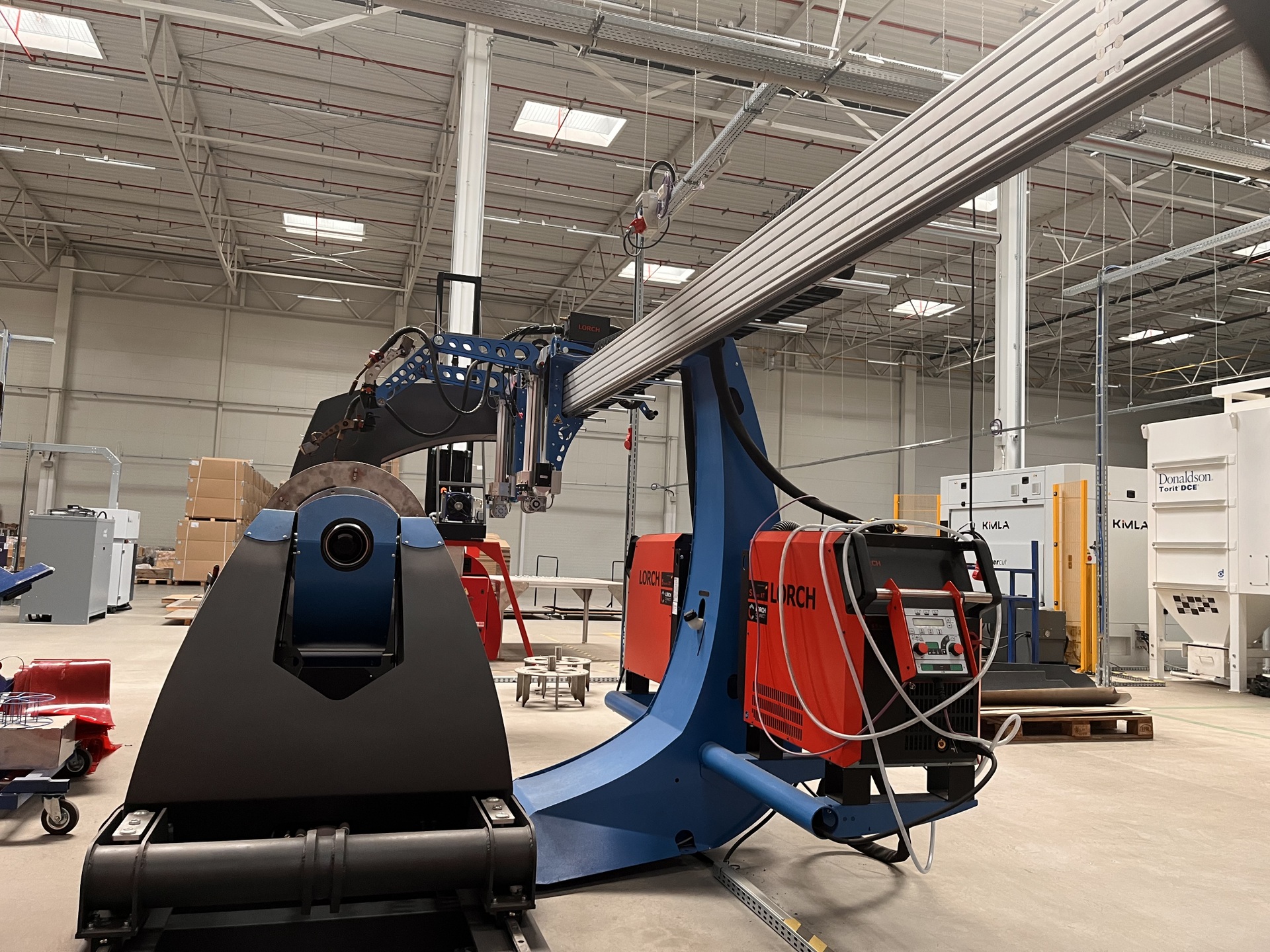

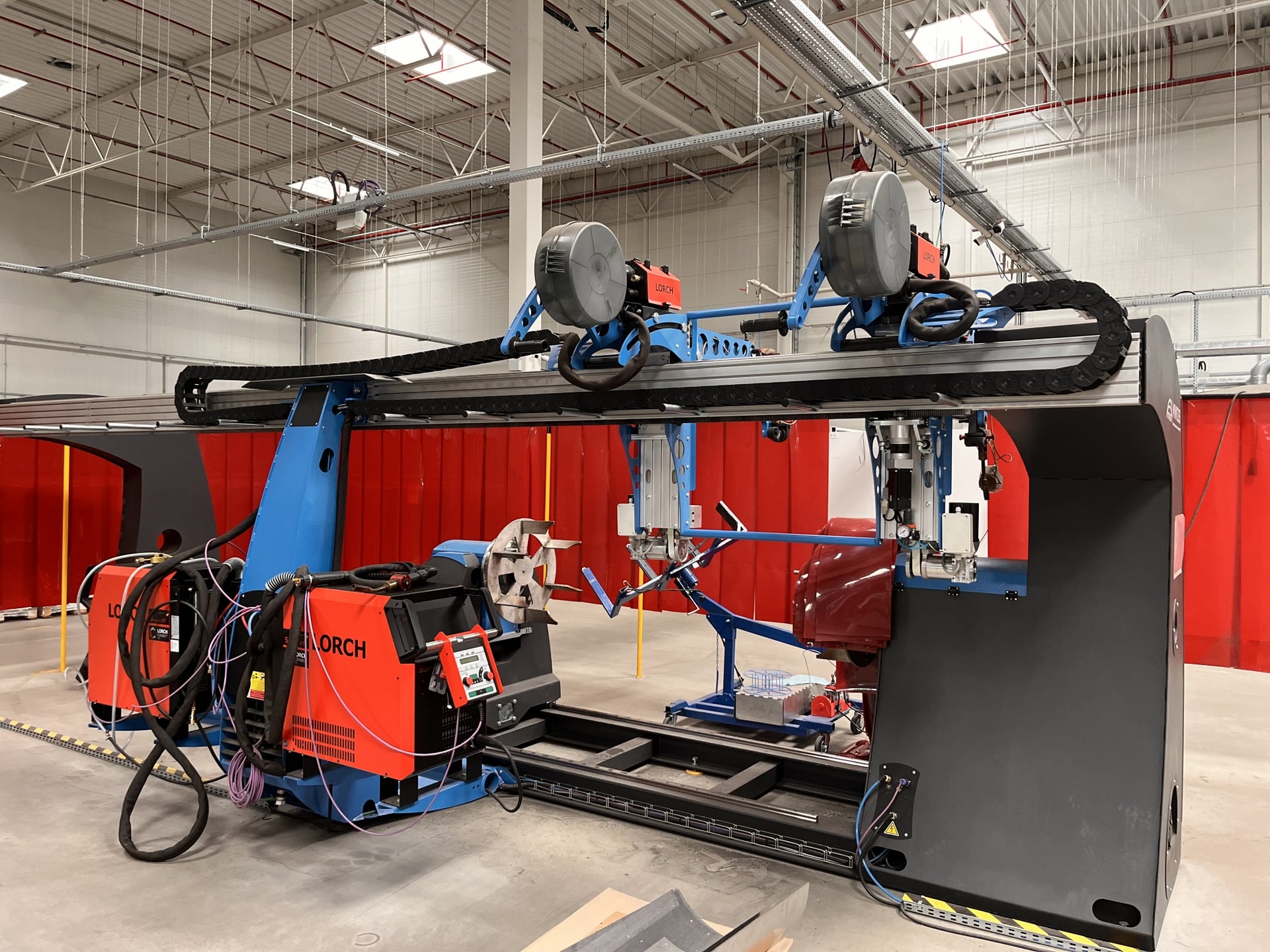

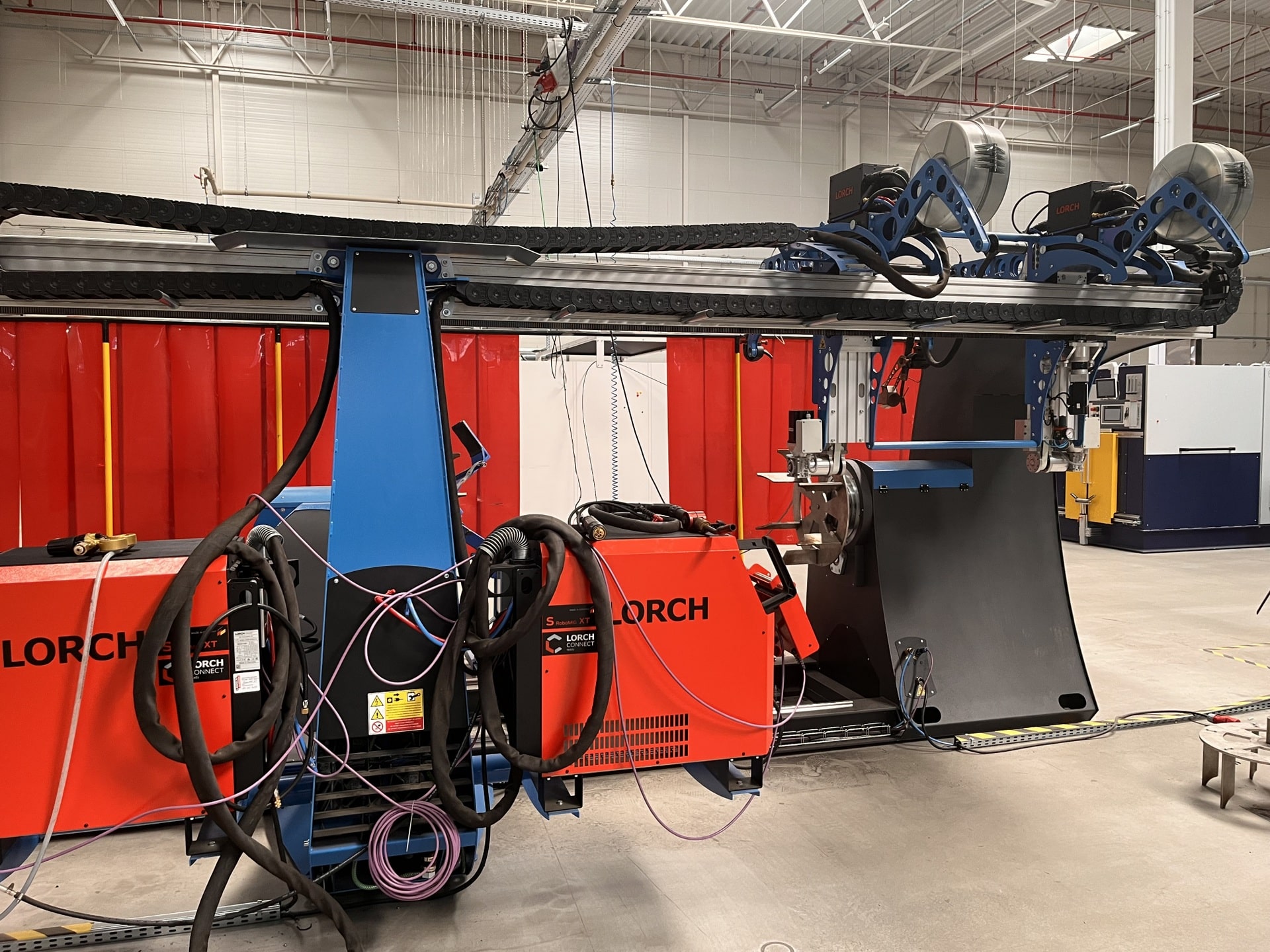

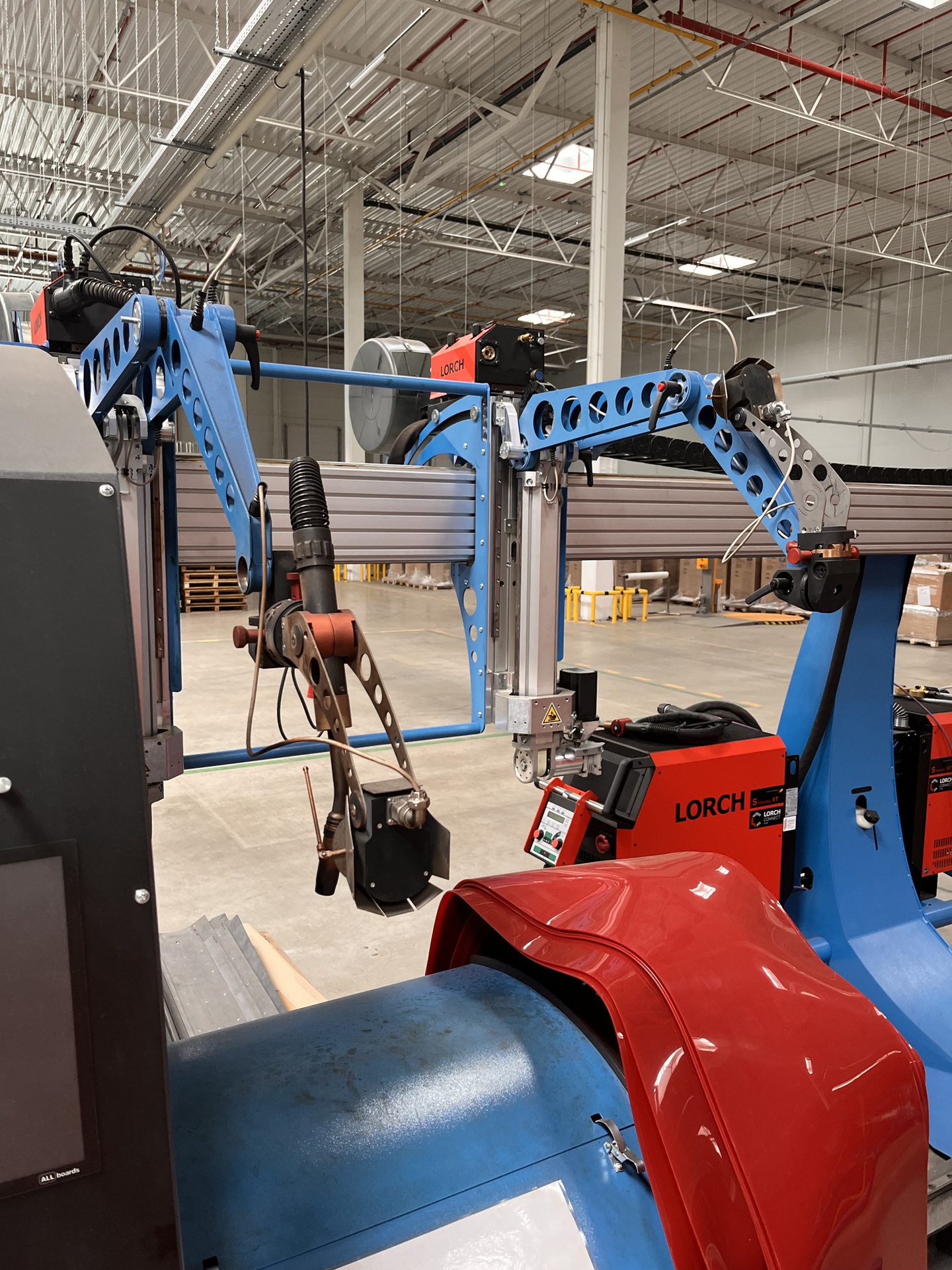

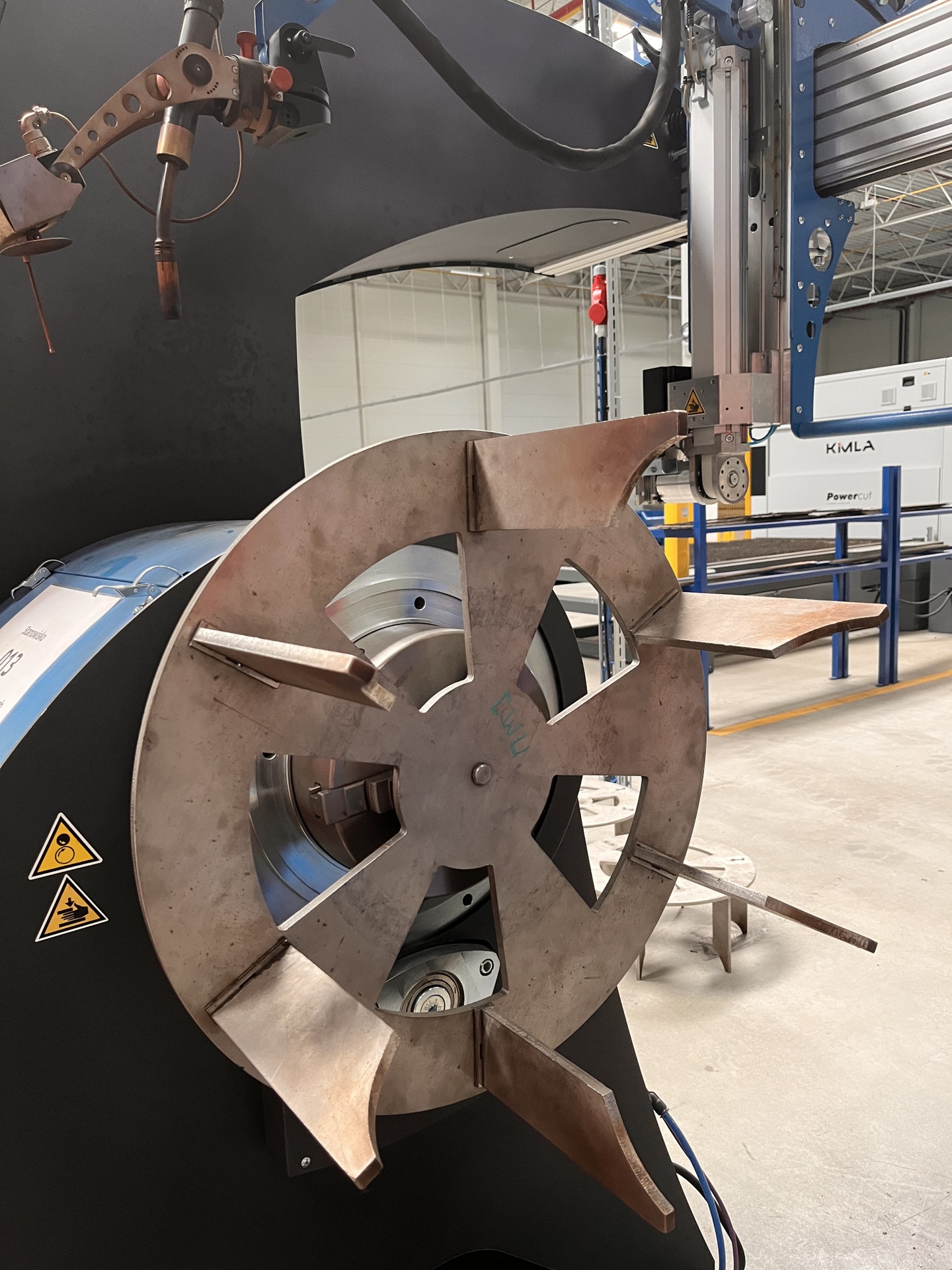

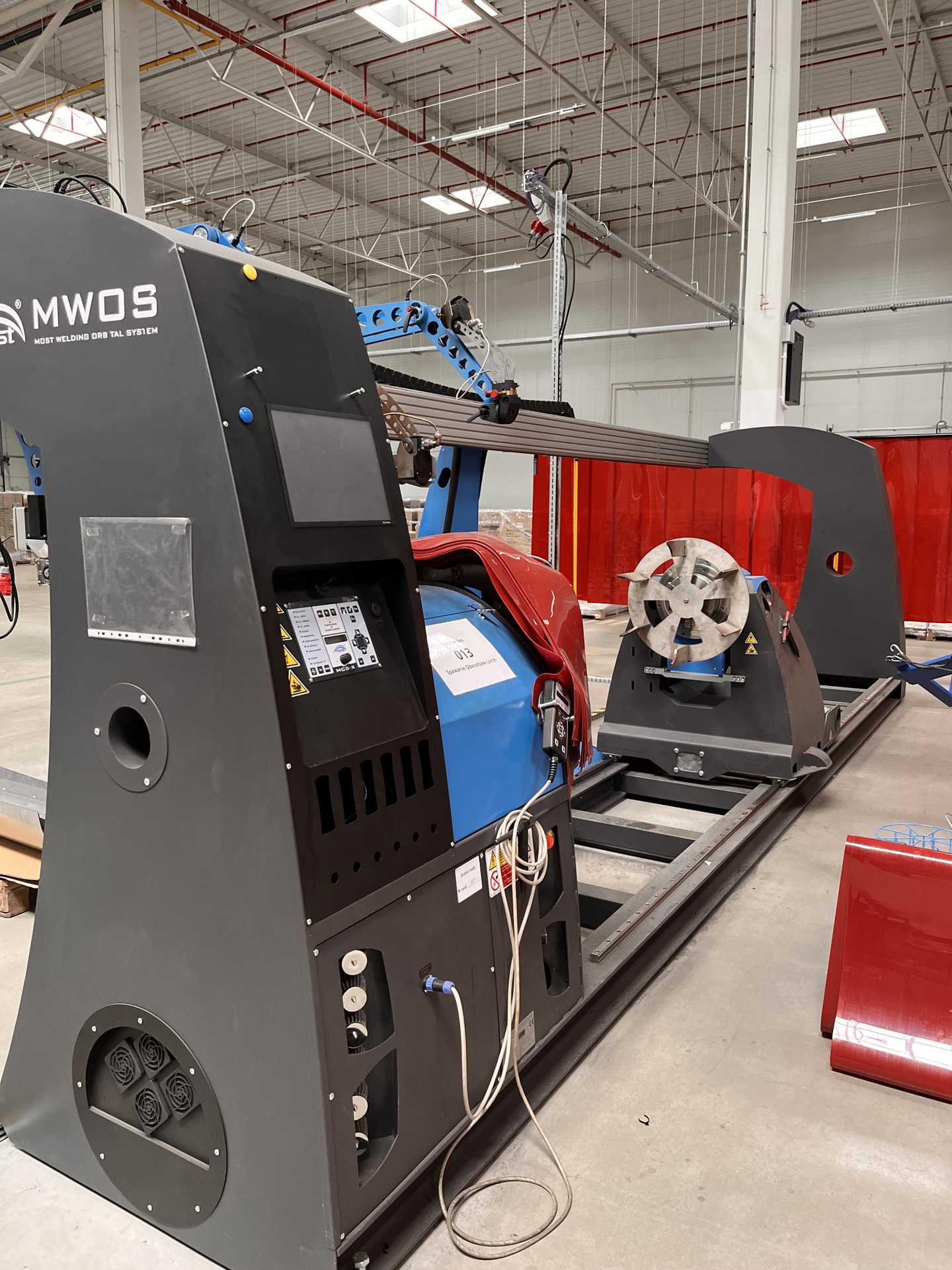

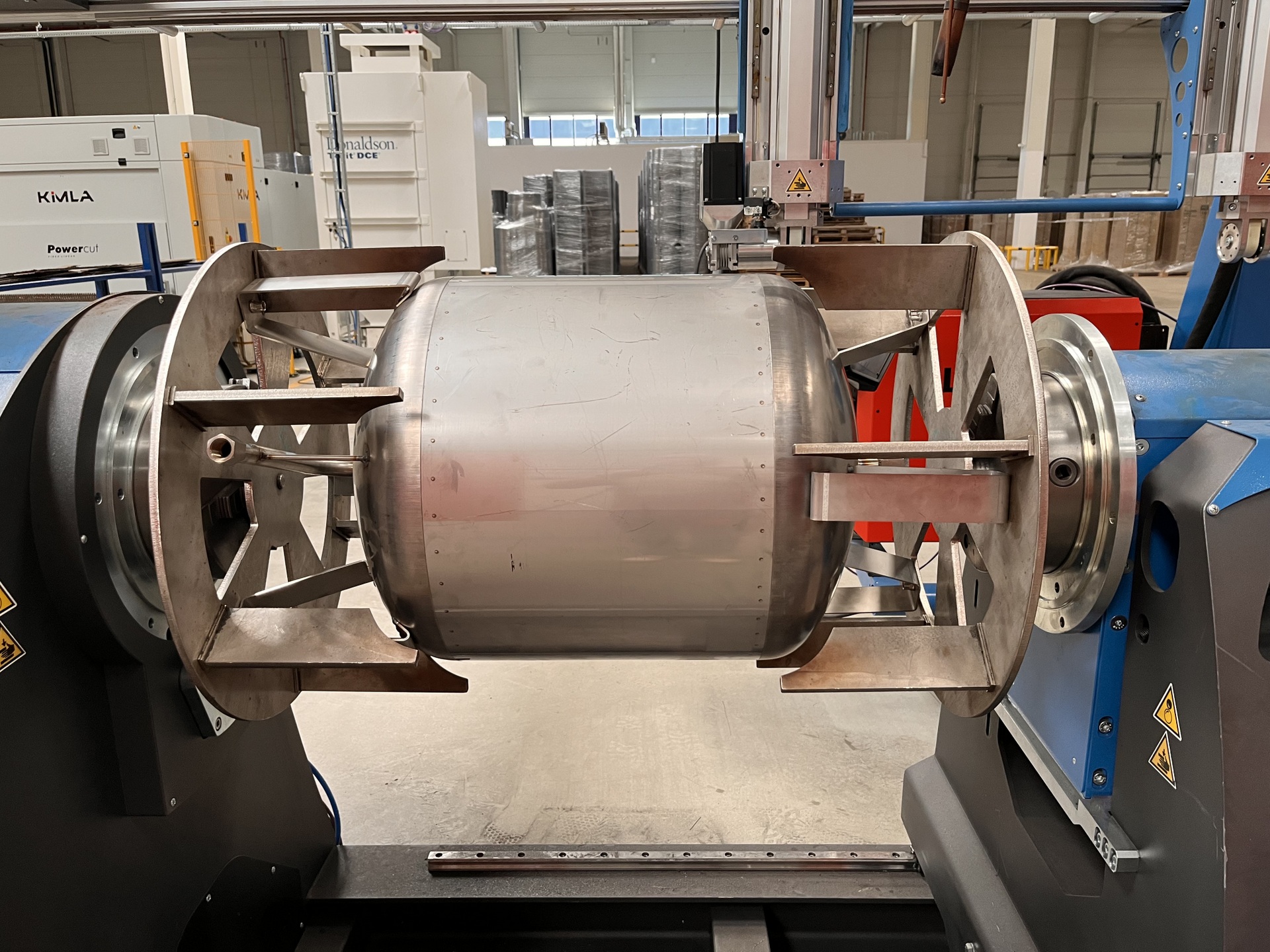

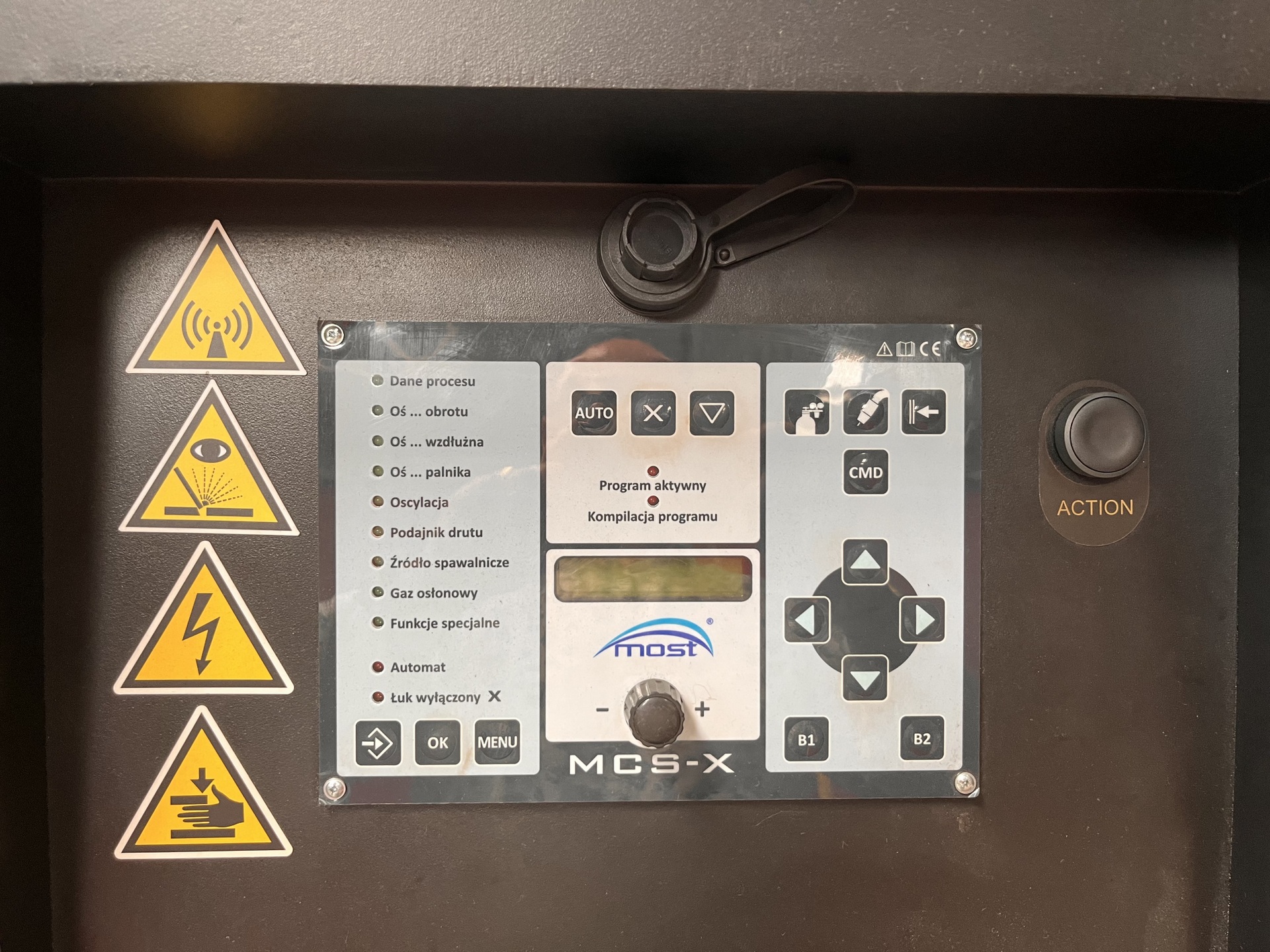

MOST MWOS-A5 tank welding machine was built in 2023 in Poland by RYWAL-RHC Sp. z o.o. This highly versatile machine is designed for fully automatic welding of industrial products, i.e. machine parts, pressure vessels and heat exchangers. Circumferential, angle and full-value longitudinal joints are performed by means of two reliable torches in the MIG/MAG method. This solution significantly increases production efficiency, while maintaining the repeatability of the process. All this is complemented by the advanced MCS-X control system with an intuitive interface, which enables the creation of entire production processes in just a few steps. The MOST MWOS-A5v02 circumferential welding machine weighs 3200 kg.

Technical specifications of the MOST MWOS-A5 circumferential welding system

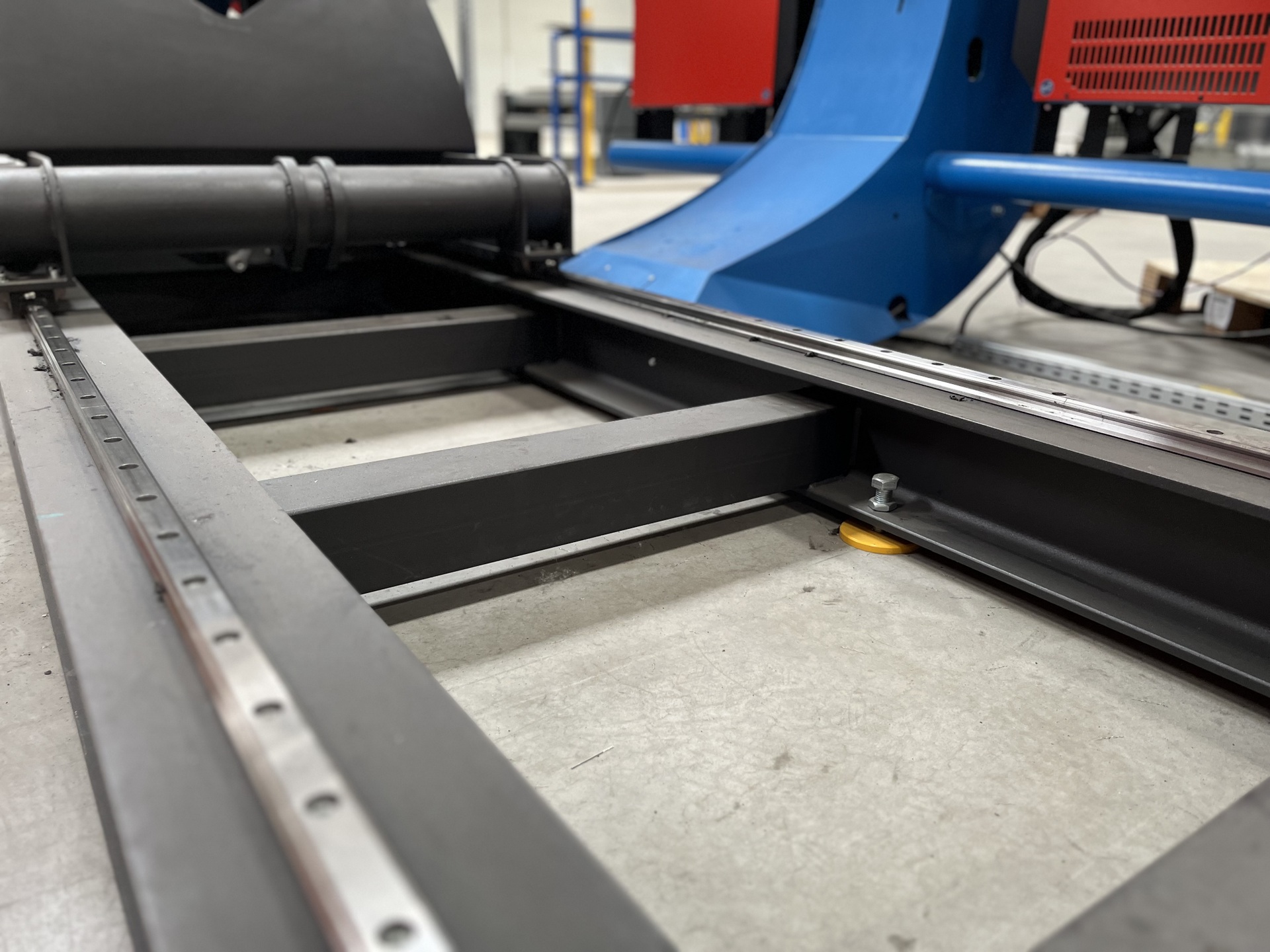

• working length: 4500 mm
• maximum workpiece diameter: 1500 mm
• maximum workpiece weight: 5200 kg
• welding method: TIG, MIG/MAG, plasma, laser

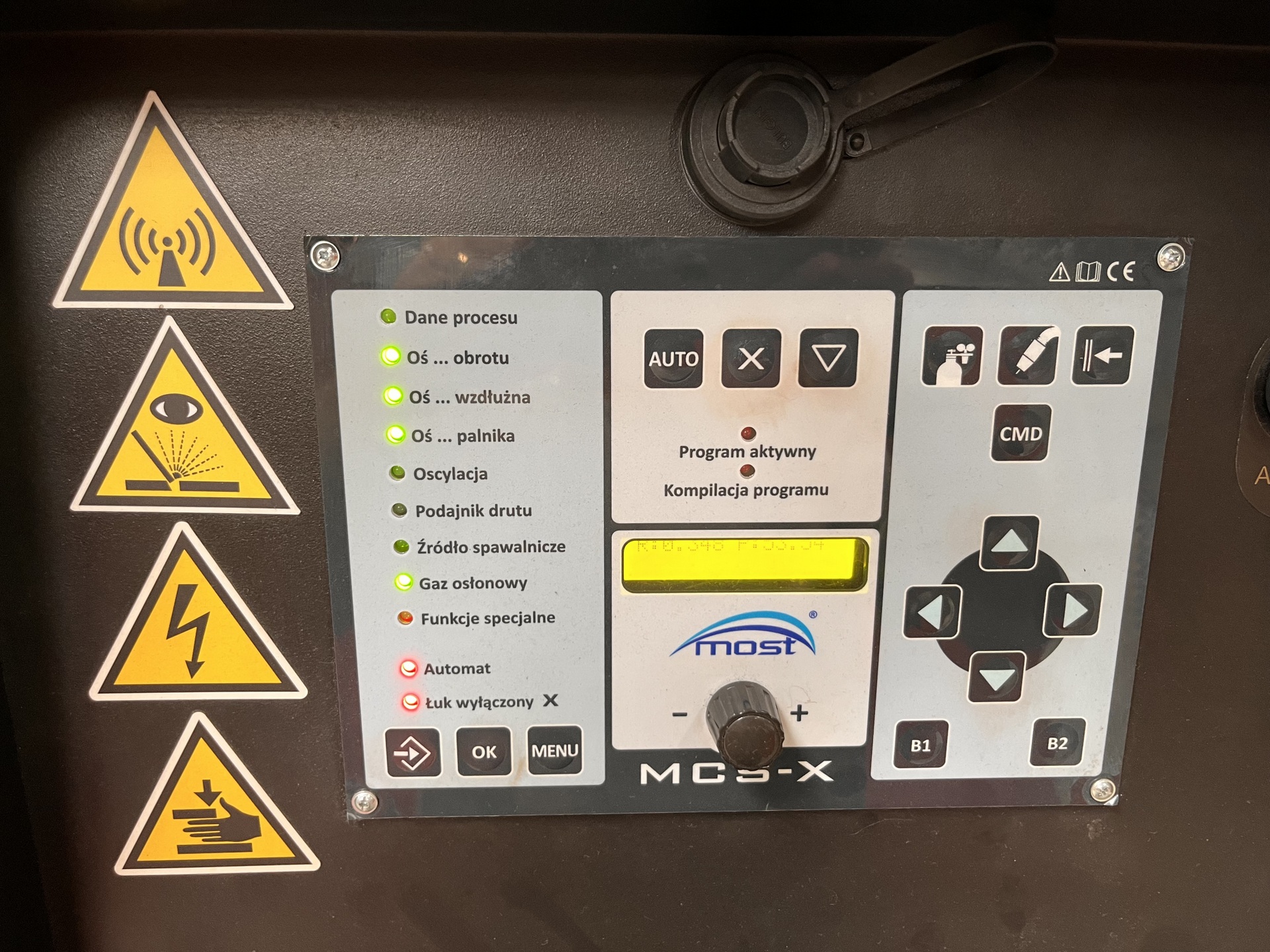

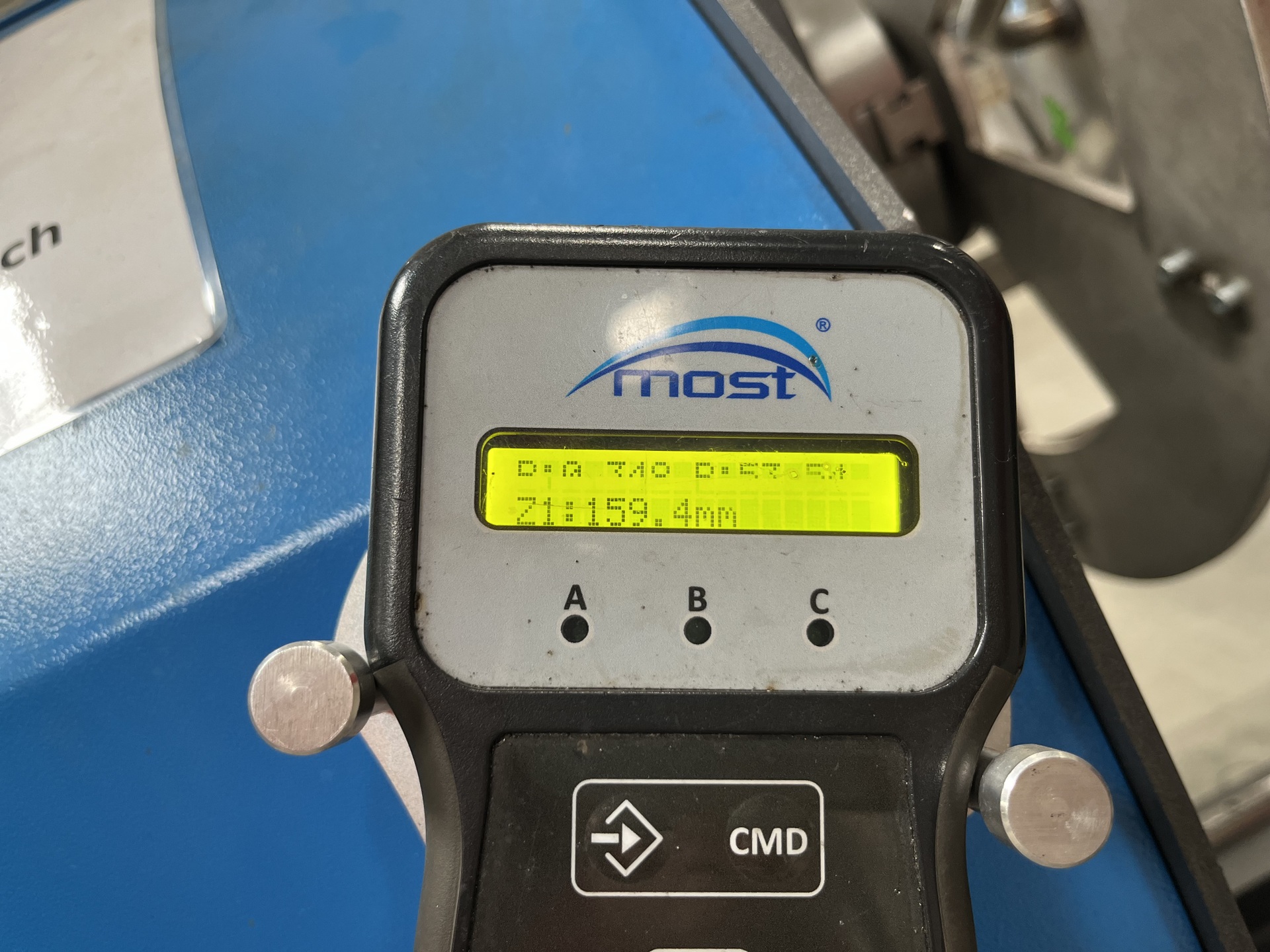

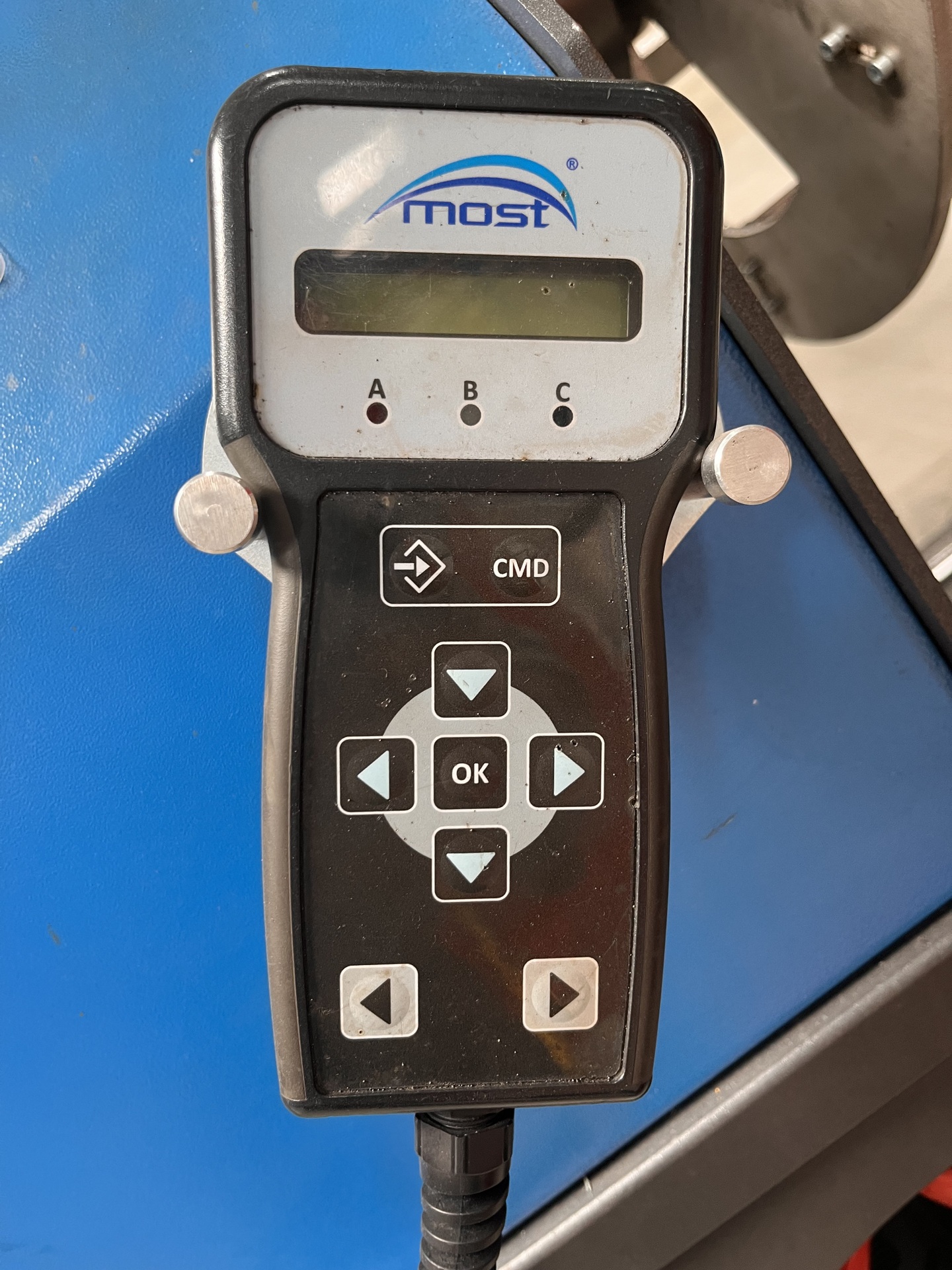

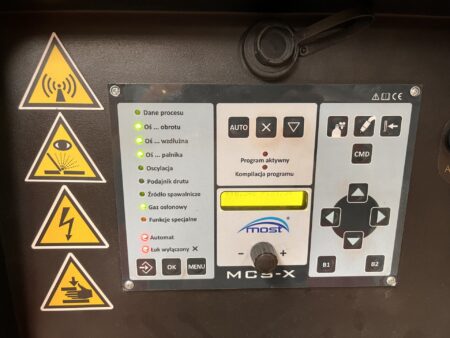

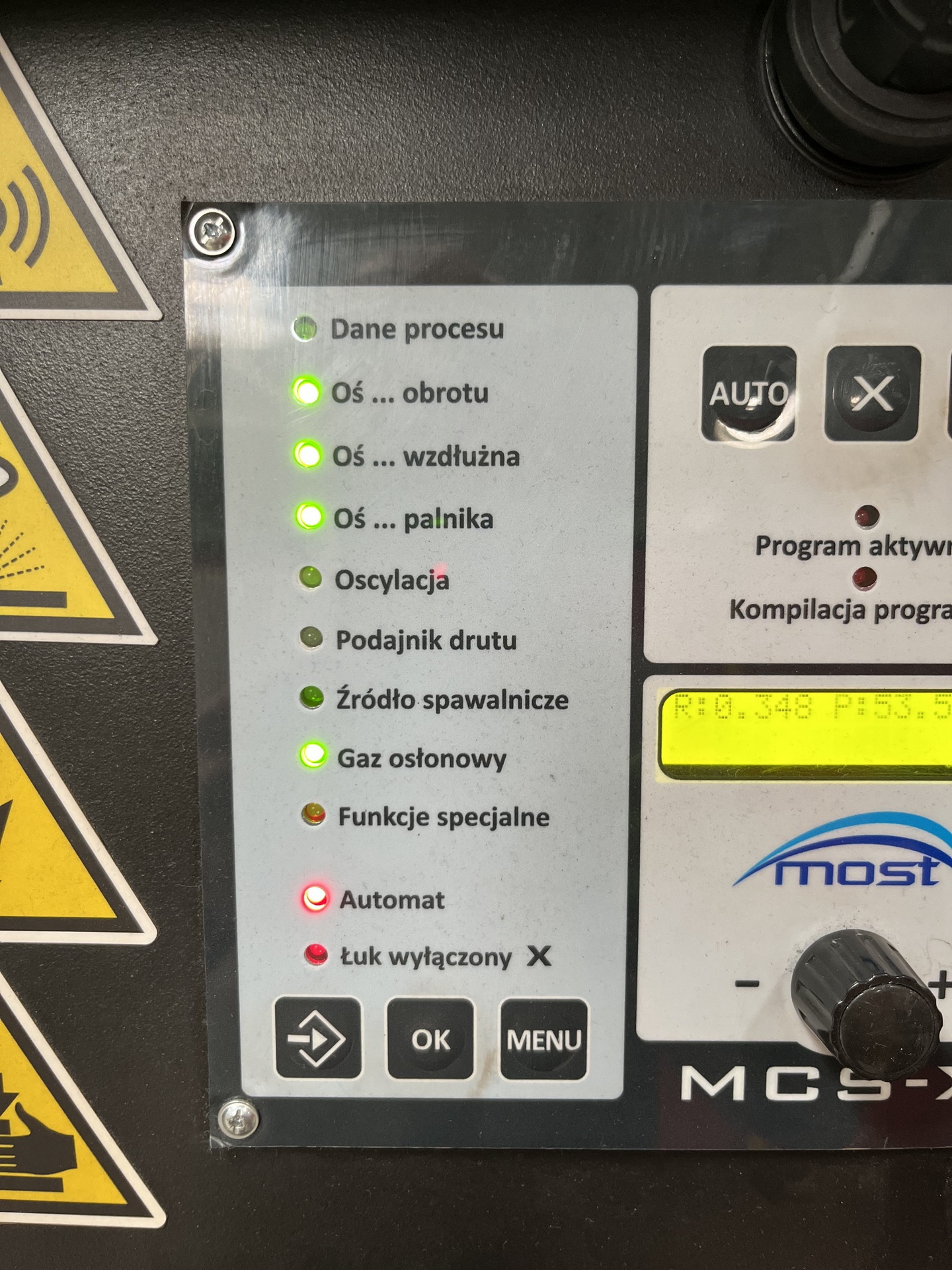

• control system: MCS-X

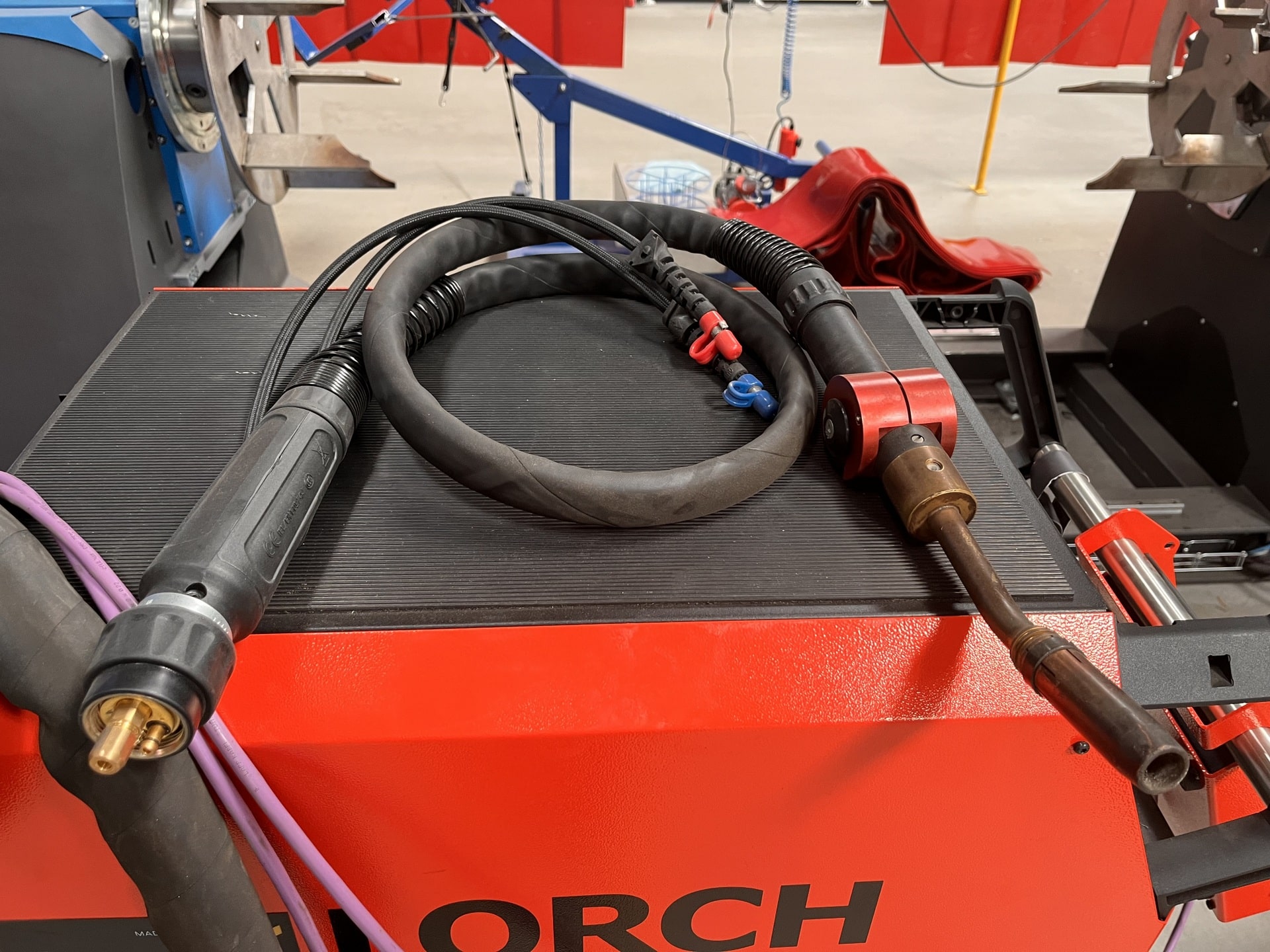

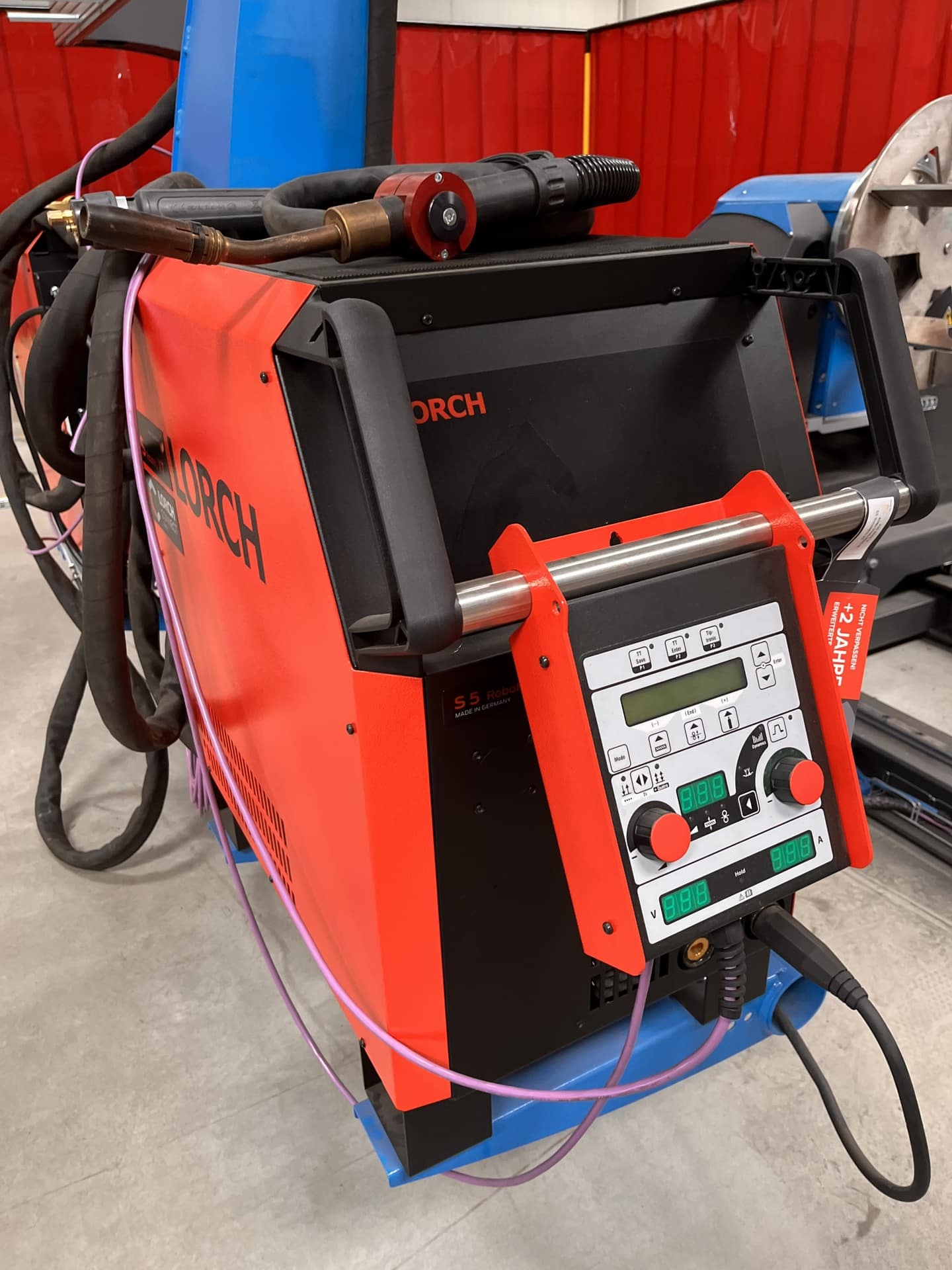

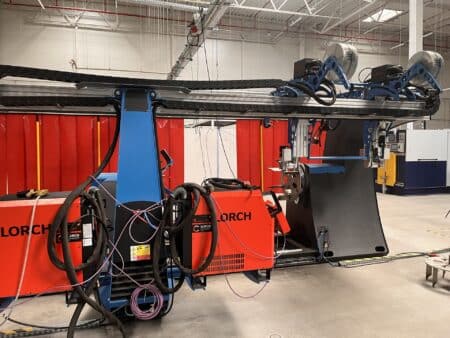

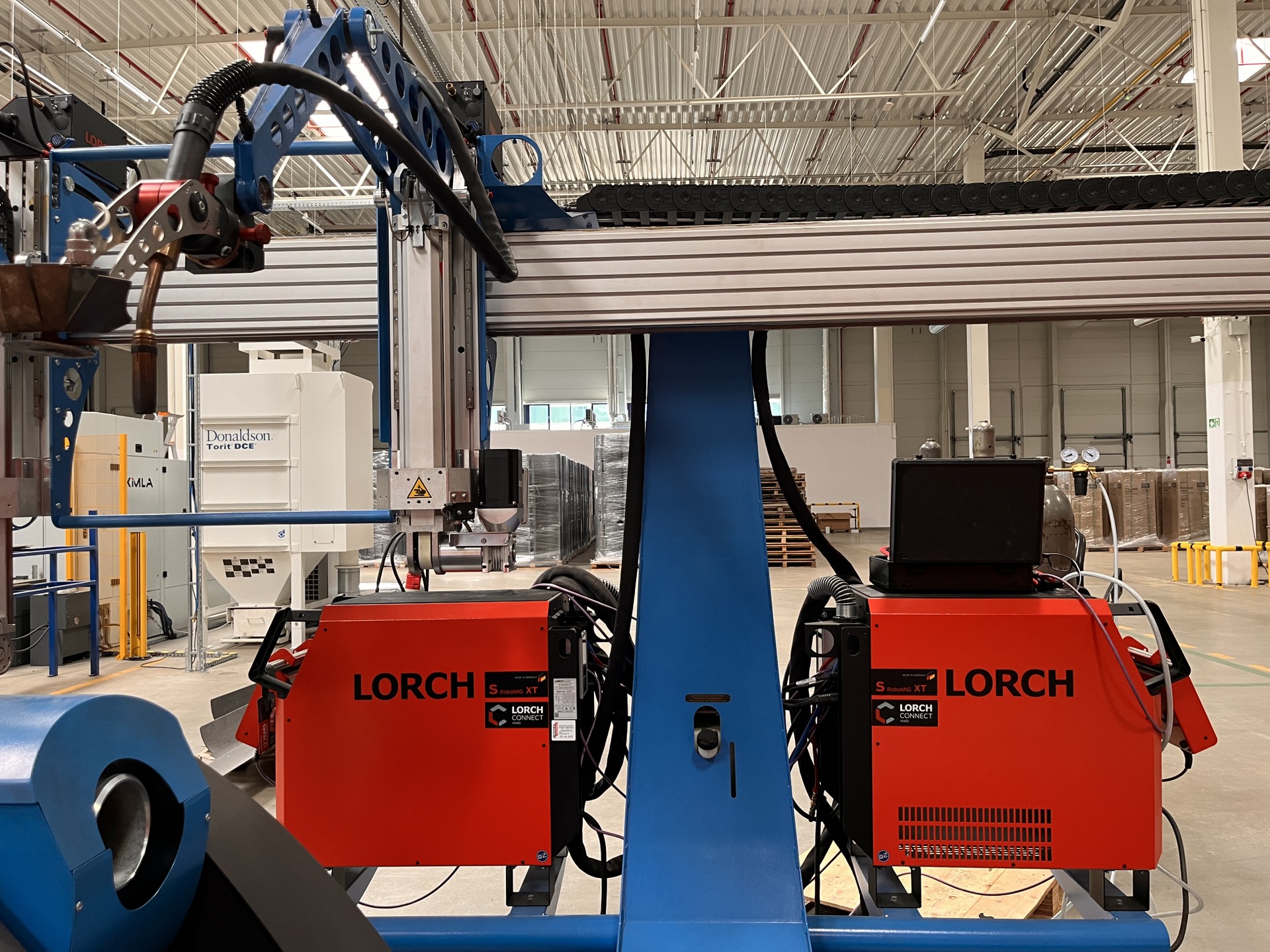

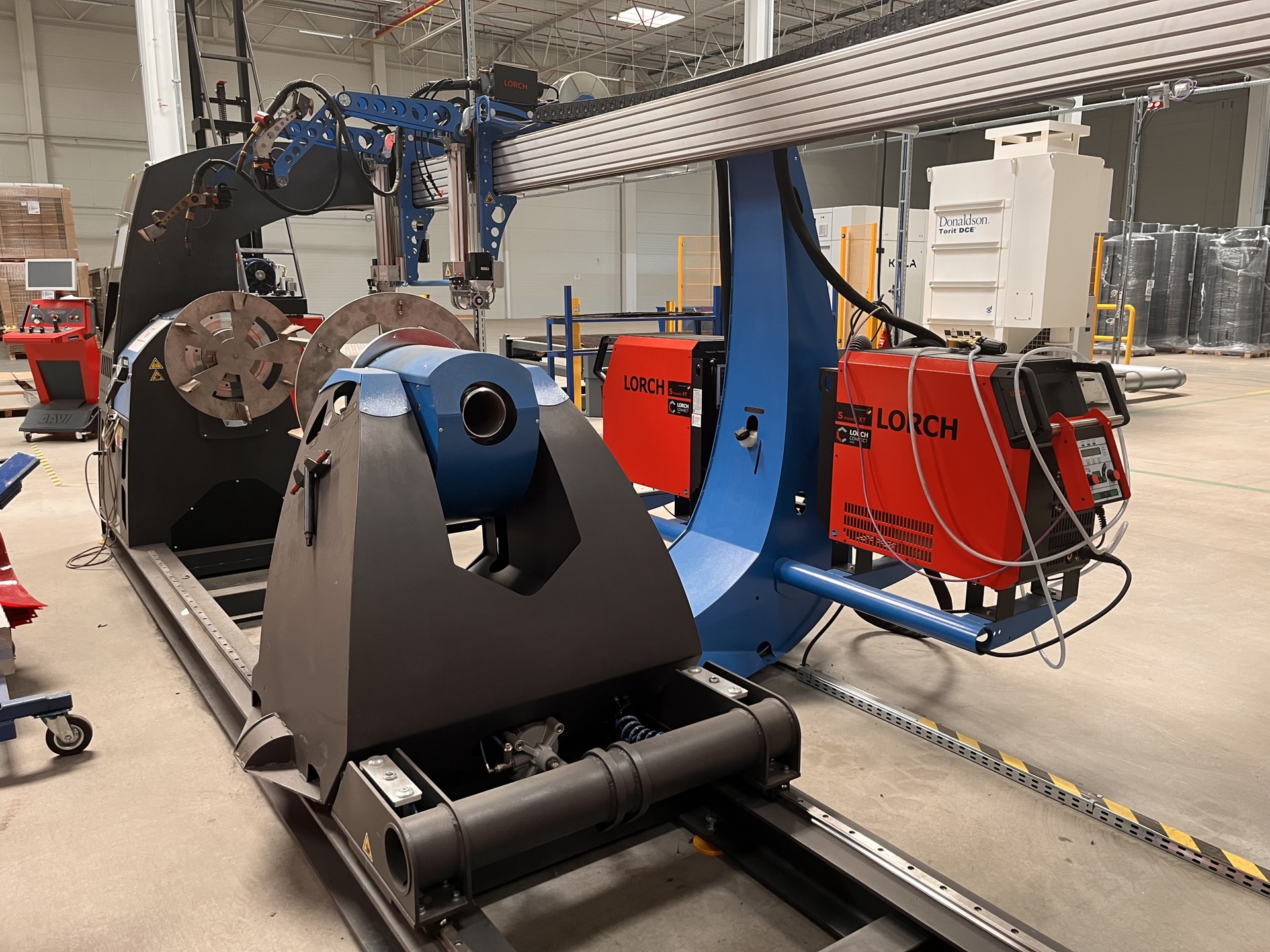

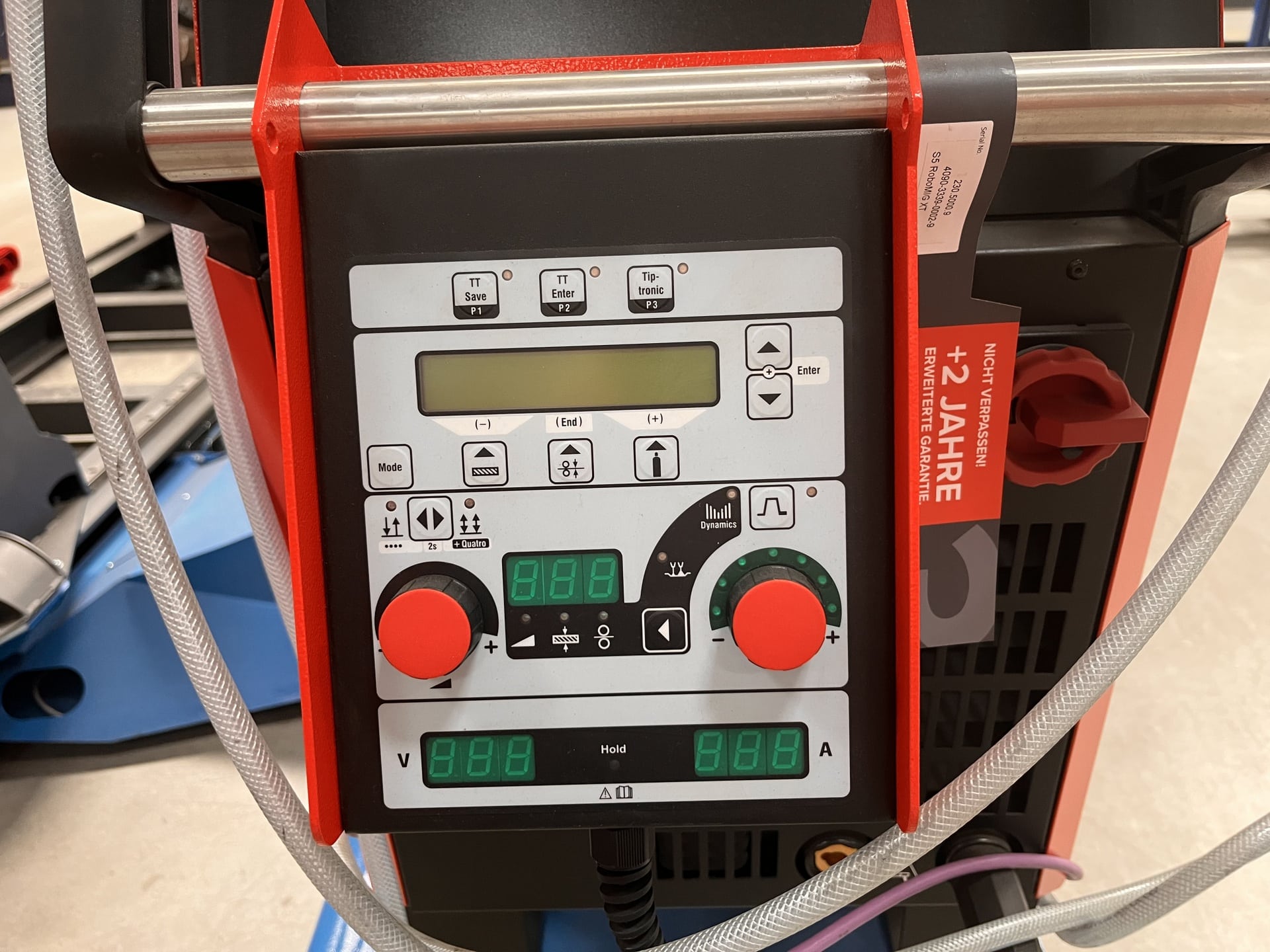

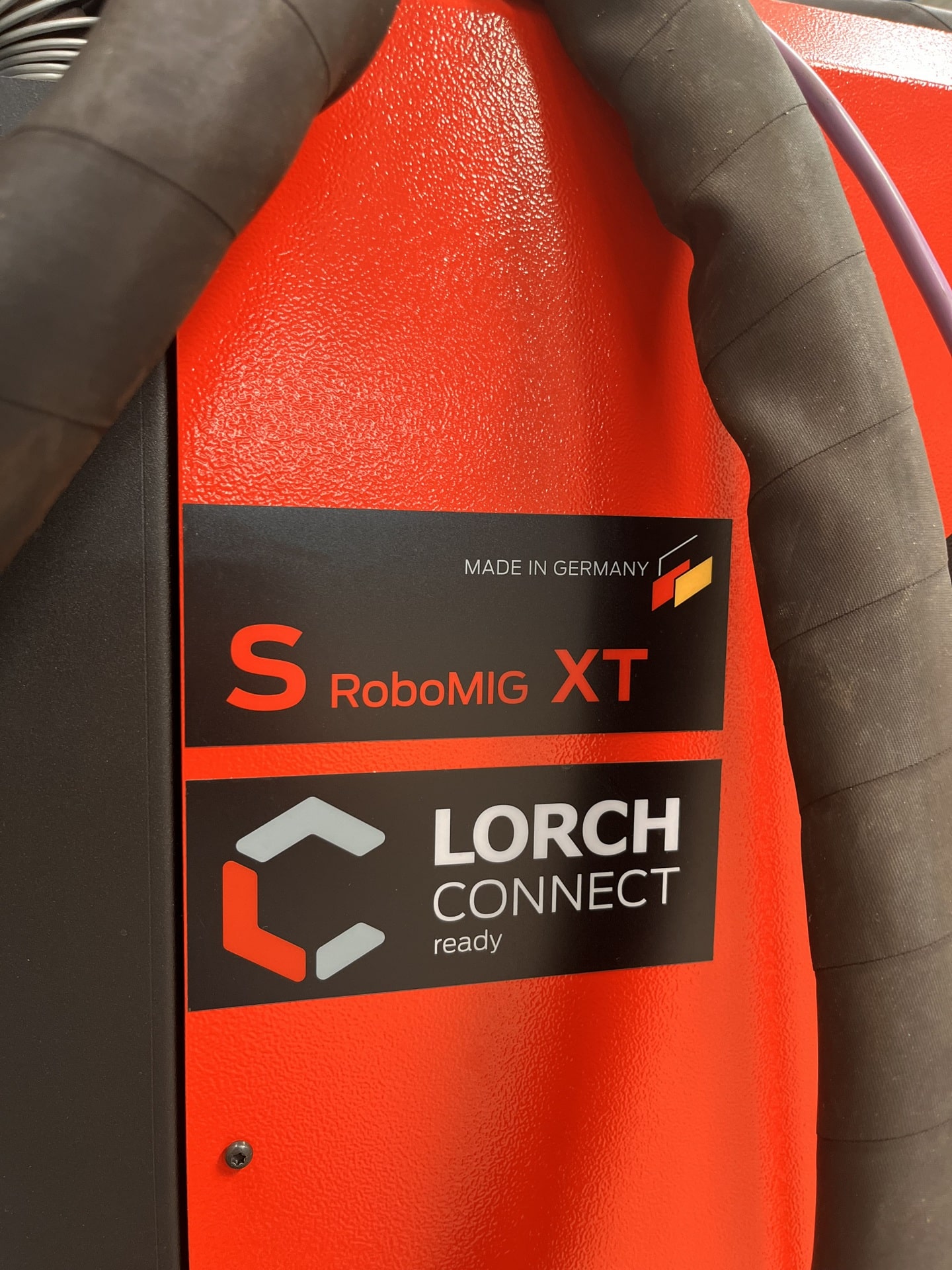

• MIG/MAG welder: LORCH S5 RoboMIG XT (2 pcs.)

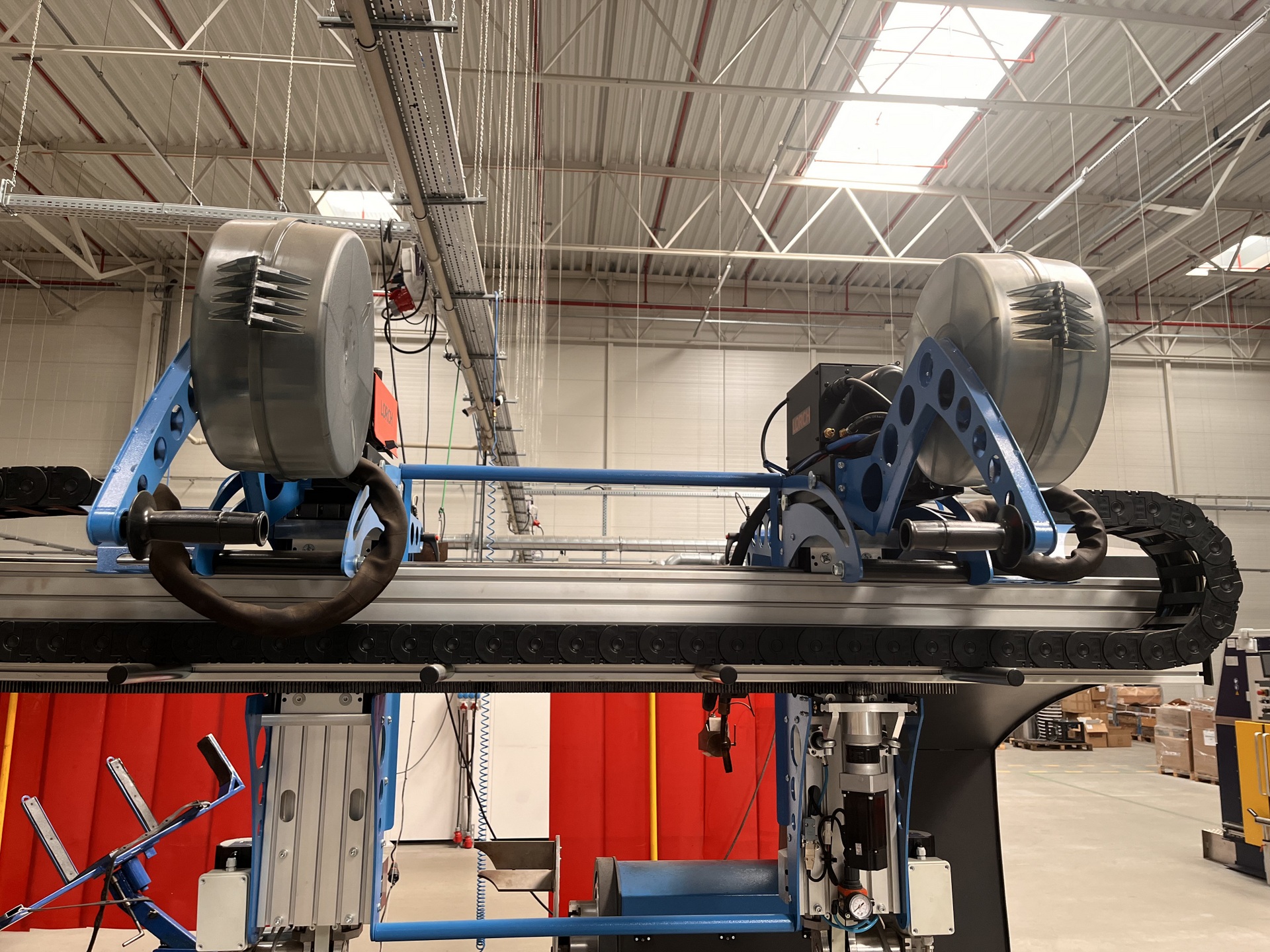

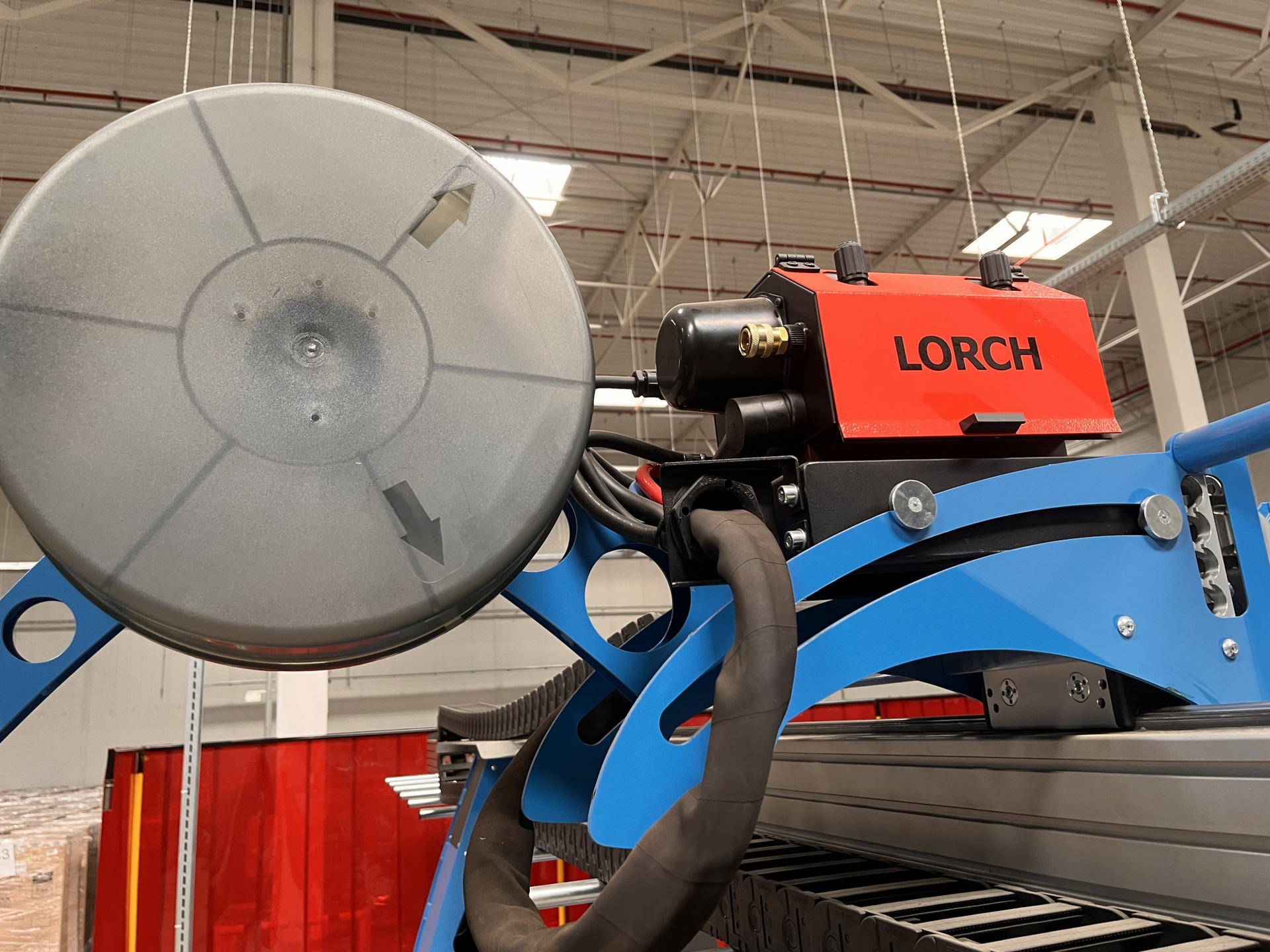

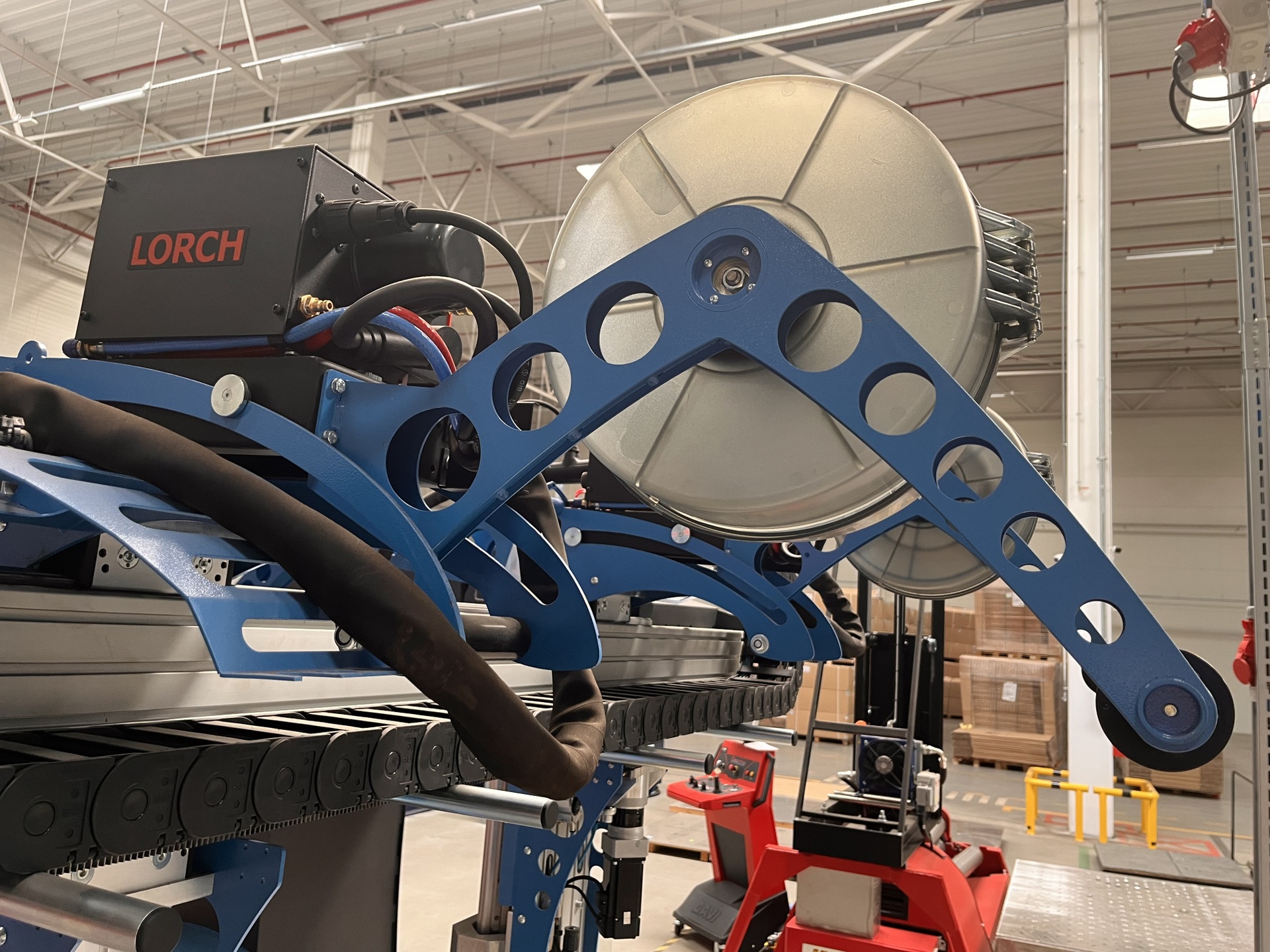

• wire feeder: LORCH RF-06 (2 pcs.)
• duty cycle: 100%
• degree of protection: IP51C

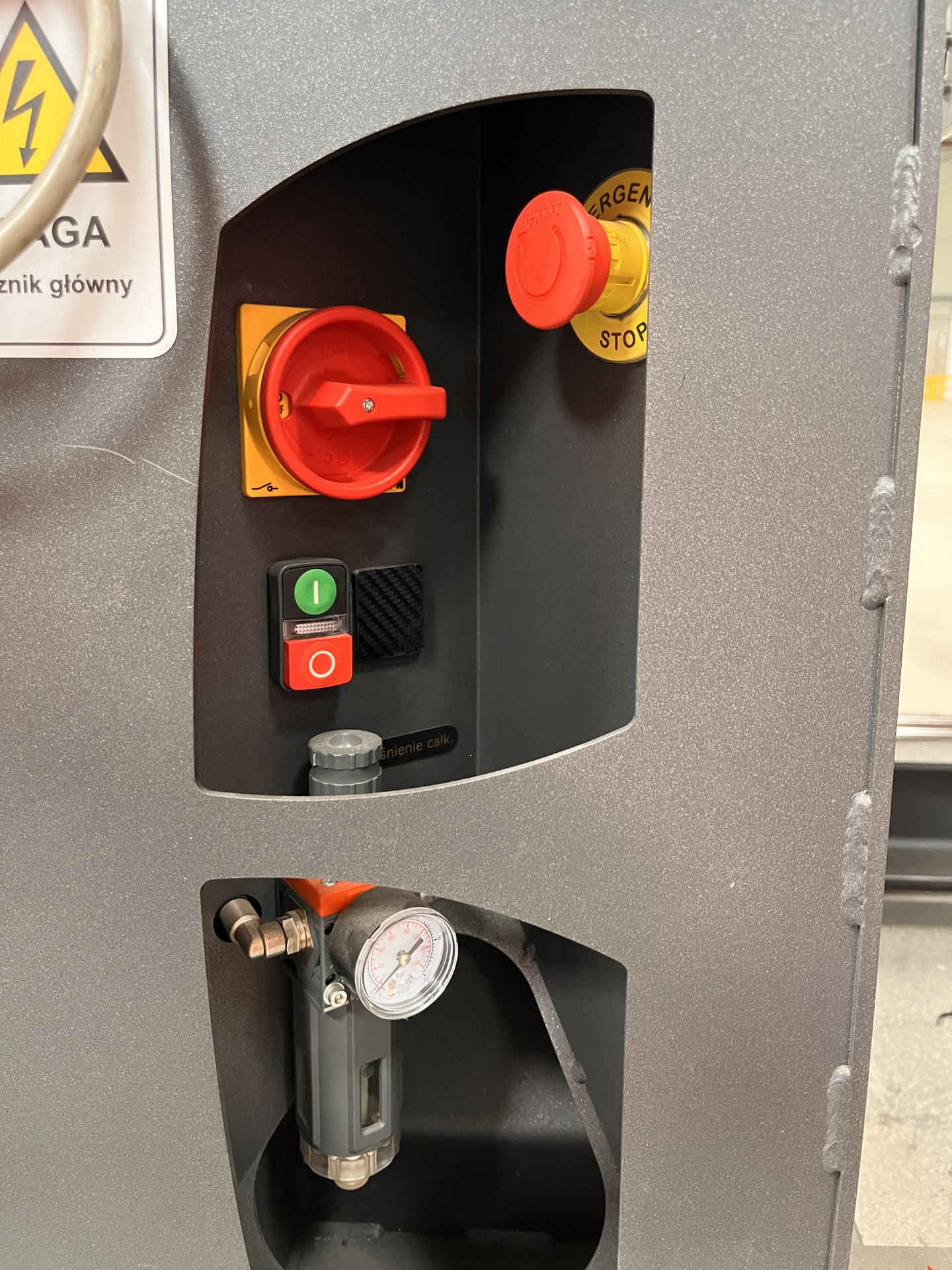

• air pressure: 0,5-0,7 MPa
• power supply: 3x 400 V; 50 Hz
• weight of the MOST MWOS-A5 machine: 3200 kg
