MOST SPEEDCUT 15/30 plasma-gas cutting machine

MOST SPEEDCUT 15/30 plasma-gas cutting machine was built in 2018 in Poland. The machine used for professional production needs, performs precision cutting of metals with a maximum weight of 4 tonnes using a fully automated torch. The torch uses a special system to protect the torch from damage, which combined with the fully galvanised, single-module design of the machine guarantees long and trouble-free operation throughout its lifetime. The SpeedCUT 15/30 CNC cutting machine weighs 1500 kg

Technical specifications of MOST SPEEDCUT 15/30 plasma-gas cutting machine

• work table dimensions (L x W): 3000 x 1500 mm
• travel speed: 25000 mm/min
• working speed: up to 10000 mm/min
• Z-axis feed range: 110 mm
• maximum workpiece weight: 4000 kg
• table type: waterbed table (stainless steel tub)
• power supply: 230 V; 50 Hz
• dimensions (L x W x H): approx. 3600 x 2050 x 1650 mm
• weight of machine: 1500 kg

Equipment of the SPEED CUT 15/30 plasma-gas cutting machine

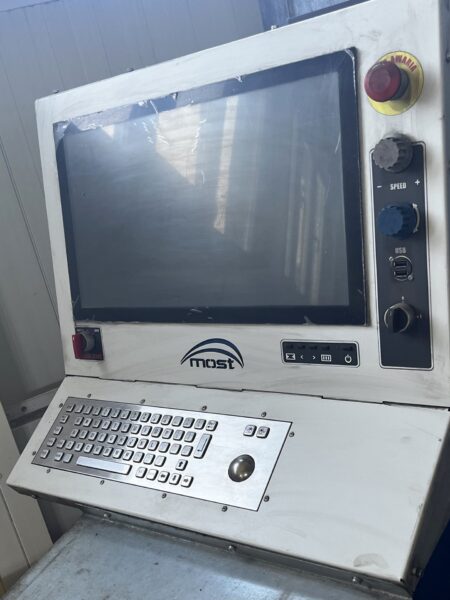

• control panel with integrated CNC controller
• plasma source: HYPERTHERM POWERMAX 125
• Torch Sensor Control (TSC) – double-basing system to prevent torch damage
• Rotary Basing Edge (RBE) – innovative sheet metal basing without the need to place the material perpendicular/parallel to the table
• Dynamic Referencing (DR) – a useful procedure for the dynamic indication of the 0.0 point when machining non-standard formats
• Stop&Go system with simulation of cutting process function
• Quick Start (QS) – a system ensuring a quick start of the machine in less than 1 minute
