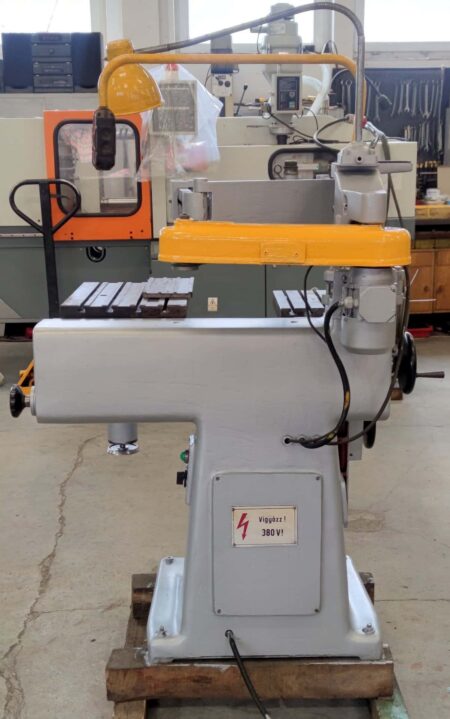

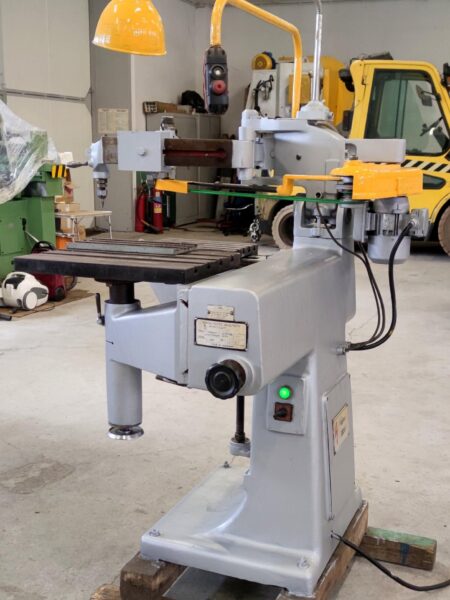

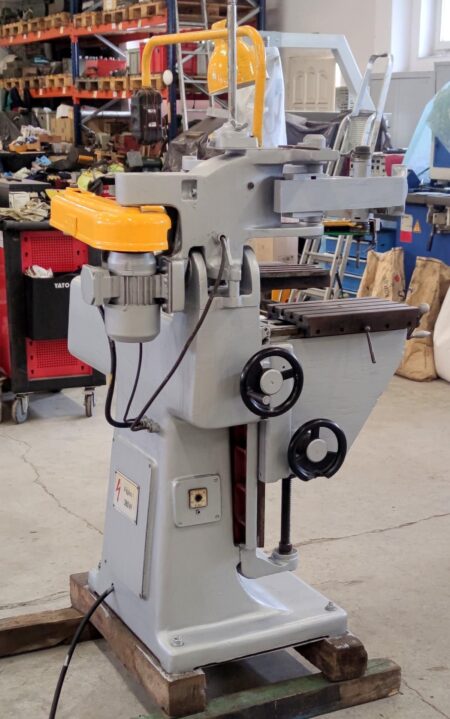

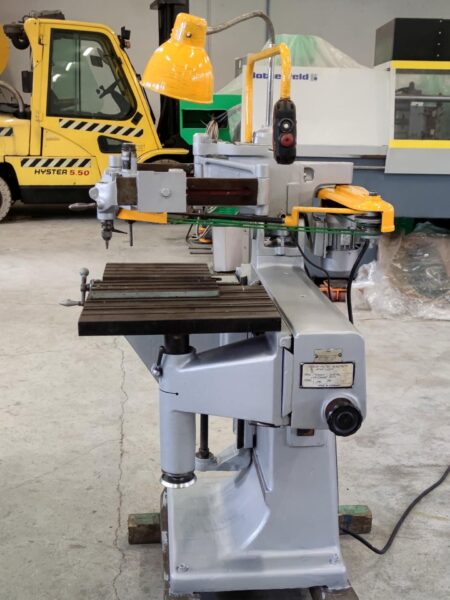

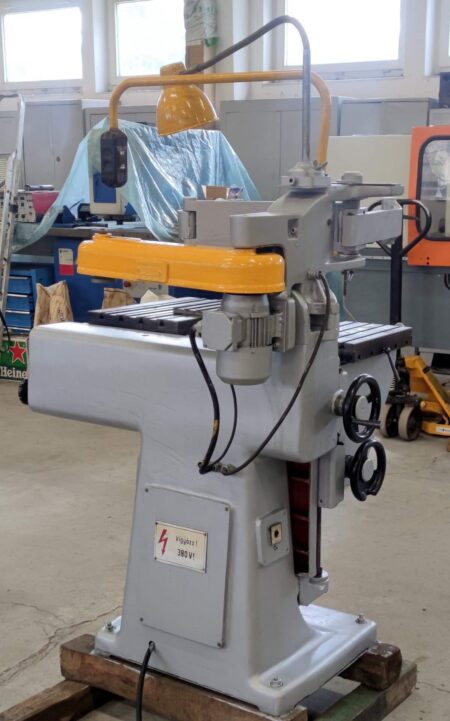

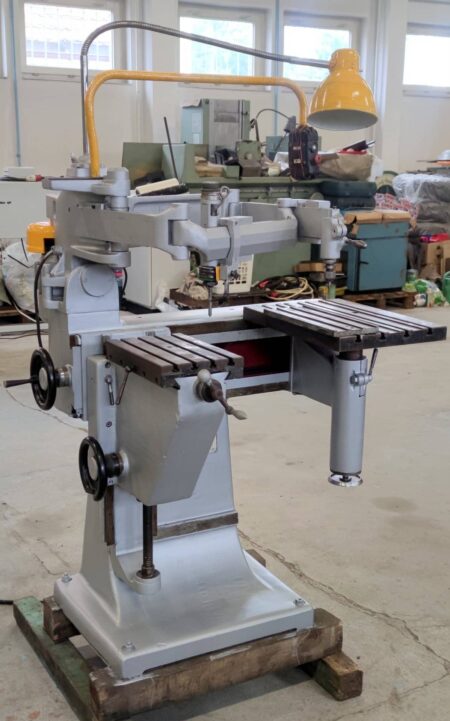

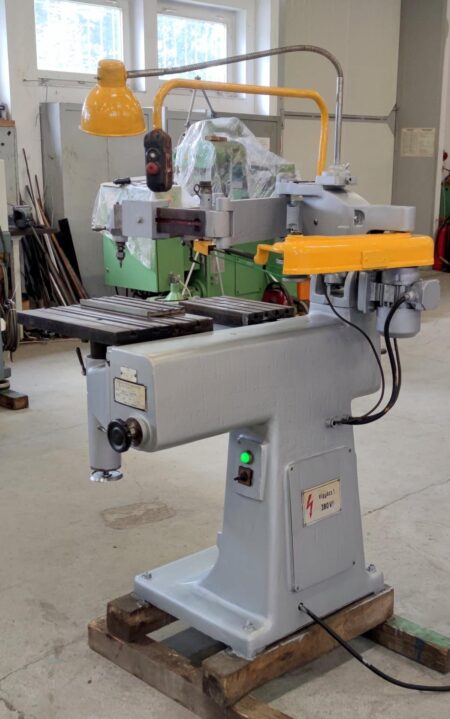

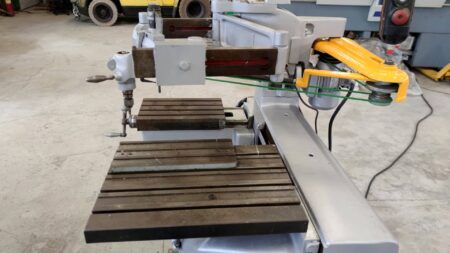

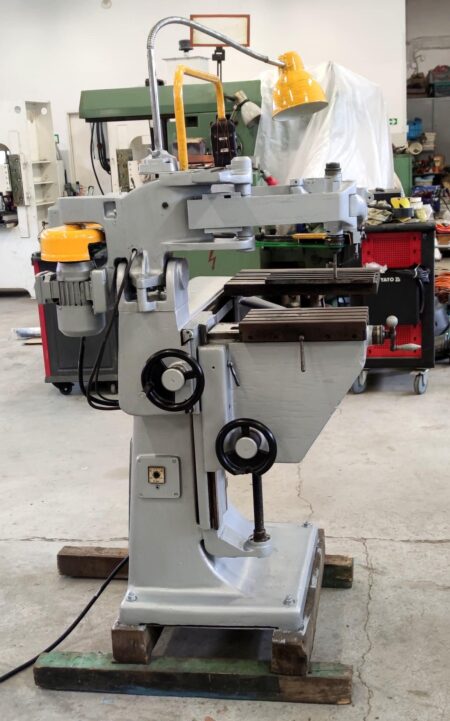

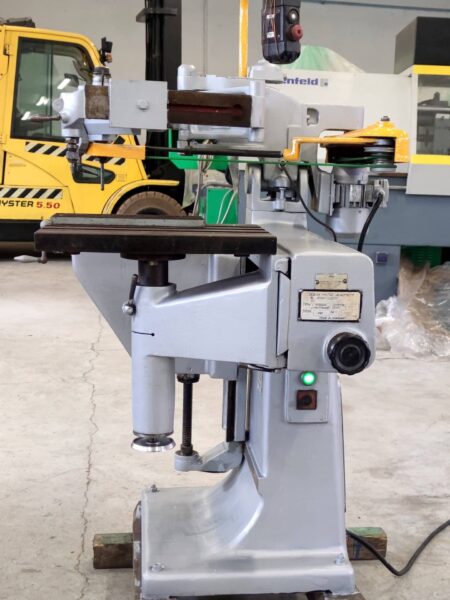

MP200M PANTOGRAF engraving and copy milling machine

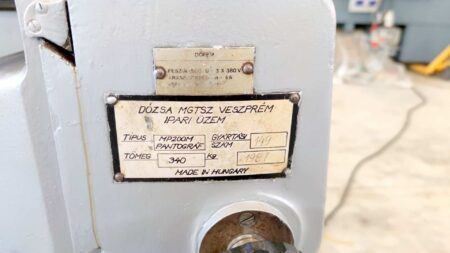

MP200M PANTOGRAF engraving and copy milling machine of Hungarian manufacture built in 1987, is ideal for machining workpieces with irregular surfaces such as dies and punches. The shape of the machined surface is recreated according to the template or drawing on the copying table with a length of 315 mm and a width of 450 mm. The MSZ MP200/M engraving and copy milling machine has undergone a technical inspection. The total weight of the engraving machine is 340 kg.

Technical specification of engraving and copy milling machine MP200M PANTOGRAF

• working table dimensions (L x W): 200 x 315 mm
• longitudinal feed of working table (upward movement): 160 mm
• intermediate feed of working table: 100 mm
• transverse feed of working table: 300 mm

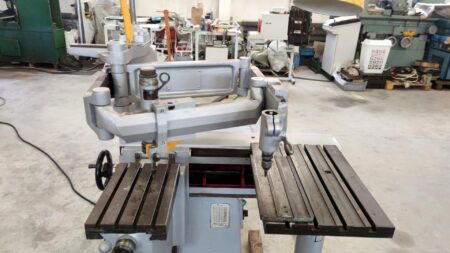

• copying table dimensions (L x W): 315 x 450 mm
• copying table adjustment (up and down): 150 mm
• copying table tilt adjustment: 360°
• maximum distance between spindle tip and table clamping surface: 315 mm
• minimum transmission ratio: 1:10
• maximum transmission ratio: 1:1.5

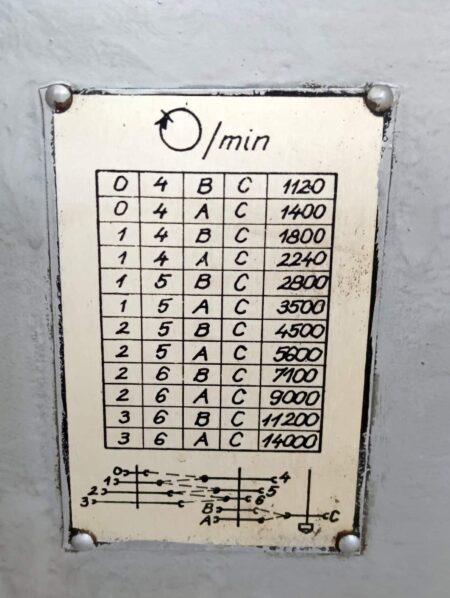

• number of speed steps: 12
• minimum cutter diameter: 4 mm
• maximum cutter diameter: 8 mm
• power: 0,25 kW
• power supply: 3x 380 V; 50 Hz
• overall dimensions (L x W x H): 1350 x 1200 x 1550 mm
• total weight of the MP200M PANTOGRAF machine: 340 kg
