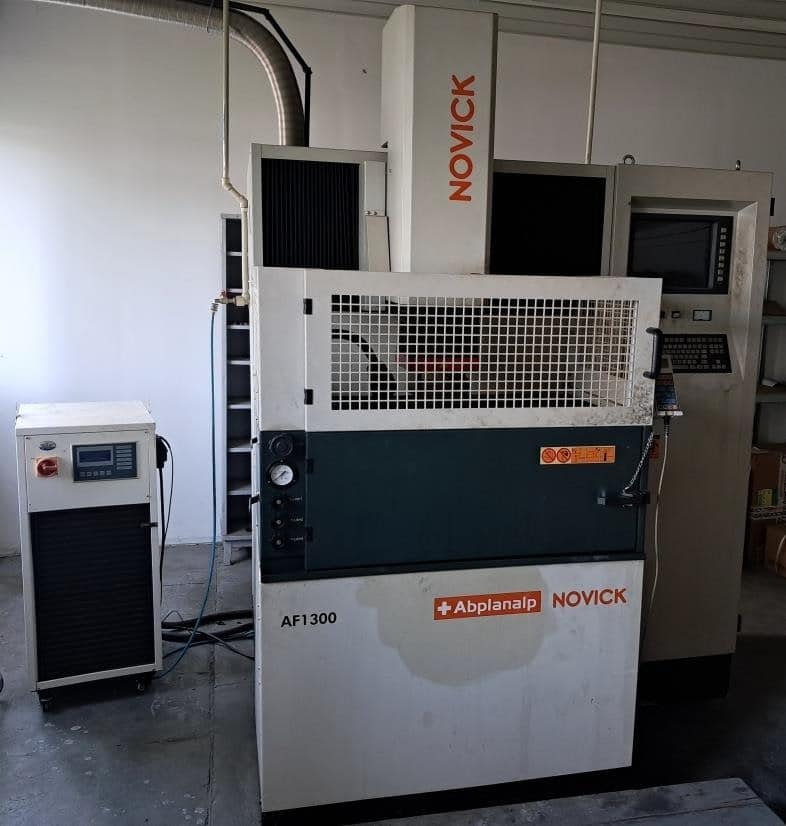

NOVICK AF1300 die-sinking EDM

NOVICK AF1300 die-sinking EDM was built in 2012 in China by Novick Digital Equipment Co., Ltd. The machine is used to produce parts with complex geometries that have applications in, among others, aviation and aerospace industries. The machining process is performed by means of electrical erosion, which minimises or completely eliminates the need for other secondary processes, such as polishing. The combination of a full closed-loop control system and dual feedback compression, in turn, guarantees exceptional machining accuracy in even the most demanding applications. The NOVICK AF 1300 sinker EDM weighs 2300 kg.

Technical specifications of the NOVICK AF 1300 die-sinking EDM

• feed in the X/Y/Z axis: 520/300/300 mm

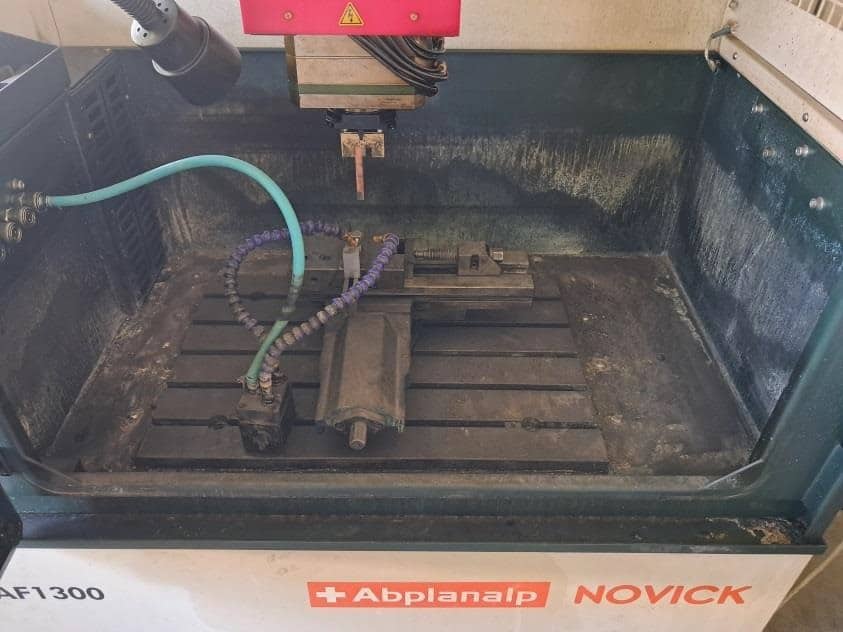

• work table dimensions (L x W): 600 x 400 mm
• generator: NOVICK 560F
• power: 10 kVA
• power supply: 3x 380 V; 50/60 Hz
• weight of the NOVICK AF1300 machine: 2300 kg
