OTC Daihen IRB 651 robotic welding station

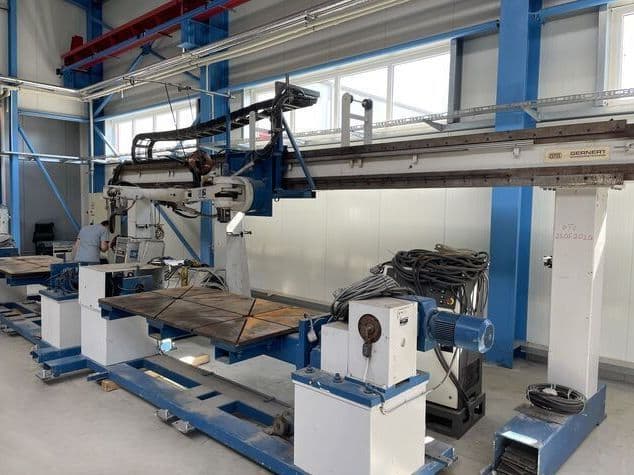

OTC Daihen IRB 651 robotic welding station was built by the Japanese brand DAIHEN Corporation. The system is configured for 3D welding of workpieces with complex shapes. The process is performed using the MIG/MAG method, which combines excellent precision with the highest quality welds. In order to increase production efficiency, the IRB-651 robot arm and wire feeder move on a traversable track, offering freedom of operation in all positions. All the components of the station are controlled from the control cabinet.

Components of the OTC Daihen IRB 651 welding station

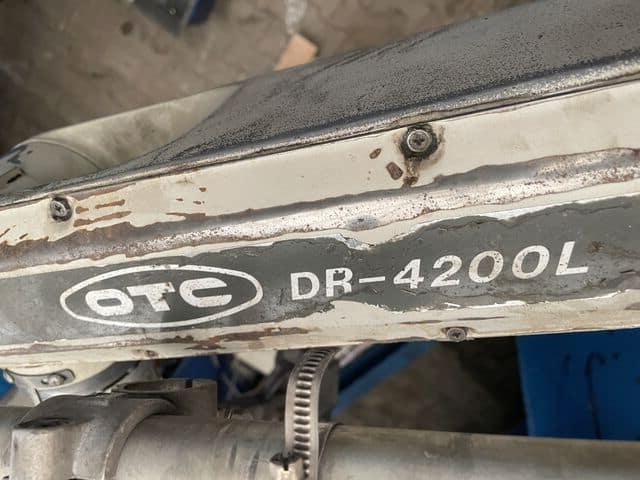

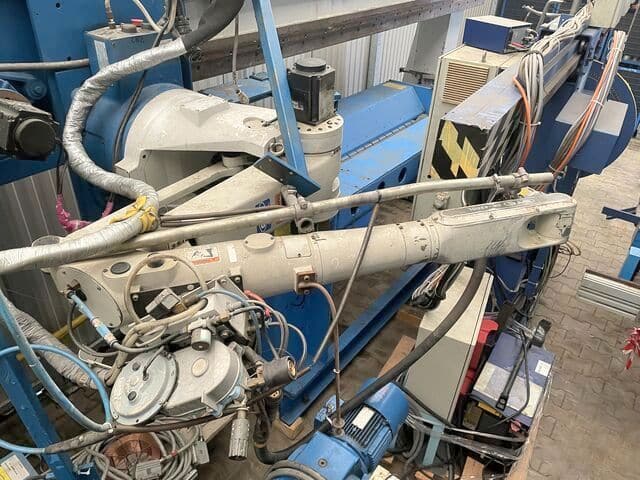

• 7-axis welding robot: IRB-651 (2001)
• welding positioner 2000 x 1000 mm with SEW-EURODRIVE motor (2 pcs.)

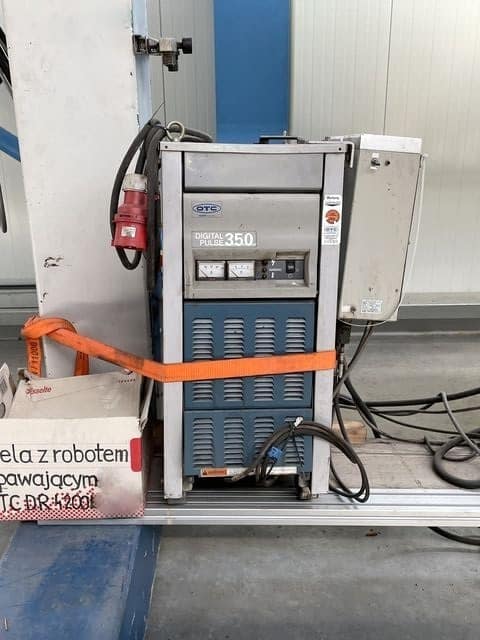

• MIG/MAG welder: OTC Daihen CPDP350

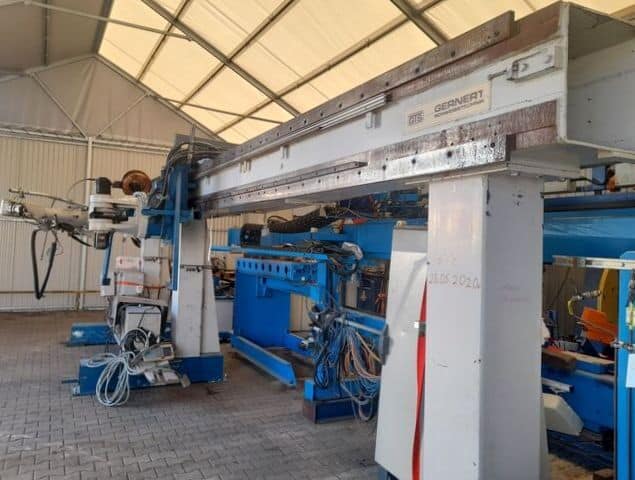

• track: GERNERT
• wire feeder
• control cabinet: OTC Daihen L5561 (2000)

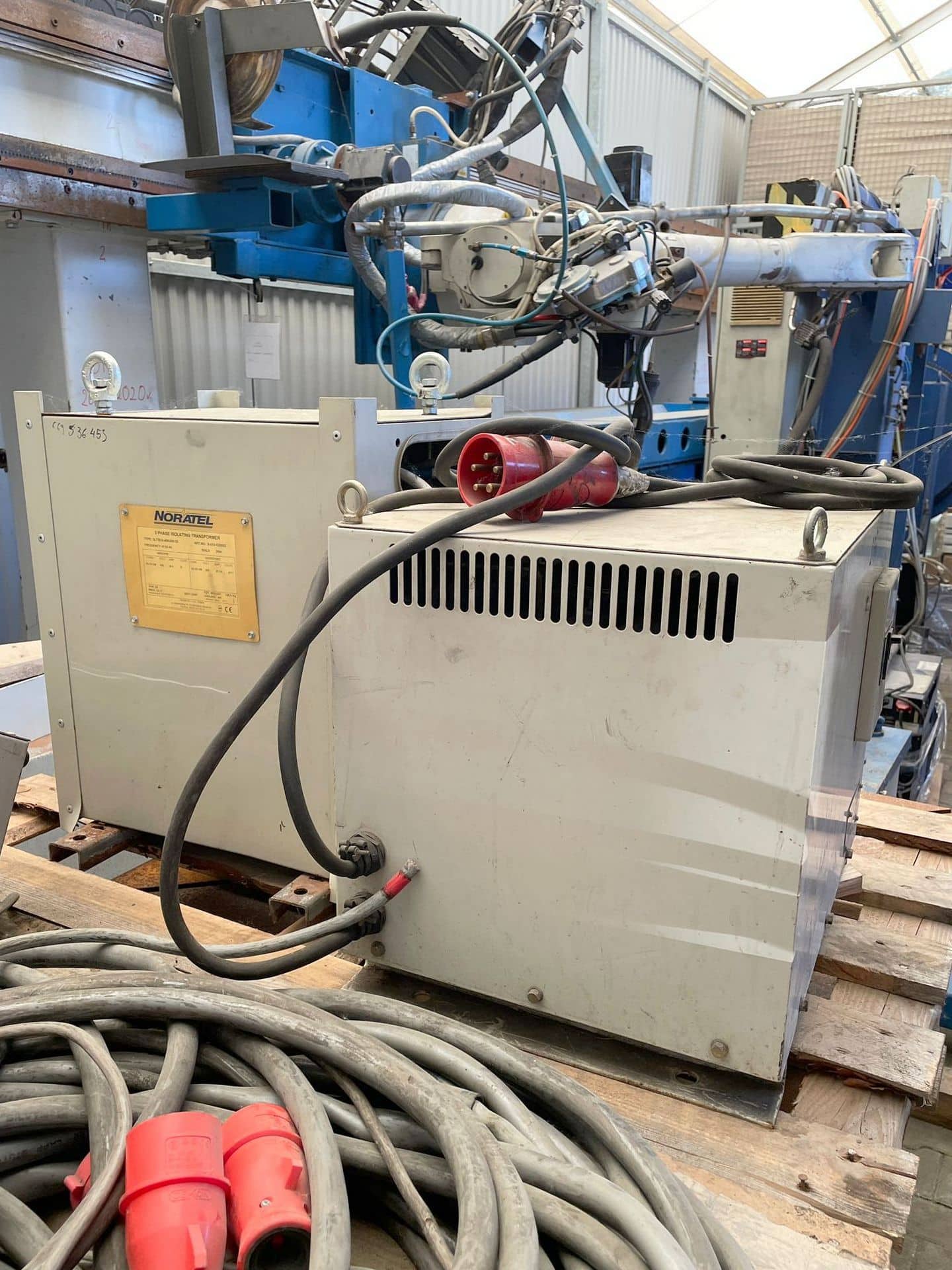

• 3-phase isolating transformer: NORATEL 3LT20.0-400/200-23 (2004)
• 3-phase transformer: OTC Daihen W-L00557
• DTR – Technical and Operating Documentation
