PAD 40 high-speed press

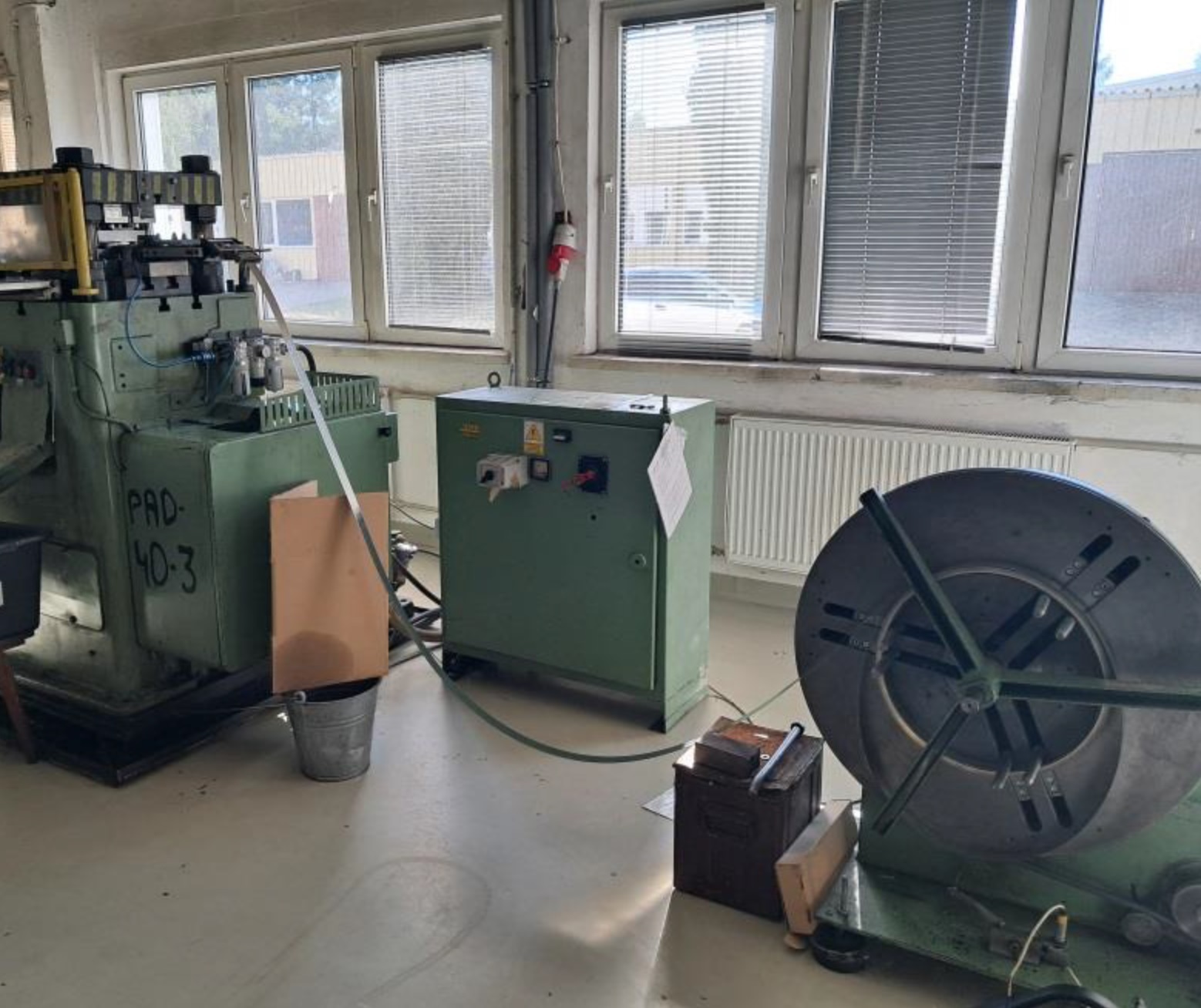

PAD 40 high-speed press was built in 1986 in Poland by the Fabryka Pras Automatycznych Warszawa-Włochy. The machine is used for fully automatic, precise machining of workpieces. All machining processes, i.e. stamping and punching, are performed with a high press force of 40 tonnes, which, combined with the rigid design, guarantees high repeatability of the produced parts. The PAD40 high-speed press is offered with an equipment, consisting of a sheet metal decoiler and pneumatic feeder. The total weight of the machine is 3500 kg.

Technical specifications of the PAD 40 press

• maximum press force: 40 t
• slider stroke number: 100-350/min
• maximum slider stroke length: 25 mm
• maximum distance from work table to slider surface: 277 mm
• distance between columns: 390 x 320 mm
• sheet metal decoiler
• sheet metal pneumatic feeder
• motor power: 7.5 kW
• motor rotational speed: 1450 rpm
• weight of the PAD-40 machine: 3500 kg
