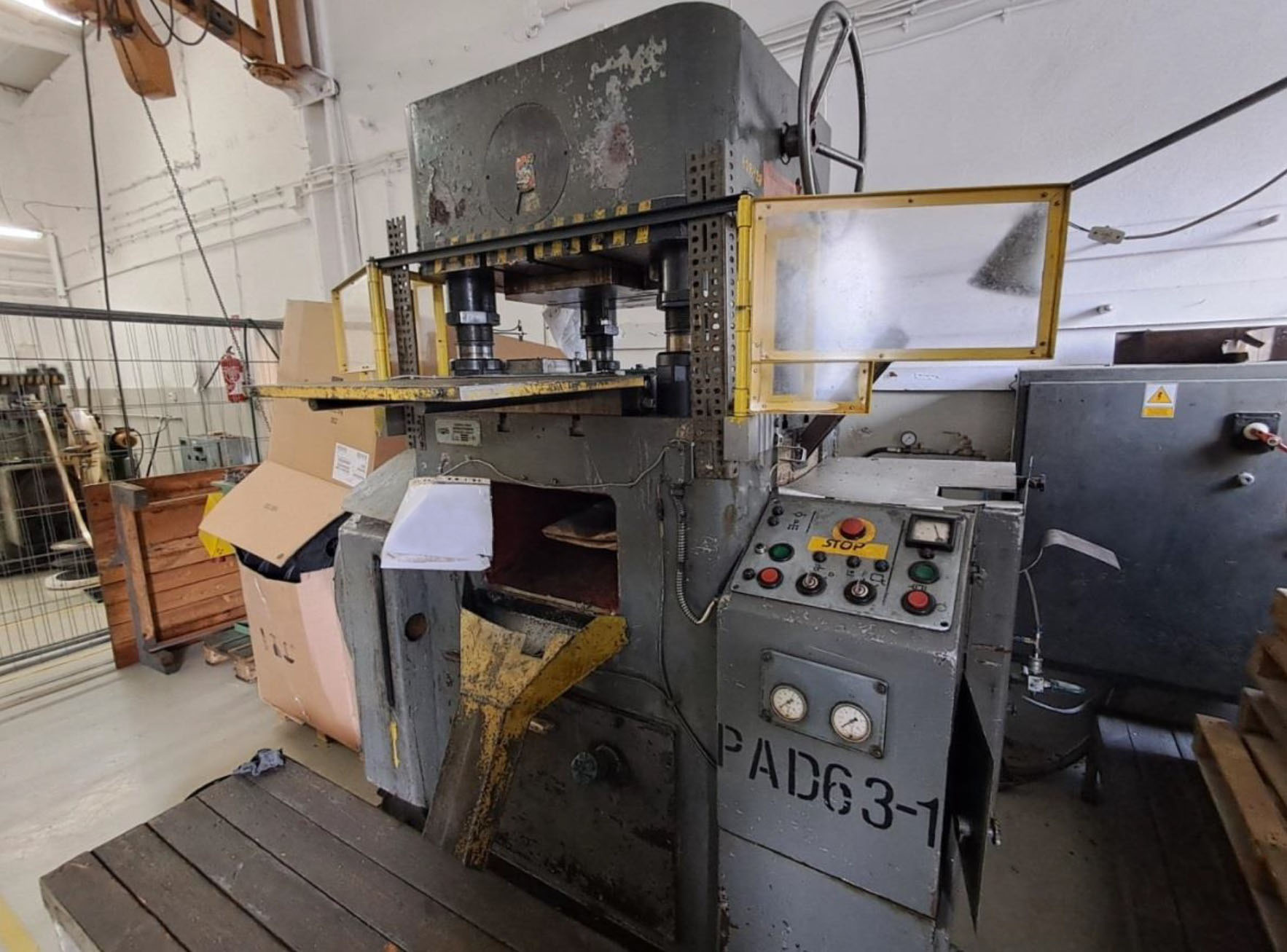

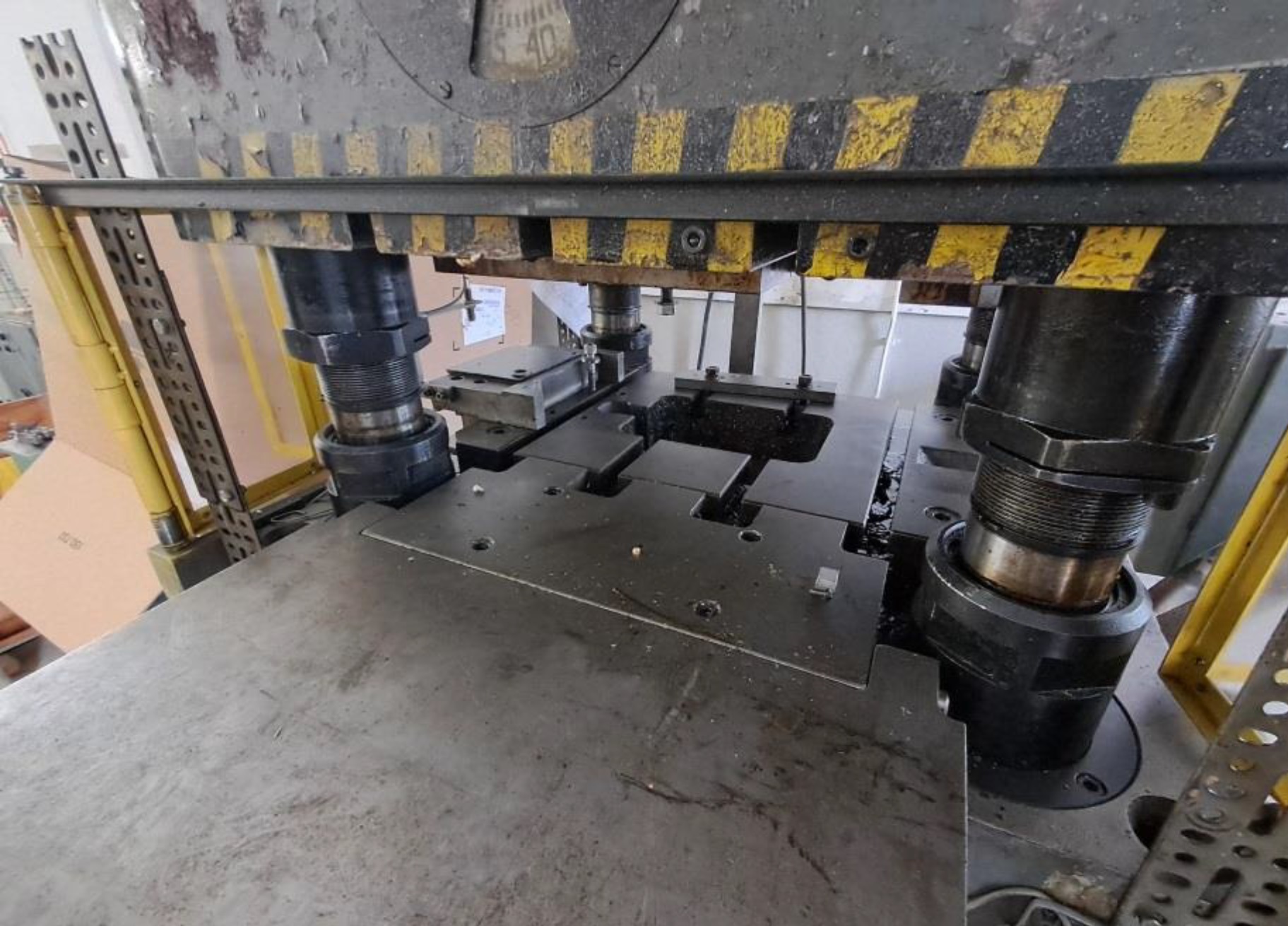

PAD 63 A high-speed press

PAD 63 A high-speed press was built in 1978 in Poland by Fabryka Pras Automatycznych Warszawa-Włochy. The machine is used for precision machining of uncoiled sheet metal. All machining processes, i.e. stamping, punching, cutting and bending are performed fully automatically with a high press force of 63 tonnes. The PAD 63A high-speed press on offer has undergone an overhaul. The total weight of the machine is 6300 kg.

Technical specifications of the PAD 63 A press

• maximum press force: 63 t
• slider stroke number: 100-320/min
• slider adjustment: 60 mm
• maximum distance from work table to slider surface: 320 mm
• distance between columns: 480 x 400 mm
• motor power: 15 kW
• grease pump motor power: 0,4 kW
• weight of the PAD 63 A machine: 6300 kg
