PANASONIC TL-1800 GIII welding robot

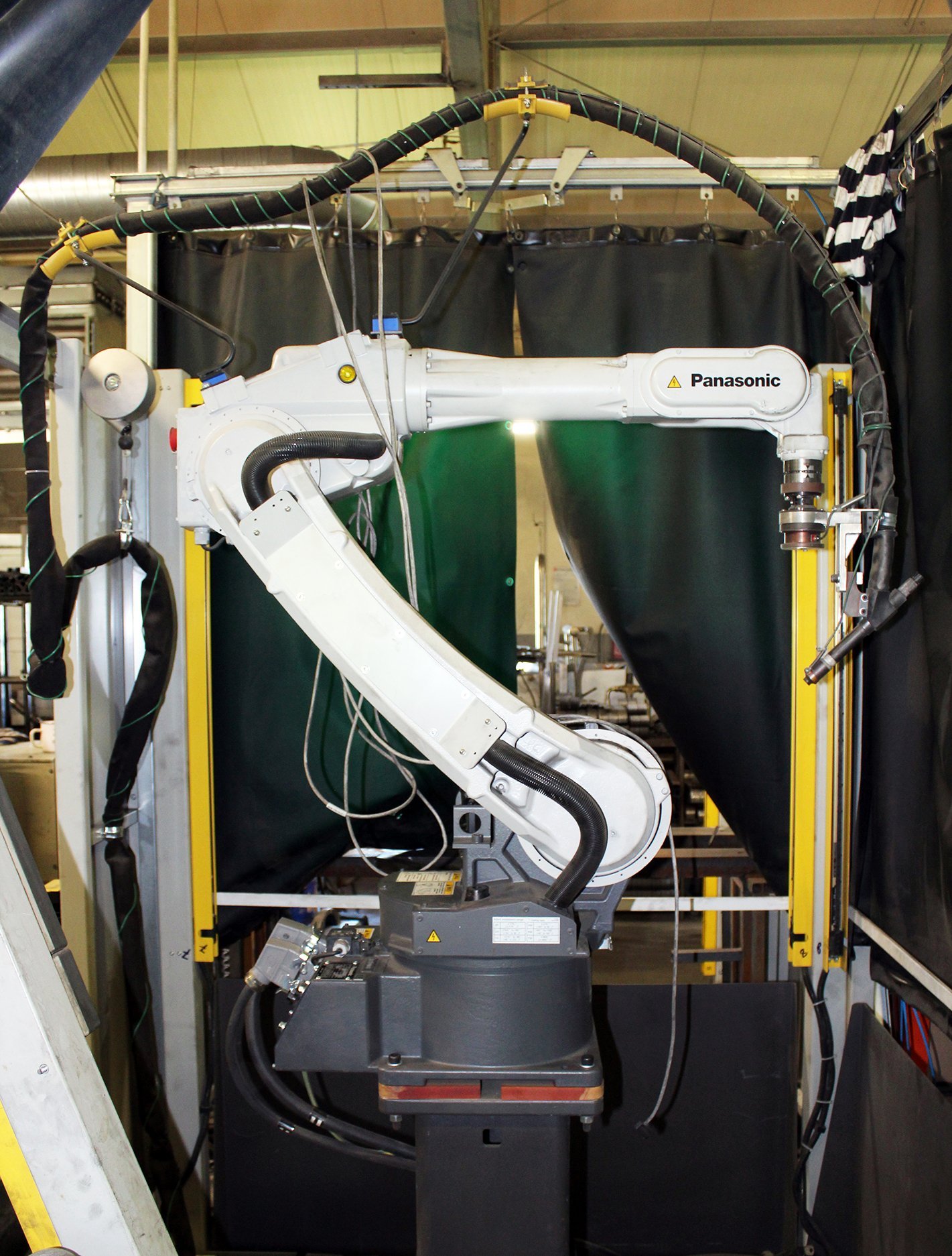

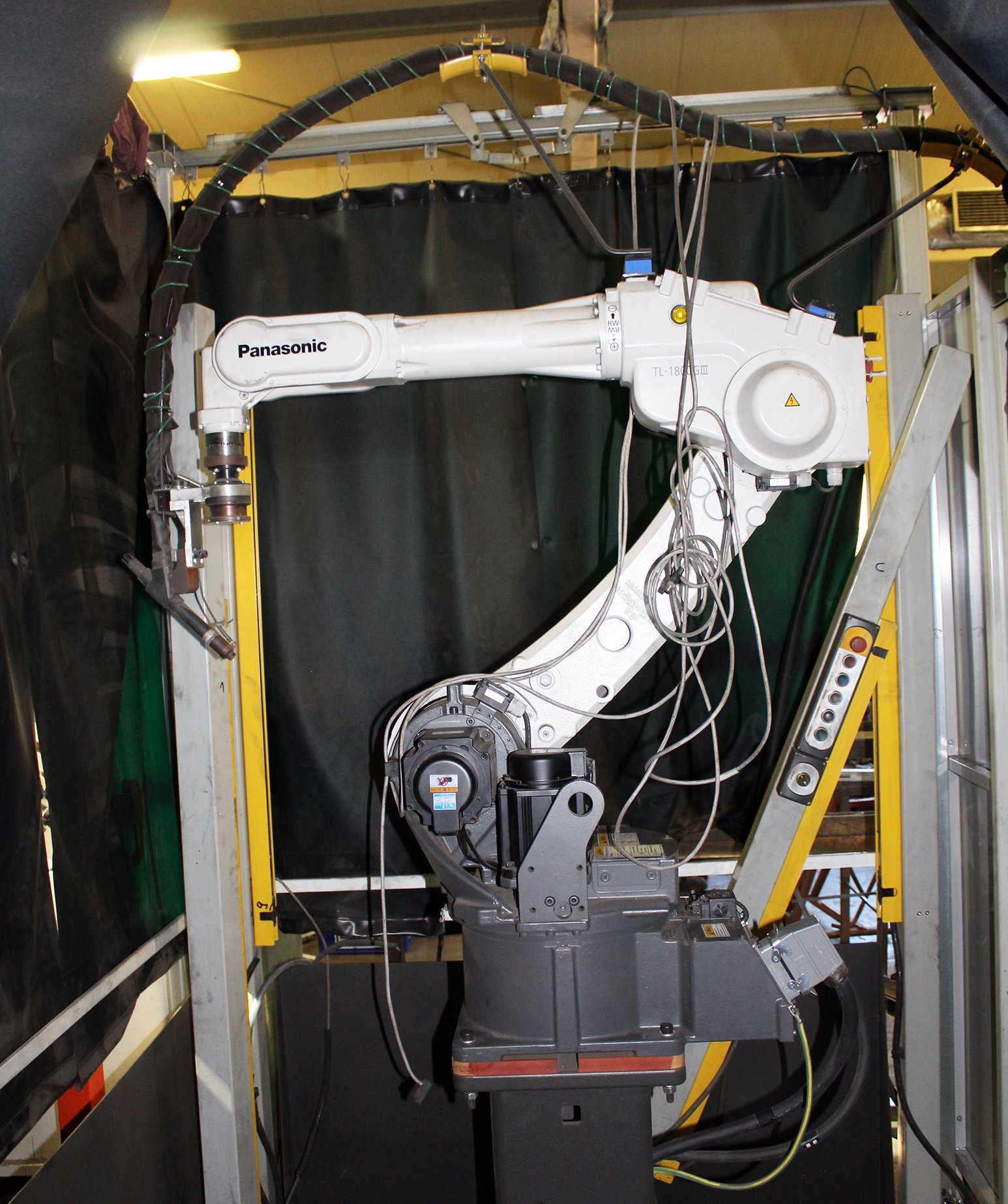

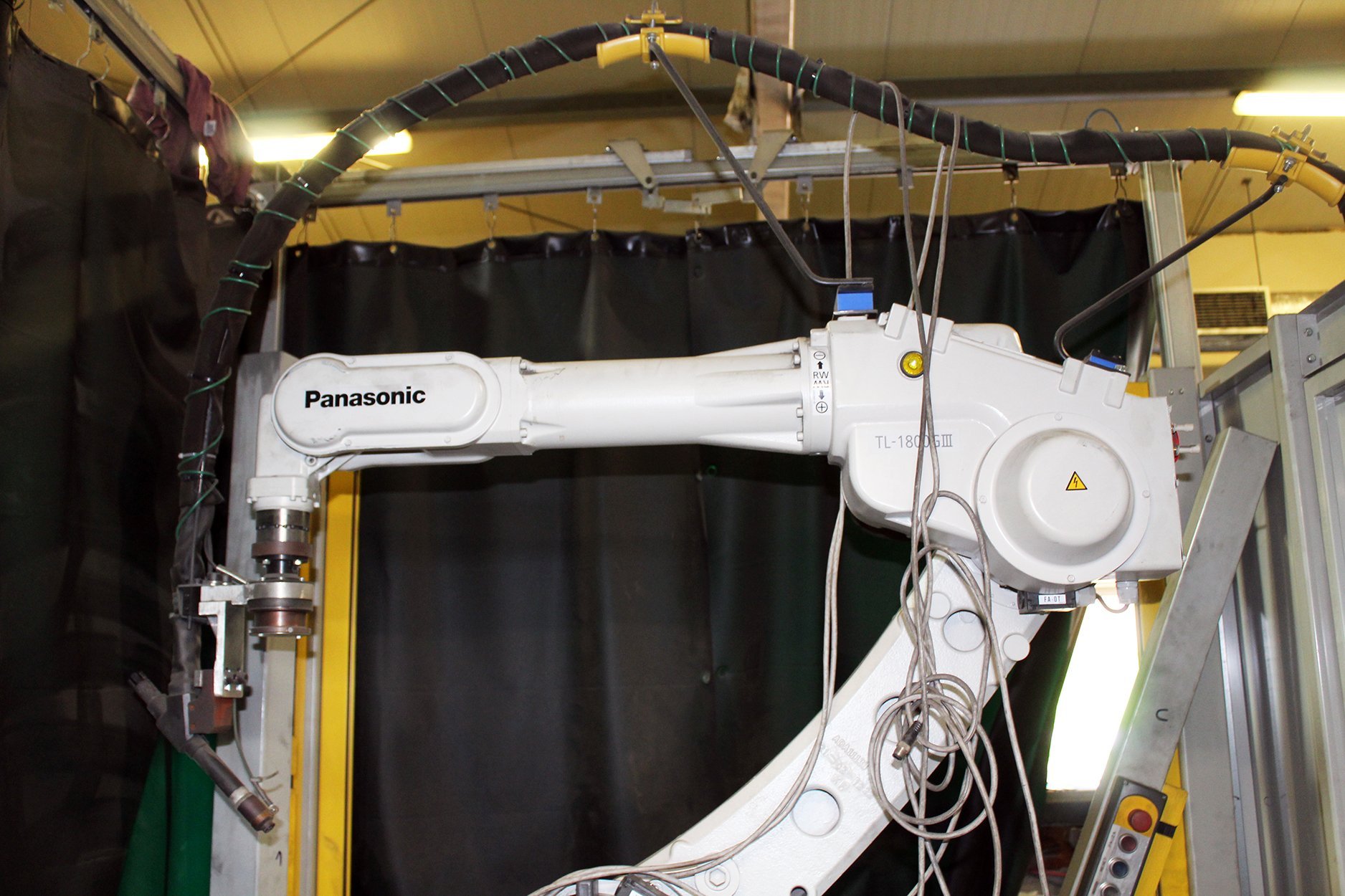

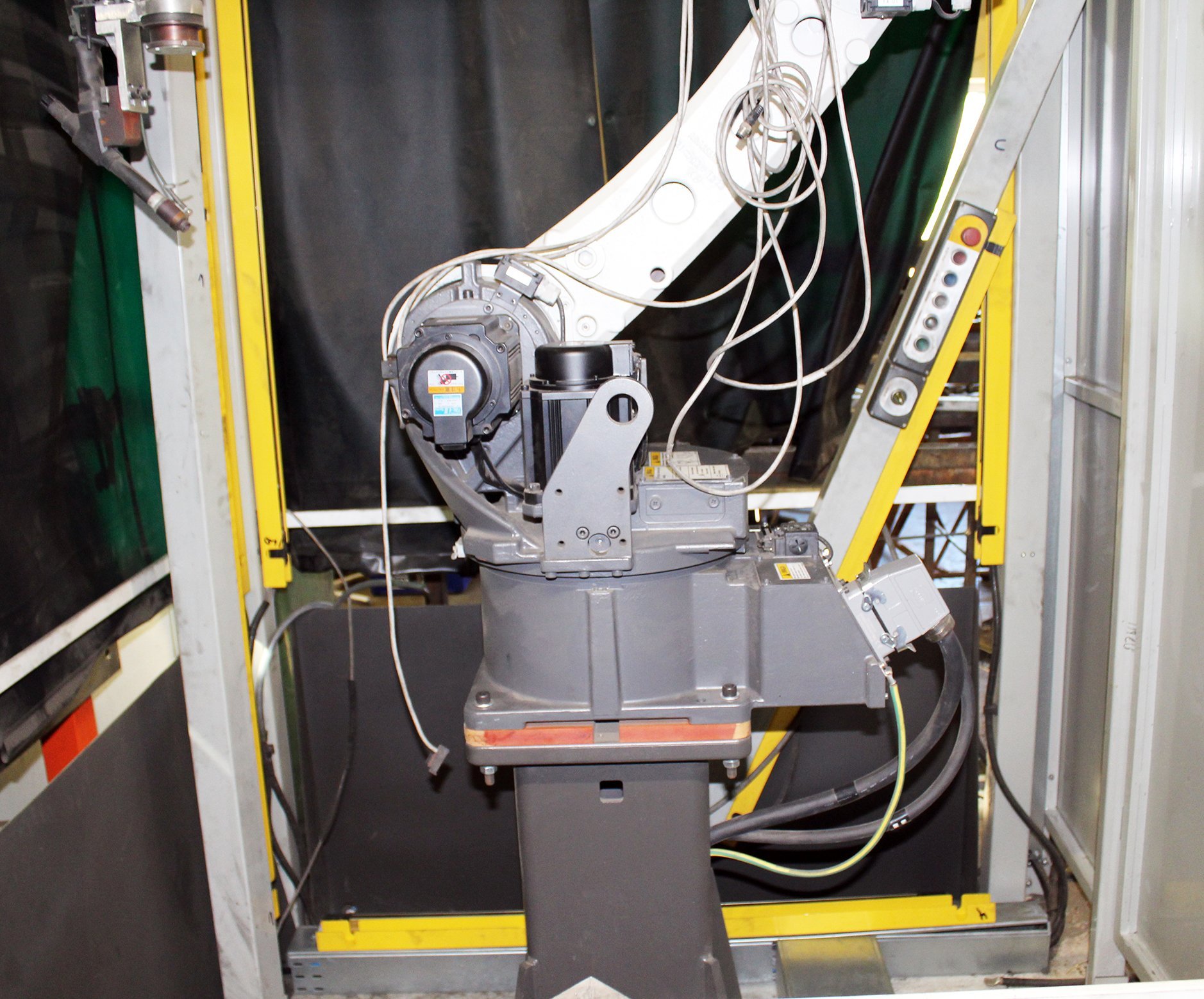

PANASONIC TL-1800 GIII welding robot was built in 2021 in Japan by Panasonic Smart Factory Solutions Co., Ltd. The machine, distinguished by its high reliability and ease of operation, is an excellent choice for precision welding of workpieces using the TIG method. Its slim design, combined with the large range of arm movement, allows free operation in all positions, even in hard-to-reach places. The TL 1800 robot arm is offered together with equipment, which includes a controller, a portable control unit and a TIG welder. The total weight of the machine is 215 kg.

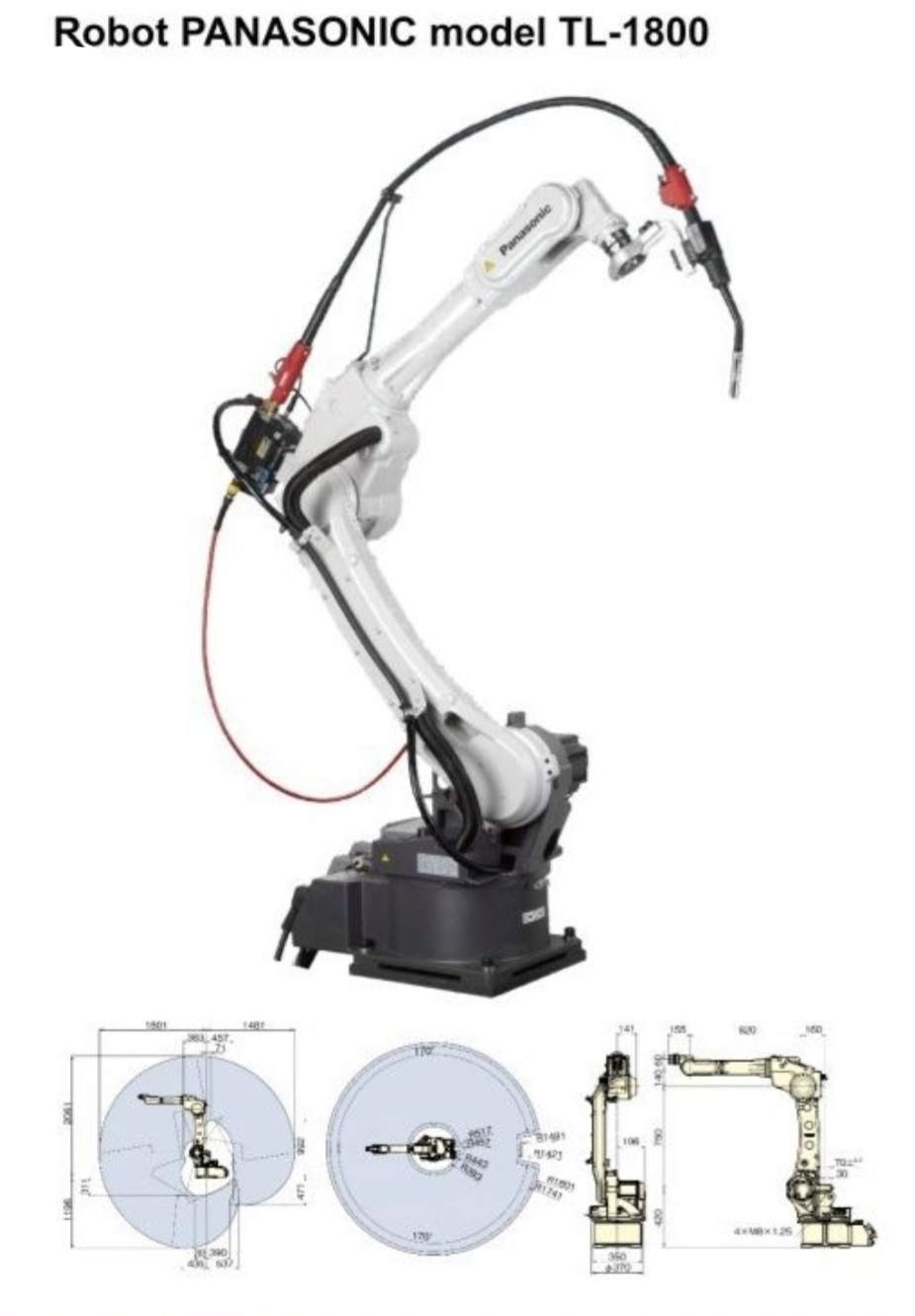

Technical specifications of the PANASONIC TL-1800 GIII robot

• number of axes: 6
• maximum payload: 8 kg
• maximum arm reach: 1801.8 mm
• robot axis movement range

– axis 1 (rotating trunk): ± 170°
– axis 2 (upper arm): -90° / +165°
– axis 3 (forearm): -80° / +210°
– axis 4 (rotating wrist): ± 270°
– axis 5 (bending wrist): -160° / +95°
– axis 6 (twisting wrist): ± 400°

• robot axis motion speed

– axis 1 (rotating trunk): 195°/s
– axis 2 (upper arm): 197°/s
– axis 3 (forearm): 205°/s
– axis 4 (rotating wrist): 385°/s
– axis 5 (bending wrist): 375°/s
– axis 6 (twisting wrist): 624°/s

• positioning repeatability: ± 0.08 mm
• weight of the PANASONIC TL 1800 machine: 215 kg

Equipment of the PANASONIC 6-axis robot

PANASONIC G3 controller

• number of controllable axes: 6
• number of digital I/O modules: 40
• degree of protection: IP 32
• external memory: SD card, USB port (2 pcs)
• power supply: 3x 200 V; 50/60 Hz
• dimensions (L x W x H): 553 x 550 x 680 mm
• weight: 60 kg

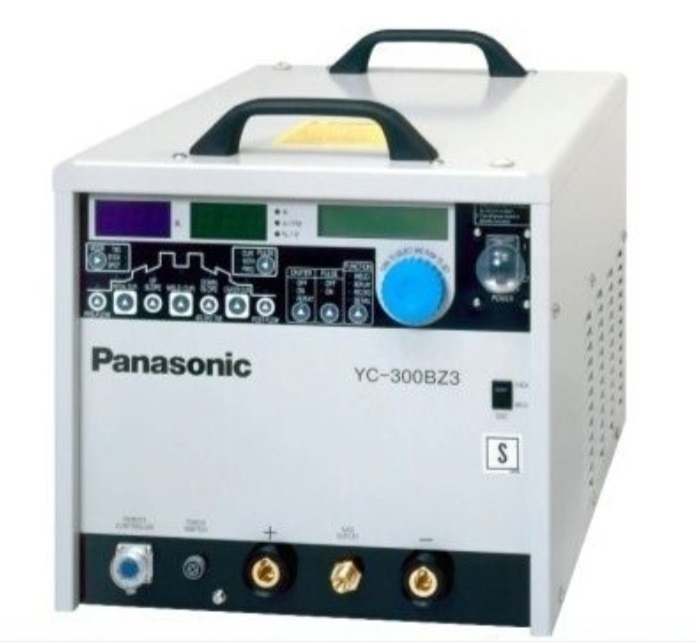

PANASONIC YC-300BZ3 welding source

• welding method: DC TIG, DC pulse TIG
• voltage: 400 VAC
• frequency: 50/60 Hz
• rated power: 11 kVA
• welding current: 4-300 A
• work cycle: 40%
• dimensions (L x W x H): 380 x 510 x 410 mm
• weight: 66 kg

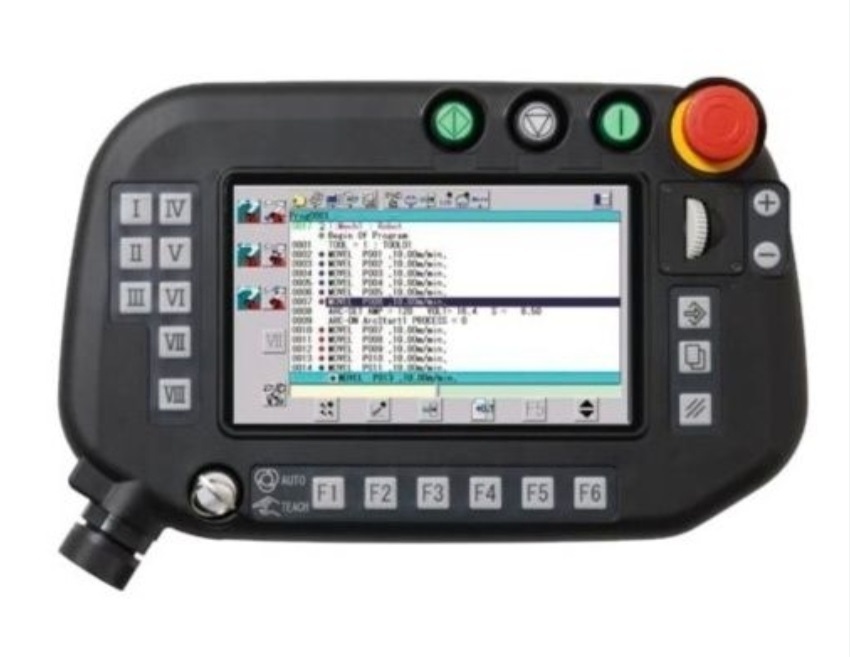

Portable control unit (pendant)

• 7″ colour LCD screen
• 6 separate buttons for each axis
• external memory: SD card, USB port (2 pcs)
