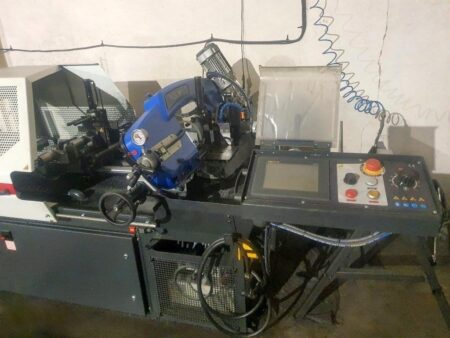

PILOUS ARG 260 CF-NC automatic band saw

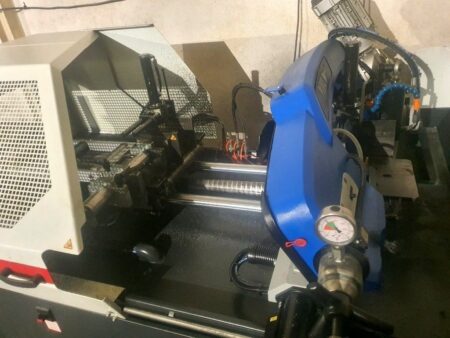

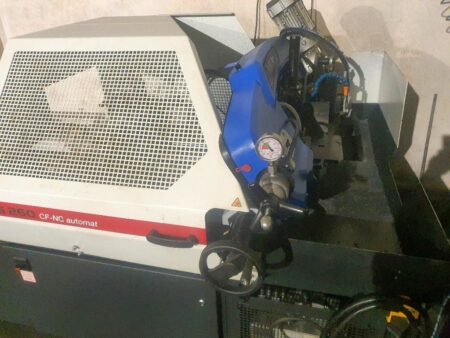

PILOUS ARG 260 CF-NC automatic band saw manufactured in the Czech Republic in 2020 is used for cutting workpieces made of among others stainless steel. The solid structure of the band saw made of grey cast iron effectively prevents vibrations during machine operation and guarantees high strength and exceptional stability, even during the cutting of heavy workpieces. The hinged cover, which remains in the upper position after being opened, allows easy replacement of the band saw blade and easy cleaning of the arm interior.

The saw, operating in manual, semi-automatic or automatic mode, cuts workpieces with a saw blade measuring (L x W x H) 2880 x 27 x 0.9 mm, inclined at 3°. The cutter allows for free setting of the cutting angle from 45° to 90° and speeds from 15 to 90 m/min. The high speed and excellent precision of the workpiece feed are ensured by the mounted servo motor and ball screw.

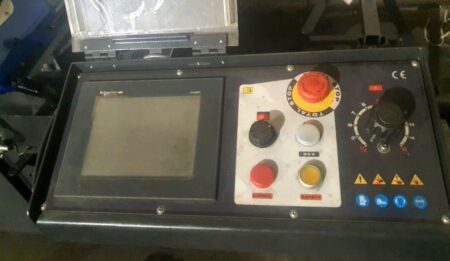

The control unit, with an intuitive SCHNEIDER MAGELIS HMI touch-panel, allows you to programme up to 60 operating programmes for the automatic band saw. The sawing machine is equipped with, among others, a 3m long table with rollers for moving the workpiece and a band saw tension indicator. The total weight of the machine is 910 kg.

Technical specifications of the PILOUS ARG 260 CF-NC band saw

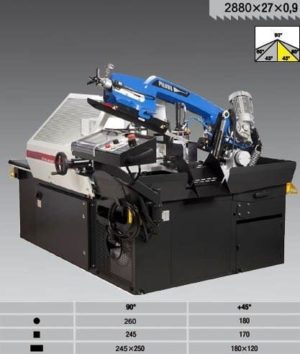

• saw blade dimensions (L x W x H): 2880 x 27 x 0.9 mm
• saw blade tilt: 3°
• maximum cut at 90° (circle): 260 mm
• maximum cut at 90° (square): 245 mm
• maximum cut at 90° (rectangle): 245 x 250 mm
• maximum cut at +45° (circle): 180 mm
• maximum cut at +45° (square): 170 mm
• maximum cut at +45° (rectangle): 180 x 120 mm
• cutting speed range: 15-90 m/min
• material feed rate: 1.6/2.5/3 m/min
• maximum single feed length: 500 mm
• saw blade wheel diameter: 300 mm
• height of vice: 830 mm
• main motor: 400 V, 50 Hz, 2.2 kW
• servo motor: 400 V, 50 Hz, 1.3/2 kW
• hydraulic power unit motor: 400 V, 50 Hz, 0.37 kW
• cooling pump motor: 400 V, 50 Hz, 0.05 kW
• coolant tank capacity: 35 l
• power supply: 3x 400 V; 50 Hz
• overall dimensions (L x W x H): 1500 x 2150 x 1350 mm
• weight of machine ARG 260 CF-NC: 910 kg

Equipment of the band saw machine

• CNC controller
• HMI panel: SCHNEIDER MAGELIS
• hydraulic hold-down device for batch cutting (2 pcs)
• band saw tension indicator
• table with rollers to move the workpiece with a length of 3m
