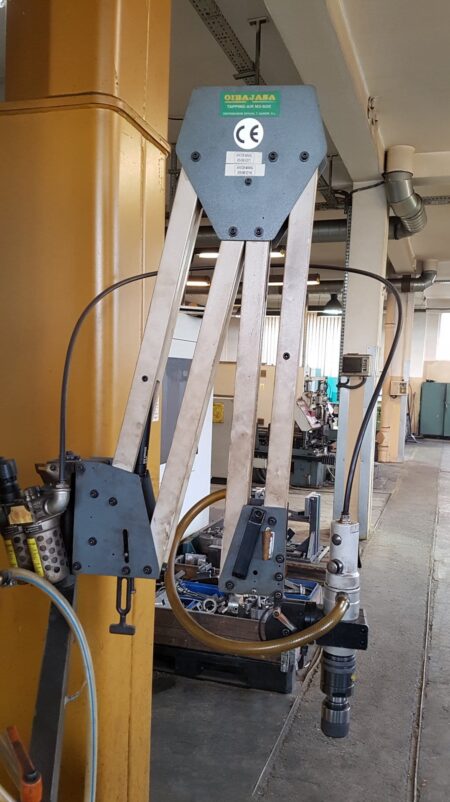

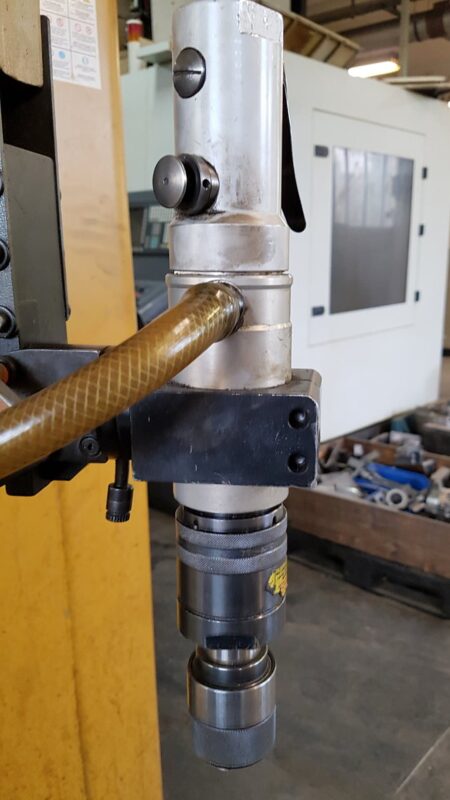

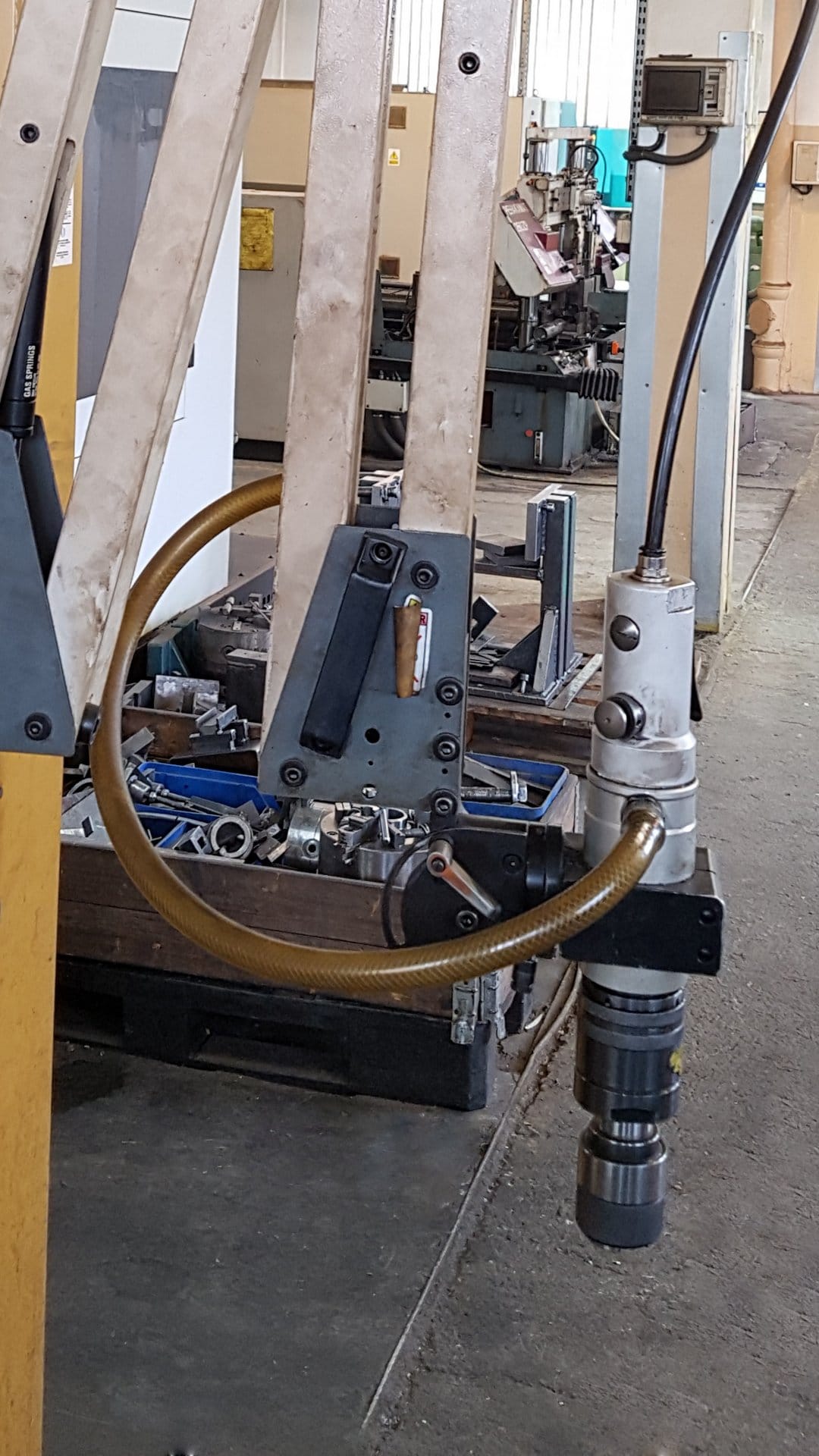

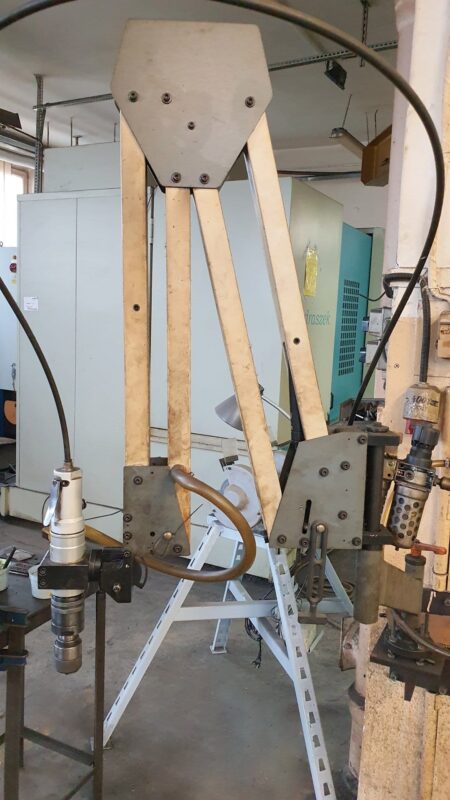

Pneumatic tapping machine GAMOR TA-N20 was built by the Spanish company Talleres GAMOR, S.L. The tapping machine is used in industry to make threads in metal parts. Gamor TA-N20 threads holes in elements, i.e. steel or aluminum in the scope of threading M3 – M20. The machine improves and increases the operator’s comfort thanks to its easy operation and intuitiveness. The tapping machine has an arm with a range from 200 mm to 1950 mm. The pneumatic threading machine’s rotational speed can be adjusted from 150 to 400 rpm. The total weight of the machine is 31 kg.
Specification of the Gamor TA-N20 tapping machine
– threading range: M3 – M20
– rotational speed range: 150 – 400 rpm
– arm reach (min./max.): 200/1950 mm
– total weight of the tapping machine TA-N20: 31 kg
