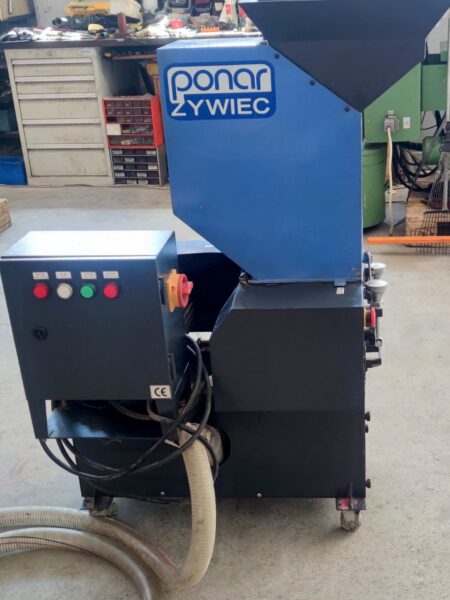

PONAR ŻYWIEC SG-180FE-2B plastic mill

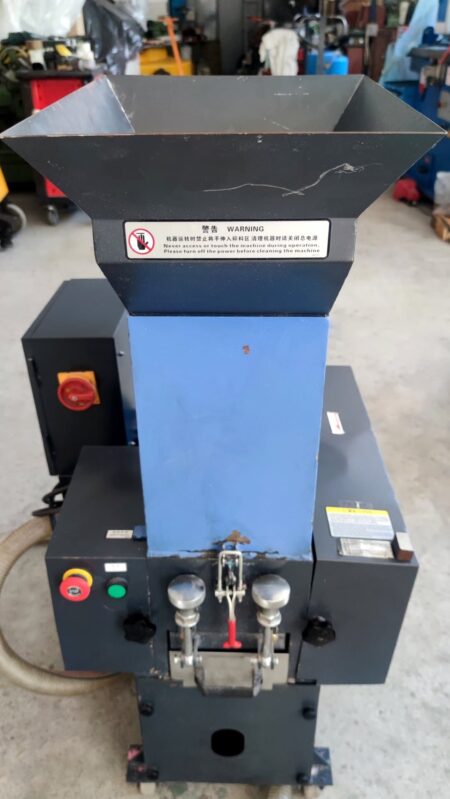

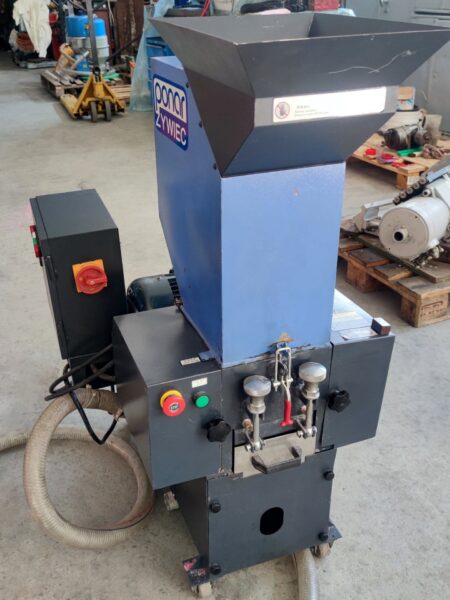

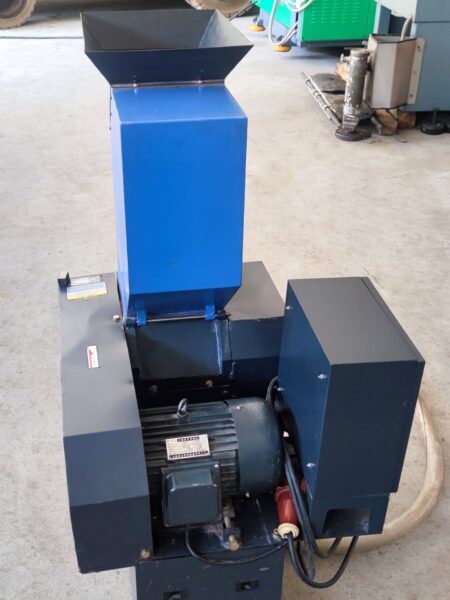

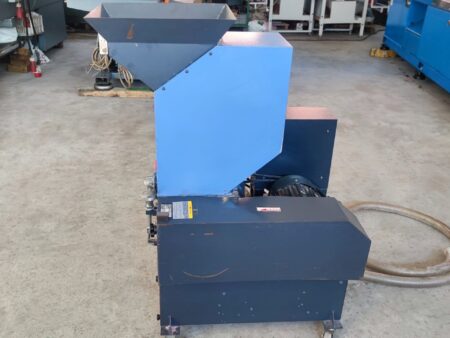

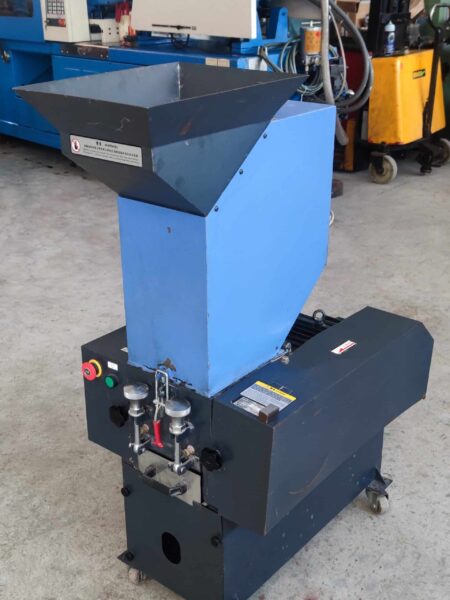

PONAR ŻYWIEC SG-180FE-2B plastic mill built in 2011, is designed for crushing of plastic waste. Made of high quality steel, the plastic mill with dust exhaust ensures high rigidity of construction, high efficiency and long service life. The main advantages of the device are its comfortable operation and low noise level during machine’s work.

SG 180FE 2B granulator is equipped with 9 rotary knives and 2 fixed knives with a length of 180 mm, capable of milling up to 30 kg of plastic elements per hour. The machine is offered with dust extraction. Total weight of the machine is 120 kg.

Technical data of granulator PONAR ŻYWIEC SG-180FE-2B

• length of blades: 180 mm
• number of rotary blades: 9
• number of fixed blades: 2
• capacity: 30 kg/h
• maximum rotation speed: 940 rpm
• throat depth: 200 x 220 mm
• dust extraction
• motor power: 1,5 kW
• power supply: 380 V; 50 Hz
• machine dimensions (L x W x H): 1020 x 400 x 1115 mm
• weight of machine: 120 kg
