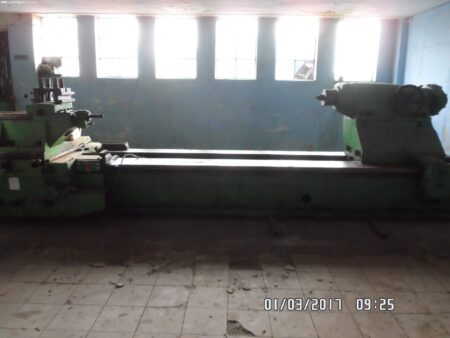

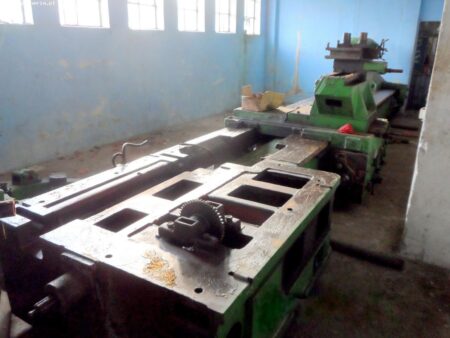

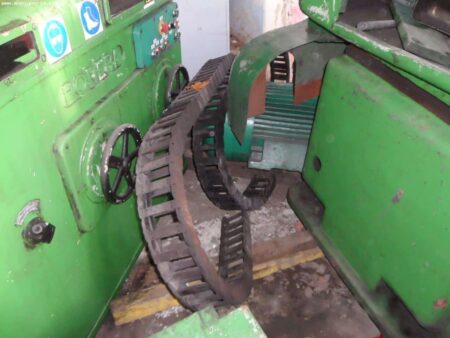

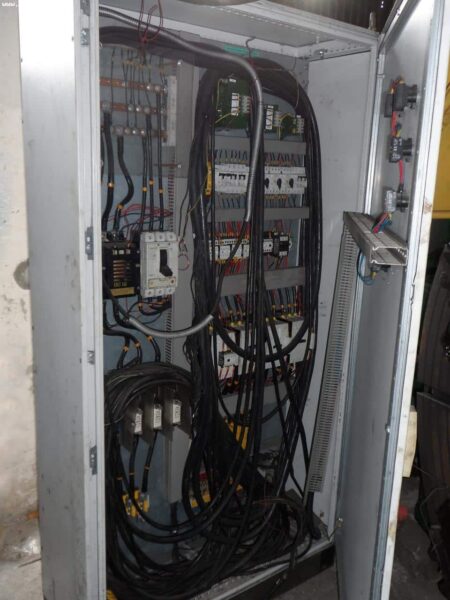

PORĘBA TCA 160 heavy duty lathe

PORĘBA TCA 160 heavy duty lathe was built in 1959 by the Polish PORĘBA Mechanical Equipment Factory. The lathe processes a detail with a maximum weight of 16 tons. The maximum turning diameter of the machine above the bed is 1600 mm, over the carriage is 1300 mm, while the turning length is 6000 mm. TCA 160 has tusks with a distance of 3000-15000 mm and a rise of 800 mm. The spindle rotates at a speed in the range of 1.12 to 224 revolutions per minute.

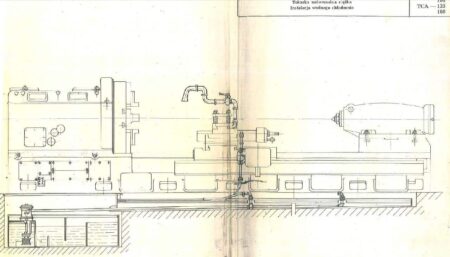

Technical specification of the PORĘBA TCA 160 lathe

– maximum turning diameter over the bed: 1600 mm
– maximum turning diameter over the slide: 1300 mm
– maximum diameter of turning in a hemisphere: 250 mm
– maximum turning length: 6000 mm
– maximum weight of the workpiece in the centers: 16,000 kg
– center distance: 3000-15000 mm
– height of the canines: 800 mm

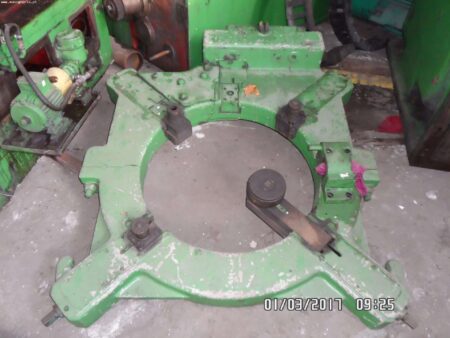

– eyepiece: fi 800 mm
– permissible chip cross-section (when turning steel Rr = 60 kG/mm2) on one carriage: 30 mm2
– permissible chip cross-section (when turning steel Rr = 60 kG/mm2) on one carriage: 50 mm2
– allowable force on the knife: 6000 kg
– allowable torque on the spindle: 630,000 kg/cm
– maximum cross section of the knife shaft: 70 x 70 mm
– spindle speed range: 1.12-224 rpm, 1.12-224 rpm, 0.85-170 rpm.
– diameter of the front spindle journal: 260 mm
– diameter of the hole in the spindle: 105 mm
– diameter of the chuck plate: 1600 mm
– tailstock sleeve diameter: 200 mm
– travel of the tailstock sleeve: 600 mm
– socket in the spindle taper. meter no .: 80
– transverse displacement: + -30 mm
– normal equipment eyepiece diameter adjustment range: 200-500, 200-600, 300-800 mm
– range of adjustment of the diameters of the special equipment eyepiece: 30-300, 50-400, 200-500 mm
– adjustment range of the diameters of the half-eyelet: 50-250 mm
– main engine power: 40 kW
– main engine revolutions: 750 rpm.
– fast feed motor power: 2.2 kW
– fast feed motor speed: 3000 rpm.

Feeds of carriages of the TCA 160 machine

Carriage, feeds normal
– 20 longitudinal feeds, range: 0.19-5.0 mm/rev.
– 20 cross feeds with a range of: 0.095-2.5 mm/rev.
– 20 feeds on the upper drawer, range: 0.095-2.5 mm/rev.
Carriage, eightfold travels
– 20 longitudinal feeds, range: 1.5-40 mm/rev.
– 20 cross feeds, range: 0.75-20.0 mm/rev.
– 20 feeds on the upper drawer, range: 0.75-20.0 mm/rev.
Carriage, feeds per minute
– 20 longitudinal feeds, range: 12-320 mm/rev.
– 20 cross feeds, range: 6-160 mm/rev.
– 20 feeds on the upper drawer, range: 6-160 mm/rev.
Carriage, feeds for threading (main screw, pull)
– 35 metric thread pitches ranging: 1-50 mm
– 35 pitches of inch threads, range: 24 – 1/2 thread/inch
Carriage, feeds for threading on the top drawer
– 25 metric thread pitches ranging: 0.25-7 mm
– 35 inch thread pitches/inch: 28-3 thread/inch
Combined feeds for turning cones with inclinations forming: from 1: 1.5 to 1: 1000
– rapid feed: 4000 mm/min.
