PORĘBA WFA 200B CNC boring machine

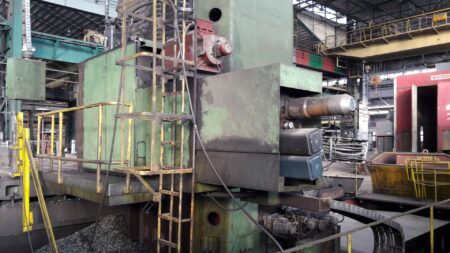

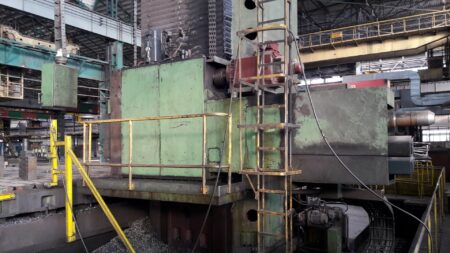

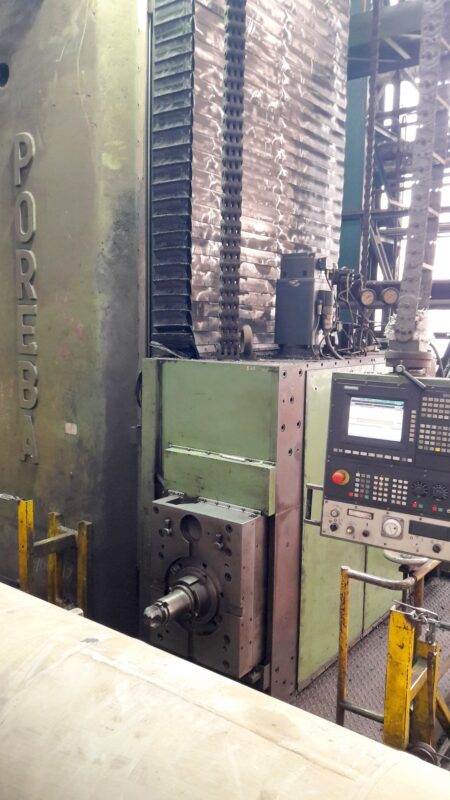

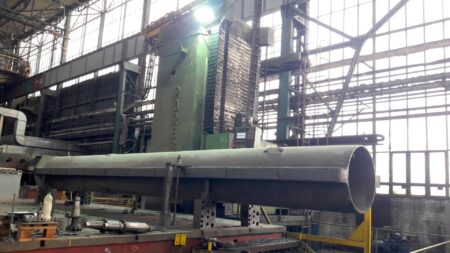

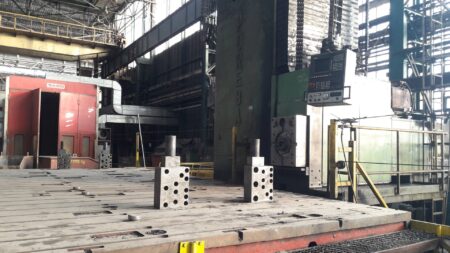

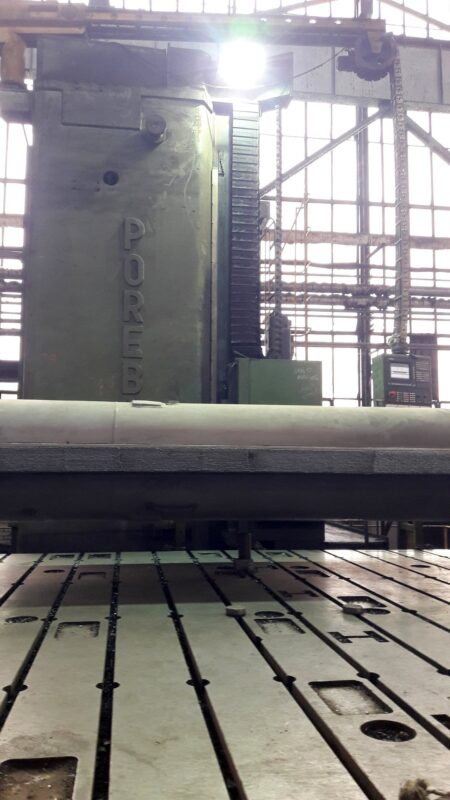

PORĘBA WFA 200B CNC boring machine built in Poland in 1997 can perform a range of complex machining operations, such as precise drilling, milling and boring on workpieces with complex geometry and heavy weight. All of these machining processes are performed on a stable work table with a length of 8130 mm and a width of 4980 mm, whose design allows easy workpiece loading. During the modernisation undertaken in 2005, the PORĘBA CNC floor type boring machine was retrofitted with a numerical control of the renowned SIEMENS brand.

Technical specification of horizontal boring machine PORĘBA WFA 200B

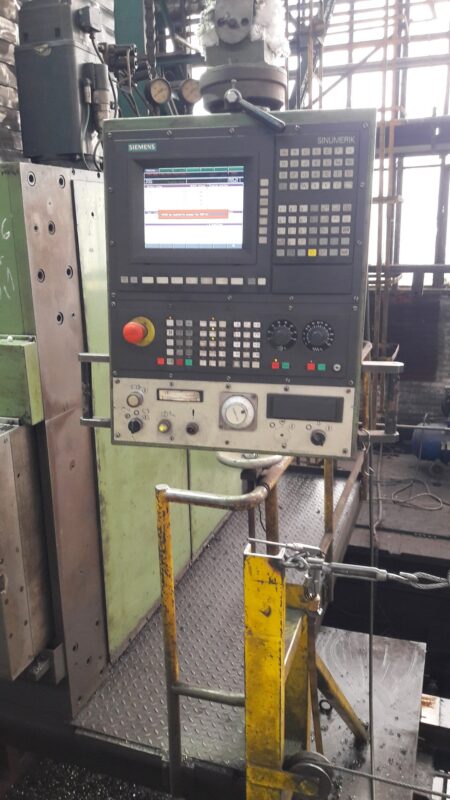

• CNC controller: SIEMENS SINUMERIK 840C

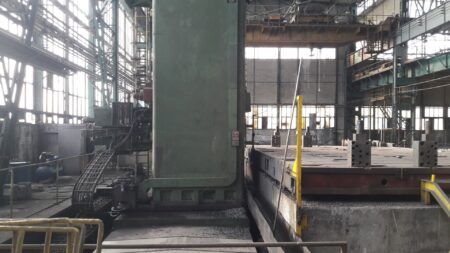

• work table surface (L x W x H): 8130 x 4980 x 400 mm
• feed in the X/Y/Z axis: 5700/2800/1975 mm
• maximum spindle rotational speed: 500 rpm
• minimum spindle rotational speed: 2.8 rpm
• spindle size: 740 x 565 mm
• spindle diameter: 200 mm
• spindle taper: ISO 60

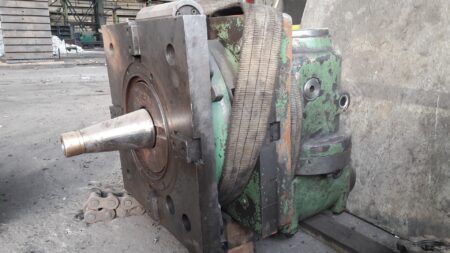

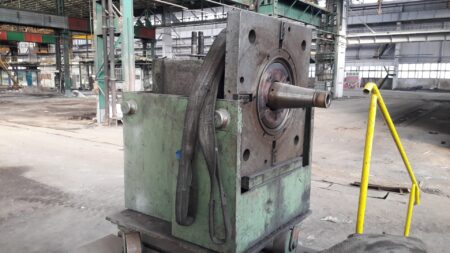

• angle braces (2 pcs)
• dimensions (L x W without table x H): 9765 x 4900 x 8110 mm
