PROMA FVV-135PD universal milling machine

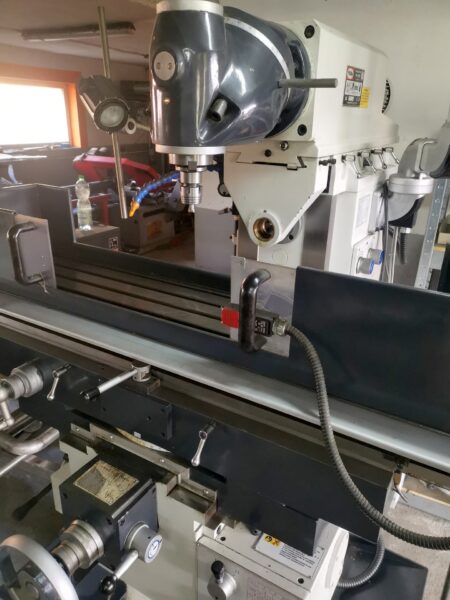

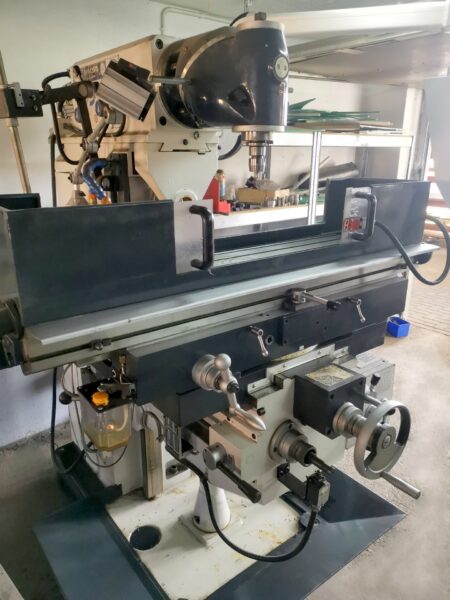

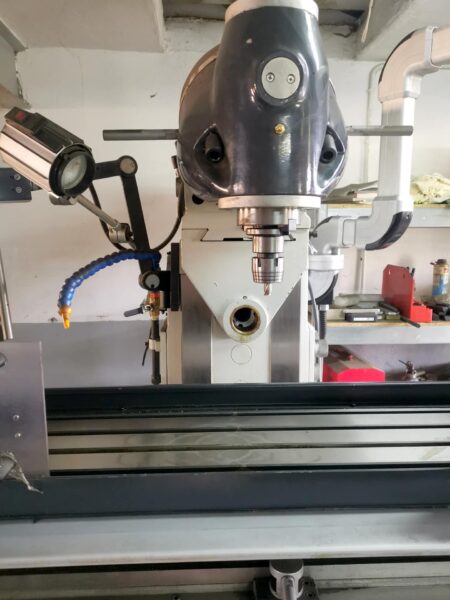

PROMA FVV-135PD universal milling machine was built in 2018 in the Czech Republic. The highly reliable machine with a rigid construction is designed for precise machining of workpieces both vertically and horizontally, thanks to the vertical and horizontal spindle with an ISO 40 taper. The milling process is performed in the X,Y,Z axes on a fully illuminated working area with dimensions (L x W) of 1320 x 320 mm. The milling machine is additionally equipped with, among others, a SINO digital readout and cooling. The total weight of the machine is 2100 kg.

Technical data of the PROMA FVV-135PD milling machine

• work table size (L x W): 1320 x 320 mm
• axis work feed: X,Y,Z
• feed of table in X/Y axis: 1000/300 mm
• rotation angle of rotary head: 360°
• maximum vertical milling diameter: 25 mm
• maximum horizontal milling diameter: 125 mm
• maximum milling head diameter: 125 mm
• vertical spindle speed: 45-1660 rpm
• horizontal spindle speed: 38-1310 rpm
• maximum distance between spindle and work table: 640 mm
• minimum distance between spindle and work table: 200 mm
• maximum distance between spindle and column: 760 mm
• minimum distance between spindle and column: 200 mm
• T-slot size: 14 mm
• motor power: 3 kW
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W): 2200 x 1710 mm
• FVV-135PD machine weight: 2100 kg

Equipment of the universal milling machine

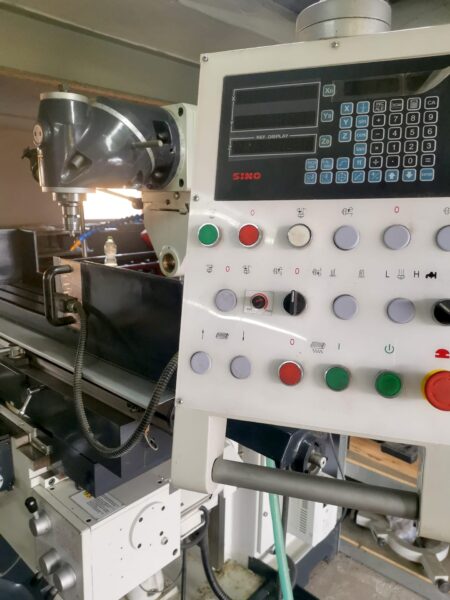

• digital readout: SINO
• spindle taper: ISO 40
• workspace illumination
• cooling

The PROMA FVV-135 PD milling machine is in very good condition, it has been used for a small amount of time while trying to establish stainless steel production.
