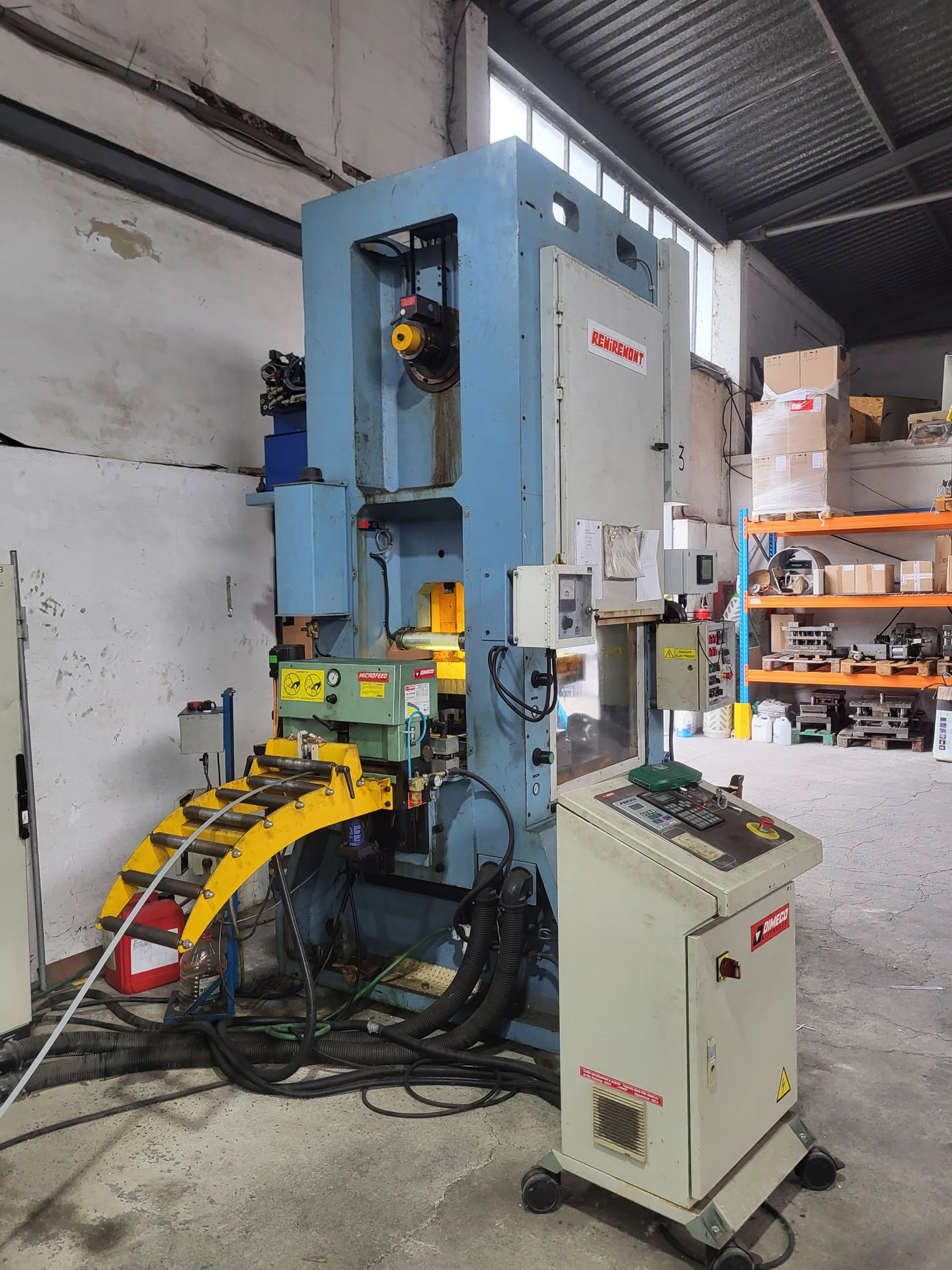

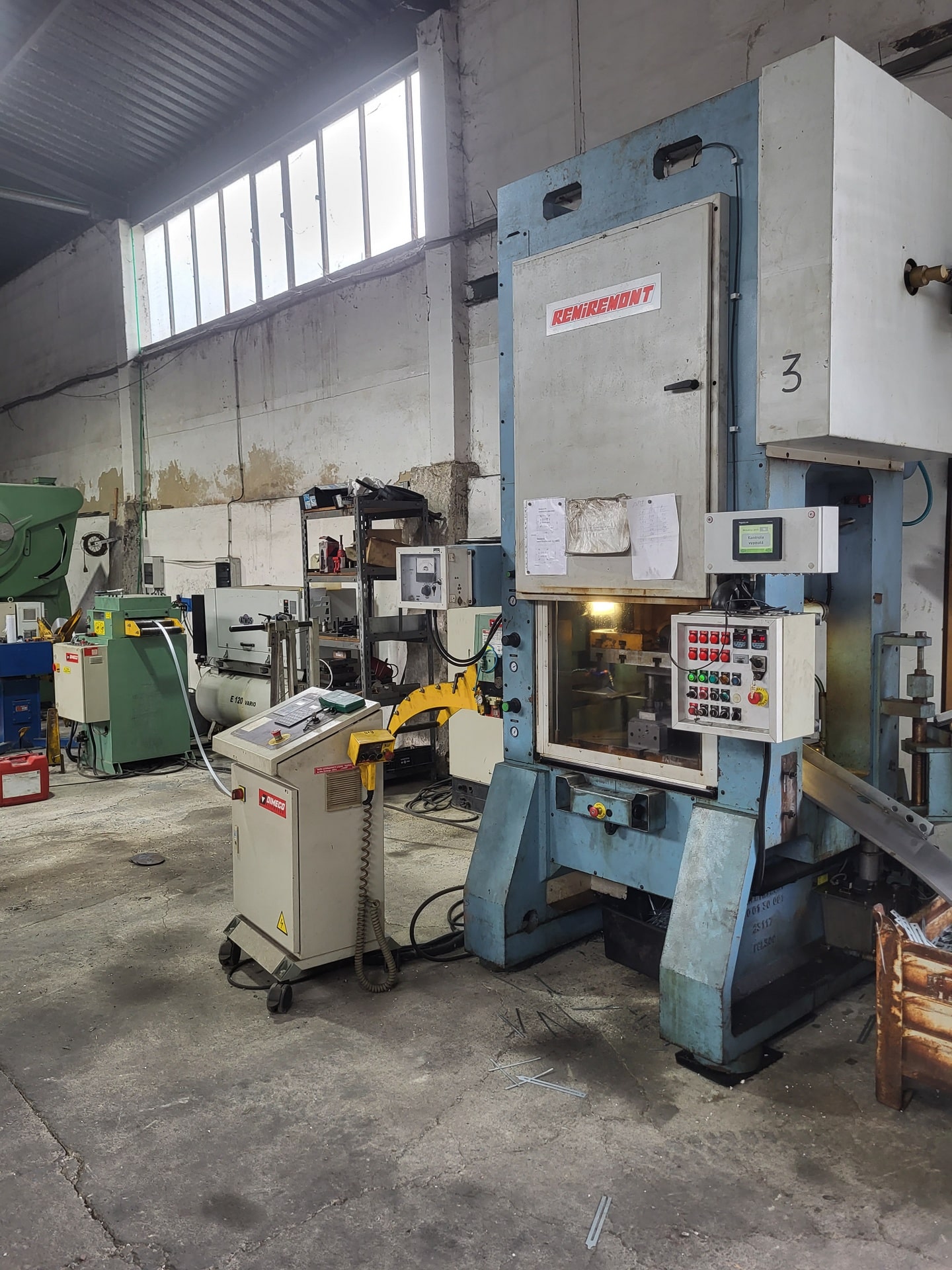

REMIREMONT PA 80 high-speed press

REMIREMONT PA 80 high-speed press was built in 2005 in France by SAS PRESSES DE REMIREMONT. The machine is used for precision stamping and punching of workpieces made of sheet metal with a maximum thickness of 3 mm. The 80 tonne press force, combined with the rigid design, guarantees the achievement of high repeatability of the manufactured parts, even during the most intensive work. The REMIREMONT eccentric press is offered with an extensive range of equipment, which enables series production to be performed. It includes, among others, a feeder, straightener and sheet metal decoiler.

Technical specifications of the REMIREMONT PA 80 automatic press

• maximum press force: 80 t (800 kN)
• slider stroke number (automatic mode): 55-210/min
• maximum slider stroke length: 120 mm
• minimum slider stroke length: 20 mm
• run-out time: 105 ms
• sheet metal feeder: DIMECO MICROFEED
• sheet metal straightener: DIMECO

– maximum strip thickness: 3 mm
– maximum strip width: 250 mm

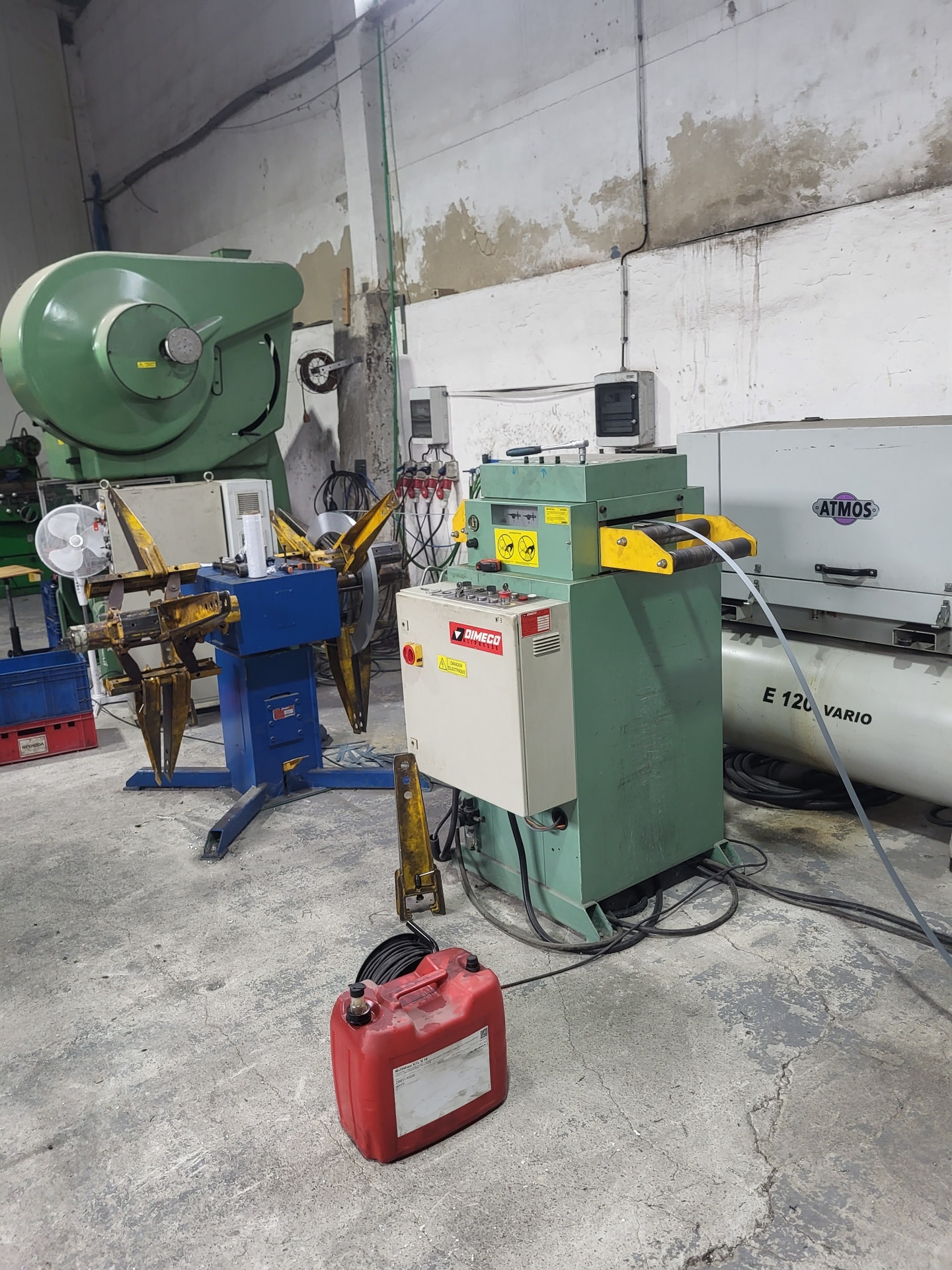

• sheet metal decoiler
• mobile control panel
• workspace illumination
• CE certificate
