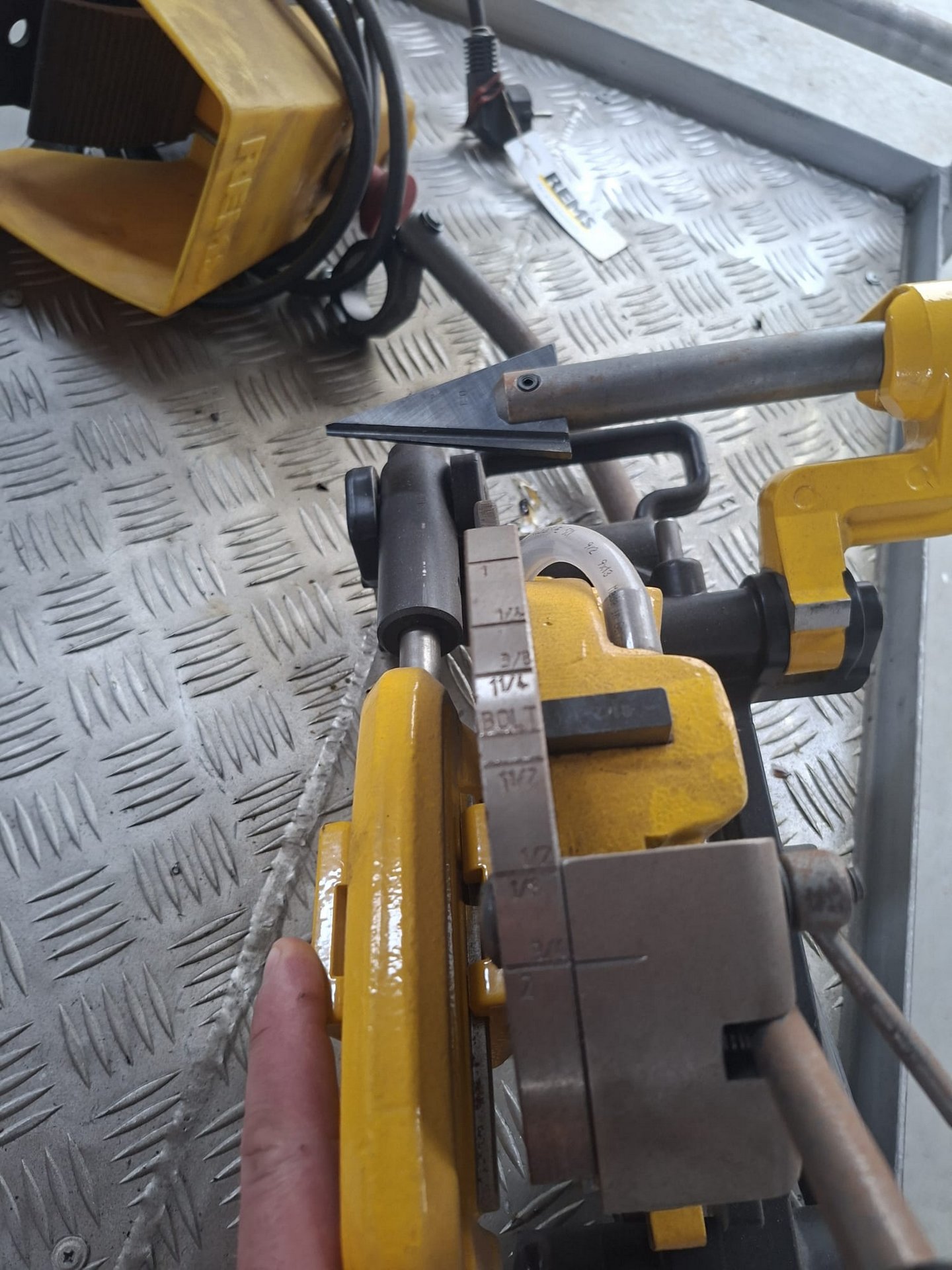

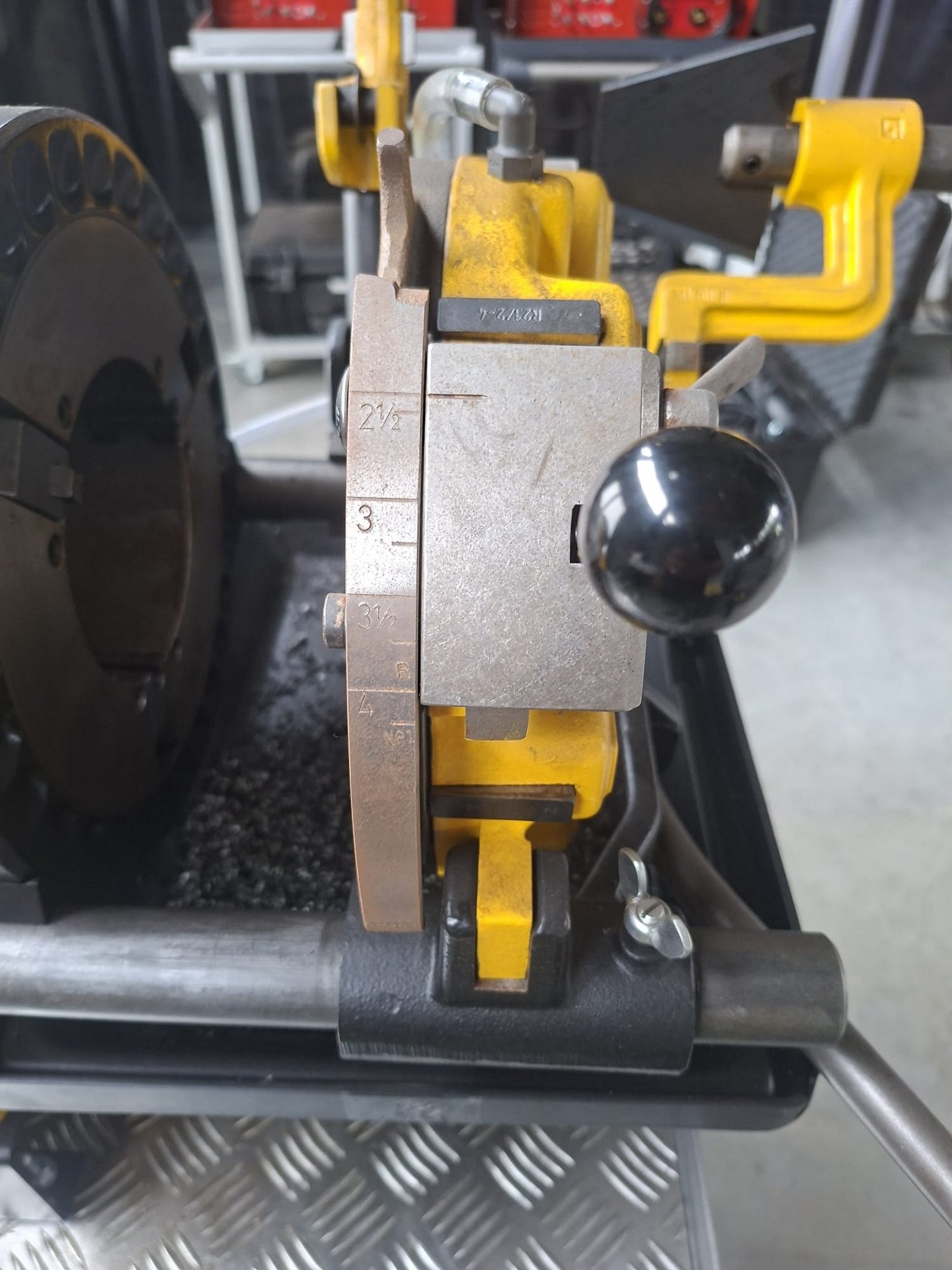

REMS MAGNUM 4010 LT pipe threading machine

REMS MAGNUM 4010 LT pipe threading machine was built in 2020 in Germany by REMS GmbH & Co KG. This extremely versatile tool is designed for threading all kinds of pipe and bolt threads. The clamping chuck used prevents material slippage during machining, making the process very stable. The large distance between the clamping chuck and the centring chuck, in turn, allows long pipes to be clamped securely. After machining, the edges of the material are smoothed by an internal deburring device with two blades. The MAGNUM 4010 LT pipe threader on offer weighs approximately 80 kg.

Technical specifications of the REMS MAGNUM 4010 LT pipe threading machine

• thread types: R, NPT, G, NPSM, Pg, M, UNC, BSW
• pipe thread diameter: 16-63 mm / ½ – 4″
• bolt thread diameter: 18-60 mm / ½ – 2″
• pipe thread length (cylindrical): 150 mm
• bolt thread length: unlimited
• spindle rotational speed: 10 or 20 rpm
• internal deburring device
• self-centring pipe cutter
• automatic universal head
• reliable threading knives with optimum geometry
• automatic lubrication and cooling system
• removable oil and chip tray
• power supply: 230 V; 50 Hz
• dimensions (L x W x H): 870 x 580 x 495 mm
• weight of the REMS MAGNUM 4010 LT machine: approx. 80 kg
