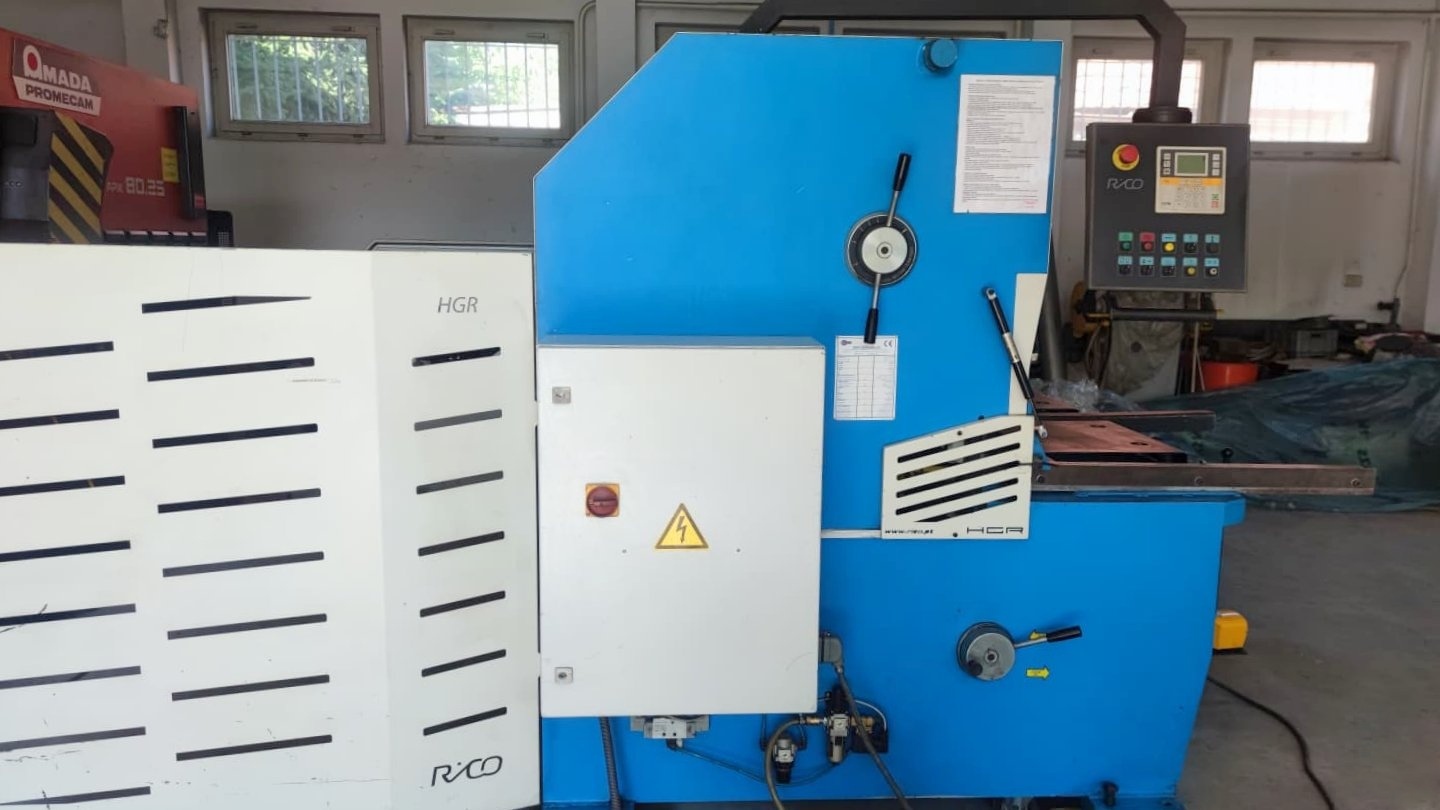

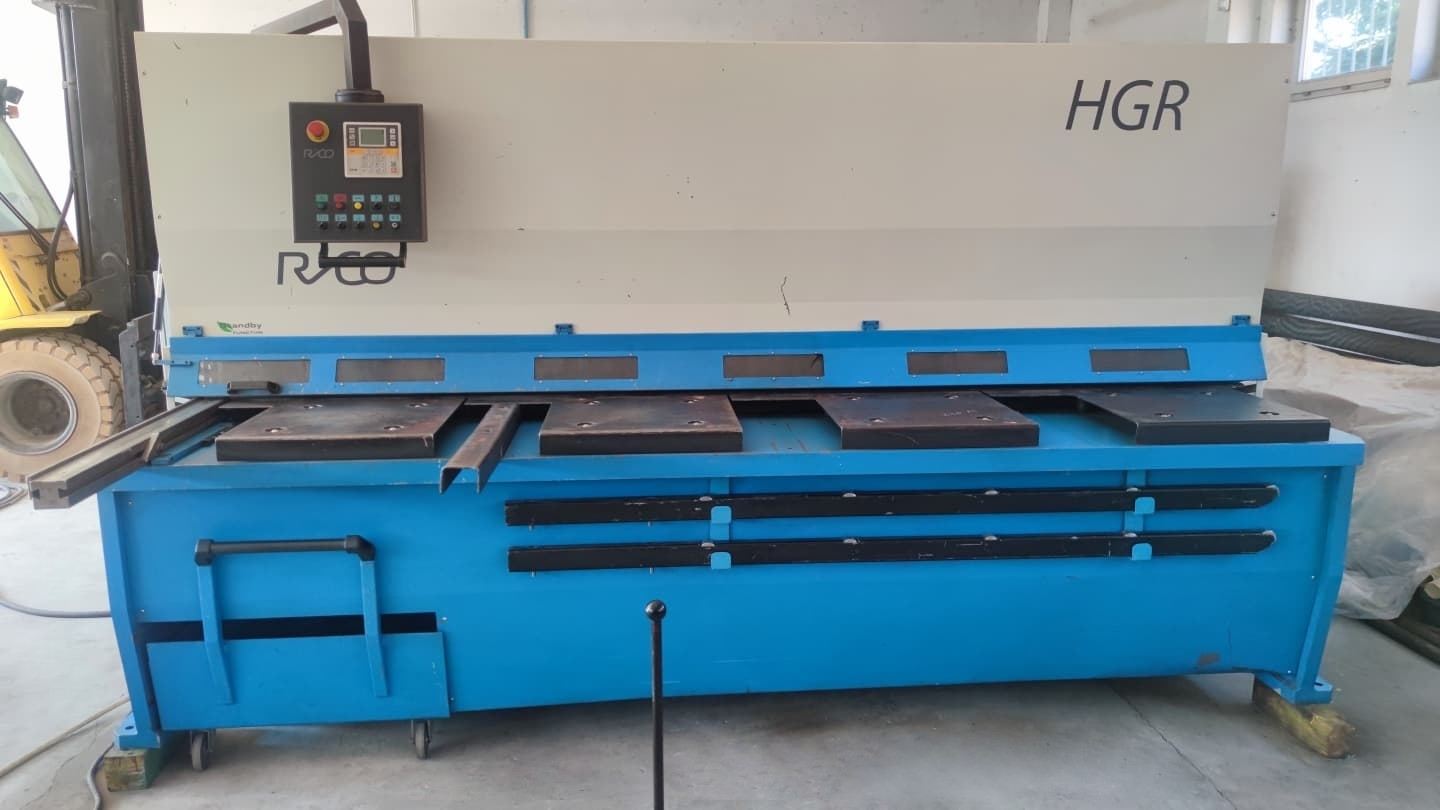

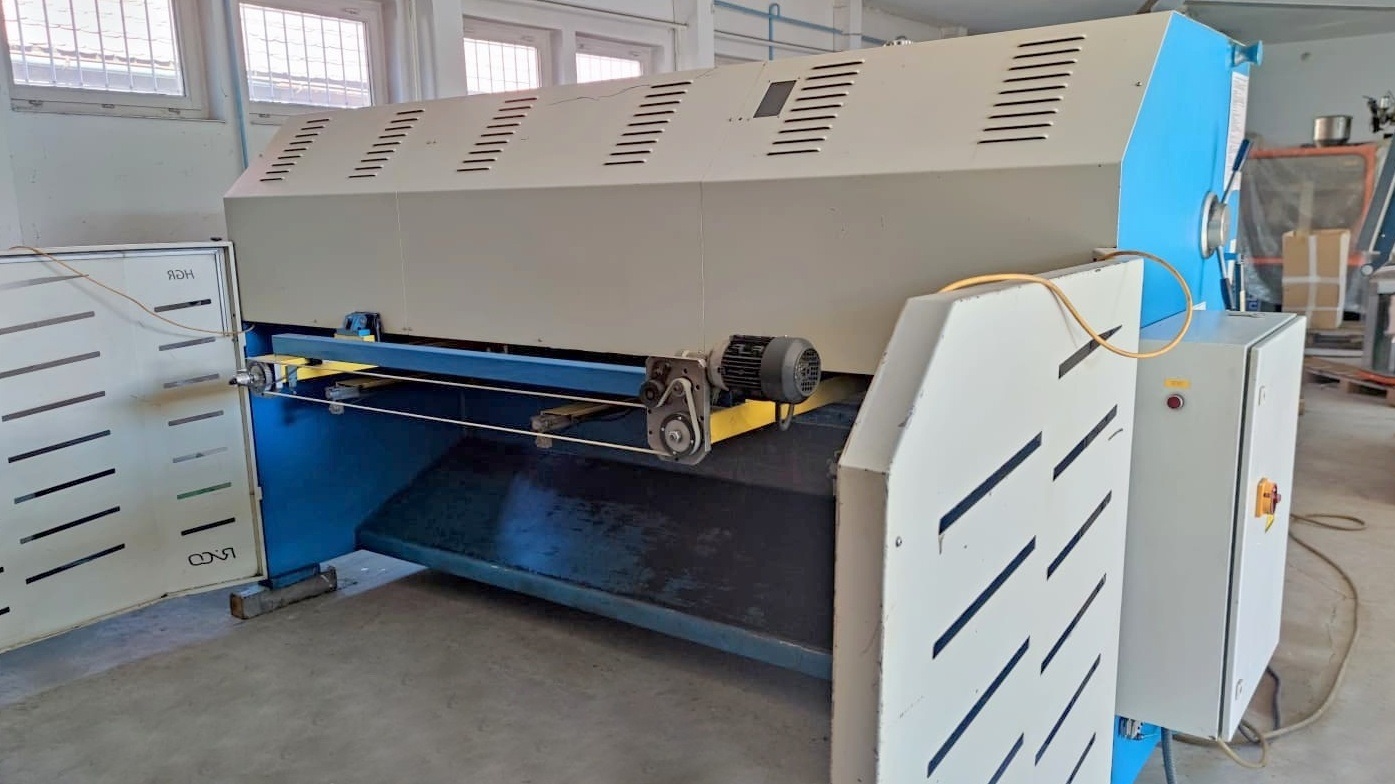

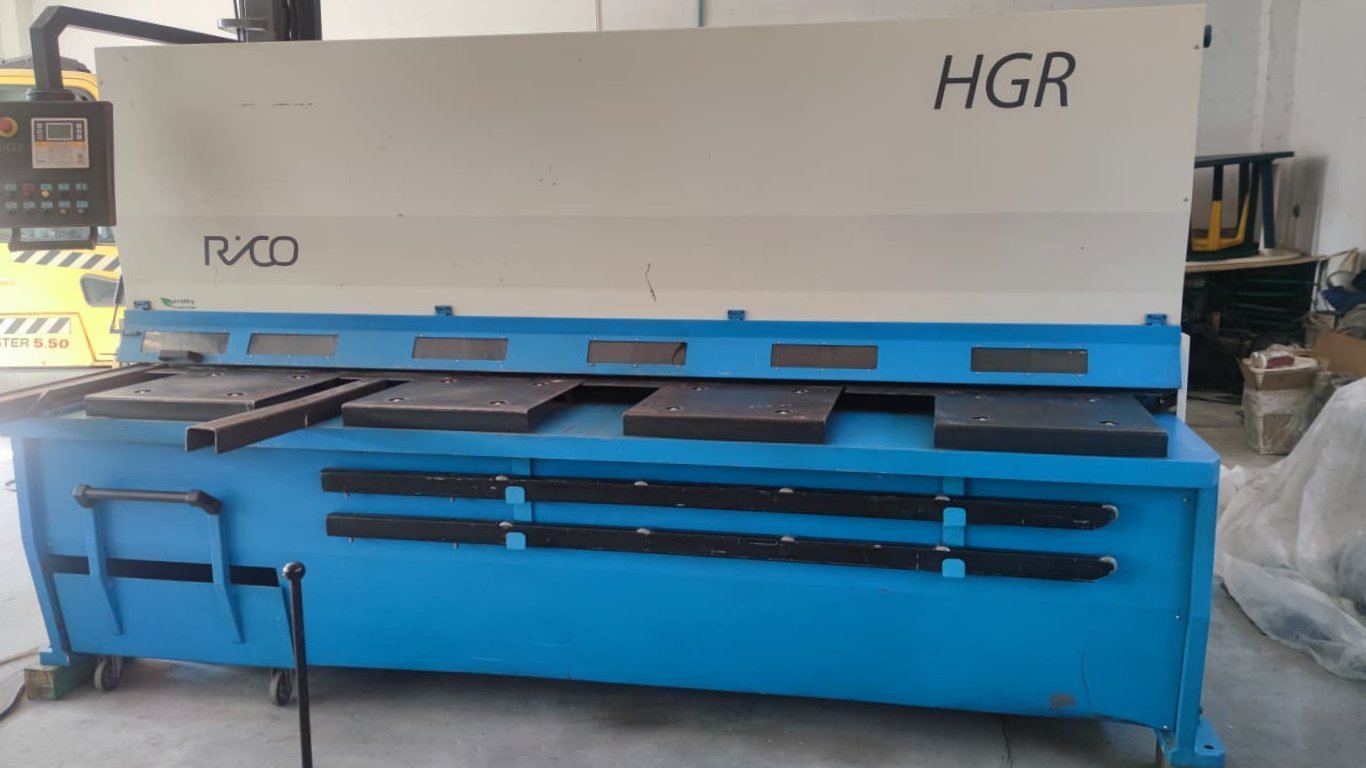

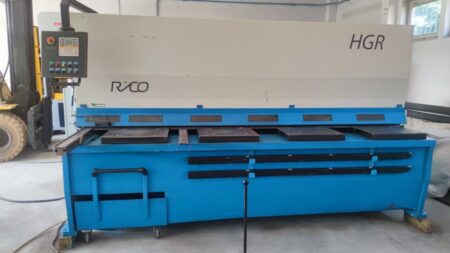

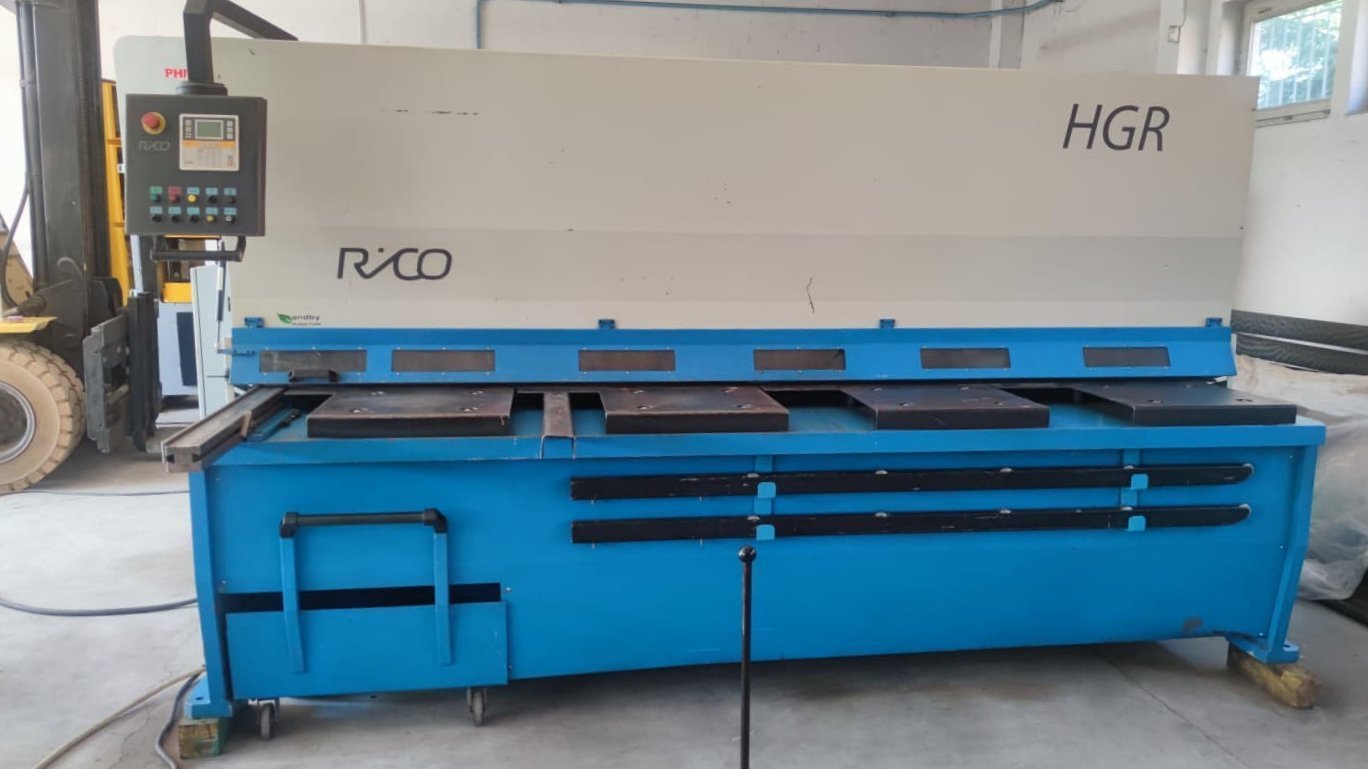

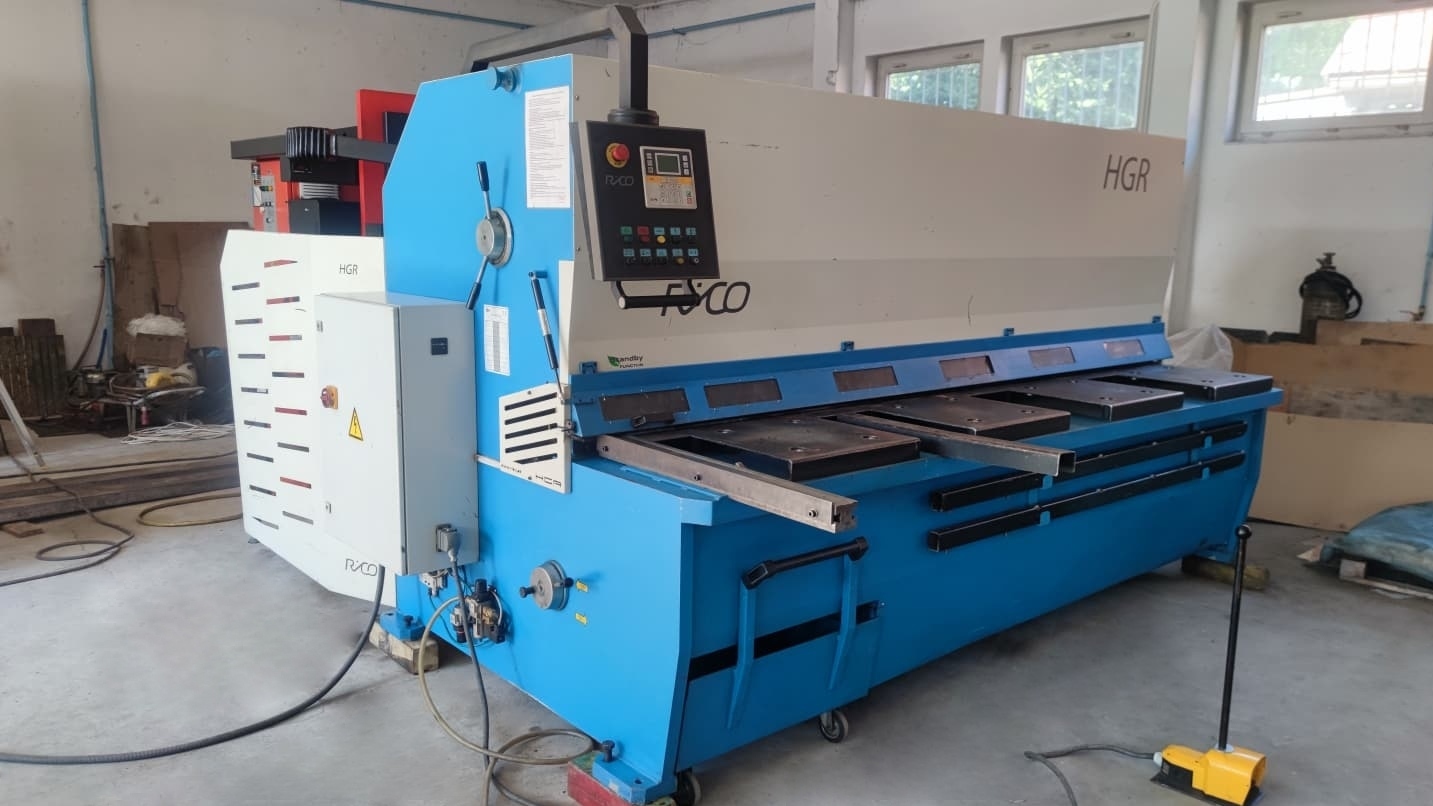

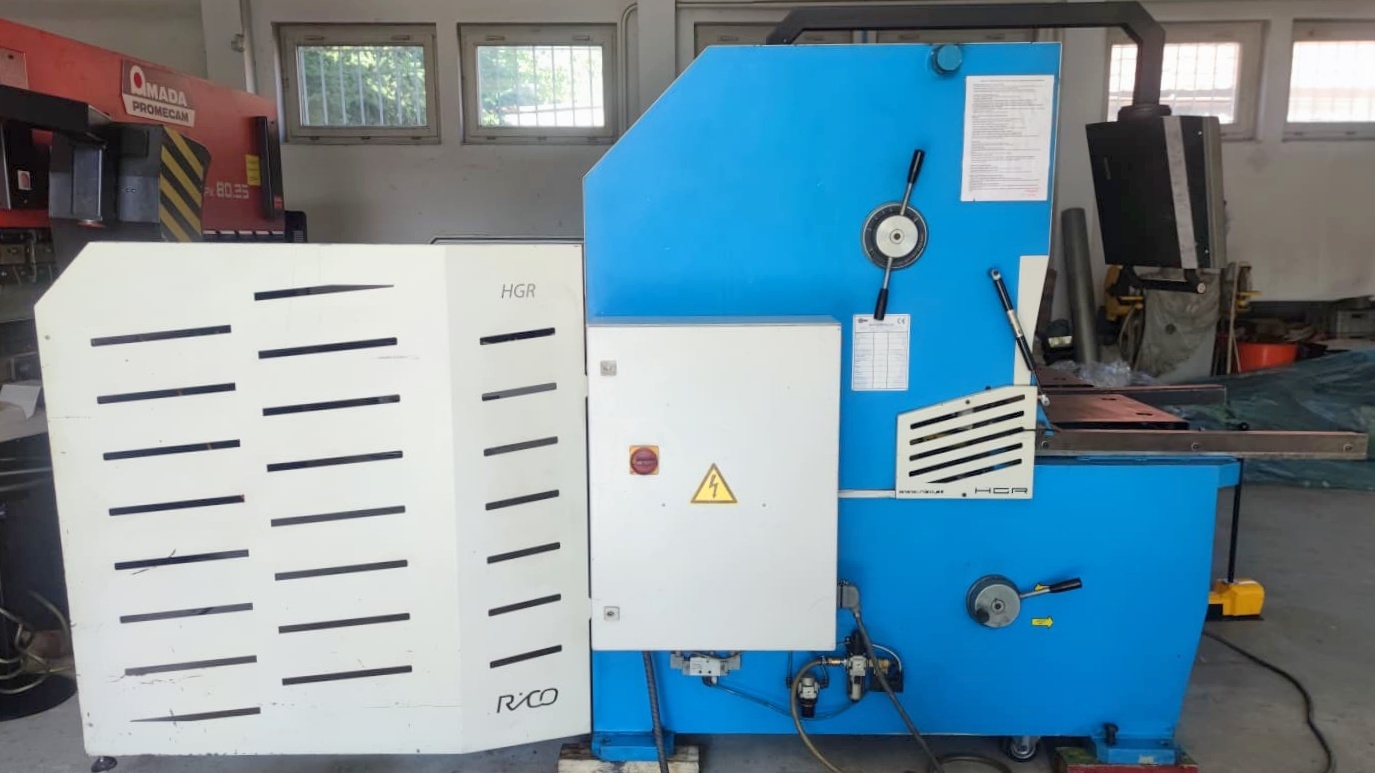

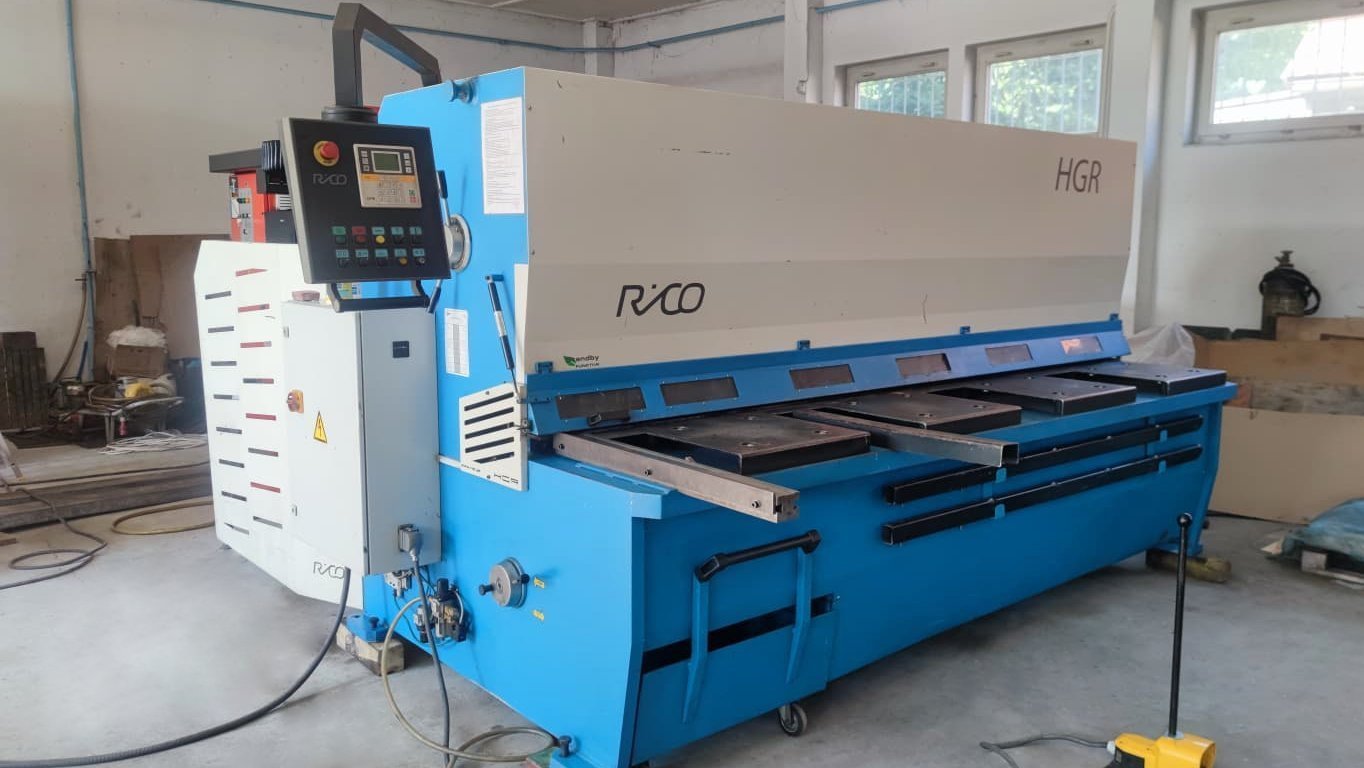

RICO HGR 310 hydraulic guillotine shears

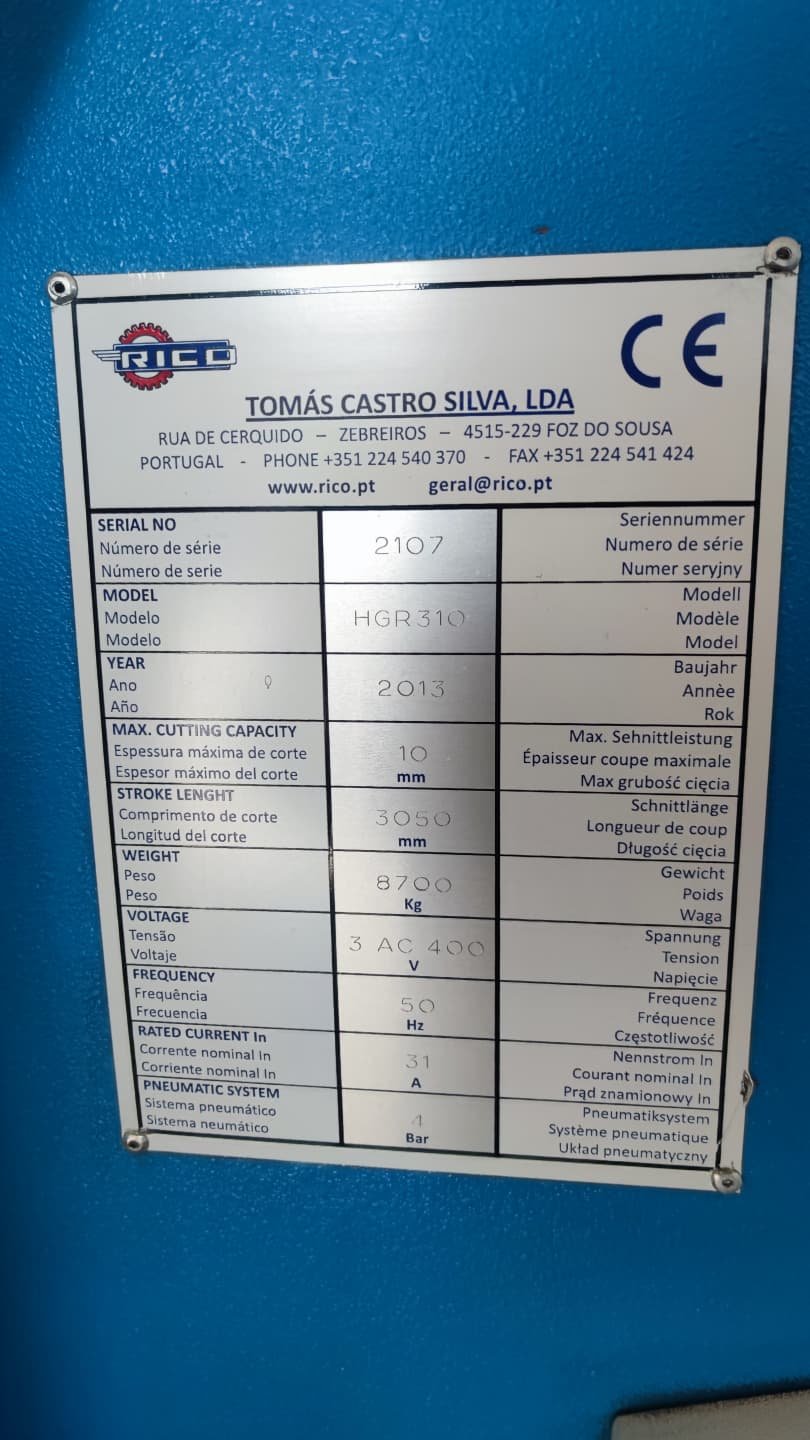

RICO HGR 310 hydraulic guillotine shears were built in 2013 in Portugal by Rico Tomás Castro Silva, LDA. The machine, designed for machining of sheet metal with a maximum length of 3050 mm, offers high reliability, efficiency and precision. The machining process is performed by means of high-quality cutting knives with the ability to adjust the cutting angle according to the thickness of the material. Constant press force and balance during cutting are ensured in turn by synchronised movement of the cylinders with the flow of hydraulic fluid from one cylinder to another. All this is complemented by a fully welded design, which has undergone a number of technological operations to minimise deformation and ensure maximum durability. The HGR 310 guillotine shears weighs 8700 kg.

Technical specifications of the RICO HGR 310 guillotine shears

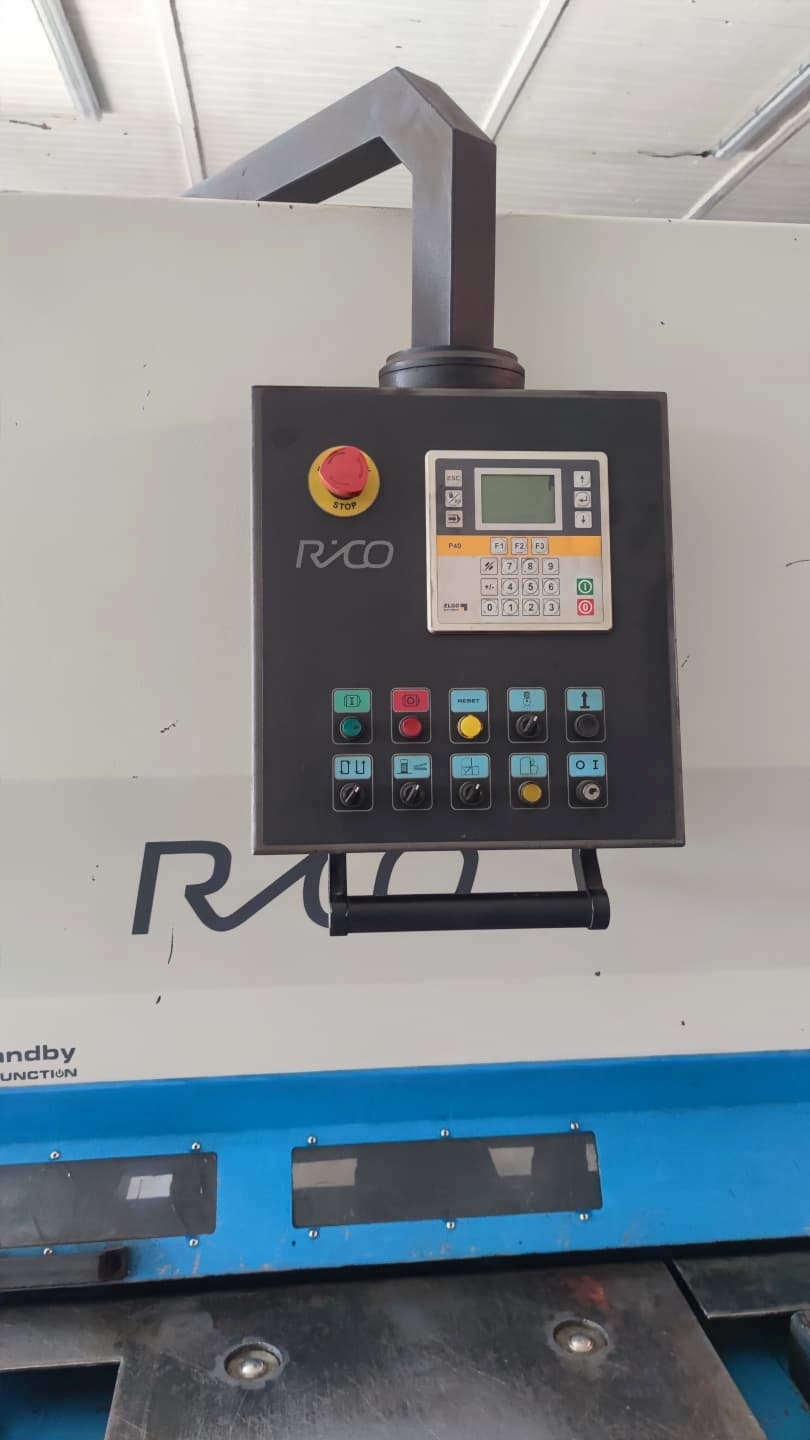

• CNC control
• maximum workpiece thickness (steel 45 kg/mm2): 10 mm
• maximum workpiece thickness (steel 70 kg/mm2): 7 mm
• maximum workpiece length: 3050 mm
• cutting angle: 1°-2°
• back stop stroke: 1000 mm
• pneumatic system for collecting cut-off sheet metal
• light curtains
• foot switch control
• pneumatic system pressure: 4 bar
• power supply: 3x 400 V; 50 Hz
• weight of the RICO HGR 310 machine: 8700 kg
