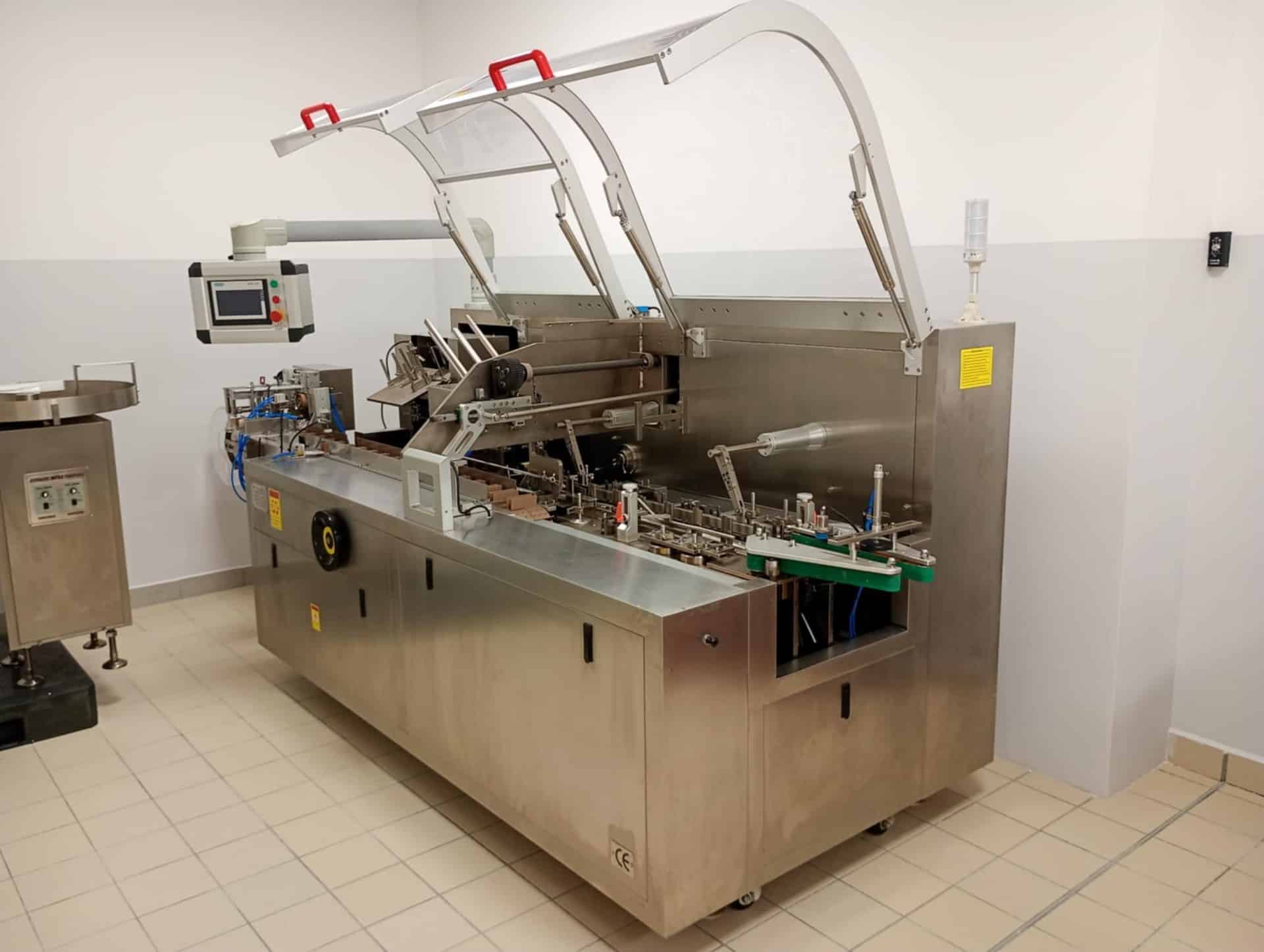

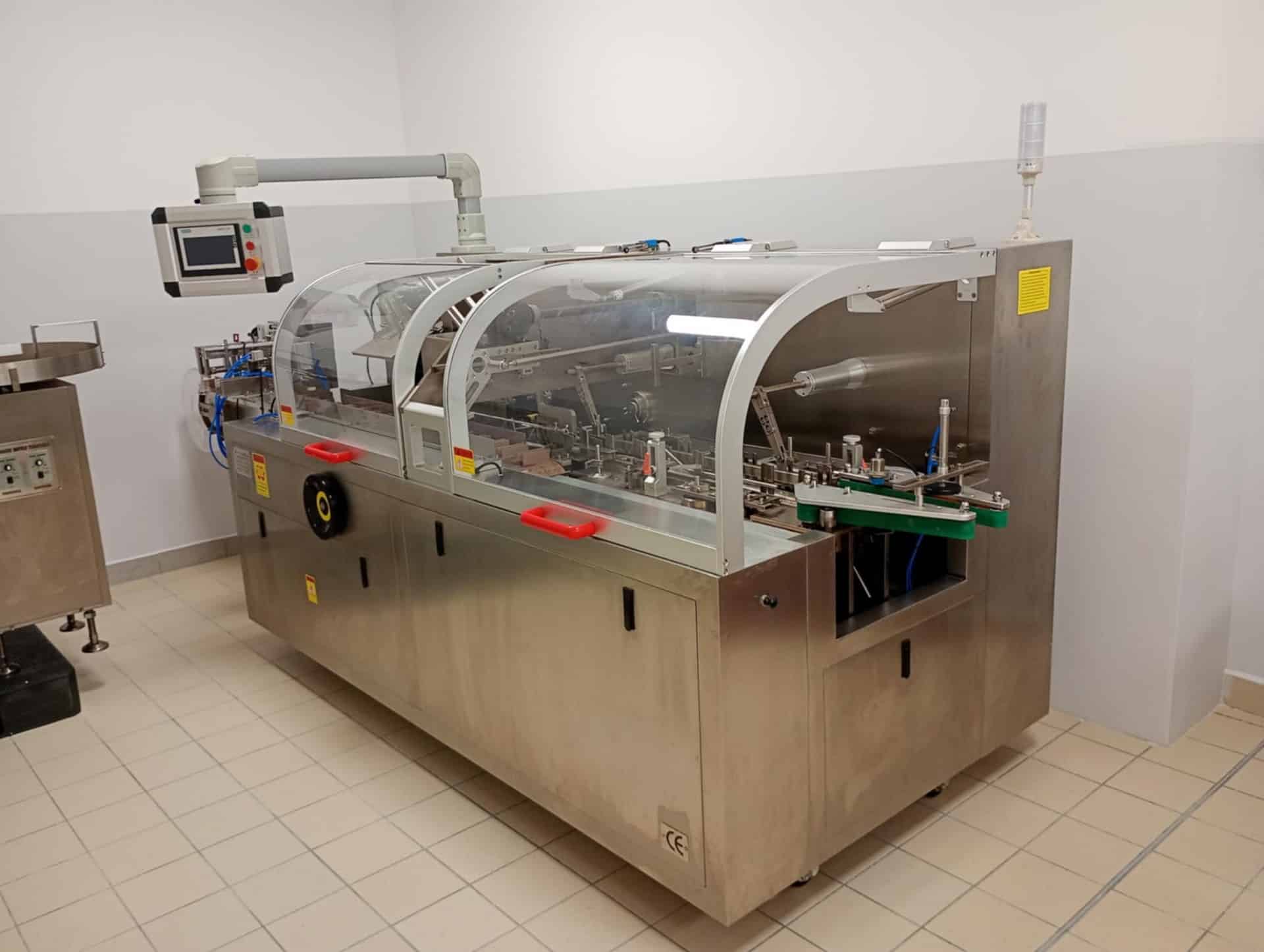

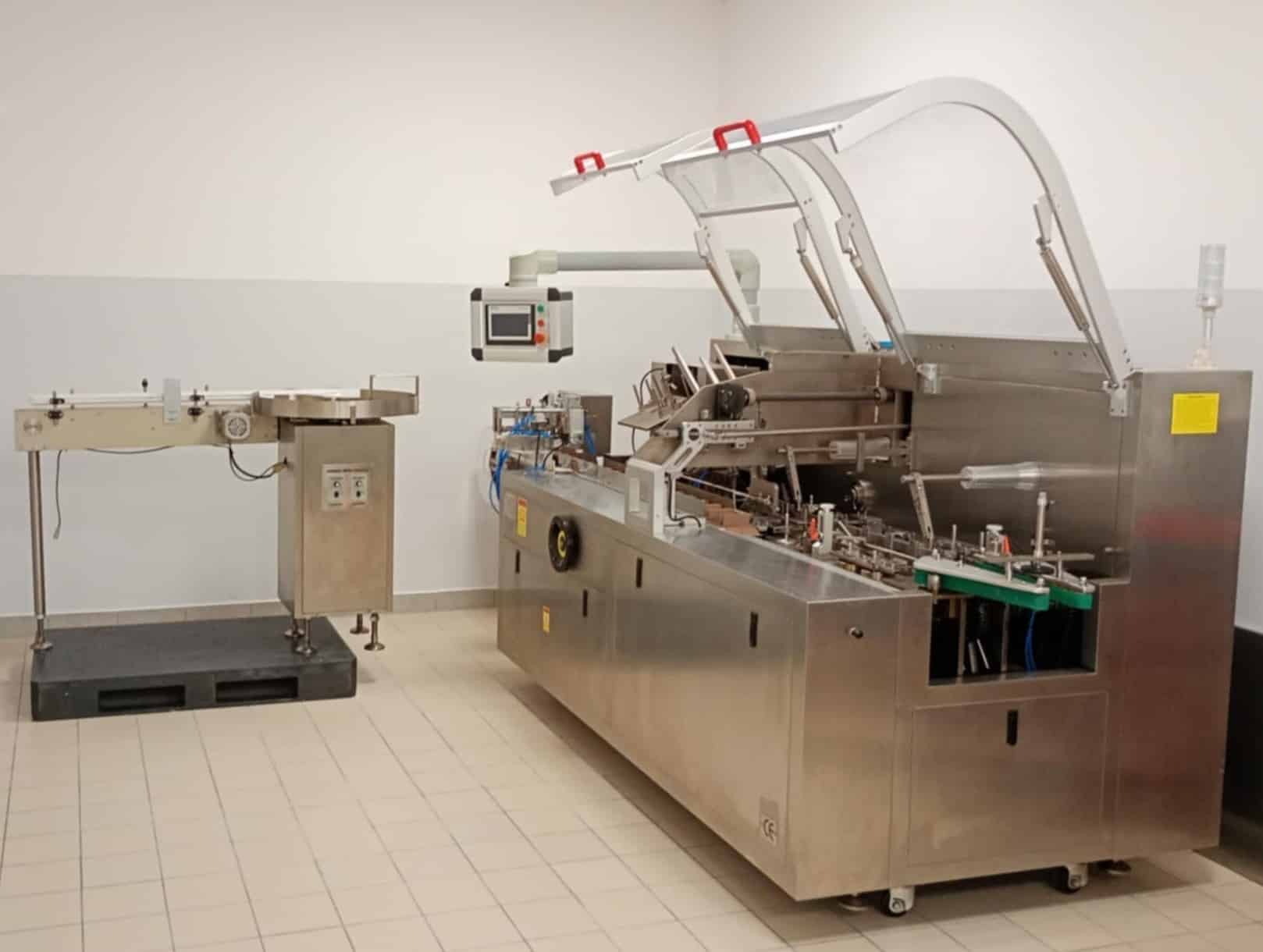

RQ-ZH-120W automatic cartoning machine

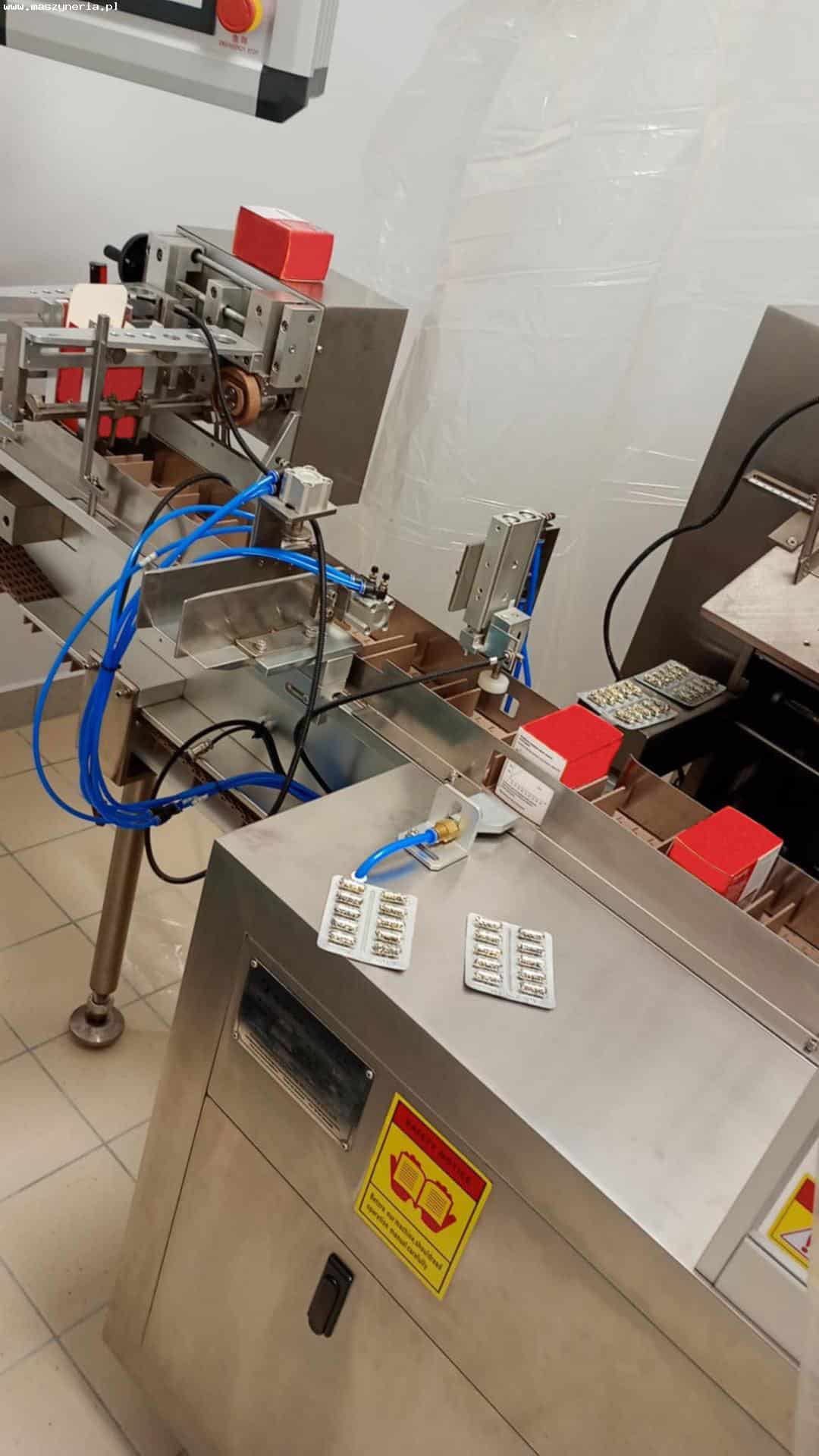

RQ-ZH-120W automatic cartoning machine was built in 2022 in China by Rich Packing Machinery Co., Ltd. The machine is used for the automatic packaging of blister packs, sachets, tubes and bottles into cardboard boxes with a maximum basis weight of 350 g/m2. This task involves a number of sophisticated drives that are responsible, among others, for box forming, product insertion and box closing. The high degree of automation allows products to be packed into cartons very quickly, increasing work efficiency. The RQ-ZH 120W packaging line weighs 1400 kg.

Technical specifications of the RQ-ZH-120W cartoner

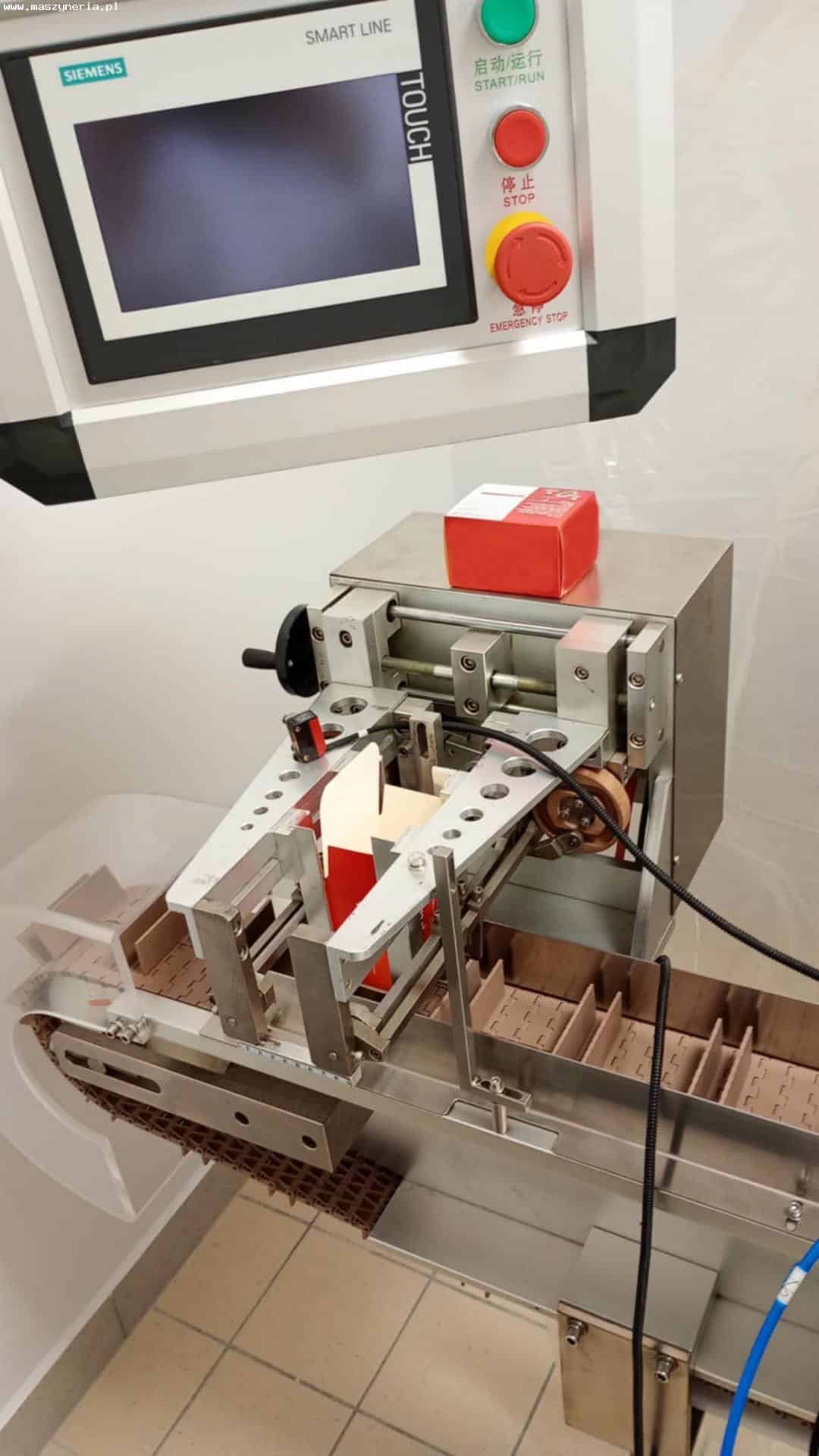

• HMI panel SIEMENS SMART LINE TOUCH with PLC controller
• packing speed: 30-120 boxes/min
• box basis weight: 250-350 g/m2
• maximum box dimensions (L x W x H): 180 x 85 x 50 mm
• minimum box dimensions (L x W x H): 70 x 30 x 14 mm
• maximum dimensions of the contents of the box (L x W x H): 250 x 170 mm
• minimum dimensions of the contents of the box (L x W x H): 80 x 90 mm
• compressed air pressure: 0.6 Mpa
• compressed air consumption: 120-160 l/min
• main motor power: 0,75 kW
• power supply: 380 V; 50 Hz
• dimensions (L x W x H): 3100 x 1100 x 1550 mm
• weight of the RQ-ZH-120W machine: 1400 kg
