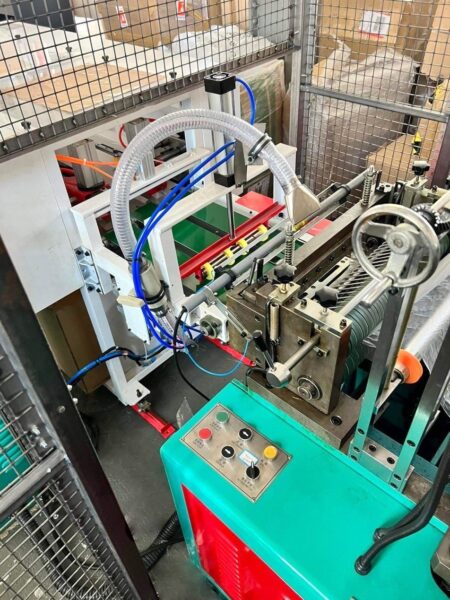

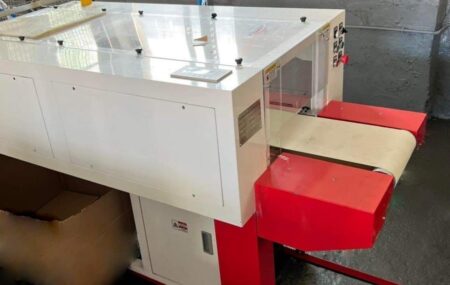

RUIAN KODA MACHINERY ENG-500 film glove production line

RUIAN KODA MACHINERY ENG-500 film glove production line, built in China in 2020, is designed to produce high-quality double-layer film gloves that are used in e.g. grocery shops or in production. The high-quality steel construction of the automatic glove making machine ensures high stability even at maximum production speeds of up to 500 gloves per minute.

The film glove production line uses moulds to produce disposable film gloves with a maximum length of 400 mm and a width of 300 mm, providing effective protection against viruses and bacteria. The 2.2 kW YASKAWA servo drive, which controls the entire process, ensures high precision in feeding the material to the sealing position and the sorting point of the final product.

The ENG-500 film glove making machine also allows the production of other film products, such as breakfast pouches, after changing the heat sealing dies. The automated disposable glove production line is equipped with, among others, a PLC controller, an AISET temperature controller and two copper sealing moulds. The total weight of the machine is 1200 kg.

Technical data of the RUIAN KODA MACHINERY ENG-500 film glove production line

• production speed: 200-500 pcs/min
• maximum product length: 400 mm
• minimum product length: 200 mm
• maximum product width: 300 mm
• minimum product width: 240 mm
• film thickness: 0.008-0.02 mm
• number of film layers: 2
• maximum unwinder diameter: 450 mm
• main motor power: 2.2 kW
• power supply: 3×380 V; 50 Hz
• overall dimensions (L x W x H): 3000 x 1050 x 1850 mm
• ENG-500 machine weight: 1200 kg

Equipment of the automatic film glove production line

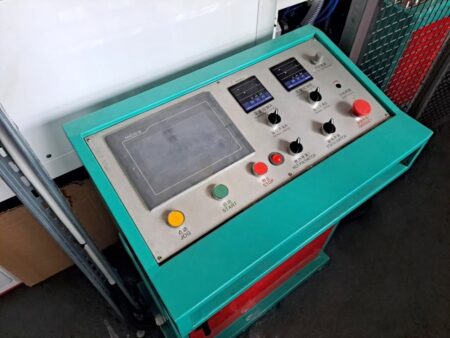

• PLC controller
• servo motor: YASKAWA (2.2 kW)
• temperature controller: AISET
• inverter
• copper sealing moulds (2 pieces)
