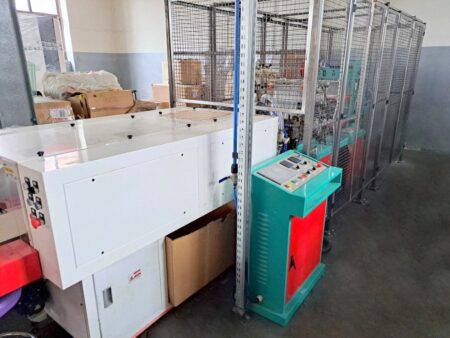

RUIAN KODA MACHINERY ENG-500 foil gloves making machine

RUIAN KODA MACHINERY ENG-500 foil gloves making machine, manufactured in China in 2020 is dedicated to the production of foil products i.e. breakfast bags or disposable gloves, using interchangeable sealing moulds. The robust steel body of the film glove production line ensures high operating stability, even at maximum production speed.

The copper dies included with the machine allow for the production of high-quality disposable gloves with a maximum length of 400 mm and a width of 300 mm. The ENG-500 automatic film glove production line produces up to 500 pieces of this type of item in one minute. The produced gloves are characterised by two thick layers, effectively protecting the hands from viruses and bacteria.

The automatic film glove production line is equipped with, among others, an AISET temperature controller, a PLC controller and a 2.2 kW YASKAWA servo drive, which ensures high-precision material feeding. The total weight of the film glove production line is 1200 kg.

Characteristics of the RUIAN KODA MACHINERY ENG-500 foil gloves making machine

• production speed: 200-500 pcs/min
• maximum glove length: 400 mm
• minimum glove length: 200 mm
• maximum glove width: 300 mm
• minimum glove width: 240 mm
• number of layers: 2
• film thickness: 0.008-0.02 mm
• maximum unwinder diameter: 450 mm
• main motor power: 2.2 kW
• power supply: 3×380 V; 50 Hz
• dimensions (L x W x H): 3000 x 1050 x 1850 mm
• weight of ENG-500 production line: 1200 kg

Equipment of the foil gloves making machine

• PLC controller
• servo motor: YASKAWA (2.2 kW)
• temperature controller: AISET
• inverter
• copper sealing moulds (2 pieces)
