Saw for cutting aluminum and PVC ELUMATEC DG 104/01

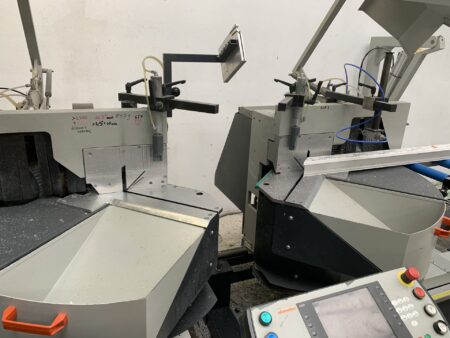

ELUMATEC DG 104/01 double mitre saw for cutting aluminum and PVC was manufactured in 2009 in Germany. The rotation speed of the saw is 2800 rpm. The circular saw can cut workpieces with a minimum length of 335 mm and a maximum length of 4500 mm. The machine has two cutting heads (two cutting discs) that simultaneously cut the profile on both sides, which reduces the processing time by half. In addition, the double miter saw is equipped with, among others, a feeder and cutting discs.

Technical parameters of the saw for cutting PVC and aluminum ELUMATEC DG 104/01

– saw rotation speed: 2800 rpm
– minimum cutting element: 335 mm
– maximum cutting element: 4 500 mm
– cutting angle: 90 degrees to 22.5 degrees
– air consumption without sprinkler: 40 l
– air consumption with sprinkler: 64 l
– voltage: 400 V
– output power: 4 KW
– saw dimensions: 4380 + 1500 x 1210 + 770 x 1985 mm
– weight: 1640 kg

Equipment of the circular saw ELUMATEC DG 104/01

– feeder + extra bed
– cutting discs: fi 420 mm + spare discs
– manual in English
– Technical Documentation
