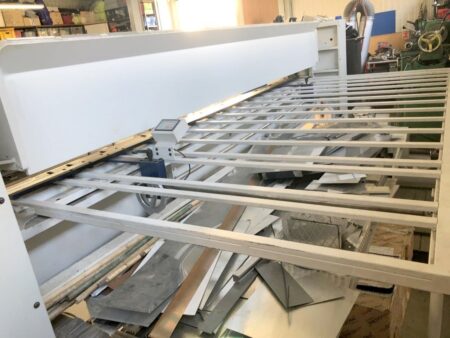

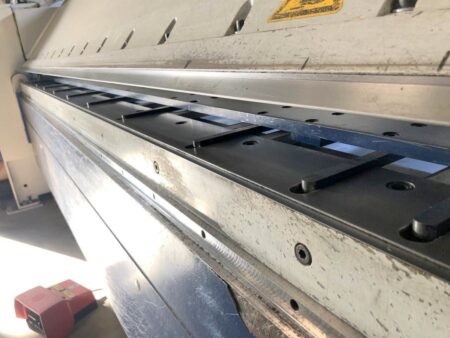

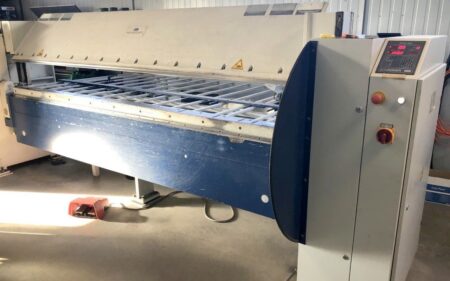

SCHRÖDER MAK II 3000/2.0 folding machine

SCHRÖDER MAK II 3000/2.0 folding machine manufactured in Germany in 2007, is used to bend various types of sheet metal having a maximum length of 3020 mm and a thickness of 2 mm. Previously, the machine primarily worked on 0.5 mm thick sheets. The sturdy design of the folding machine gives the possibility to adapt the machine to the individual needs of the user and guarantees excellent bending quality.

The sheet metal folding machine is in very good condition. It is equipped with e.g. a SCHRÖDER POS 400 NC control for setting the machining parameters and a foot control pedal, significantly improving operator comfort. The total weight of the machine is 3350 kg.

Technical specifications of the SCHRÖDER MAK II 3000/2.0 sheet metal folding machine

• maximum working length: 3020 mm
• maximum thickness of workpiece: 2 mm
• maximum bending angle: 135°
• upper beam lifting range: 250 mm
• bending beam adjustment: 80 mm
• working height: 975 mm
• motor power: 4 kVA
• power supply: 3×400 V; 50 Hz
• overall dimensions (L x W x H): 4185 x 1650 x 1425 mm
• weight of SCHROEDER MAK II 3000/2,0 machine: 3350 kg

Equipment of the SCHRODER folding machine

• NC control: SCHRÖDER POS 400
• foot control pedal
• bending knife 10 mm
• bending knife 20 mm
• technical documentation of the machine
