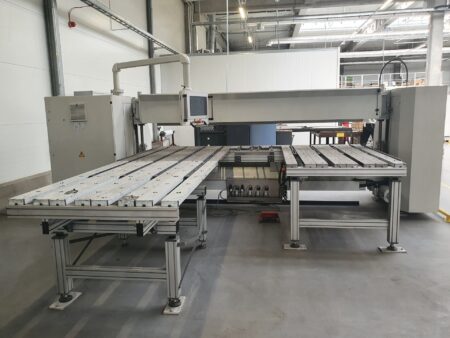

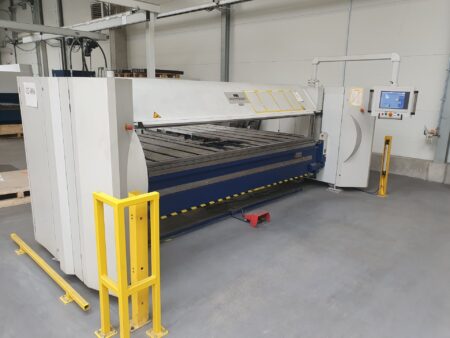

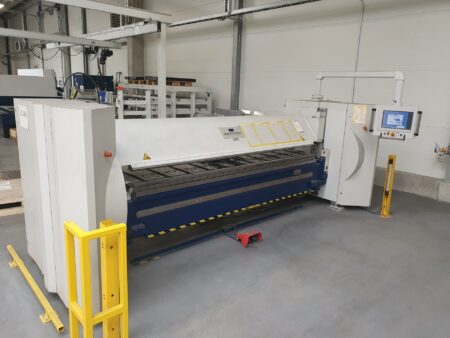

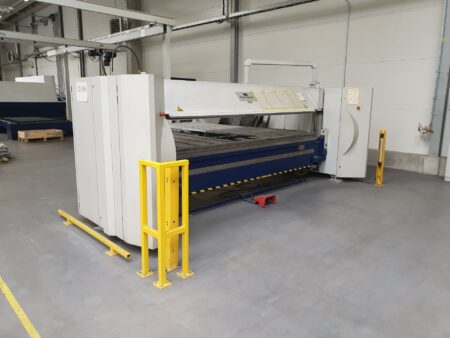

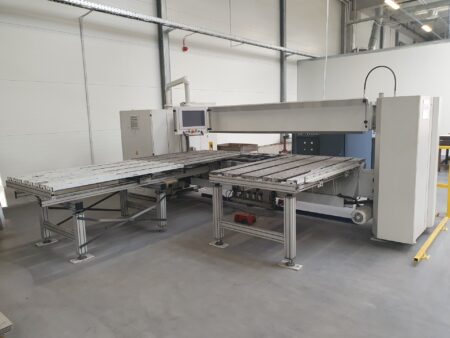

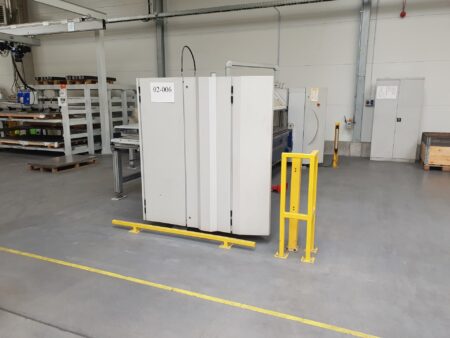

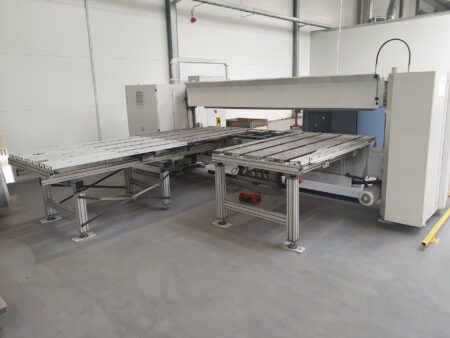

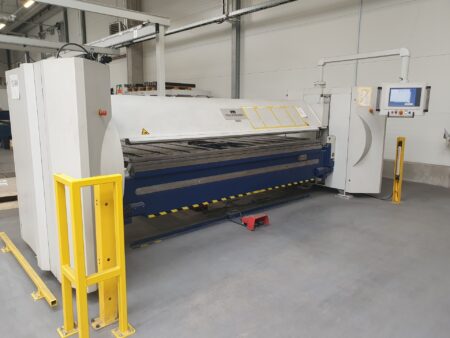

SCHROEDER SPB 3200 x 3.0 CNC folding machine was produced in 2013. The working length of bending is 3220 mm, and the maximum thickness of the processed sheet is 3 mm. It is equipped with POS 2000 numerical control. The folding machine is equipped with, among others, hardened tools with a strength of 1100 N / mm2. The software enables automatic calculation of the flat pattern and has an extensive library of tools and materials to simulate bends.
Technical parameters of SCHROEDER SPB 3200 x 3.0 folding machine
– usable length: 3220 mm
– maximum thickness of the processed sheet: 3 mm
– upper beam feed: 300 mm
– vertical adjustment of the bending beam: 80 mm
– upper beam drive: 4.4 KW
– bending beam drive: 4.4 KW
– machine length: 4568 mm
– machine height: 1737 mm
– machine weight: 5400 kg
Equipment of SCHROEDER SPB 3200 x 3.0 folding machine
– servo-drives for the bending beam, upper beam, rear bumper
– opening of the upper beam 300 mm
– segmented bending beam 20 mm, hardened (option not available when there is compensation)
– segmented bending beam 23 mm free space, hardened
– sharp blade 30 degrees, R1.5, improved
– tools with a strength of 1100 N / mm2
– foot pedal
– foundation slabs with dowels

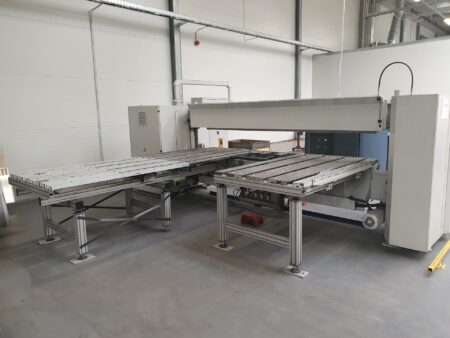

– CNC positioning bumper POS 2000 Profesional: 10-1000 mm including table
– program-controlled motorized bending beam
– engine-controlled program-controlled bottom beam
– POS 2000 control

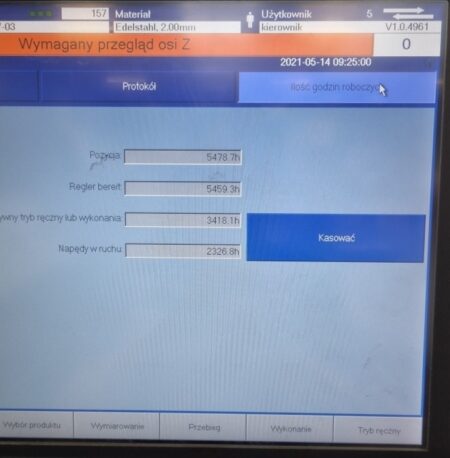

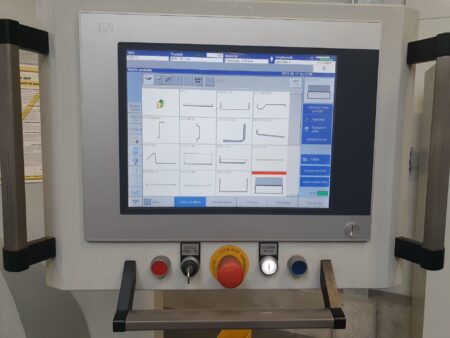

POS 2000 control:
– PC control with a touch screen on a movable arm
– USB input
– Windows XP operating system
– extensive library of profiles (products)
– automatic calculation of the expansion
– library of tools and materials
– simulation of bends performed on a scale
– zoom function
– continuously adjustable CNC machine axes
