SENTE MAKINA HDTF-SI tube forming machine

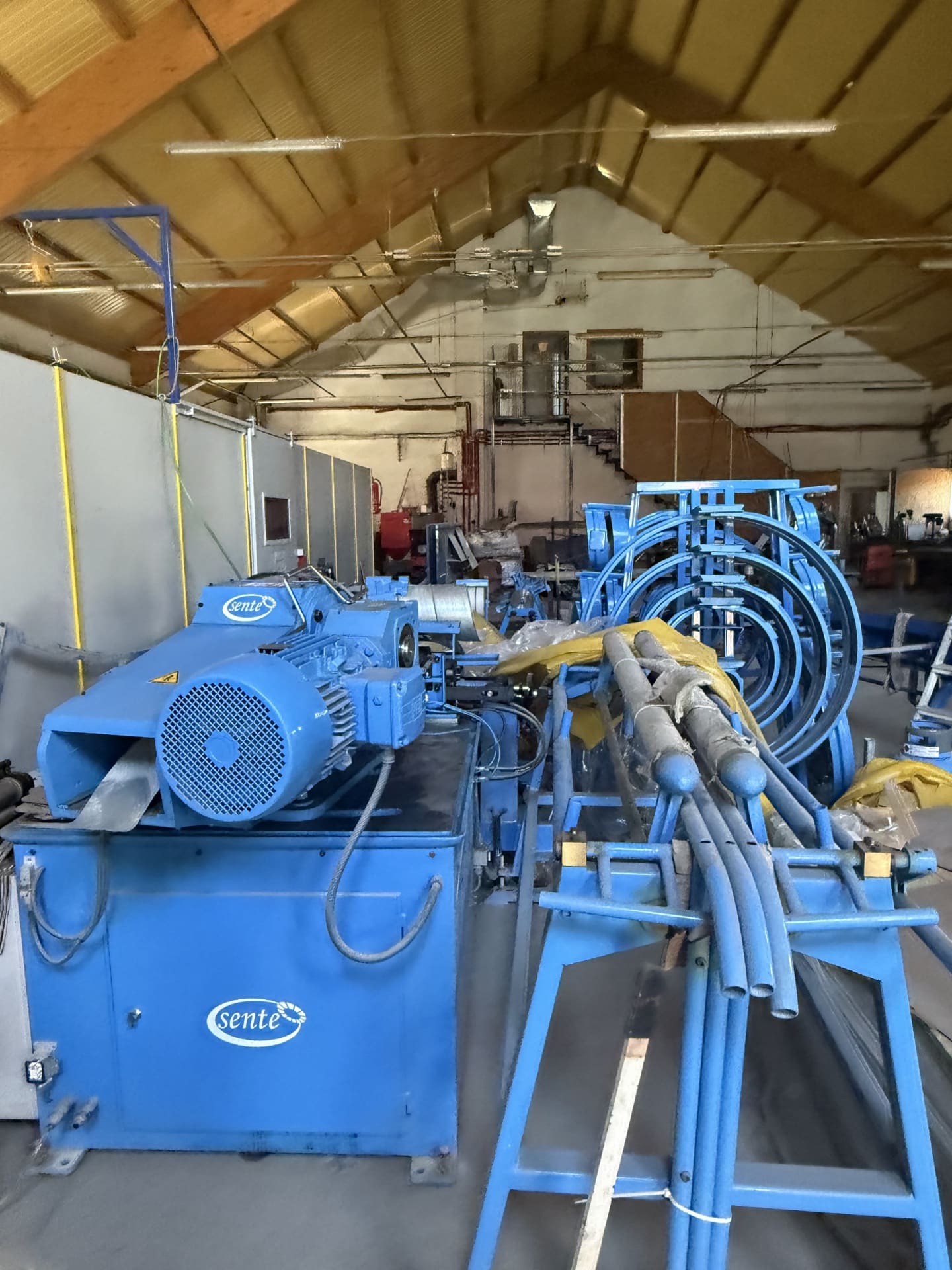

SENTE MAKINA HDTF-SI tube forming machine was built in 2022 in Turkey by SENTE MAKINA İNŞ. SAN. VE TIC. LTD. ŞTI. The machine is used in the HVAC industry for the production of precision ventilation ducts, compliant with Eurovent and Smacna standards. Spiro ducts are created from thin sheets of metal with a maximum thickness of 1 mm. The innovative cutting system eliminates the noise and hot sparks typical of traditional saws, guaranteeing smooth edges without the need for additional deburring. The HDTF-SI duct forming machine weighs 2480 kg.

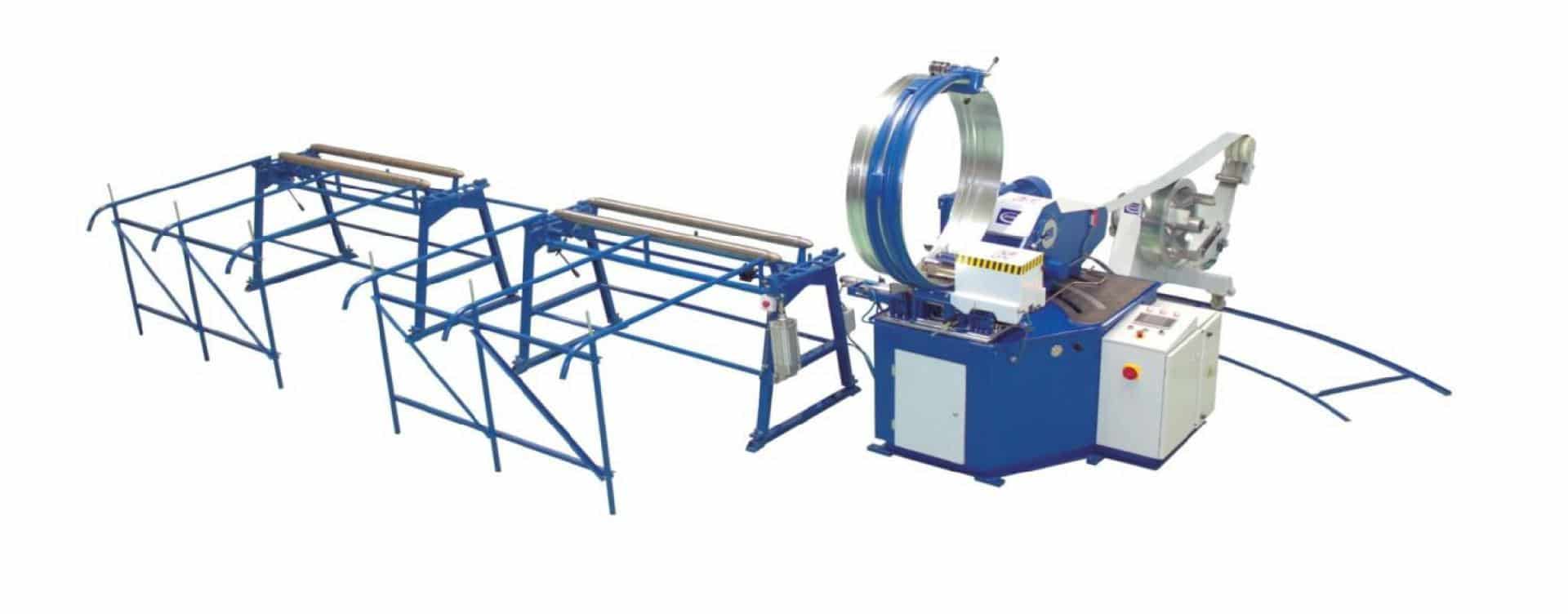

The SENTE MAKINA spiral duct machine is fully complete and consists of the following components:
– main frame
– sheet metal decoiler

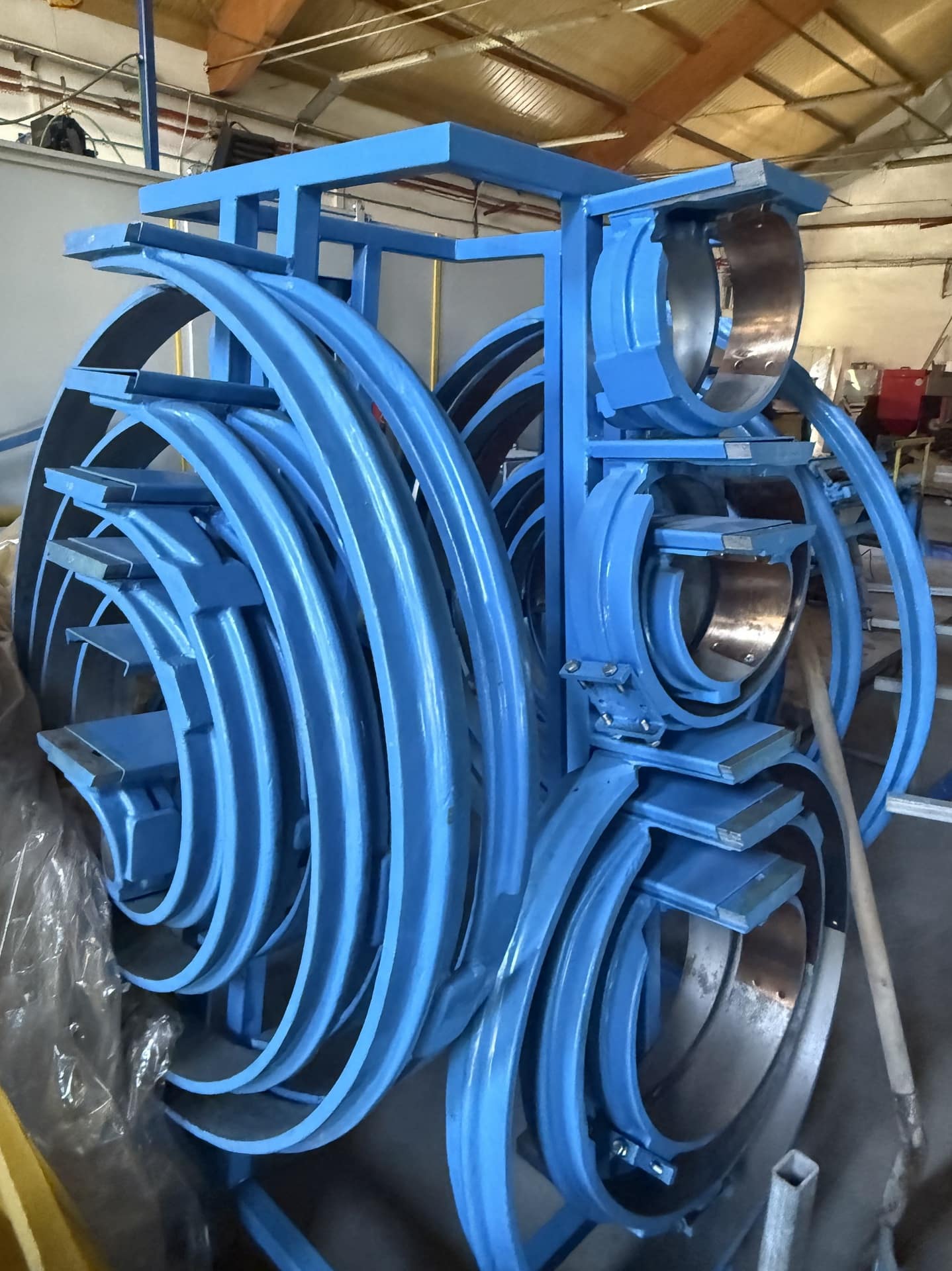

– forming heads (2 pcs.)
– cutting system
– stitching roller system for different sheet thicknesses
– unloading table (2 pcs.)

Technical data of the SENTE MAKINA HDTF-SI spiral tube machine

• ventilation duct diameter range: 100-1250 mm
• ventilation duct diameter: 100 mm; 125 mm; 150 mm; 160 mm; 180 mm; 200 mm; 224 mm; 250 mm; 280 mm; 300 mm; 315 mm; 355 mm; 400 mm; 450 mm; 500 mm; 560 mm; 600 mm; 630 mm; 710 mm; 800 mm; 900 mm; 1000 mm; 1120 mm; 1250 mm
• ventilation duct length: 500-6000 mm
• sheet metal thickness (aluminium): 0.4-1 mm
• sheet metal thickness (stainless steel): 0.4-0.8 mm
• maximum external diameter of a steel coil: 1000 mm
• minimum internal diameter of a steel coil: 508 mm
• maximum weight of a steel coil: 950 kg
• operating speed: 4-65 m/min
• air pressure: 6 bar
• air consumption: 42 l/min
• power: 15 kW
• power supply: 380-400 V; 50/60 Hz

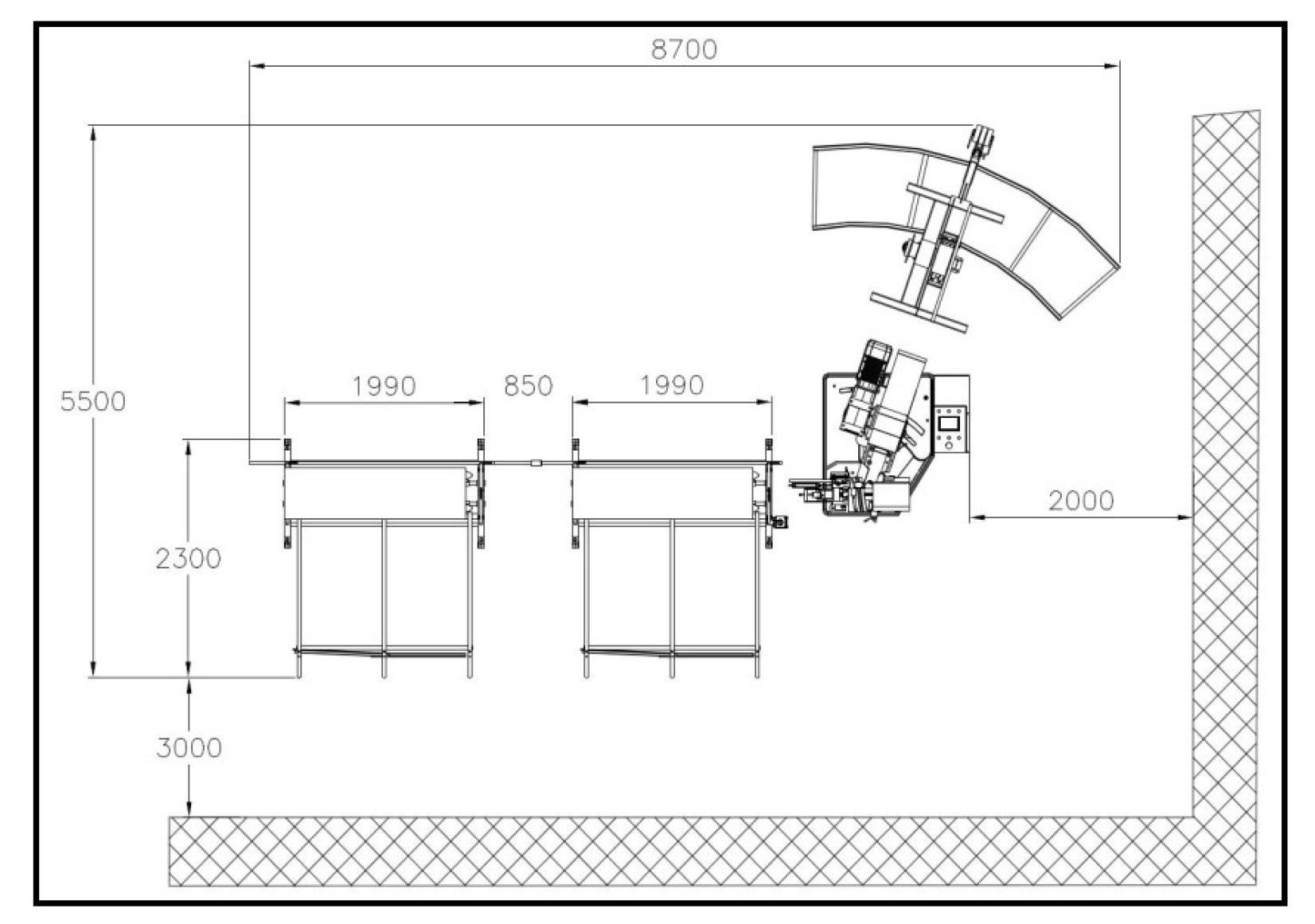

• dimensions (L x W x H): 1750 x 1460 x 1390 mm
• weight of the SENTE MAKINA HDTF-SI machine: 2480 kg
